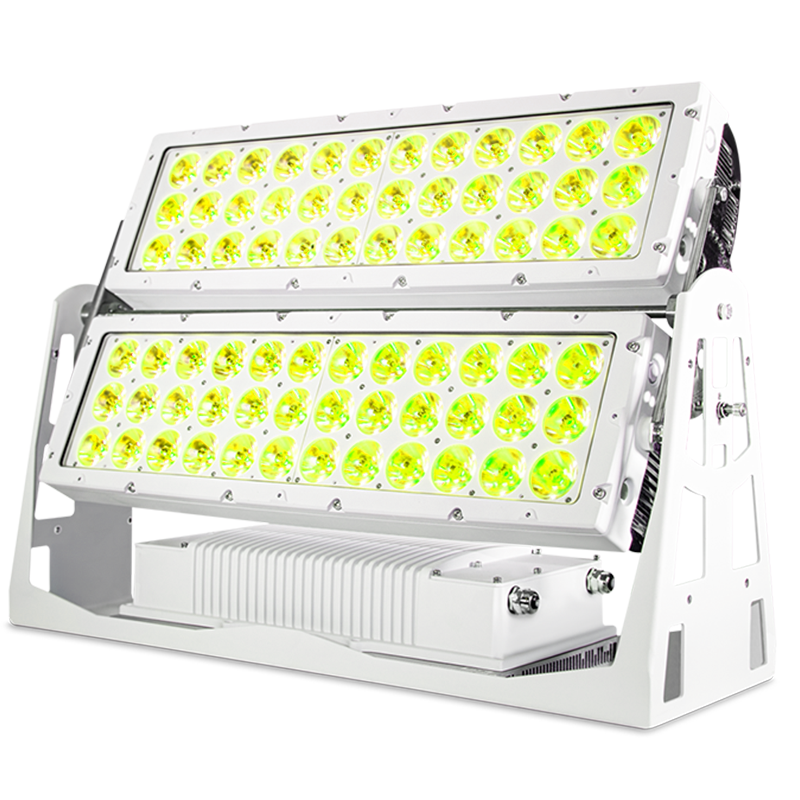

TITAN 472-RGBL

TITAN 472-RGBL

72x15 watts Multichip RGBL LED-City Wash

TITAN 472-RGBL is a 72×15 watts multi-chip RGBL, LED city wash. It has excellent color mixing effect, high color saturation, high light efficiency, high illumination, high perfor-mance, and stability, it is realizable to achieve the perfect color interpretation and ultra-long light casting distance. Optional wireless DMX 512 control, it provides diverse lighting solutions for a variety of large outdoor lighting projects, an ideal lighting fixture for towers, bridges, large venues, integrated commercial building, and other large occasions.

SKU: TITAN472RGBL Categories: ,

TITAN 472-RGBL is a 72×15 watts multi-chip RGBL, LED city wash. It has excellent color mixing effect, high color saturation, high light efficiency, high illumination, high performance, and stability, it is realizable to achieve the perfect color interpretation and ultra-long light casting distance. Optional wireless DMX 512 control, it provides diverse lighting solutions for a variety of large outdoor lighting projects, an ideal lighting fixture for towers, bridges, large venues, integrated commercial building, and other large occasions.

SOURCE

  • Light source: 72×15 watts multi-chip RGBL
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 584300 cd (14°)

OPTICAL SYSTEM

  • Optics: 14°,  25°
  • Light output: 5,000 Lux @ 10m @ 14°

CONTROL & PROGRAMMING

  • Control Protocols: DMX 512
  • DMX control channels: 0-100%
  • Controllable sections: 8
  • Dimmer: 0% -100%; 16 Bit
  • Color Mixing: RGBL

ELECTRICAL

  • Input Voltage: AC100 – 277V
  • Max Power: 1200 W
  • Power Factor: > 0.9

CONNECTIONS

  • Power connection: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 881 x 252 x 569 mm
  • Net Weight: 46 kg
  • Color: Off – white (Gray, Black Optional)
  • Housing: Die-cast aluminum
  • Security: Anti-thunder shock protection design
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
