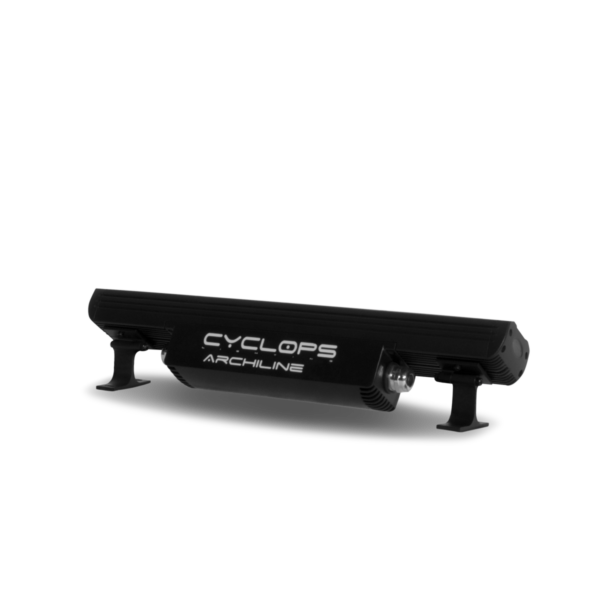

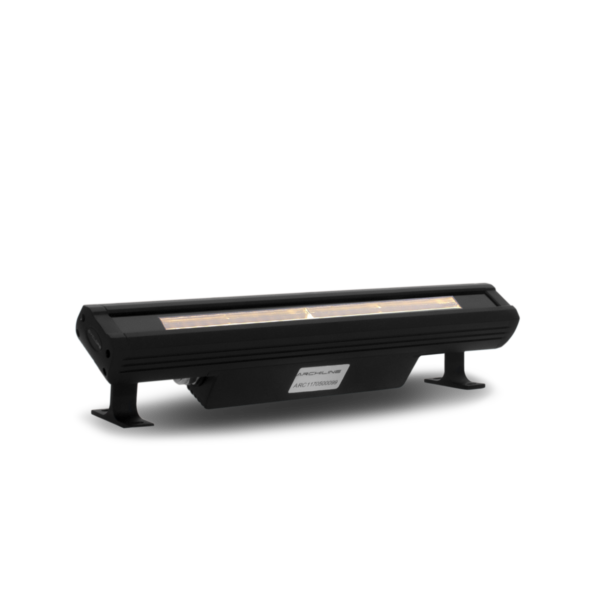

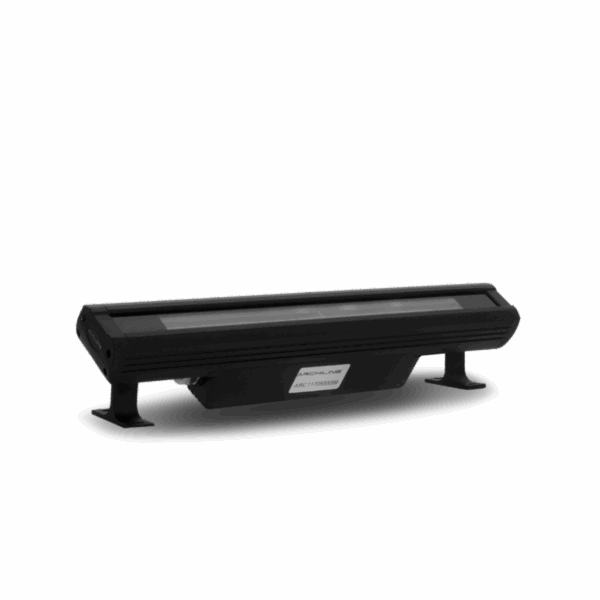

Outdoor, white LED wash bar

Archiline 2 is a 24 x 3 watts outdoor warm white LED bar. This IP rated linear bar wash has high brightness output and is de­signed in a compact size to fit any indoor or outdoor architectural application.

SKU: ARCH2 Categories: ,

SOURCE

  • Light source: 24 x 3 watts CREE  Warm white LEDs, 35x35mm
  • LED life expectancy: 50,000 Hrs

OPTICAL SYSTEM

  • Beam angle: 60° x 10°
  • Light output: 957 Lux @ 2m

ELECTRICAL

  • Input voltage: 100-250V/50-60Hz
  • Power consumption: 26 watts

CONNECTIONS

  • Power Connections: IP rated screw type In/Out cable connectors

 PHYSICAL

  • Dimensions: 395 x 53 x 81mm
  • Net weight: 2.1 KG
  • Color: Black
  • Housing: Die cast aluminum cover
  • IP rating: 66
  • Operation temperature: -20°C/45° C
