ARCHILINE 3

ARCHILINE 3

Outdoor, UV LED wash bar

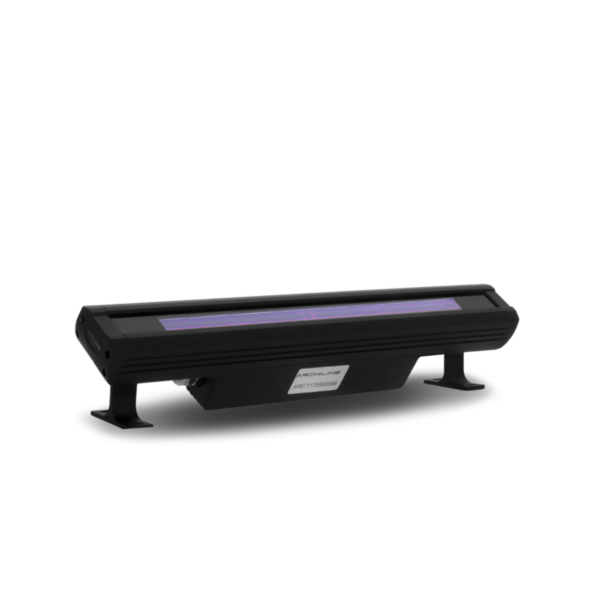

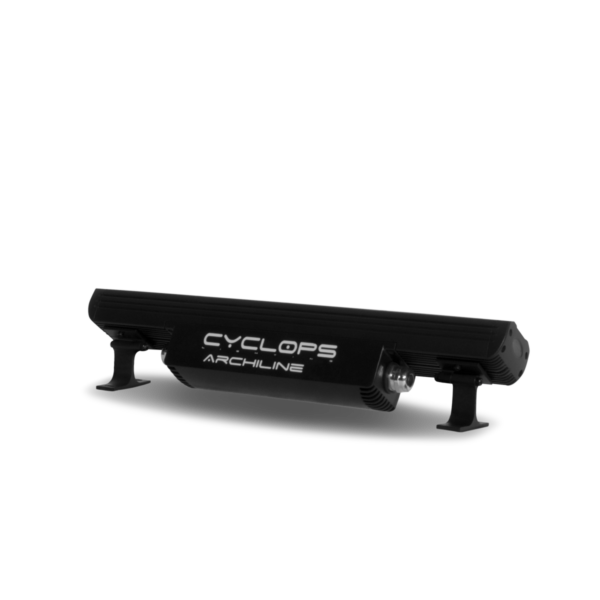

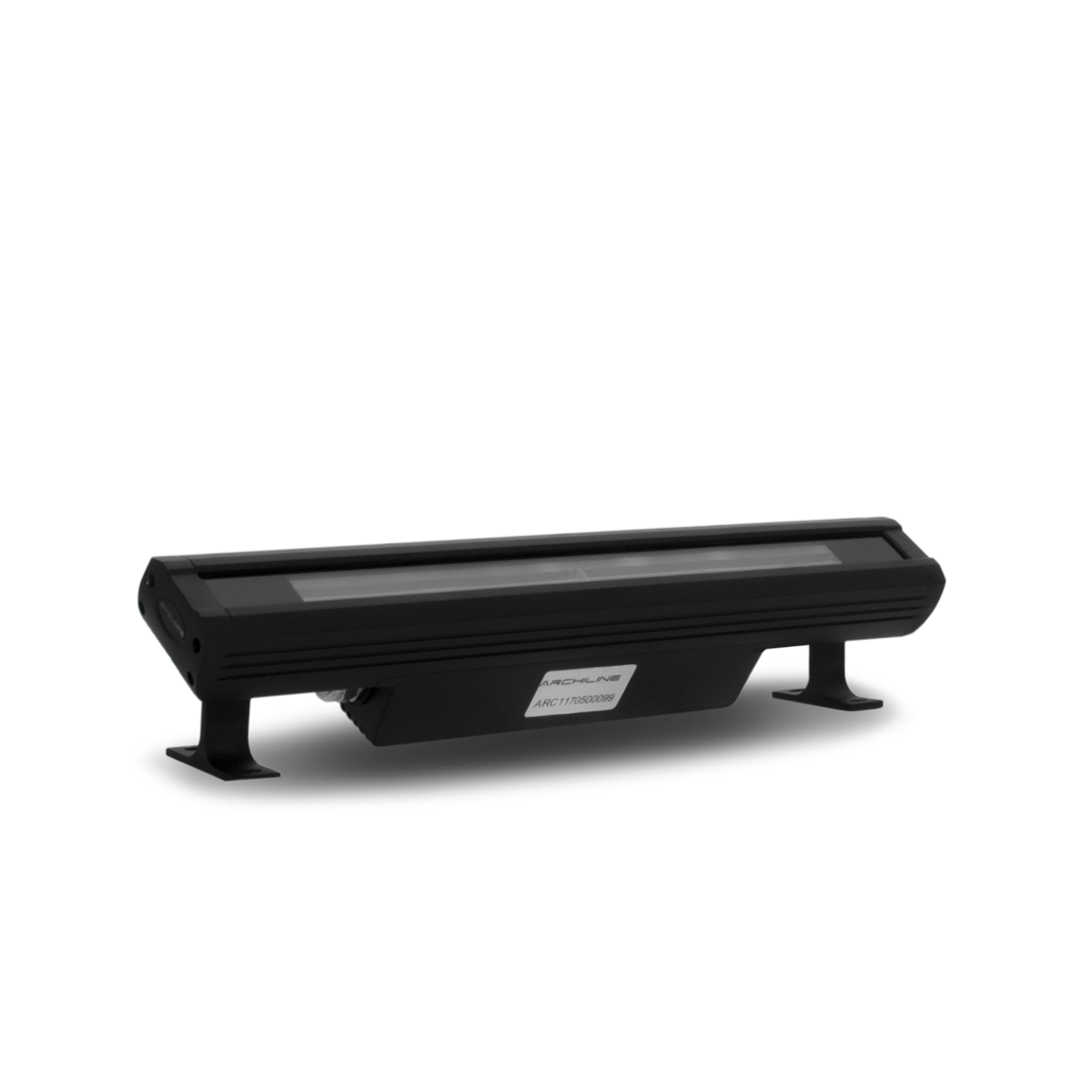

Archiline 3 is a 24 x 3 watts outdoor UV LED bar. This IP rated linear bar wash has high brightness output and is de­signed in a compact size to fit any indoor or outdoor architectural application.





SKU: ARCH3 Categories: ,

SOURCE

  • Light source: 24 x 3 watts, UV LED
  • Lamp type: SMD LED, 35 x 35mm
  • LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle: 60° x 10°
  • Light output: 61 Lux @ 2m

ELECTRICAL

  • Input voltage: 100-250V/50-60Hz
  • Power consumption: 40 watts

 CONNECTIONS

  • Power connections: IP rated screw type In/Out cable connectors

PHYSICAL

  • Dimensions: 395 x 53 x 81mm
  • Net weight: 2.1 Kg
  • Color: Black
  • Housing: Die cast aluminum cover
  • IP rating: 66
  • Operation temperature: -20°C/45°C
