CB-1

CB-1

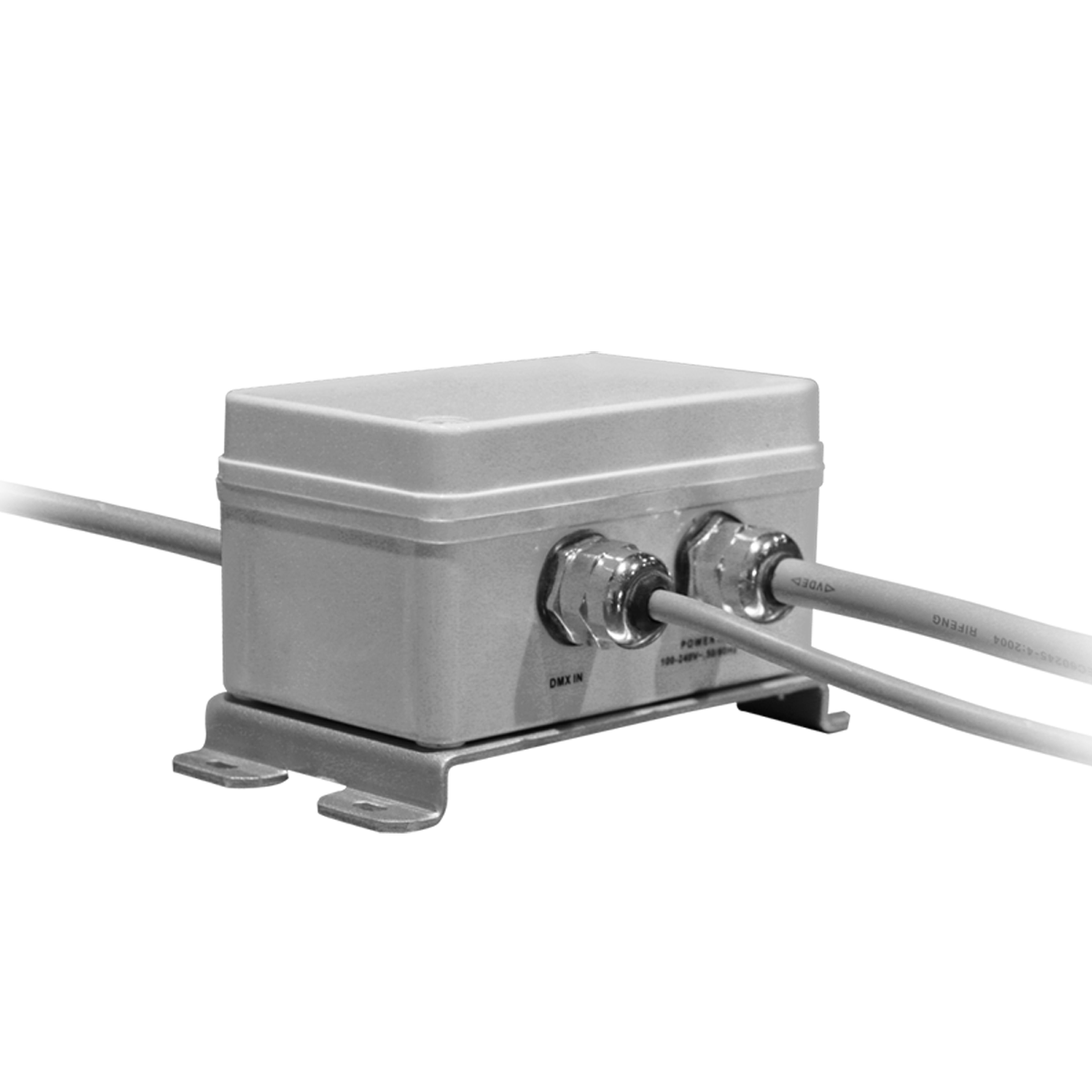

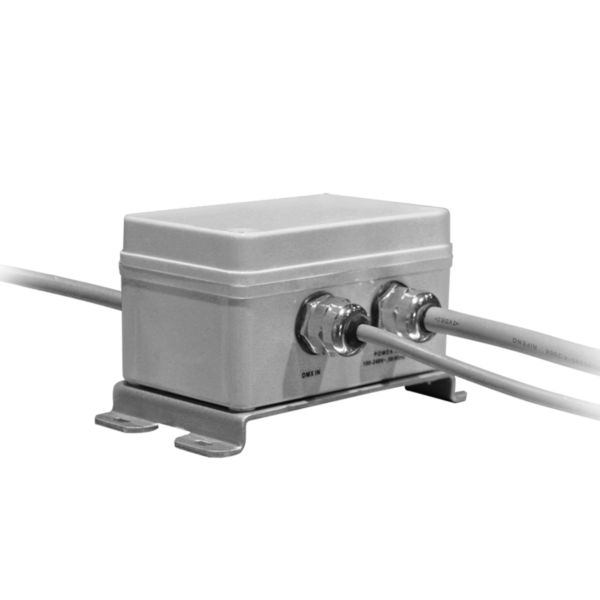

Control Box for ROD series

CB -1 is an IP67 control box for the ROD series. It feeds power and data to the fixtures. It has photoelectric isolation technology, anti-interference, lightning protection, overload protection, and other functions, with simple wiring and installation.



SKU: CB1 Category:

CONTROL & PROGRAMMING

  • Control protocols: RDM, DMX

 ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz
  • Drive current: 10A

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: 6 pin

PHYSICAL

  • Dimensions: 156 x 80 x 86.5mm
  • Weight: 1 Kg
  • Installation design: with bracket
  • IP rating:  67
