CPX 218OP

CPX 218OP

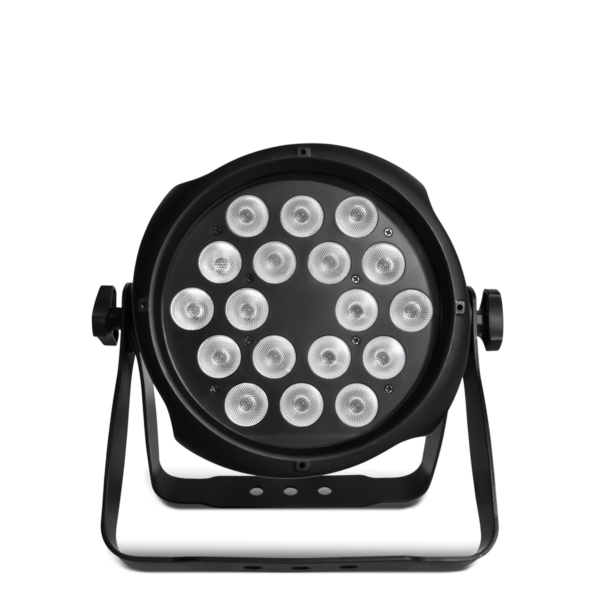

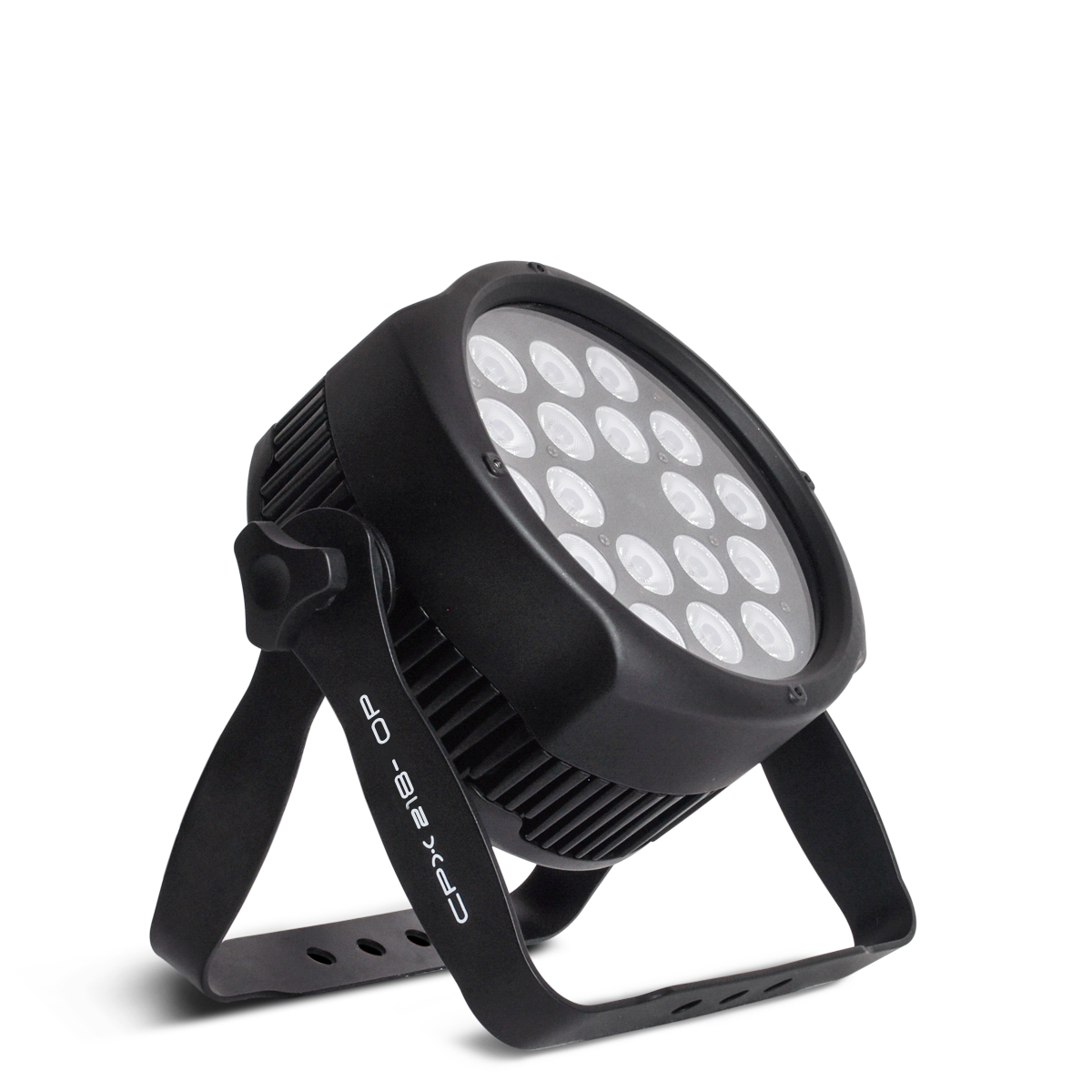

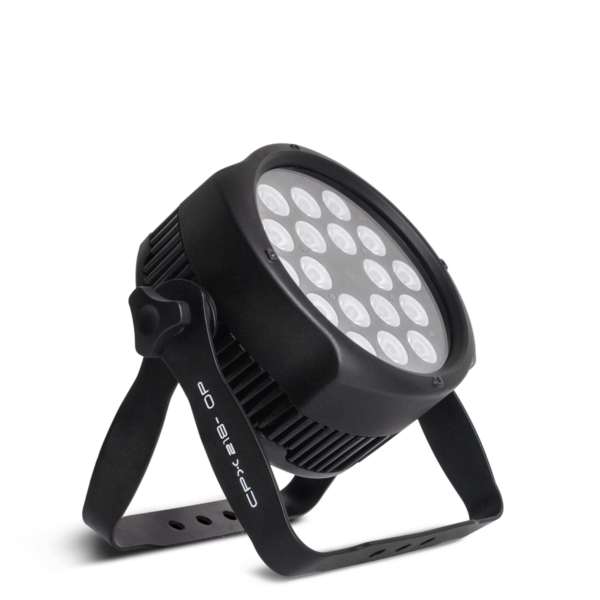

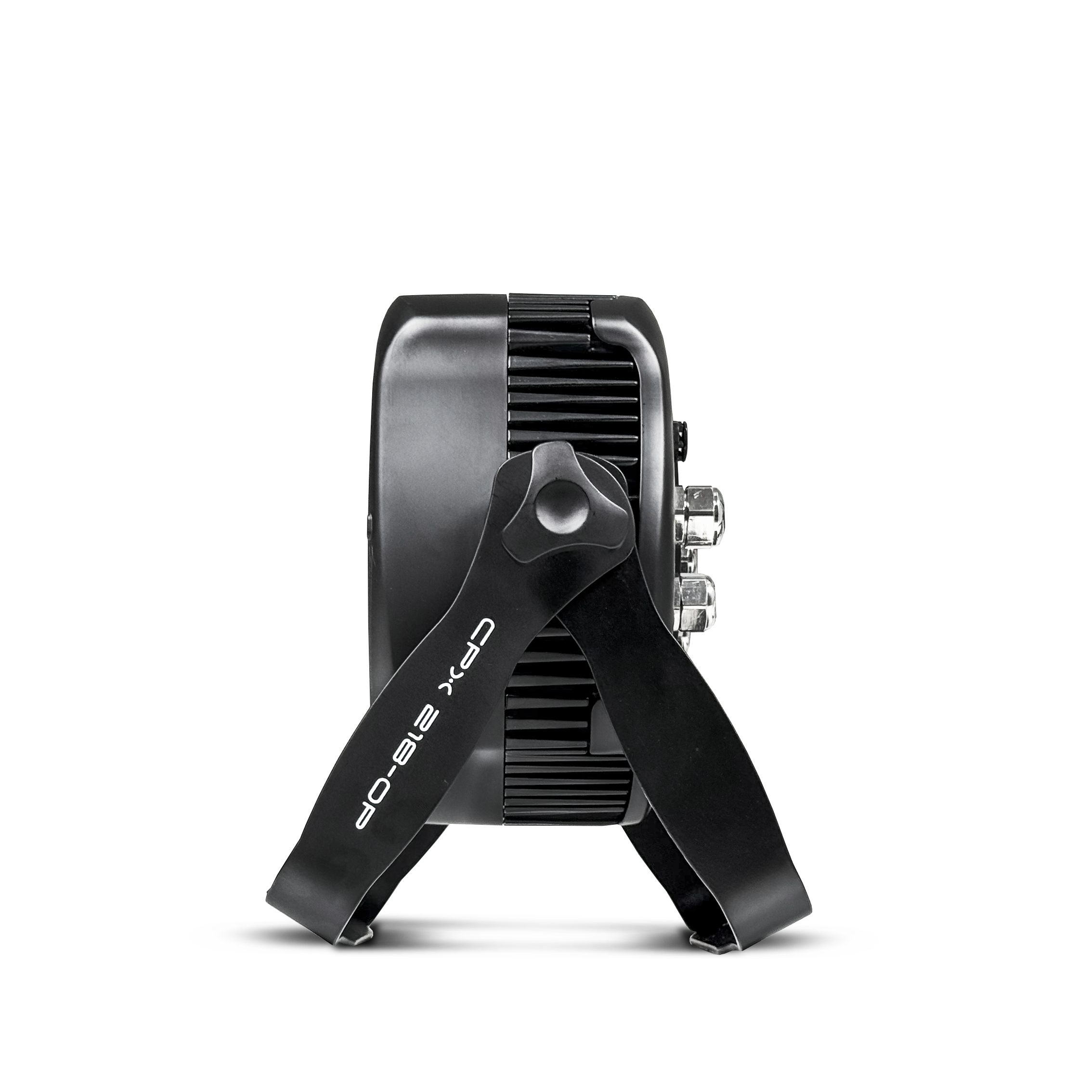

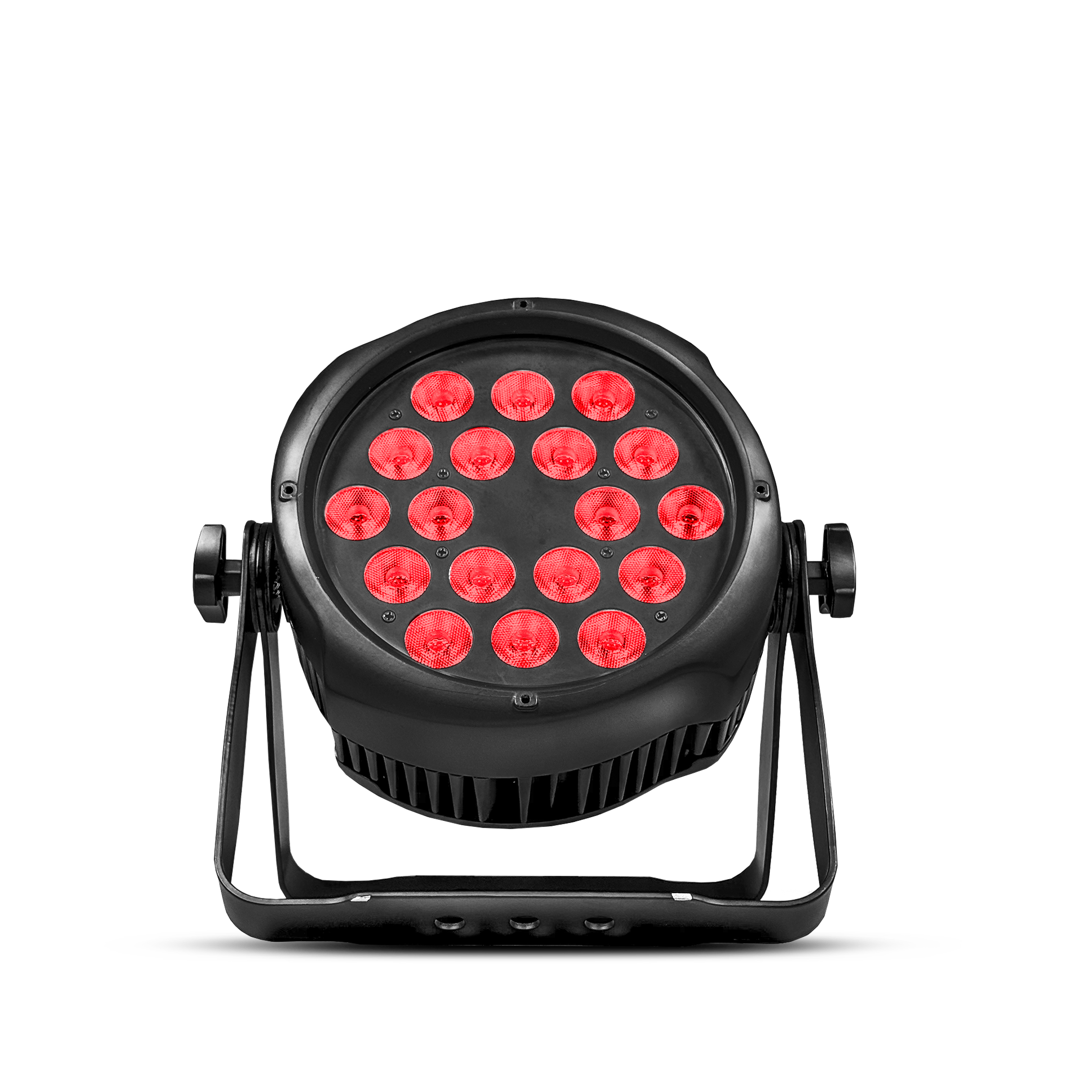

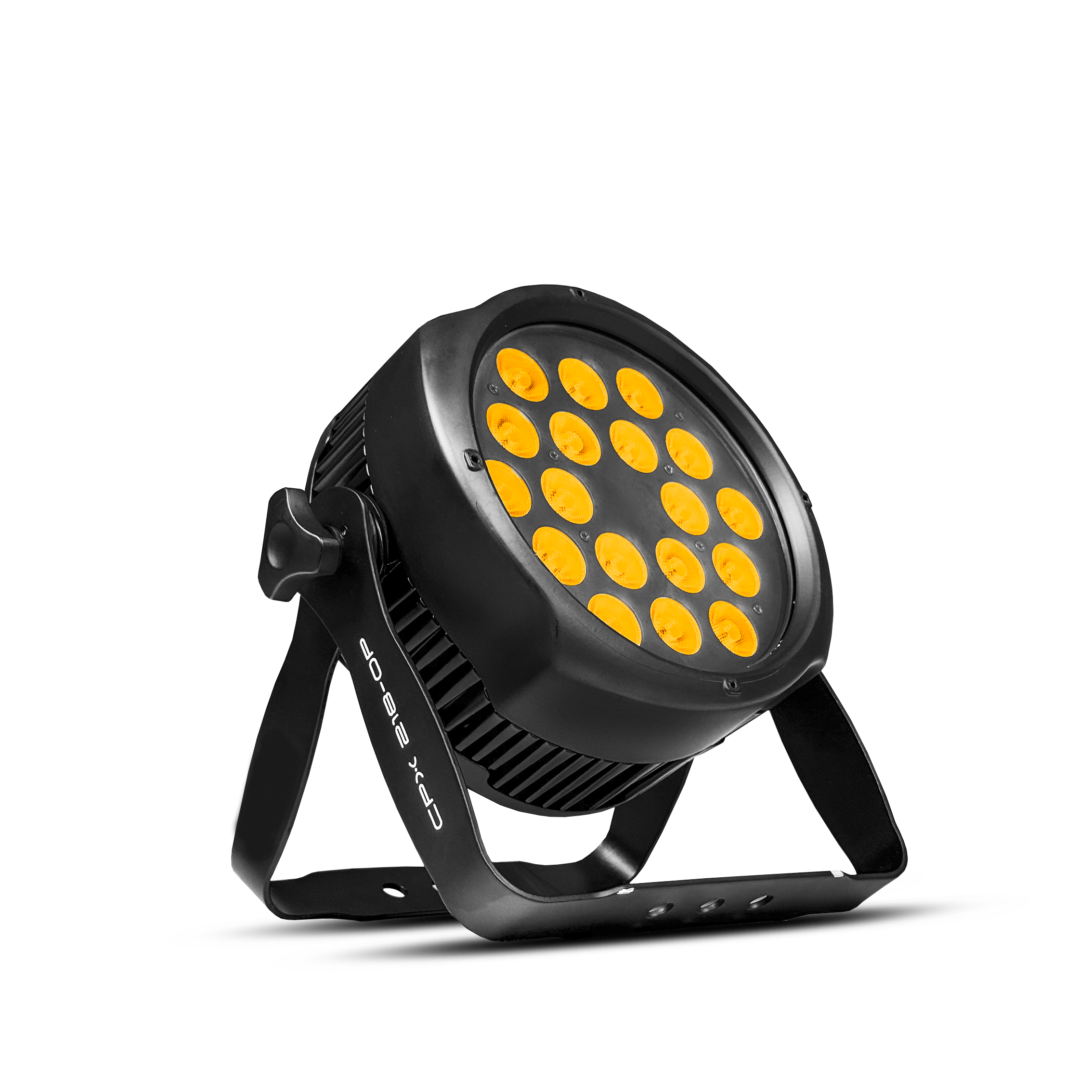

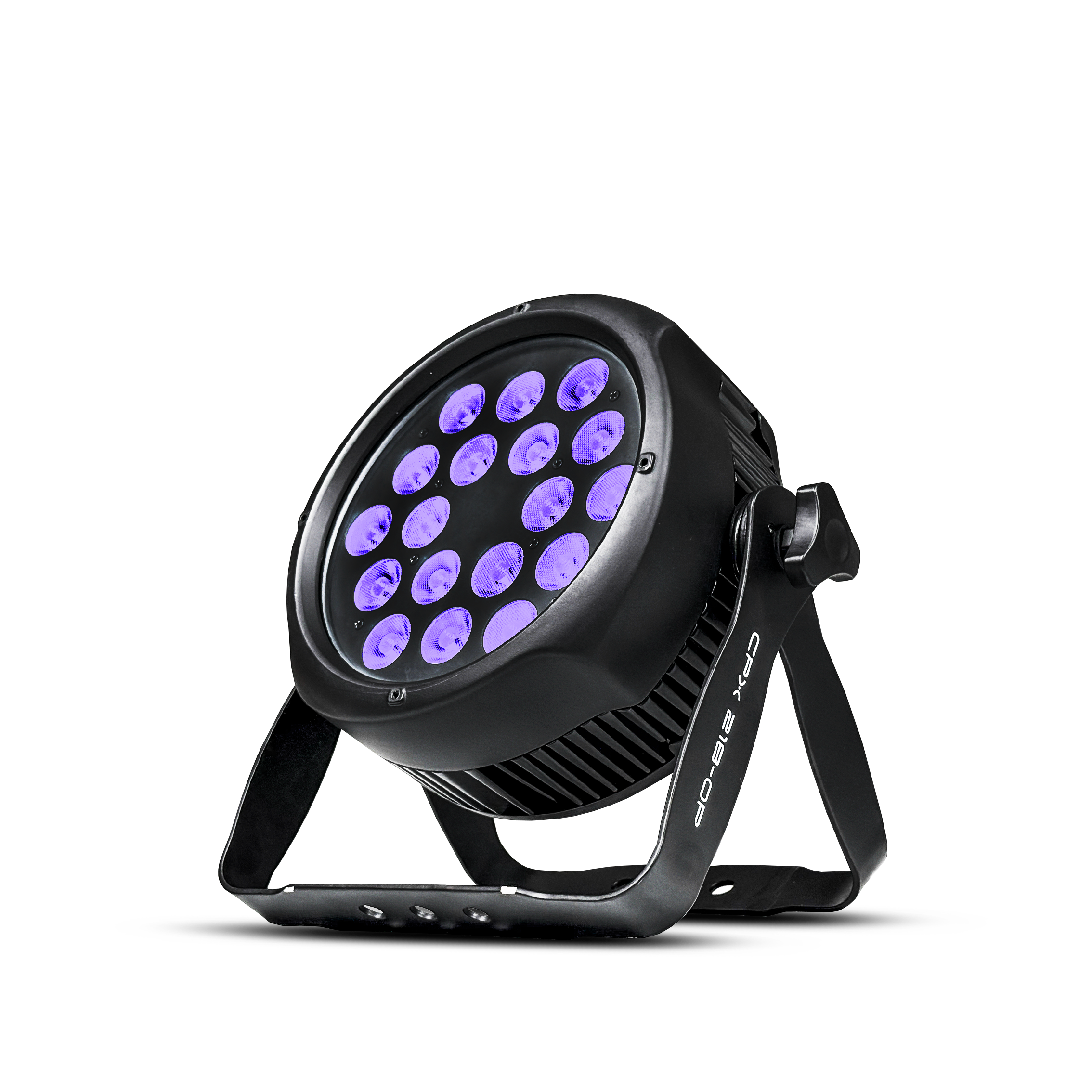

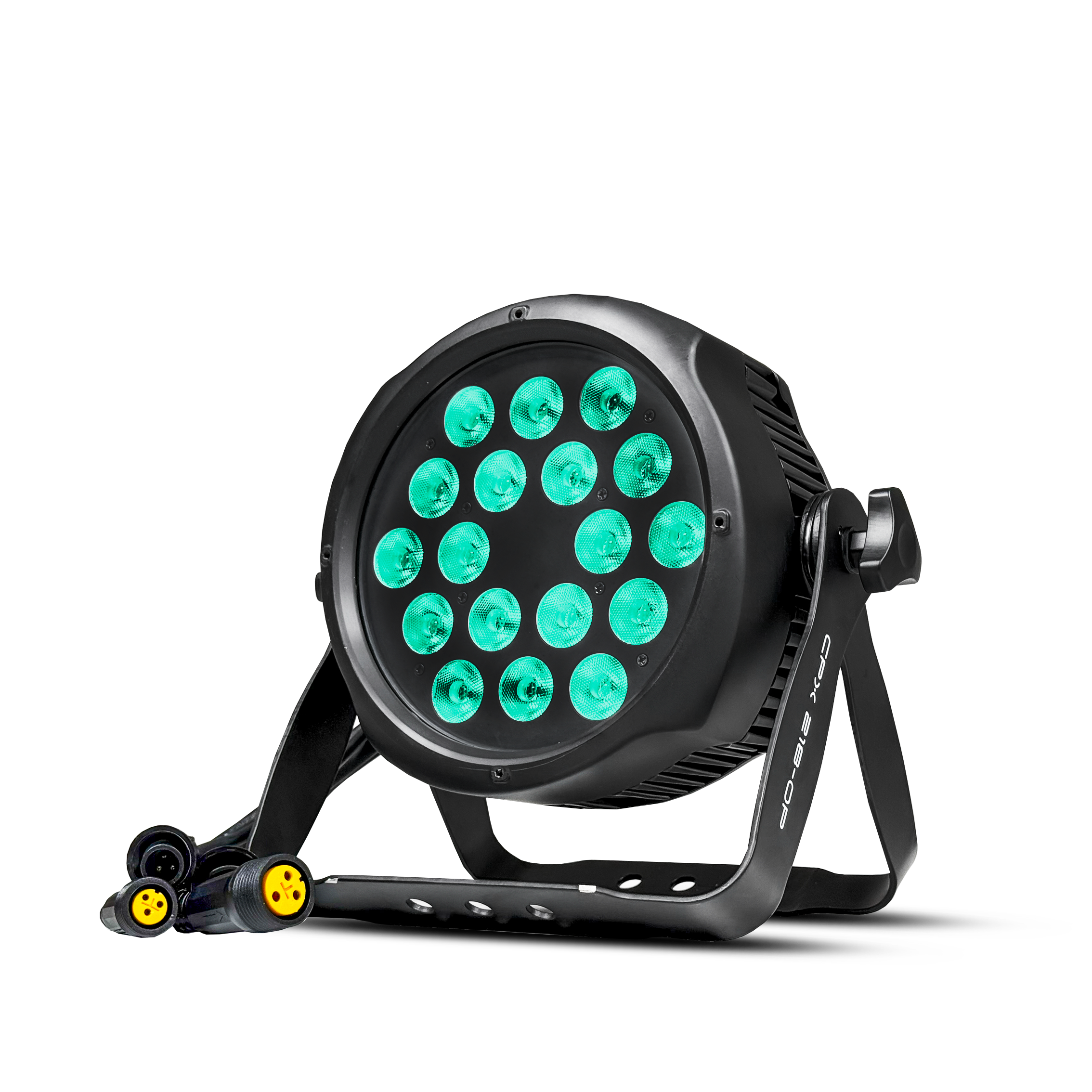

Outdoor Warm White & Cool White LED Par

The CPX 218OP is a powerful 18 x 12W outdoor LED Par, delivering a bright 7,000 Lux output with tunable cool and warm white light. Its IP65 rating and wide operating temperature make it ideal for versatile architectural and outdoor event lighting, offering flexible DMX control and built-in dynamic effects.

SKU: CPX218OP Categories: , Series: CPX

SOURCE

  • Light source: 18 x 12 watts, Cool white/Warm white LEDs
  • LED life expectancy: 50,000 Hrs.

 OPTICAL SYSTEM

  • Beam angle: 25°
  • Light output: 7,000 Lux @ 2m @ 10°

DYNAMIC EFFECTS

  • Color Temperature: Cool white/Warm white
  • Strobe and Fade effect
  • Built-in dynamic macros

 CONTROL & PROGRAMMING

  • Control protocols: DMX, Master-Slave, Auto Run
  • Display: TFT displayer with 4 buttons
  • Control channels: 3, 4, 6, 8, 11 CHs

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 230 watts

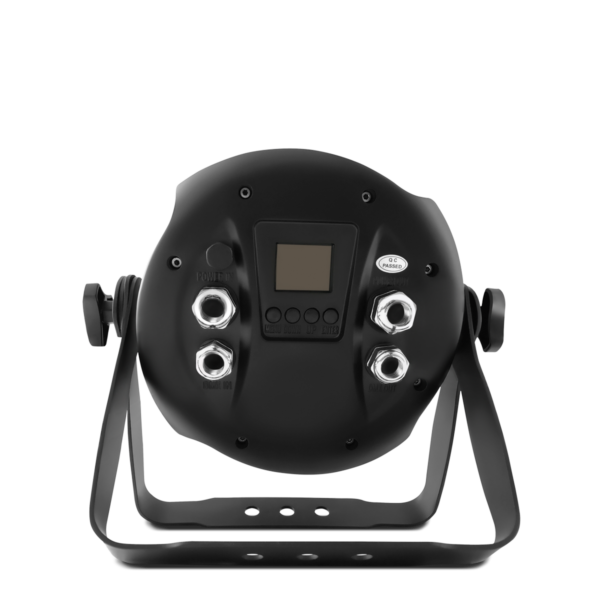

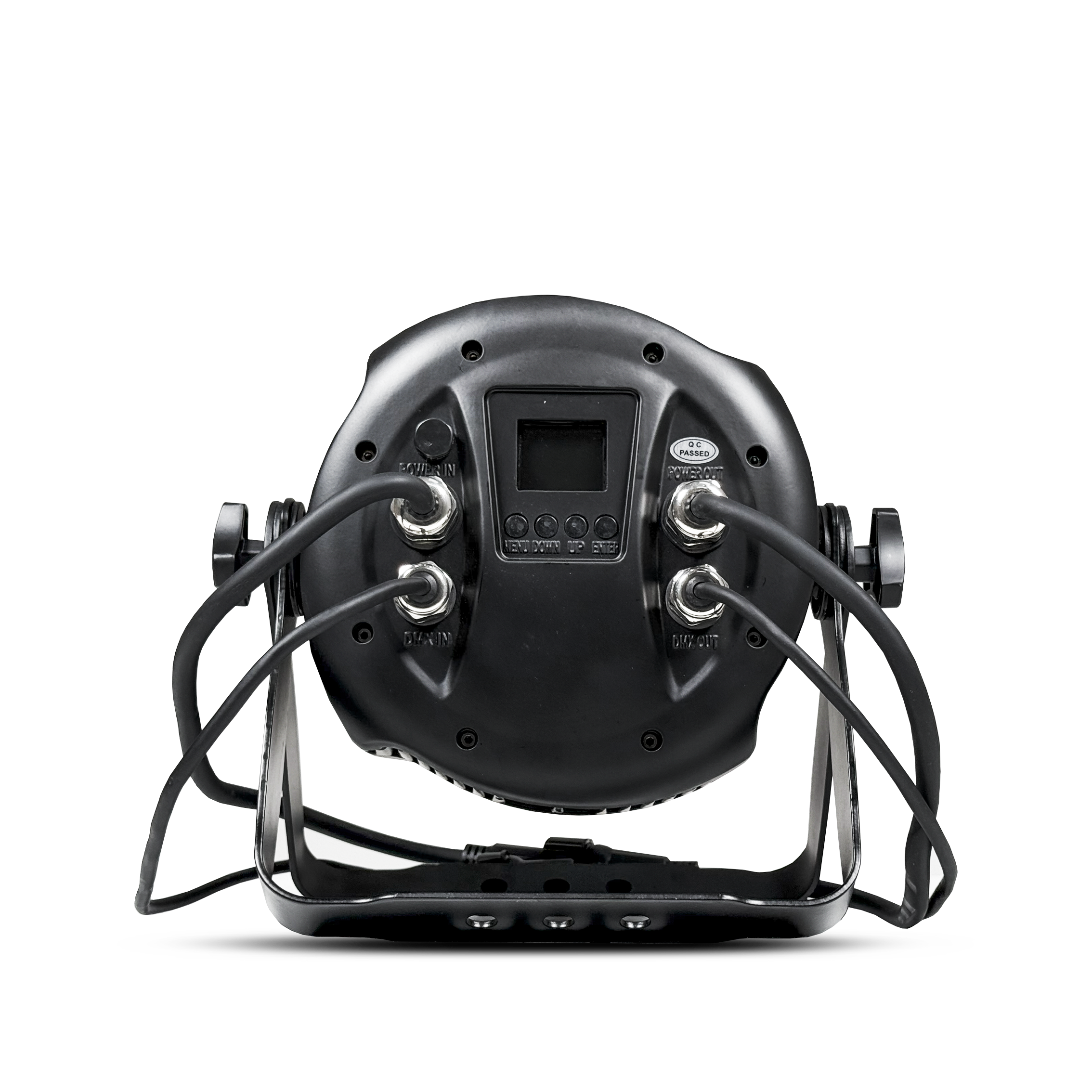

CONNECTIONS

  • DMX connections: IP DMX In/Out Cables with 3 pin screw lock connectors
  • Power connections: IP Power In/Out Cable, 3 pin screw lock connectors

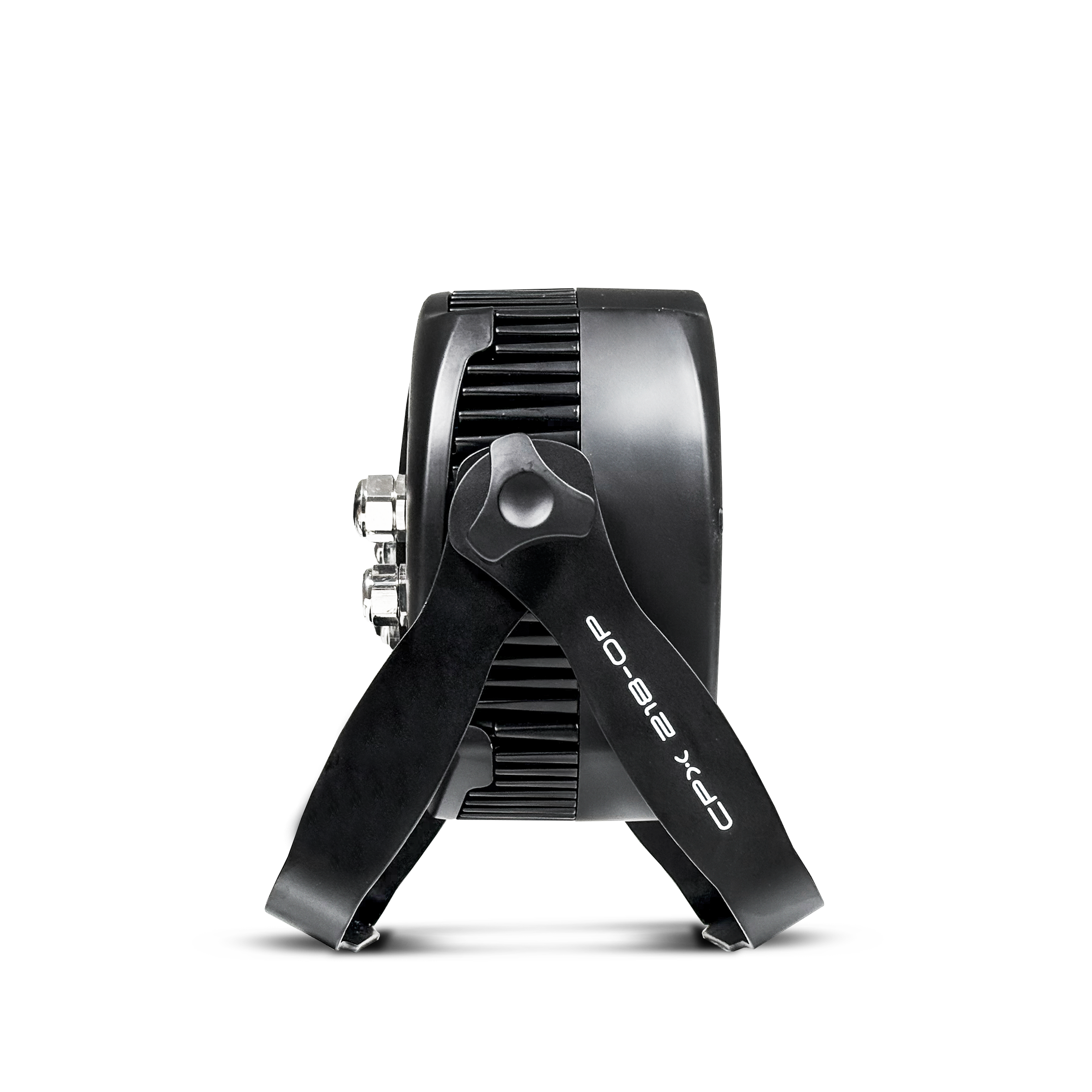

PHYSICAL

  • Dimensions: 280.32 x 142.56 x 288.28mm
  • Net weight: 5 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 65
  • Operating temperature: -20°C/45°C
