CPX180OB-06

CPX180OB-06

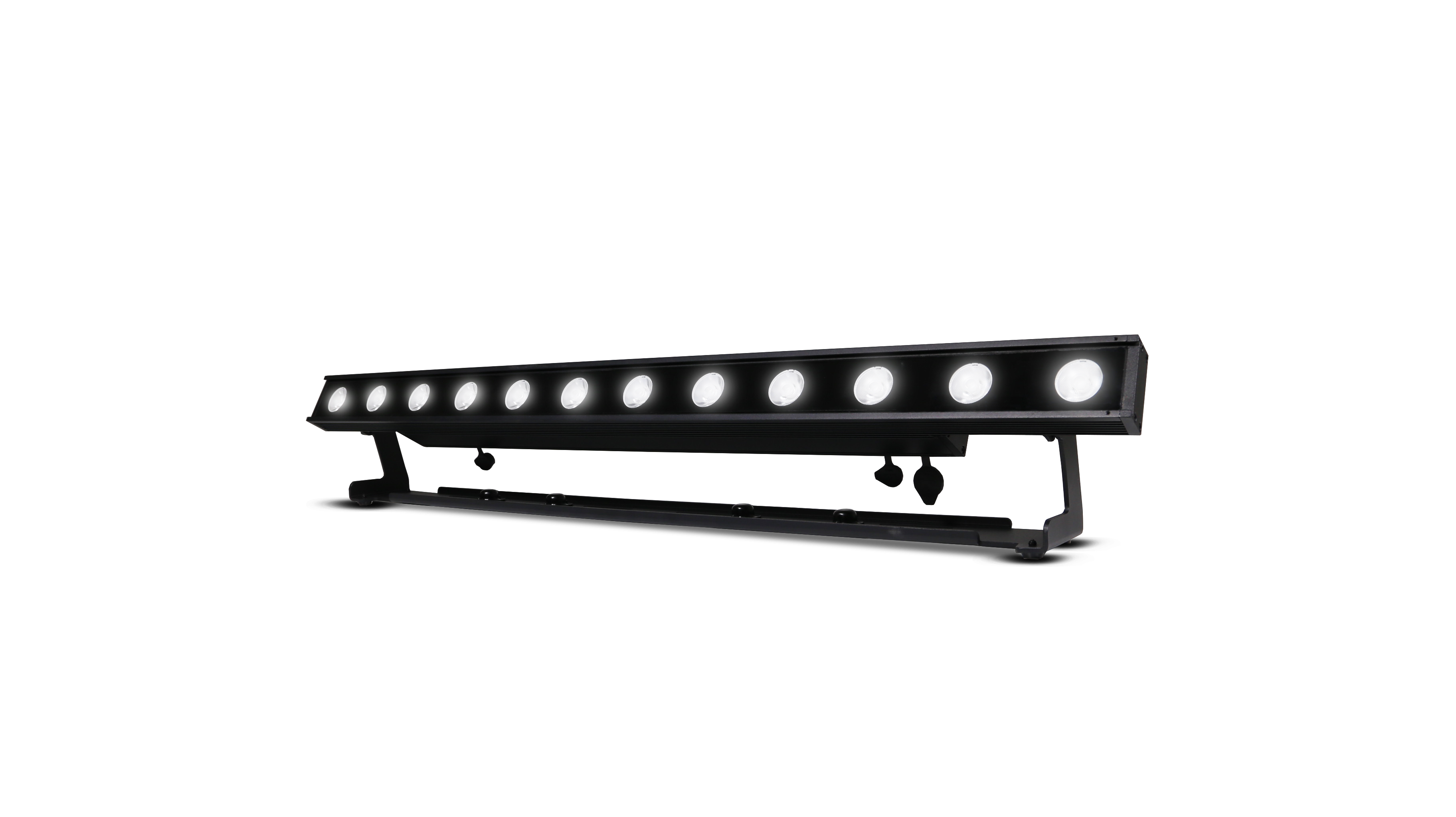

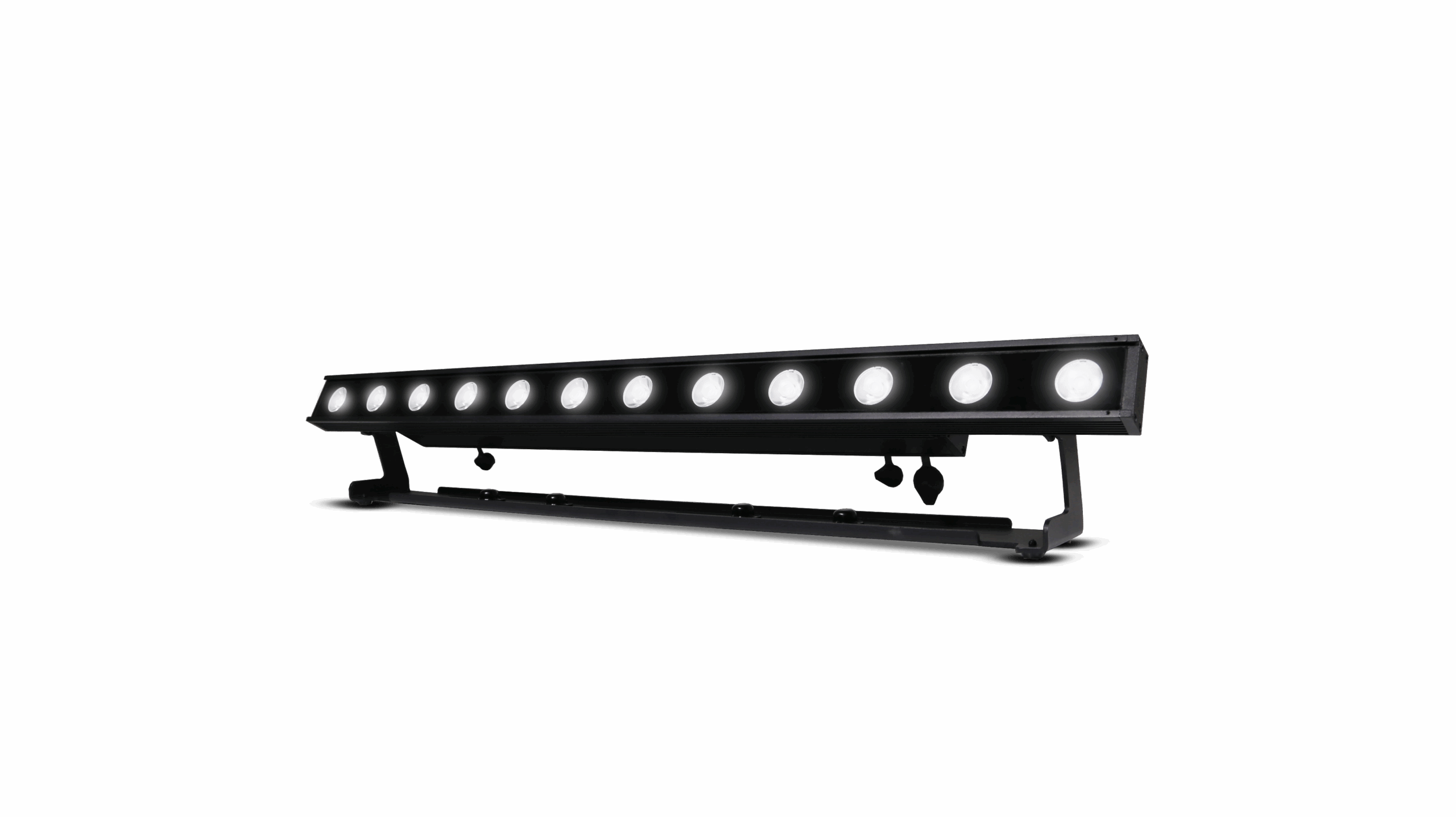

Outdoor RGBW LED Wash Bar

CPX180OB-06 is an outdoor IP65 LED Bar powered by 12 x 15W RGBW LEDs that can be controlled individually and provides a beam angle of 6°. The CPX180OB-06 is built for multipurpose architectural and entertainment applications.

SKU: CPX180OB-06 Category:

SOURCE

  • Light source: 12 x 15 watts, 4 in 1 RGBW LEDs
  • Color temperature: 2700K – 8000K
  • LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle: 6°

DYNAMIC EFFECTS

  • Dimmer: 4 selectable dimming curves
  • Strobe effect

CONTROL & PROGRAMMING

  • Control protocols: DMX and RDM is available
  • Control Channels: 3, 7, 11, 48 & 52CH
  • Four buttons with TFT LED Displayer

ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz
  • Power consumption: 140 watts

CONNECTIONS

  • DMX Connections: Seetronic IP65 XLR input and output
  • Power Connections: Seetronic IP65 true 1 power input and output

PHYSICAL

  • Dimensions: 1000 x 94.5 x 160.9mm
  • Net weight: 5.4 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 65
