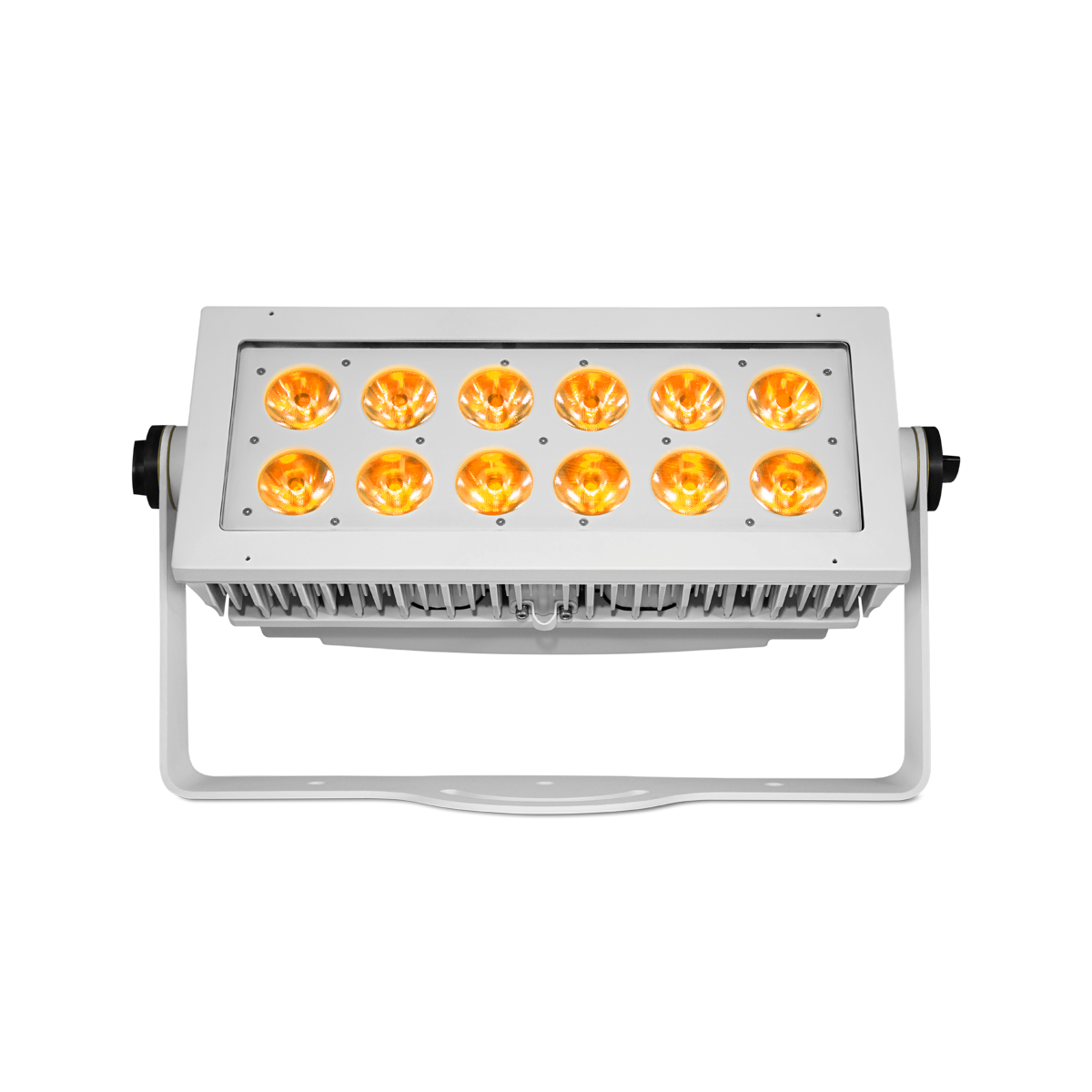

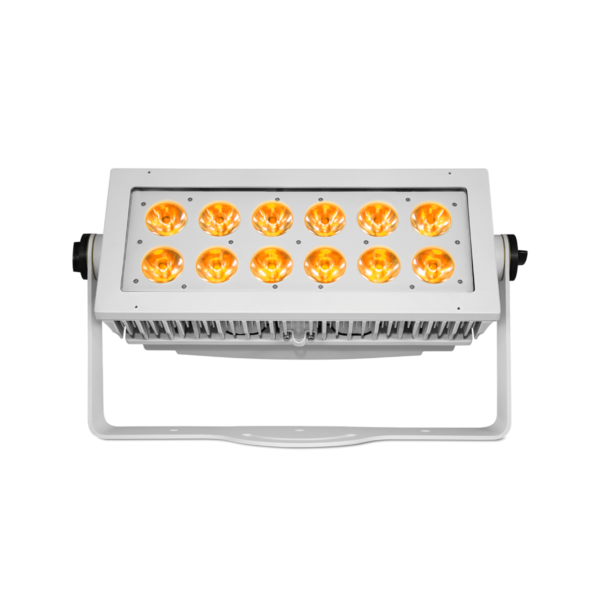

DWARF 412-RGBA

DWARF 412-RGBA

12x15 watts Multichip RGBA LED-Exterior Wash

DWARF 412-RGBA is a 12×15 watts multi-chip RGBA, LED Exterior wash. It adopts a new quad LED chips, inserted with smart temperature control system, performing high color saturation and outstanding color mixing. Employing creative digital lighting dimming technology and a flexible segment control system, the fixture makes the perfect artistic lighting effect.

SKU: Dwarf412RGBA Categories: ,

DWARF 412-RGBA is a 12×15 watts multi-chip RGBA, LED Exterior wash. It adopts a new quad LED chips, inserted with smart temperature control system, performing high color saturation and outstanding color mixing. Employing creative digital lighting dimming technology and a flexible segment control system, the fixture makes the perfect artistic lighting effect.

SOURCE:

  • Light source: 12×15 watts multi-chip RGBA
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 62500 cd (15°)

OPTICAL SYSTEM

  • Optics: 15°
  • Light output: 16,000 Lux @2m @15°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 3
  • Color Mixing: RGBA

ELECTRICAL

  • Input Voltage: AC100-240V, 50/60Hz
  • Max Power: 200 W
  • Power Factor: > 0.9

CONNECTIONS

  • Power connection: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 530 x 200 x 313mm
  • Net Weight: 12kg
  • Color: Off-white (Gray, Black Optional)
  • Housing: Die-cast aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
