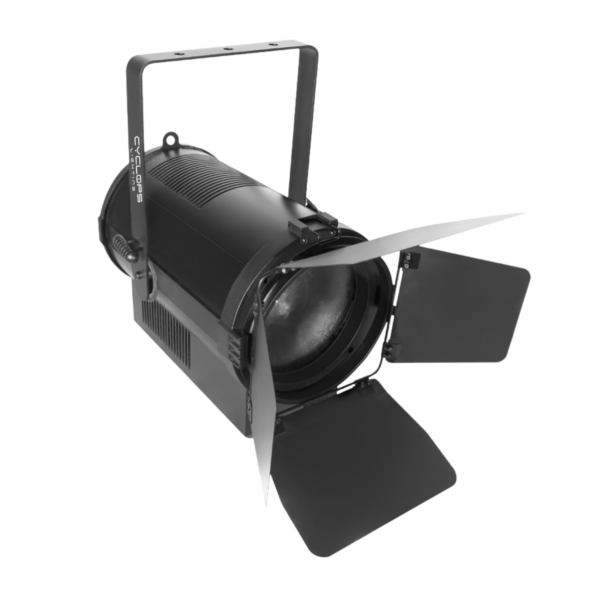

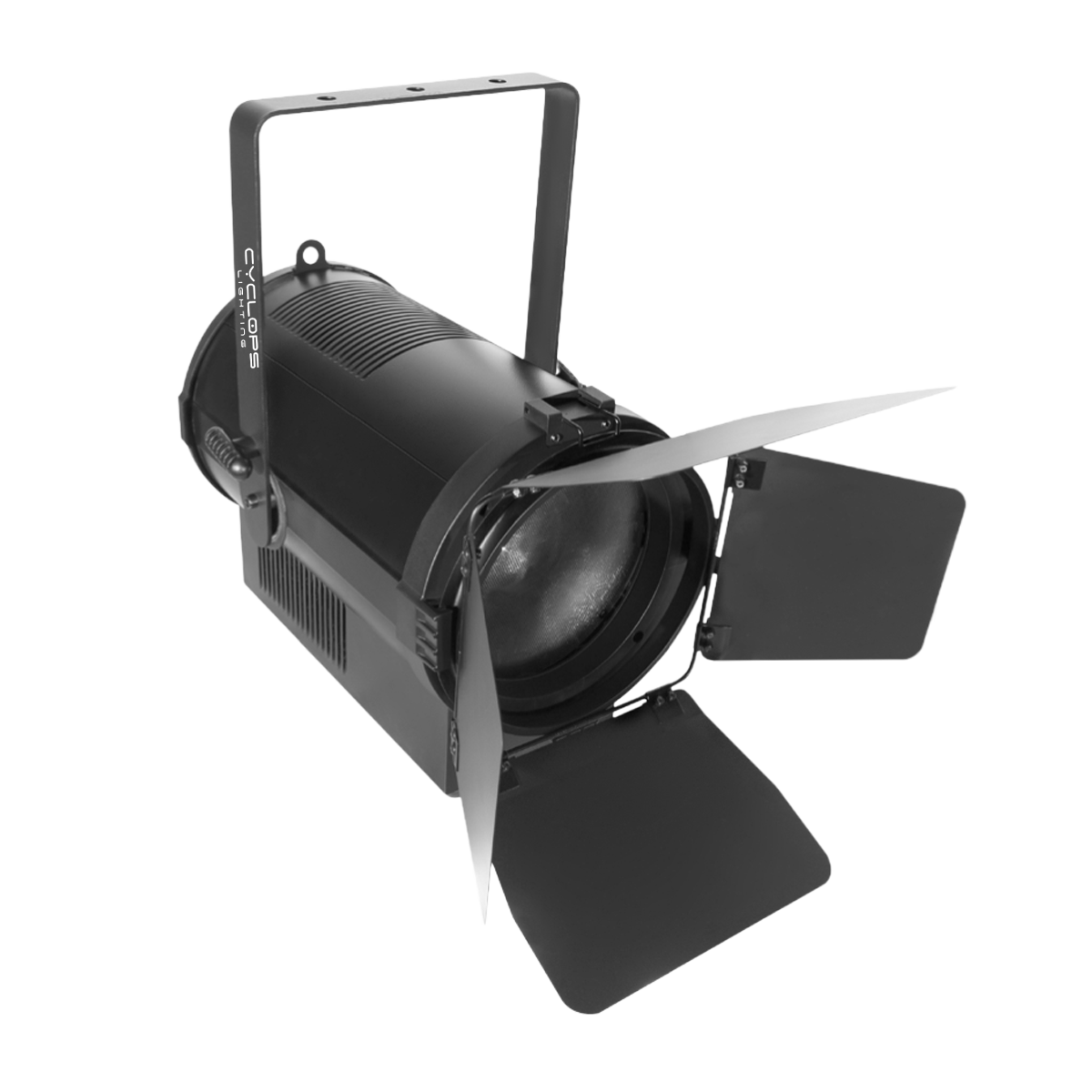

FR-400W LED

The FR-400W LED is a 400 Watt 3200K powered LED Fresnel. Features motorized zoom range from 20°-60°.It has high power light output, high CRI, various control protocols and soft wash effect. A barn door is included to shape the light.

SKU: FR400W Categories: ,

The FR-400W LED is a 400 Watt 3200K powered LED Fresnel. Features motorized zoom range from 20°-60°.It has high power light output, high CRI, various control protocols and soft wash effect. A barn door is included to shape the light.

SOURCE

  • Light source: 400W COB Warm White LED
  • 2000~2500W tungsten equivalent
  • LED life expectancy: 50,000 Hrs
  • Color Temperature: 3200K
  • CRI: 94 R9:≥90

OPTICAL SYSTEM

  • Zoom Range: 20°- 60° motorized
  • Light Output: 56,200 Lux @2 m @20°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM, Artnet
  • Control Channels: 2, 3, 4 CHS
  • 5 Dimmer curves
  • Video Flicker free with selectable PWM
  • Color: Warm White

ELECTRICAL

  • Input Voltage: AC 100-240V, 50/60Hz

 CONNECTIONS

  • AC connection: PowerCON in
  • DMX data in/out: 3-pin XLR in & out

PHYSICAL

  • Dimensions: 429 x 296 x 456mm
  • Weight: 11.5 Kg
  • Color: Black
  • Housing: Aluminum
  • IP Rating: 20
  • Certificates: CE, RoHs
