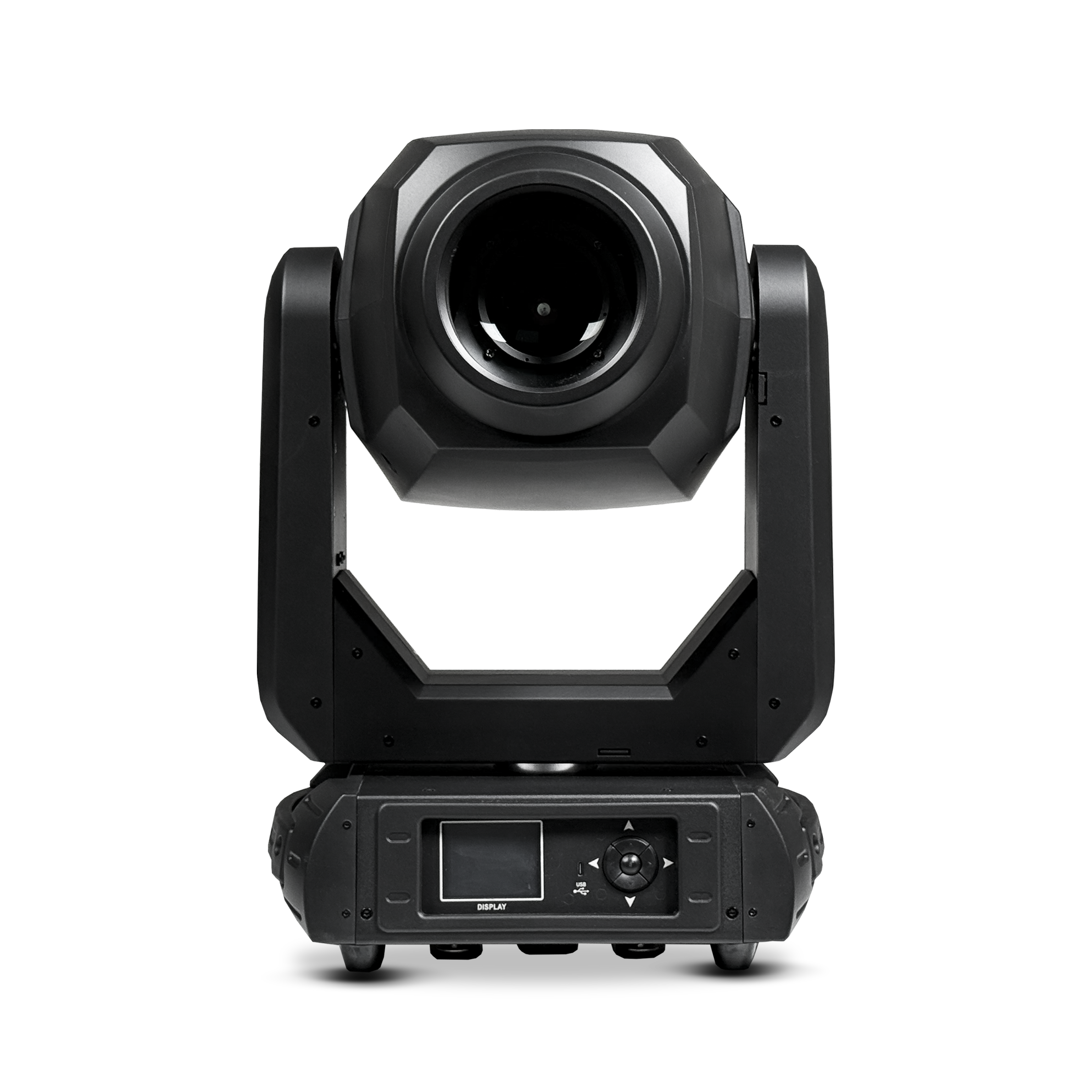

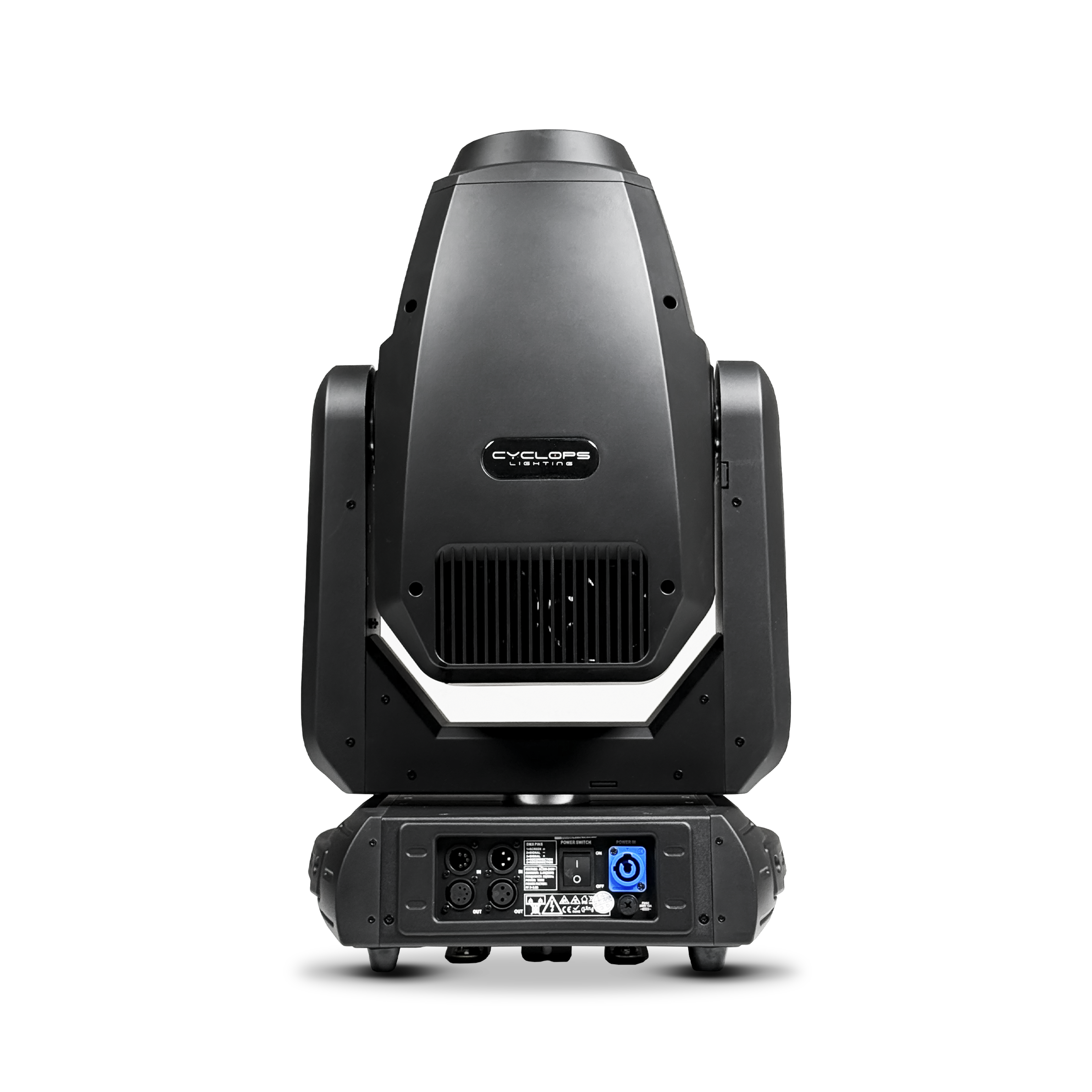

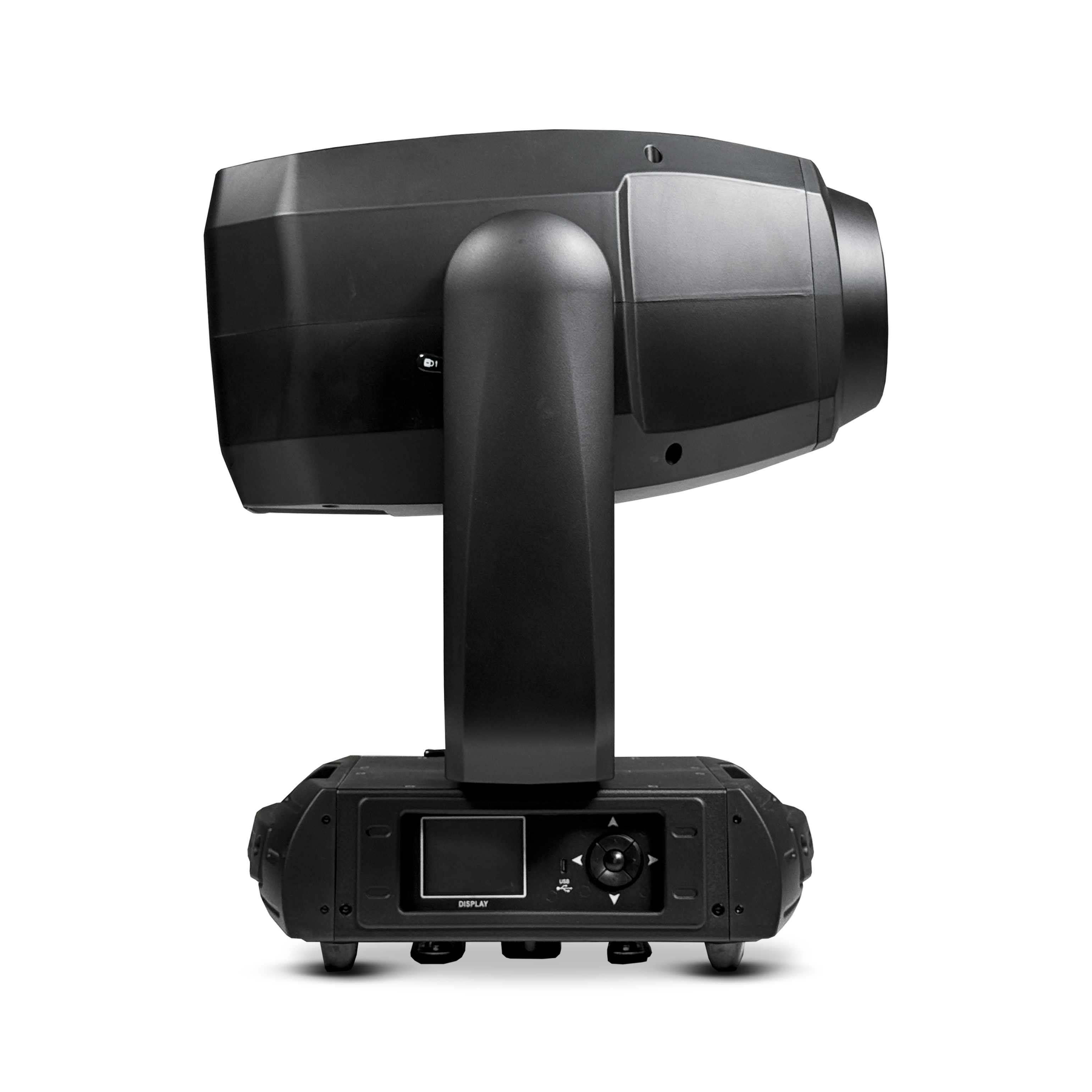

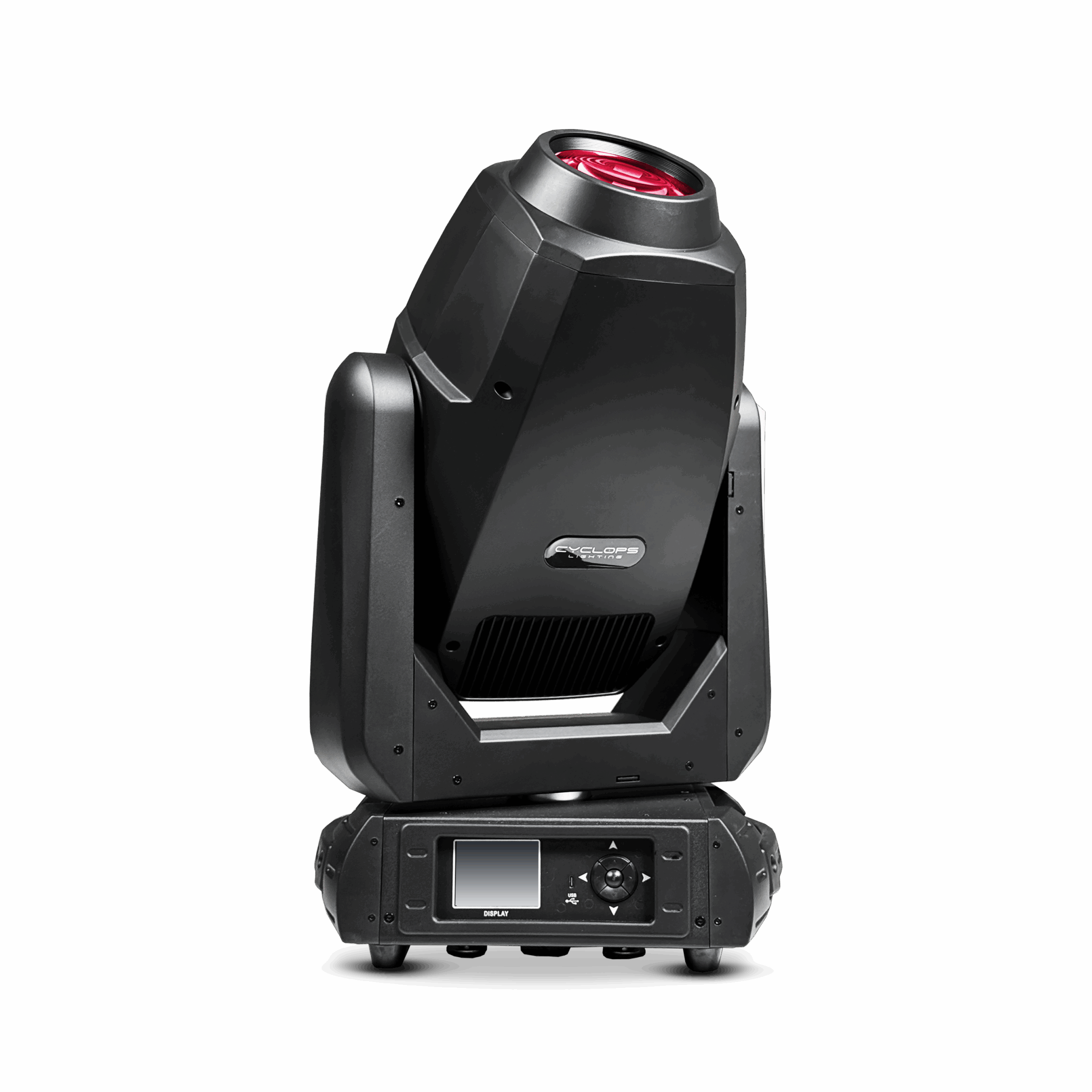

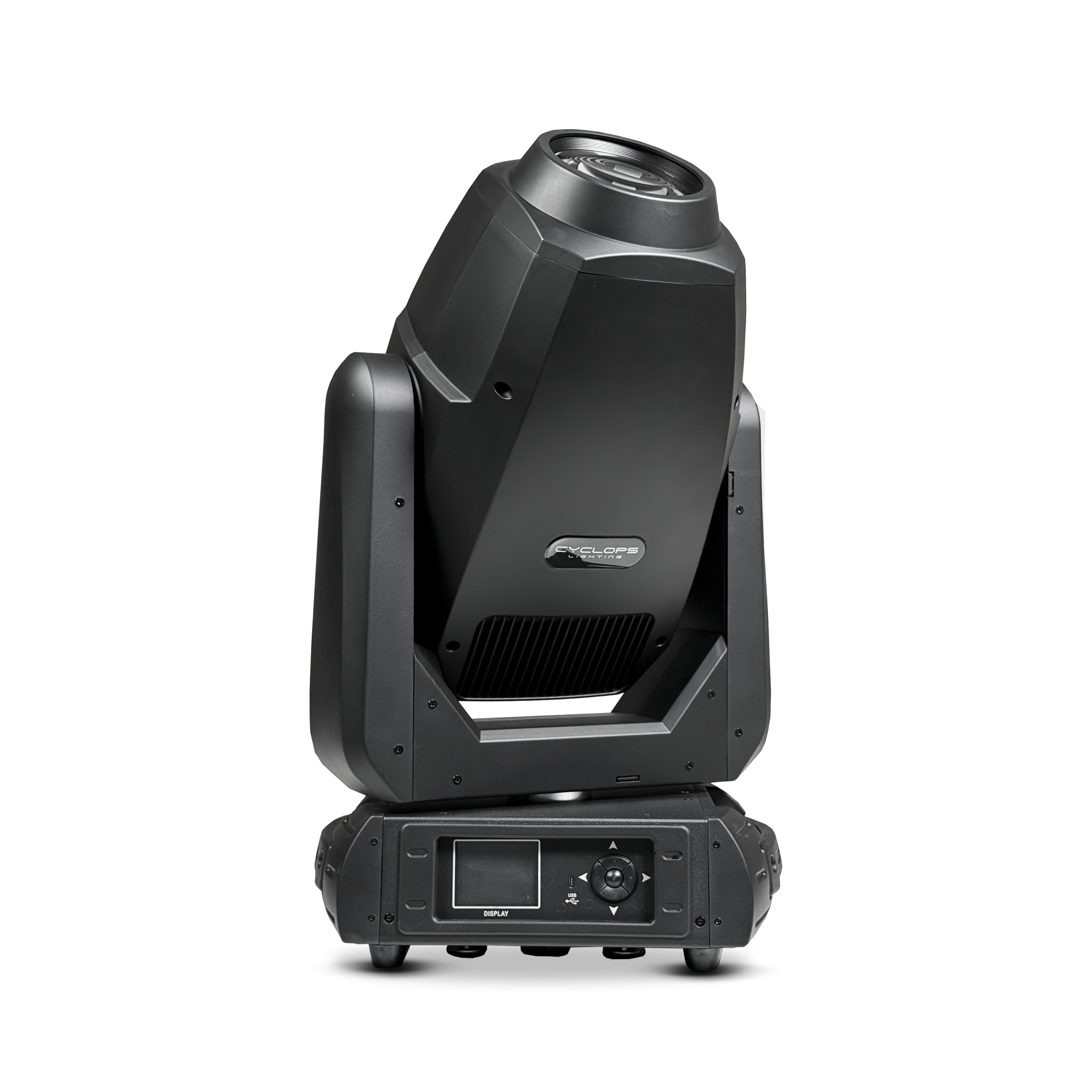

SOURCE
- Light Source: 500W LED white light module
- Color Temperature: 8000K
- Output: 20,000 lumen
- Illuminance at 10m: 14,200 lux @ 1.03m
- LED Life expectancy: 20,000 Hrs
OPTICAL SYSTEM
- Beam Angle: 6° – 40°
- Focus: Electronic focus
- Iris
- LED Frequency Adjustment
FRAMING SYSTEM
- Shutter Blades: 4 individually positionable shutter blades on a 100% surface area in all positions
- Rotation: 180˚
MOVEMENT
- Pan: 540°
- Tilt: 270°
- Resolution: 16Bit
DYNAMIC EFFECTS
- Dimmer: 0-100% linear adjustment
- Strobe: Electronic strobe
- Color mixing: CMY
- Color wheel: 6 colors + white
- CTO filter: 3200K to 6000K
- Static gobos: 9 gobos + open
- Rotating gobos: 7 gobos + open
- Rotating gobo size: OD= 23.9mm, ID=13mm
- Prism: 5 facets prism
- Frost
- High precision positioning system
CONTROL & PROGRAMMING
- Control Protocols: DMX, RDM, Art-net, Auto
- Channel mode: 44, 45 channels
- Quiet Fan Mode
- Display: 2.8-inch touch screen, can be reversed 180°
ELECTRICAL
- Input voltage: AC110-240V/50-60Hz
- Power factor:PF≥0.95
- Power consumption: 750W
PHYSICAL
- IP Rate: IP20
- Product size: 370 x 255 x 610mm
- Weight: 23.5 kg
