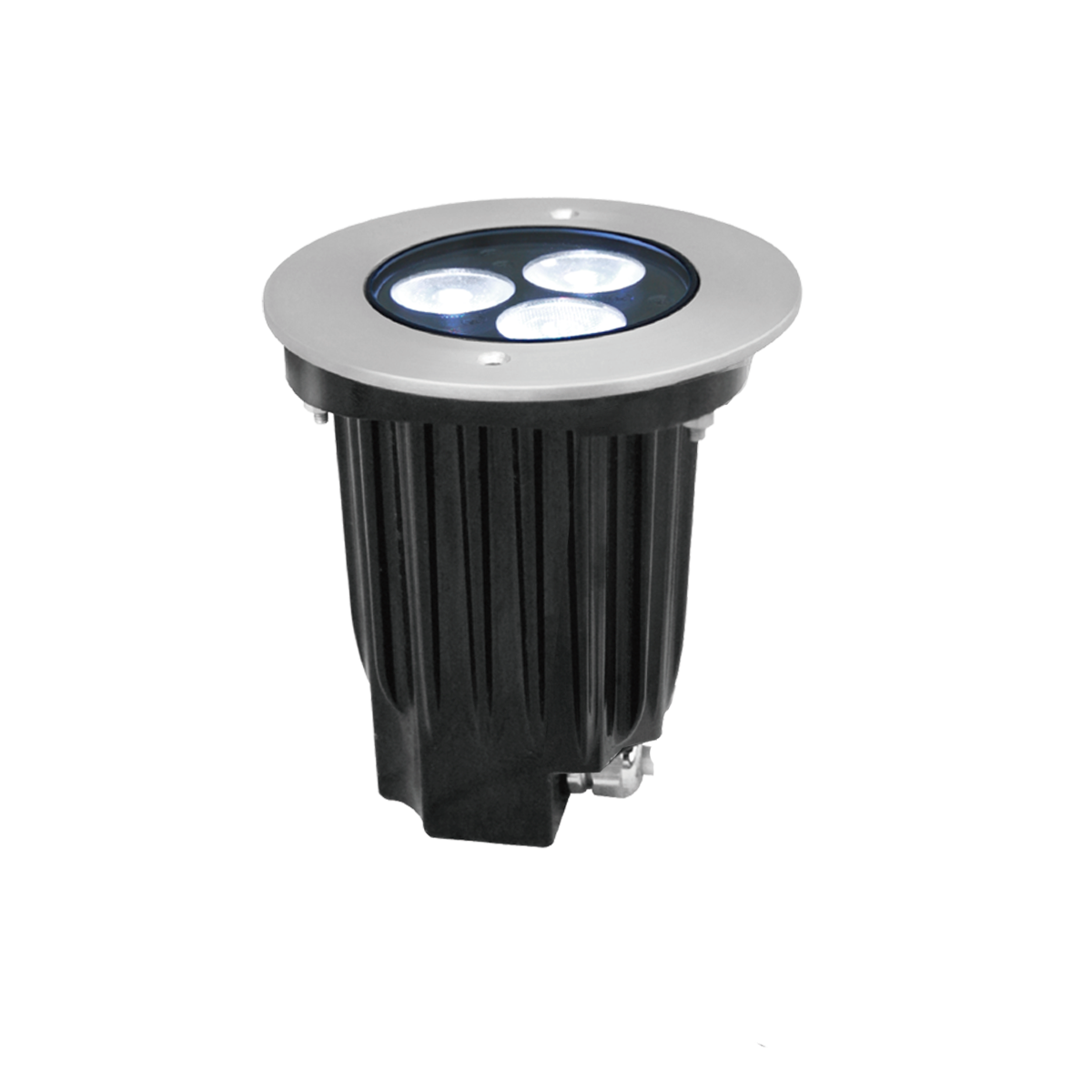

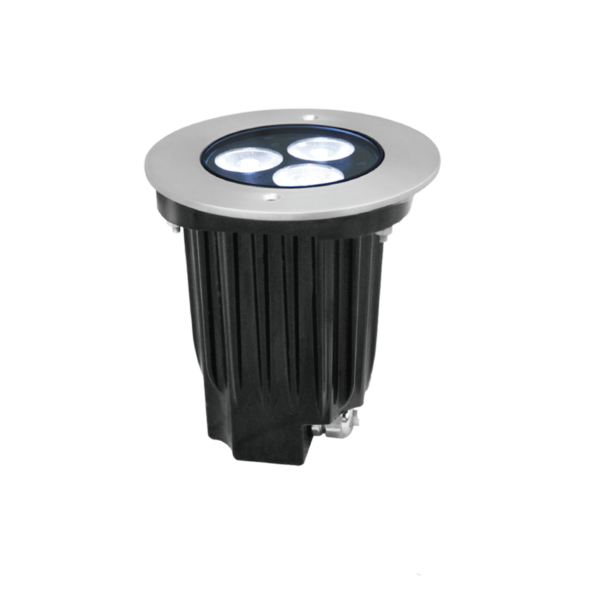

INGROUND 103R-C

INGROUND 103R-C

3 pcs Cool White In-ground Wash - Round

INGROUND 103R-C is designed for in-ground or in-wall installations, with customized optics in order to create the optimum in optical performance delivering both excellent color mixing and high output. It is engineered with internal driver and individual fixture addressing to achieve the dynamic lighting control. Its IP67 rating makes it the perfect outdoor and indoor architectural wash application.



INGROUND 103R-C is designed for in-ground or in-wall installations, with customized optics in order to create the optimum in optical performance delivering both excellent color mixing and high output. It is engineered with internal driver and individual fixture addressing to achieve the dynamic lighting control. Its IP67 rating makes it the perfect outdoor and indoor architectural wash application.

SOURCE

  • Light source: 3×3 watts  Cool white
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 2500 cd (16°)

OPTICAL SYSTEM

  • Optics: 16°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color: Cool white

ELECTRICAL

  • Input Voltage: AC100-240V, 50/60Hz
  • Max Power: 12 W
  • Power Factor: >0.6

CONNECTIONS

  • Main connections: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions 153×175.2mm (round)
  • Net Weight: 2kg
  • Color: Black
  • Housing: Die-cast aluminum
  • Over 3000KG static load-bearing
  • IP Rating: IP67, IK10
  • Operation temperature: – 40°C~45°C (operating) /- 40°C~45°C (startup)
