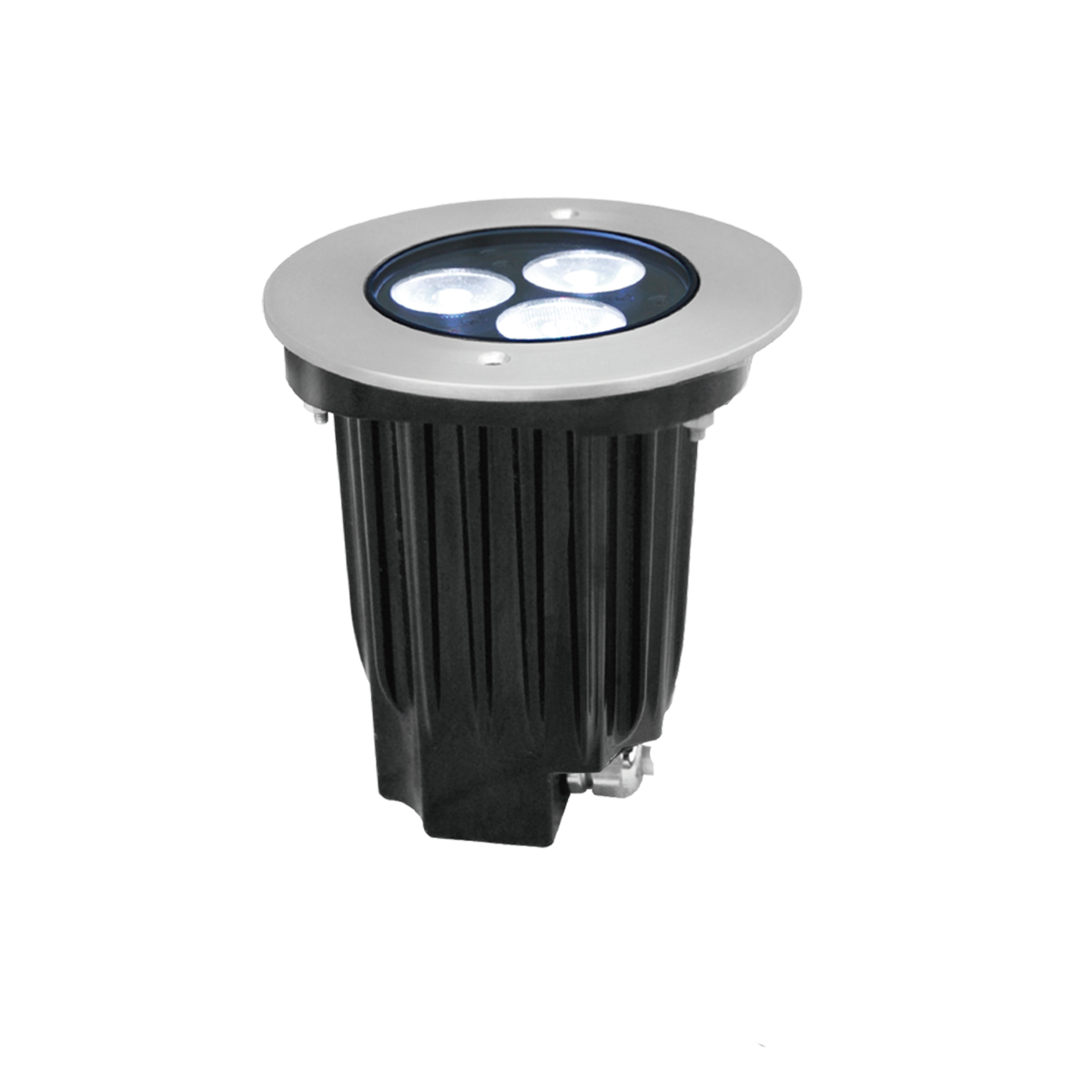

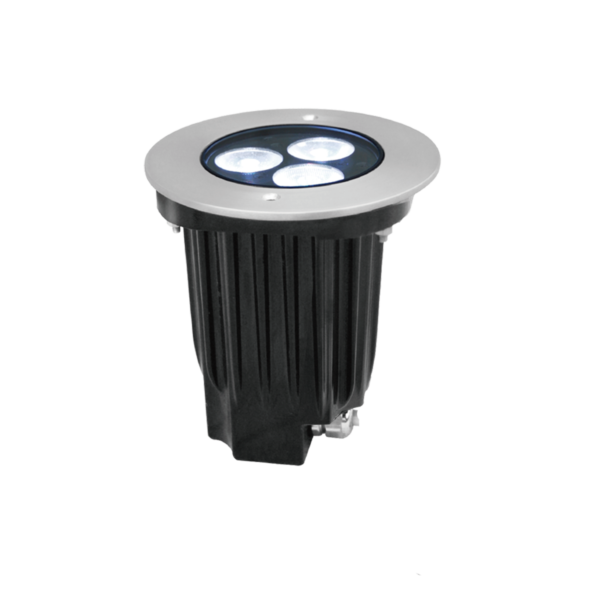

INGROUND 403R-RGBW

INGROUND 403R-RGBW

3x3 watt Multichip RGBW In-ground Wash - Round

INGROUND 403R-RGBW is designed for in-ground or in-wall installations, with customized optics in order to create the optimum in optical performance delivering both excellent color mixing and high output. It is engineered with internal driver and individual fixture addressing to achieve the dynamic lighting control. Its IP67 rating makes it the perfect outdoor and indoor architectural wash application

Add to wishlist
SKU: INGROUND403RRGBW16 Categories: ,

INGROUND 403R-RGBW is designed for in-ground or in-wall installations, with customized optics in order to create the optimum in optical performance delivering both excellent color mixing and high output. It is engineered with internal driver and individual fixture addressing to achieve the dynamic lighting control. Its IP67 rating makes it the perfect outdoor and indoor architectural wash application

SOURCE

  • Light source:3×3 watts Multichip RGBW
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 2500 cd (16°)

OPTICAL SYSTEM

  • Optics: 16°
  • Light output: 700 Lux @2m @16°

CONTROL & PROGRAMMING

  • Control Protocols: DMX
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color: RGBW

ELECTRICAL

  • Input Voltage: AC100-240V, 50/60Hz
  • Max Power: 12 W
  • Power Factor: >0.6

CONNECTIONS

  • Main connections: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 153×175.2mm (round)
  • Net Weight: 2kg
  • Color: Black
  • Housing: Die-cast aluminum
  • Over 3000KG static load-bearing
  • IP Rating: IP67, IK10
  • Operation temperature: – 40°C~45°C (operating) /20°C~45°C (startup)
