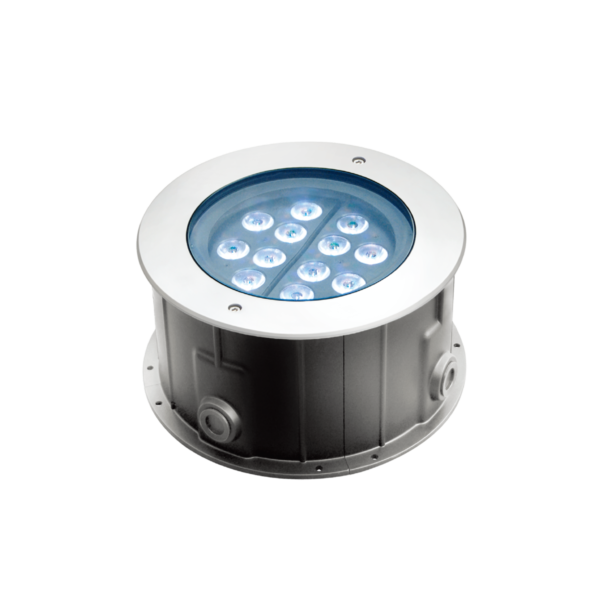

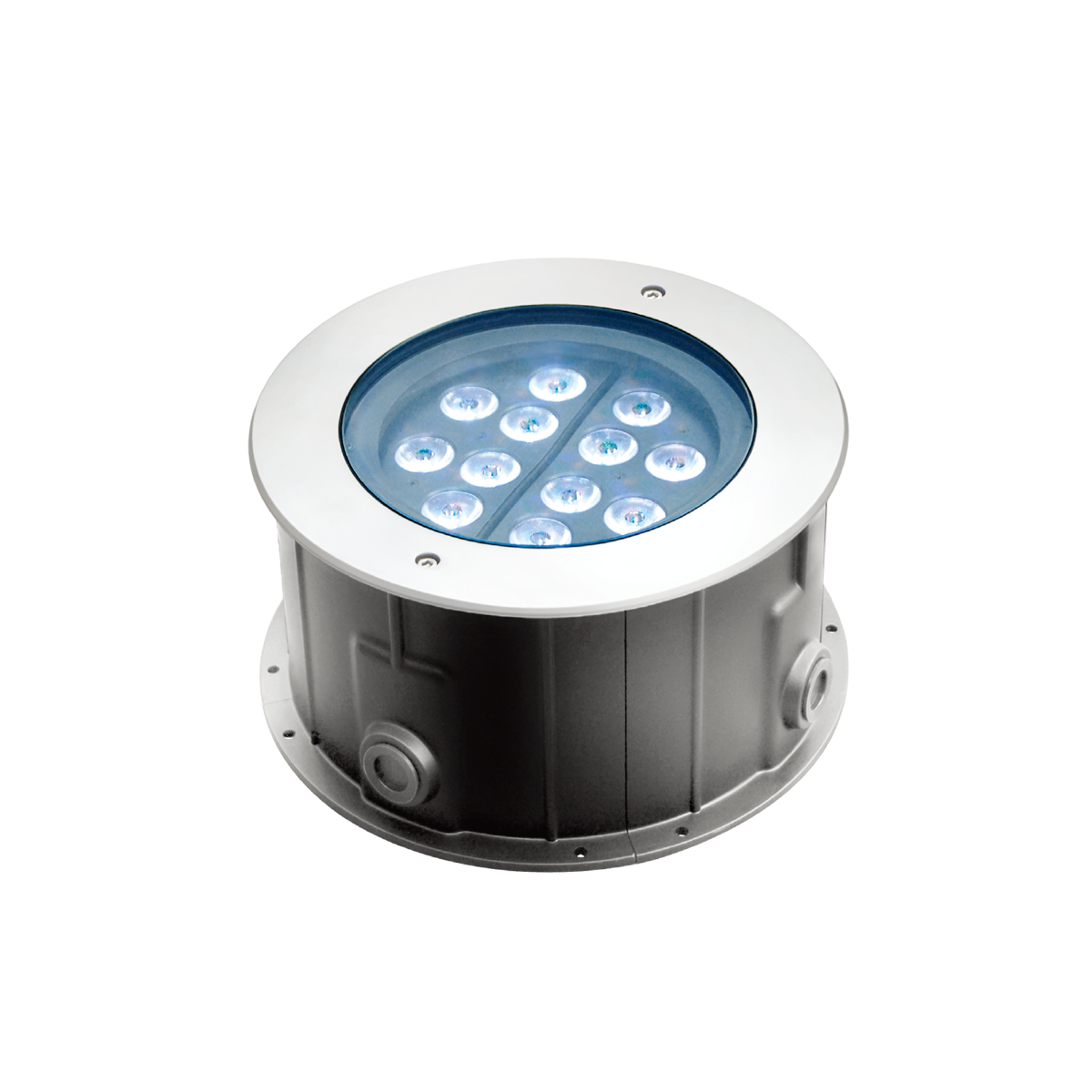

INGROUND 412-RGBW

INGROUND 412-RGBW

12x3 watt Multichip RGBW In-ground Wash

The INGROUND 412-RGBW a is 12×3 Watts RGBW multichip inground wash delivering both perfect color and high output. It is designed for a wide range of outdoor & indoor applications with its all-weather IP 67 housing.

SKU: INGROUND412RGBW16 Categories: ,

INGROUND 412-RGBW is a 12×3 Watts multichip RGBW LED inground wash delivering both perfect color and high output. It is designed for a wide range of outdoor & indoor applications with its all-weather IP 67 housing.

SOURCE

  • Light source: 12×3 watts Multichip RGBW
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 16000 cd (16°)

OPTICAL SYSTEM

  • Optics: 16°
  • Light output: 4,000 Lux @2m @16°

CONTROL & PROGRAMMING

  • Control Protocols: DMX
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color: RGBW

ELECTRICAL

  • Input Voltage: AC100-240V, 50/60Hz
  • Max Power: 28 W
  • Power Factor: >0.6

CONNECTIONS

  • Main connections: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: Ø320 x 146mm
  • Net Weight: 8 kgs
  • Color: Black
  • Housing: Die-cast aluminum
  • IP Rating: IP 67, IK 10
  • Operation temperature: – 40°C~45°C (operating) /20°C~45°C (startup)
