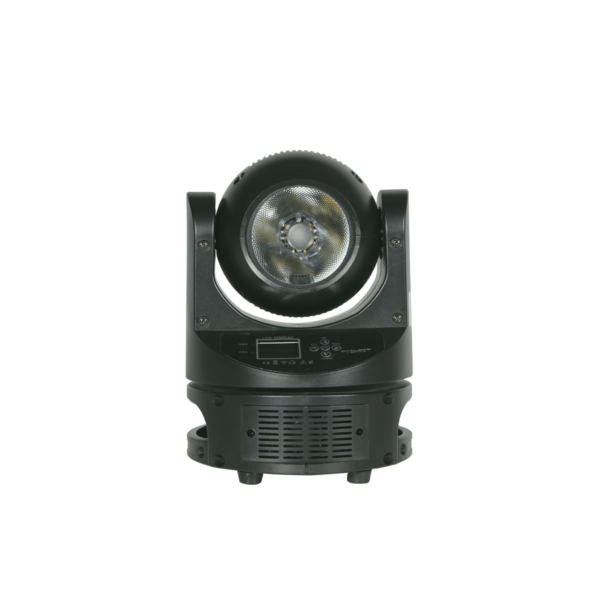

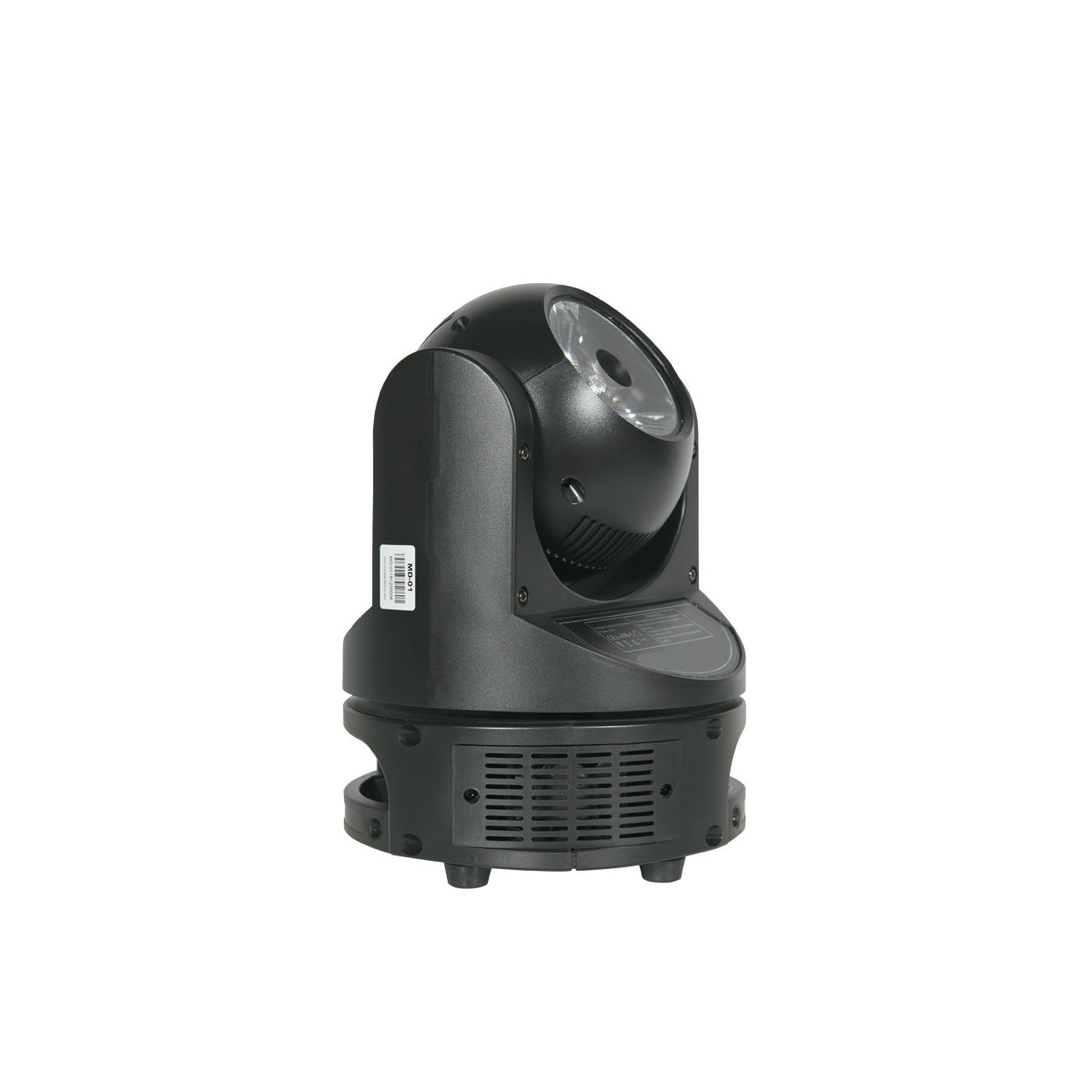

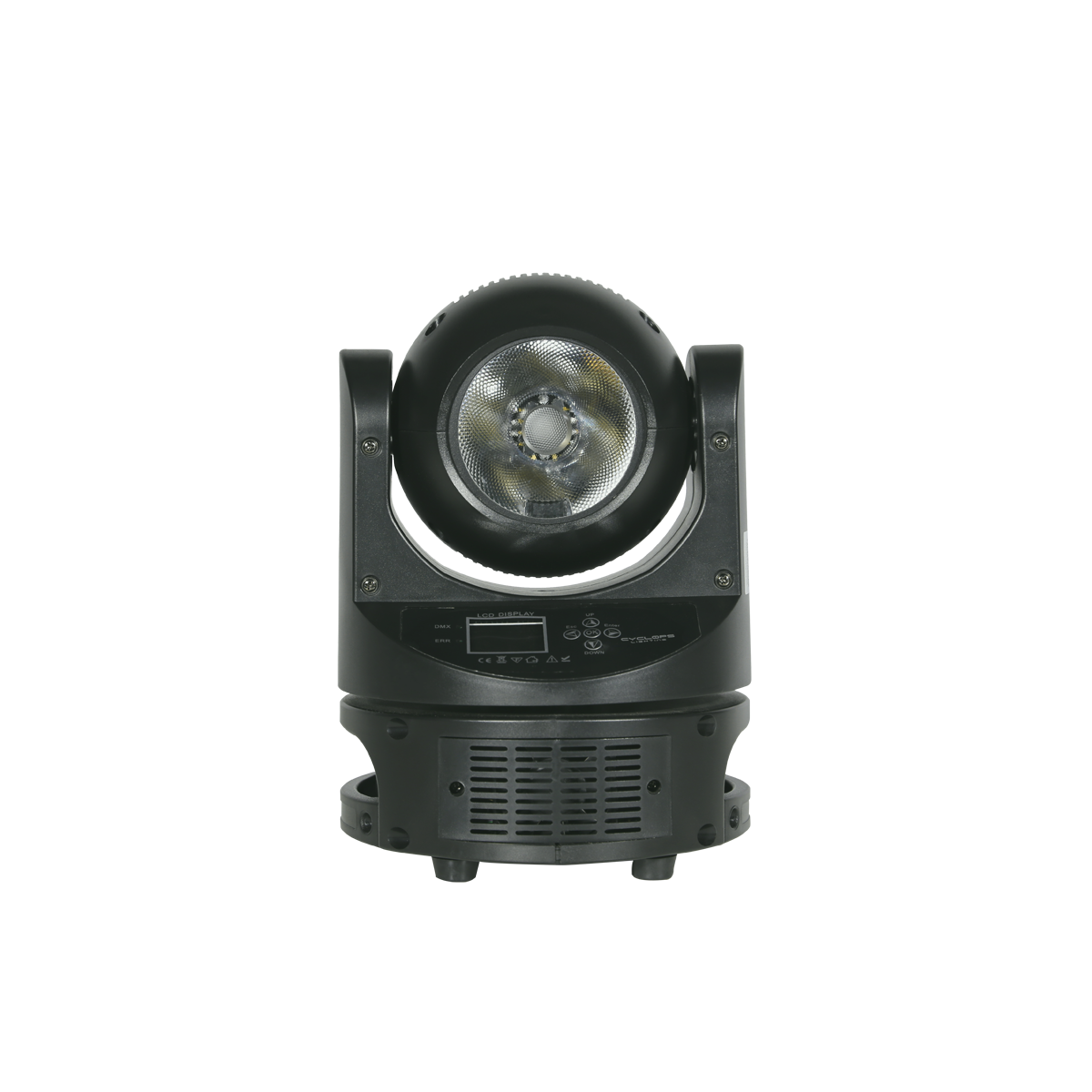

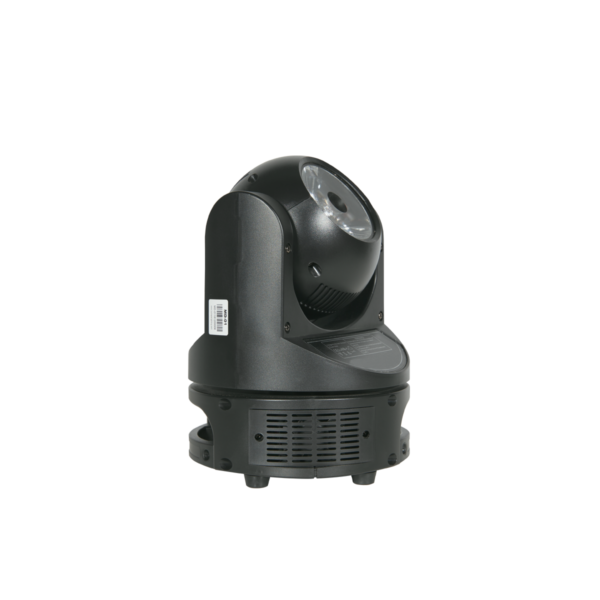

MD 1

60 watts RGBW Compact Beam Moving Head

MD 1 is a 60 watts RGBW compact beam moving head with 360° continuous fast pan and tilt movement. It features a variable strobe and variable speed control. This small 30cm beam is ideal for clubs, low ceiling installations and can deliver an unlimited matrix beam effect when installed in groups of big number.

Add to wishlist
SKU: MD1 Categories: ,

SOURCE

  • Light source: 60 watts RGBW LEDs
  • LED life expectancy: 8,000 Hrs.

OPTICAL SYSTEM

  • Beam angle: 3.5°

 DYNAMIC EFFECTS

  • Dimmer: linear adjustment
  • Color mixing: RGBW
  • Electronic Variable Strobe
  • Movement: Continuous 360° Pan and Tilt rotation
  • Variable Pan and Tilt rotation speed

CONTROL & PROGRAMMING

  • Control protocols: DMX, Sound, Master Slave
  • Display: LCD display
  • Control channels: 18 CHs

MOVEMENT

  • Pan: 360°
  • Tilt: 360°

ELECTRICAL

  • Input voltage: AC90-240V/50-60Hz
  • Power consumption: 120 watts

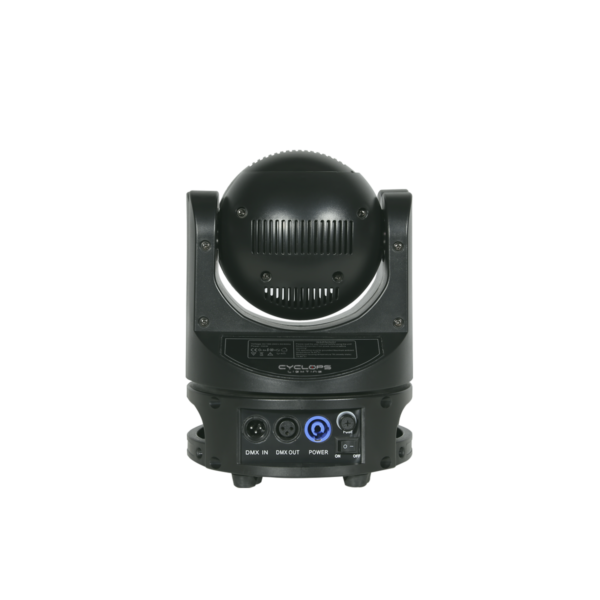

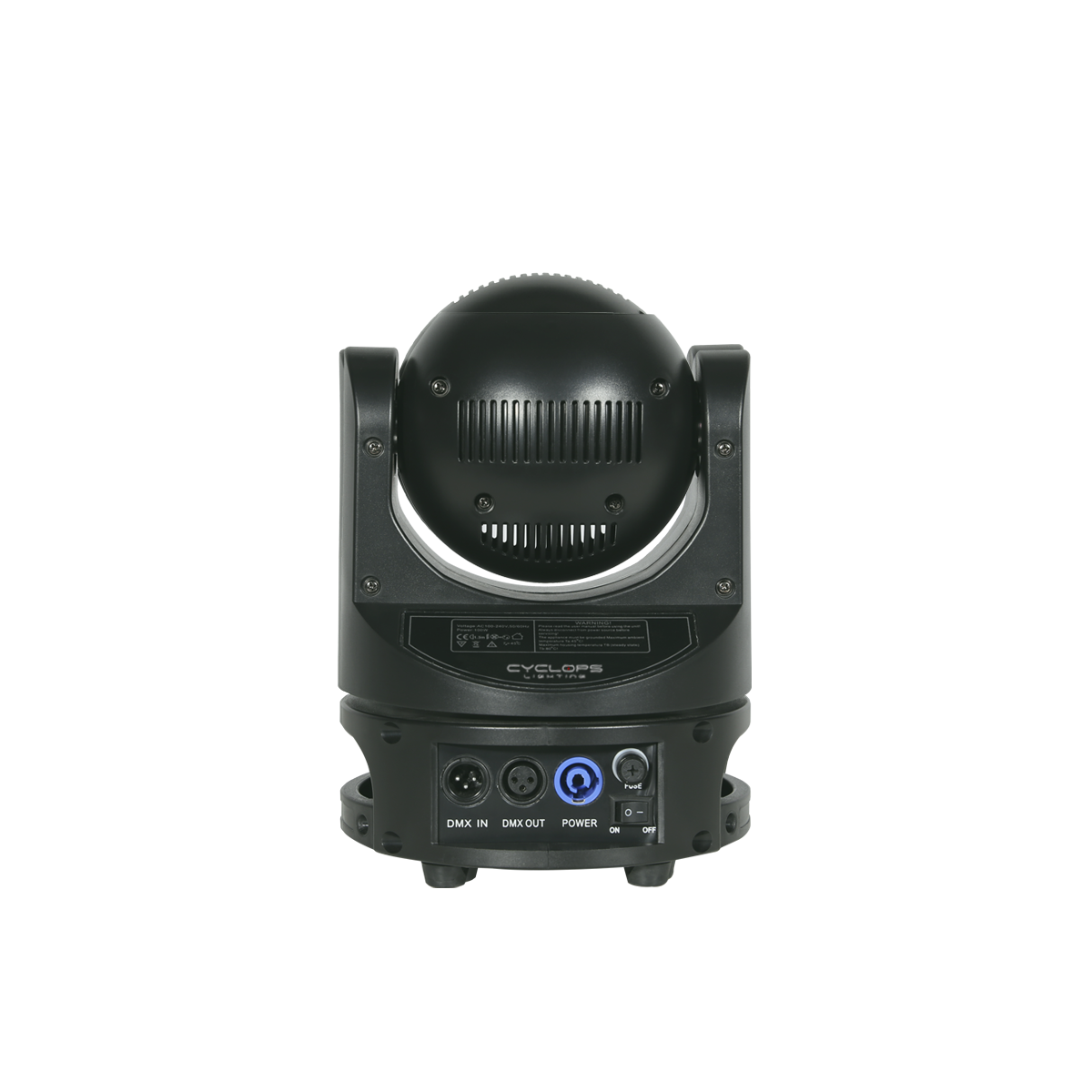

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 215 x 215 x 280mm
  • Net weight: 4.5 Kg
  • Color: Black
  • Housing: Plastic
  • IP rating: 20
