PIXIBAR 36-IS

PIXIBAR 36-IS

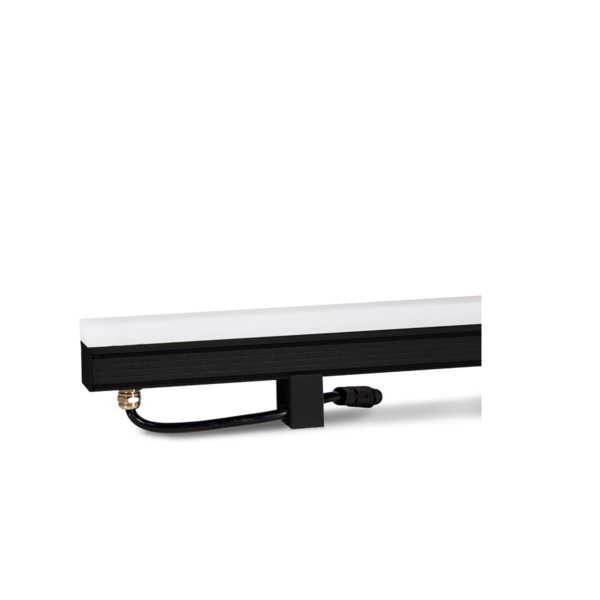

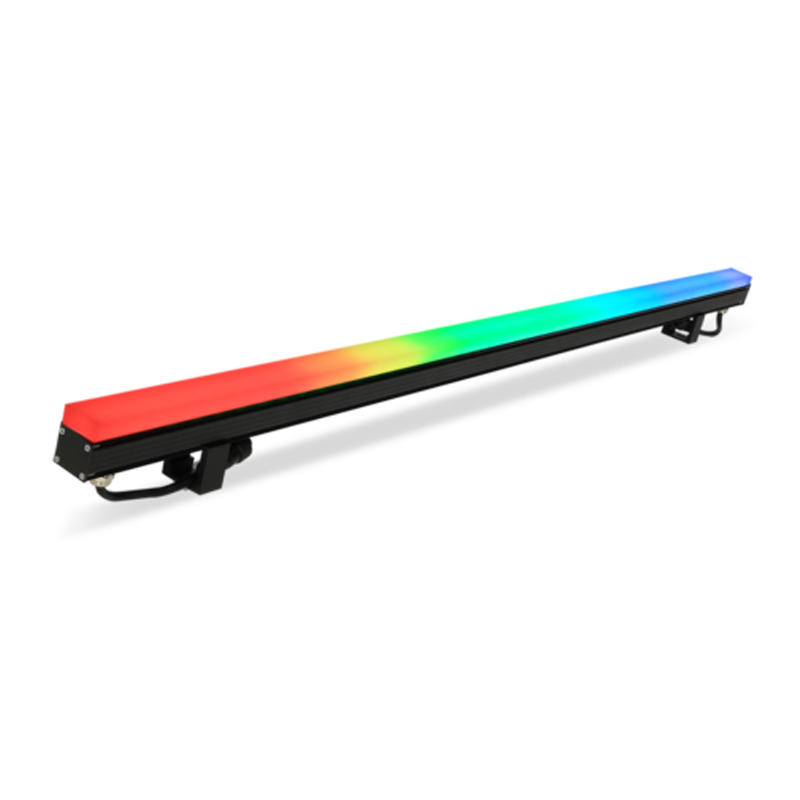

0.75m Indoor RGB Digital LED Bar with Square Diffuser

PIXIBAR 36-IS is a 36 SMD5050 RGB LED pixel bar. This 0.75-meter bar provides great color mixing and pixel effects with 12 pixels control and an opal square diffuser cover. It is ideal for linear and grid installations on the walls or ceilings of clubs, stages, and events.

Categories: ,

SOURCE

  • Light source: SMD5050 RGB LEDs
  • LED quantity: 36 LEDS

OPTICAL SYSTEM

  • Cover: Square diffuser
  • View angle: 120°

CONTROL & PROGRAMMING

  • Pixels control: 12
  • Color mixing: RGB
  • Control protocols: DMX, 44 FPS
  • Control channels: 36 CHs
  • Address setting: Manual

ELECTRICAL

  • Input voltage: 24V
  • Power consumption: 8 watts

CONNECTIONS

  • Power and data connection: 15cm 5 pin female and male connection
  • Cable entry: Bottom

PHYSICAL

  • Dimensions: 750 x 28 x 50mm (without bracket) 750 x 35 x 90mm (with bracket)
  • Color: Black
  • IP rating: 20
  • Operating temperature: -40°C/50°C

Download
