PIXIBAR D 48-IC

PIXIBAR D 48-IC

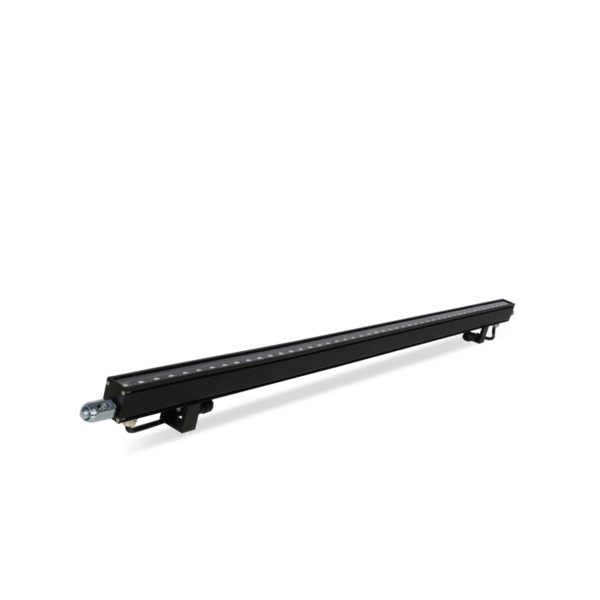

Indoor RGB Digital Multi Directional LED Bar

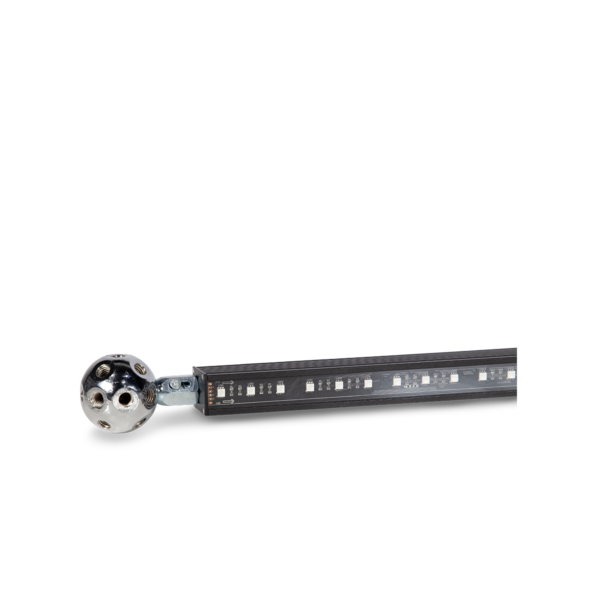

PixiBar D 48-IC is a 48 SMD5050 RGB LED pixel bar with fixing ball for multi directional installation. This one meter 3D bar has double side lighting effects, with clear diffuser cover, which makes it a unique pixel mapping media bar with great color mixing and pixel effects. It is ideal for 3D LEDs lighting structures for stage, events and all applications.

Add to wishlist
SKU: PBDIC24RGB4816100028 Categories: ,

SOURCE

  • Light source:  SMD5050 RGB LEDs
  • LED quantity: 48 LEDs

OPTICAL SYSTEM

  • Cover: Clear diffuser
  • View angle: 120°

CONTROL & PROGRAMMING

  • Pixels control: 16
  • Color mixing: RGB
  • Control protocols: DMX, 44 FPS
  • Control channels: 48 CHs
  • Address setting: Manual

ELECTRICAL

  • Input voltage: 24V
  • Power consumption: 10 watts

CONNECTIONS

  • Power and data connection: 15cm 5 pin female and male connection
  • Cable entry: Bottom

PHYSICAL

  • Dimensions: 1000 x 28 x 39mm (without bracket) 1000 x 35 x 79mm (with bracket)
  • Color: Silver
  • Operating temperature: -40℃/50℃
