PIXIDOT 1-OD

PIXIDOT 1-OD

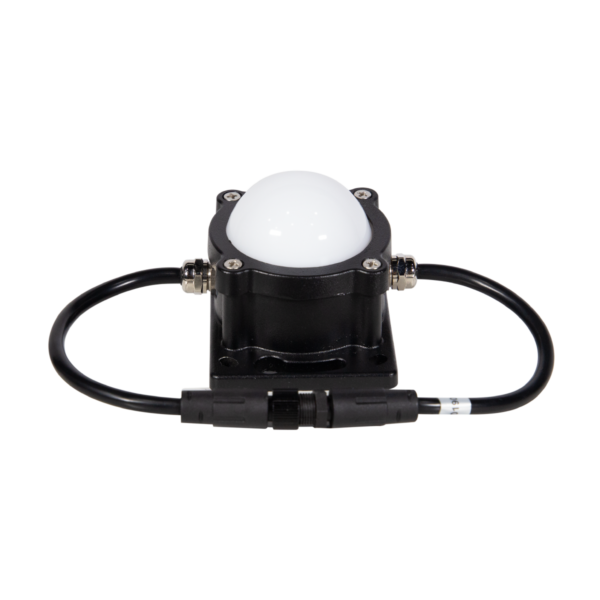

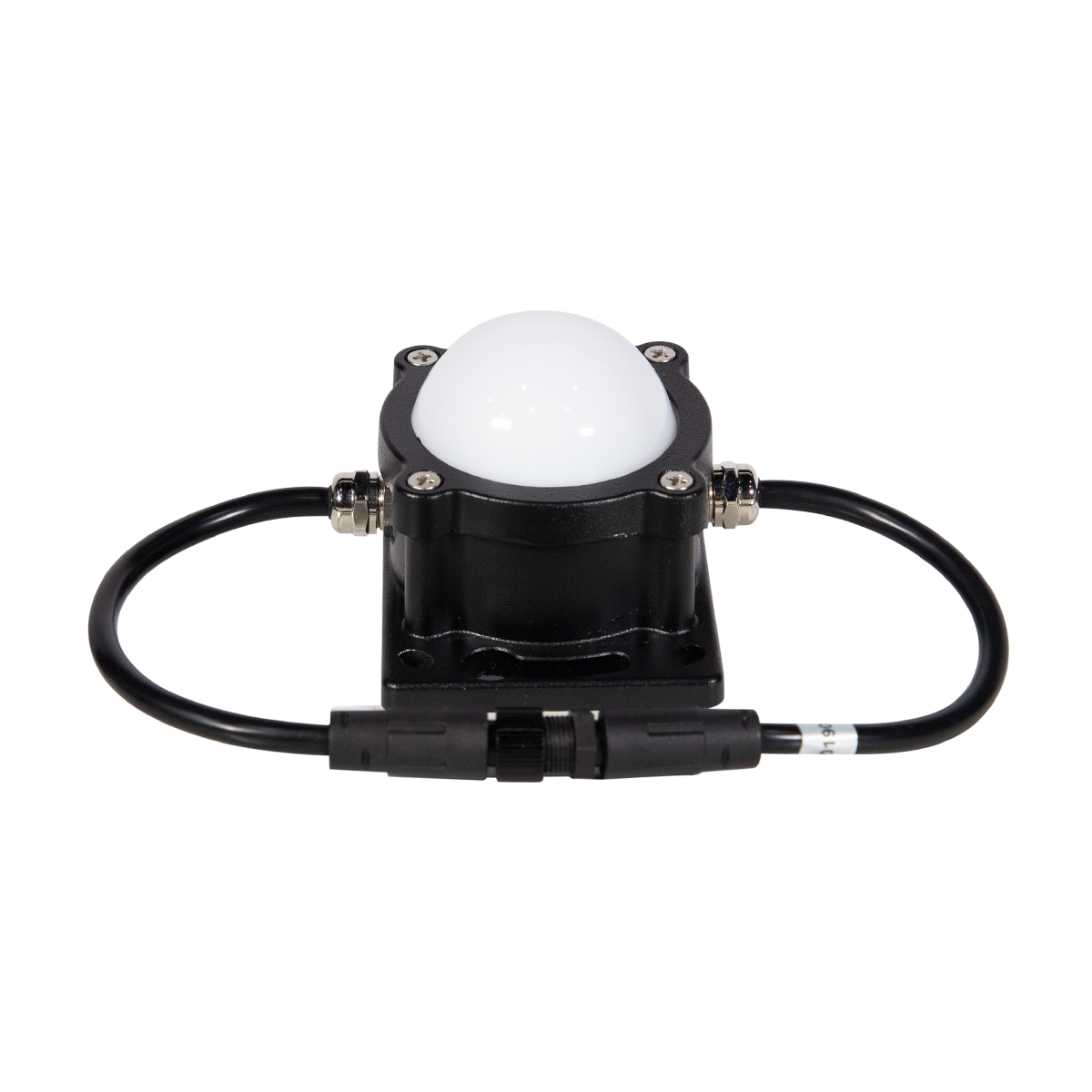

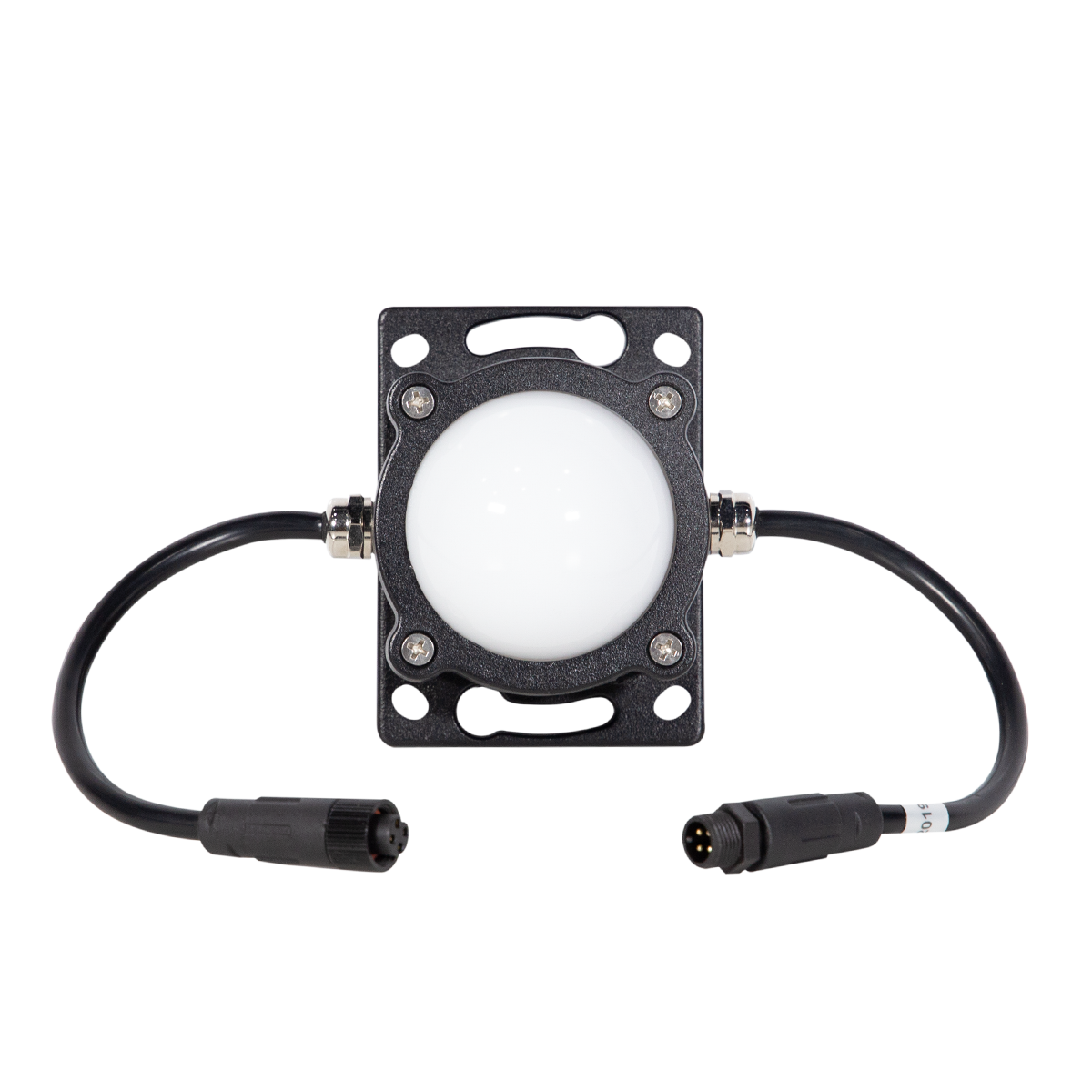

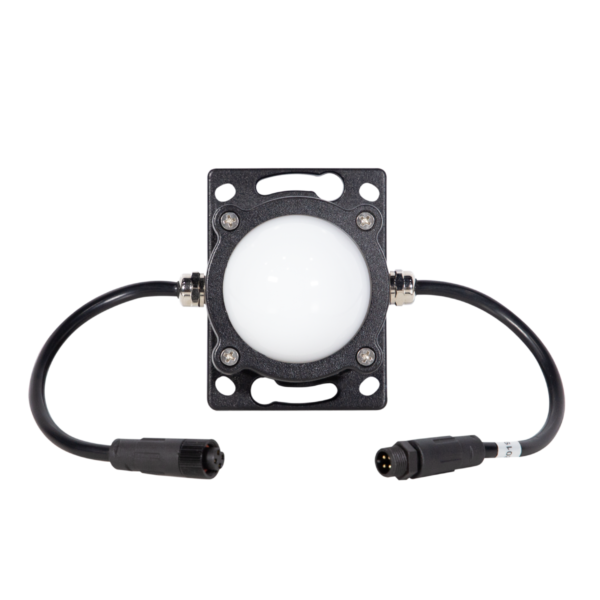

Outdoor RGB LED Dome Pixel Dot

PixiDot 1-OD is a 4W outdoor IP67 rated pixel dot with a dome opal cover and 18 SMD3535 RGB LEDs. It is ideal for pixel mapping effects on bridges, buildings’ facades, stadiums, retail shops and outdoor applications.

Add to wishlist
SKU: PDOD24RGB1819873 Categories: ,

SOURCE

  • Light source: 18 SMD3535 RGB LEDs

OPTICAL SYSTEM

  • Cover: Dome opal diffuser
  • View angle: 120°

CONTROL & PROGRAMMING

  • Pixels control: 1 per dot
  • Color mixing: RGB
  • Control protocols: DMX, 44 FPS
  • Control channels: 3 CHs
  • Address setting: Manual

ELECTRICAL

  • Input voltage: 24V
  • Power consumption: 72 watts

CONNECTIONS

  • Power and data connection: 5 pin female and male connection
  • Cable entry: Side

PHYSICAL

  • Dimensions: 98 x 73 x 65mm
  • Color: Black
  • IP rating: 67
  • Operating temperature: -40℃/50℃
