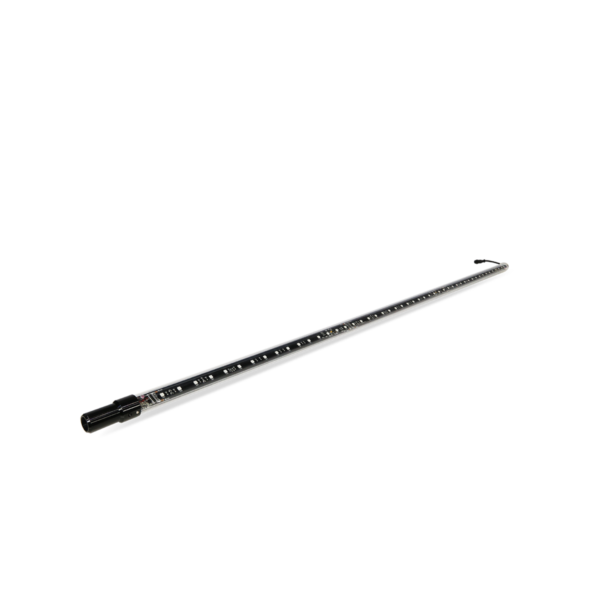

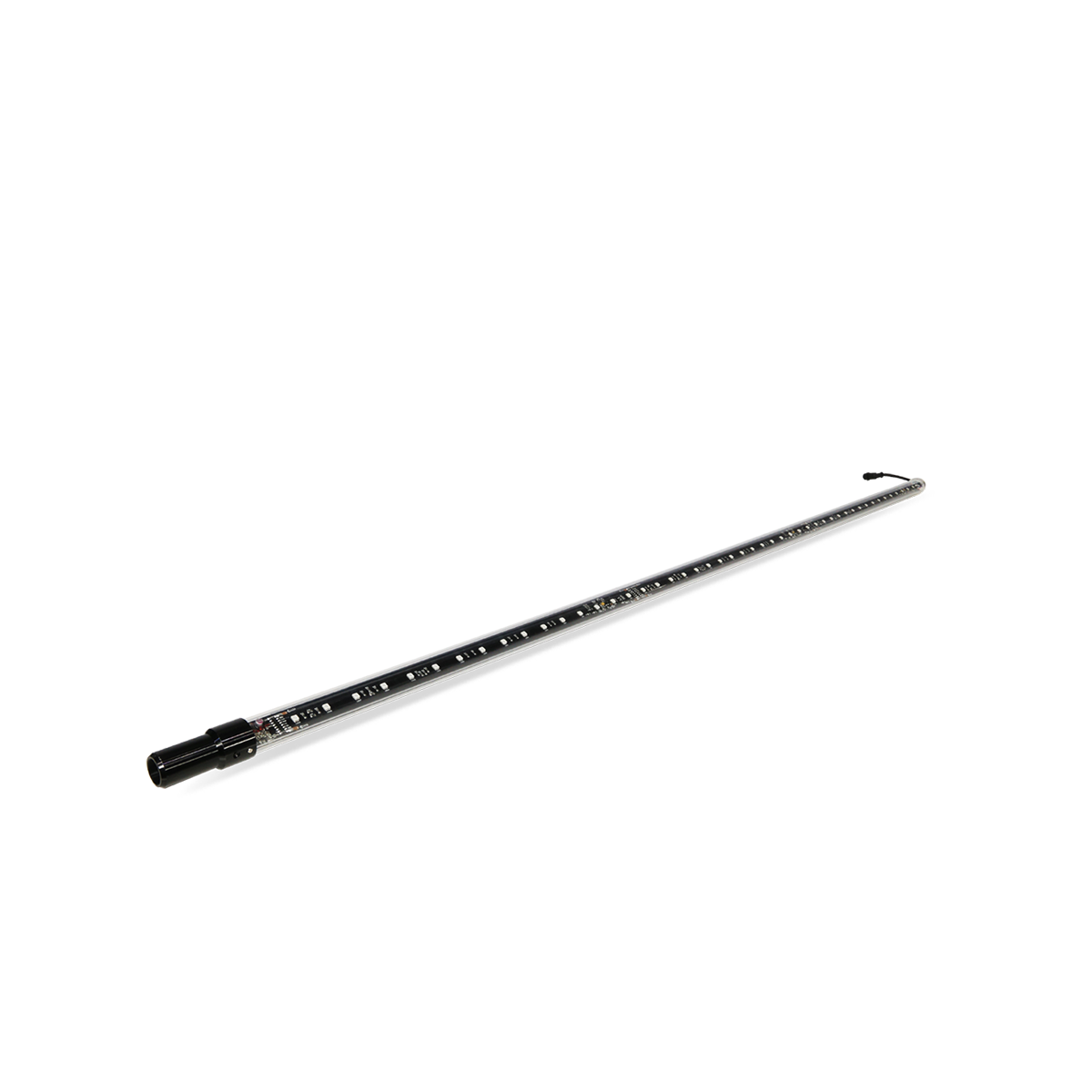

PIXITUBE LASER 24-IC

PIXITUBE LASER 24-IC

Indoor 200cm RGB+Green laser Digital 3D LED Tube with Laser Head

PixiTube Laser 24-IC is a DMX 3D clear tube, with 96 SMD5050 RGB + Green laser and 24 pixels control. It is designed to be suspended from the ceiling in a grid of numerous tubes. With a 360° view of lighting effect and a bright sharp laser pointing down, it is perfect to be the center piece of clubs, stages and all indoor events applications.

SKU: PTLIC24RGB9625150030 Categories: ,

SOURCE

  • Light source: 96 SMD5050 RGB+ Green laser

OPTICAL SYSTEM

  • Cover: Clear
  • View angle: 360°

CONTROL & PROGRAMMING

  • Pixels control: 24
  • Color mixing: RGB+ Green laser
  • Control protocols: DMX
  • Control channels: 75 CHs
  • Address settings: Manual

ELECTRICAL

  • Input voltage: 24V
  • Power consumption: 16 watts

CONNECTIONS

  • Power & data connection: 15cm 5 pin female and male connection

PHYSICAL

  • Diameter: 30mm
  • Length: 1620mm
  • IP rating: 20
  • Operating temperature: -20℃/50℃
