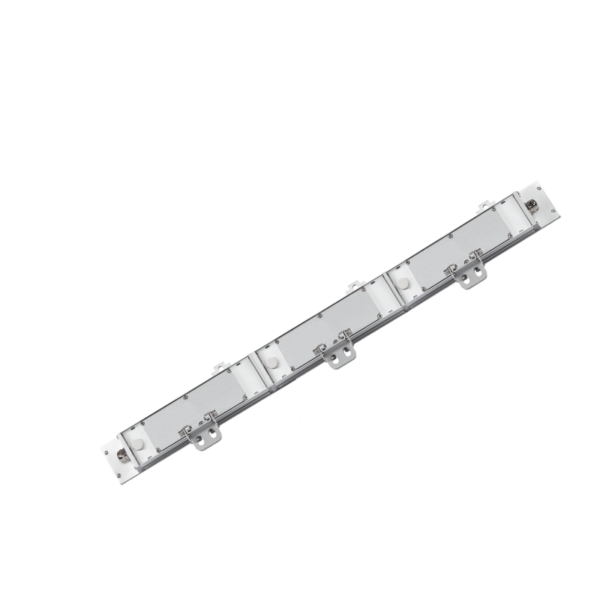

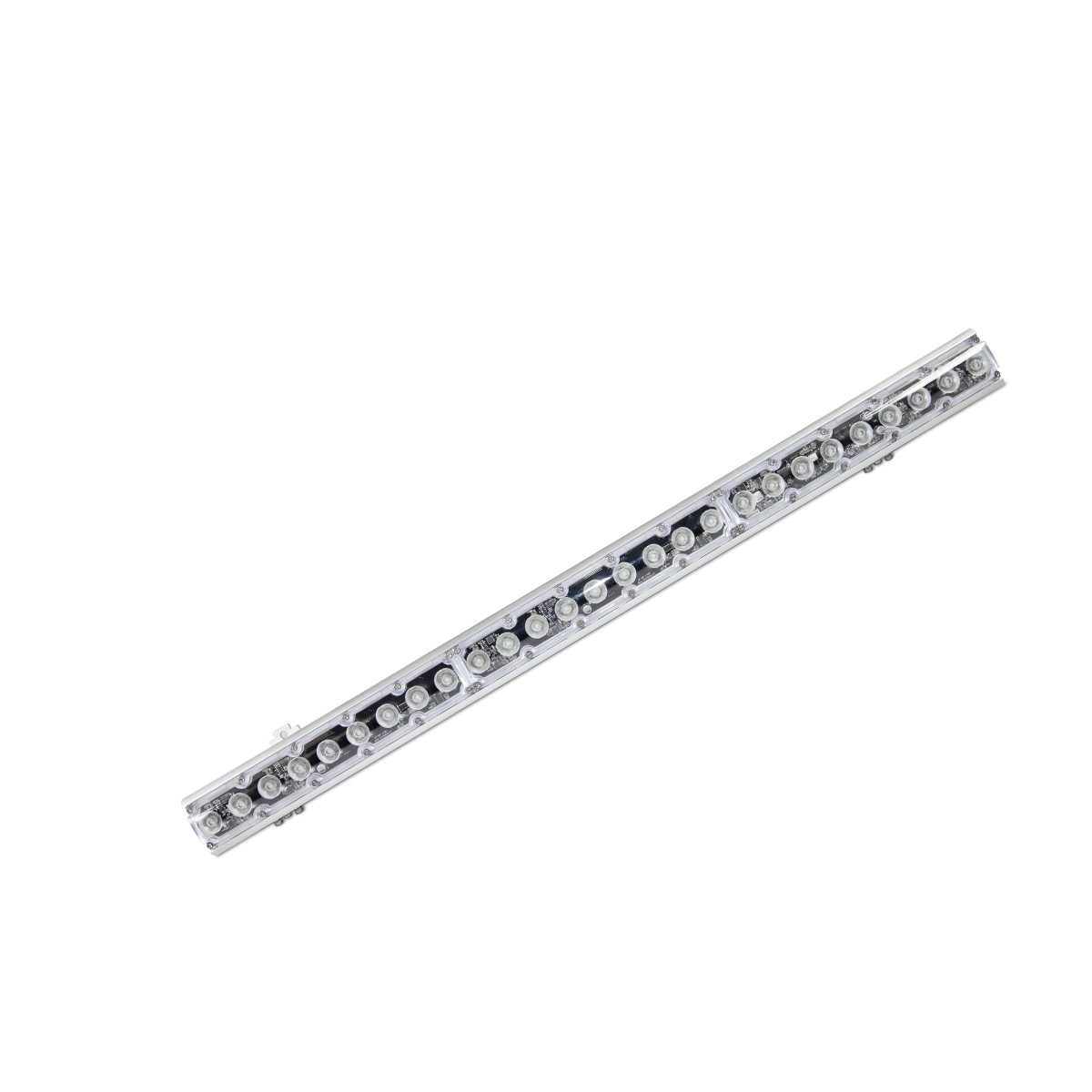

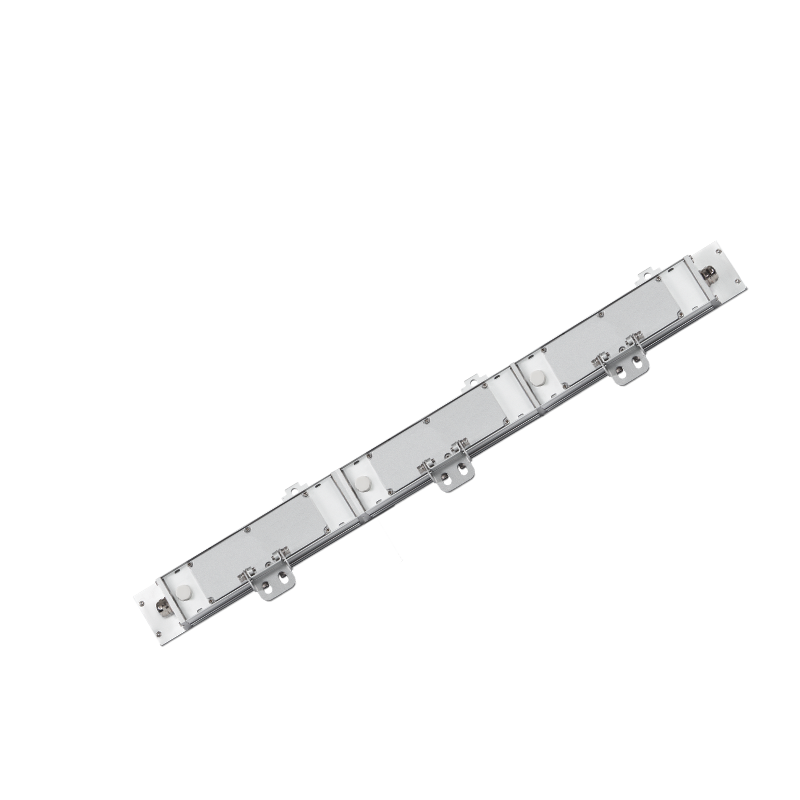

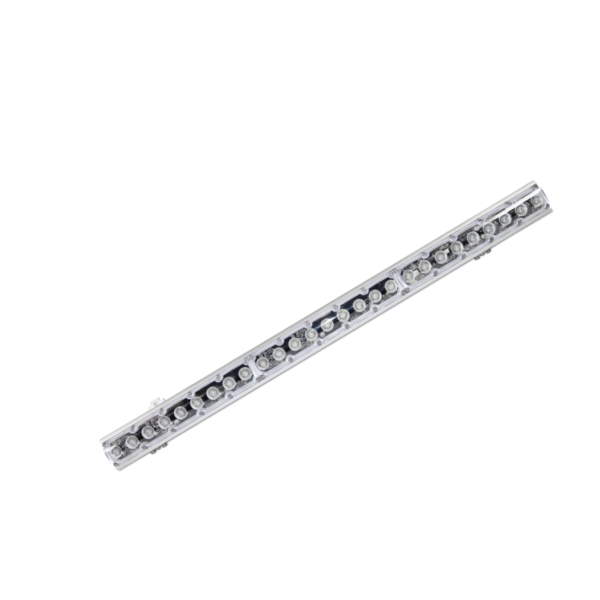

ROD 136-C

ROD 136-C

36x3 watts Cool White LED 915 mm-Linear Wash

ROD 136-C is a seamless 36×3 watts Warm White linear wash with a length of 915 millimeters. It has a built-in lamp body power supply and driver, and an integrated power and DMX signal cable. Flexible lighting device for application in a variety of building structures.

SKU: ROD 136-C Categories: ,

Videos

ROD 136-C is a seamless 36×3 watts Warm White linear wash with a length of 915 millimeters. It has a built-in lamp body power supply and driver, and an integrated power and DMX signal cable. Flexible lighting device for application in a variety of building structures.

SOURCE

  • Light source: 36×3 watts Cool White
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 25300cd (15°)

OPTICAL SYSTEM

  • Optics: 15° (25°, 30°,60°, 15°x30°, 60×15°)
  • Light output: 12,000 Lux @2m @ 15°

CONTROL & PROGRAMMING

  • Control Protocols: DMX 512, RDM
  • DMX control channels: 0-100%
  • Dimmer: 0%-100% 16 Bit
  • Controllable sections: 1
  • Color: Cool White

ELECTRICAL

  • Input Voltage: AC 100~277V
  • Max Power: 120 W
  • Power Factor: > 0.9
  • Built-in power supply

CONNECTIONS

  • Power connections: Integrated power and signal cable

PHYSICAL

  • Dimensions: 915x62x84mm
  • Net Weight: 3.6 kg
  • Color: Silver
  • Housing: Extruded Aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
