ROD 436-RGBW

ROD 436-RGBW

36x3 watts Multichip RGBW LED 1220 mm-Linear Wash

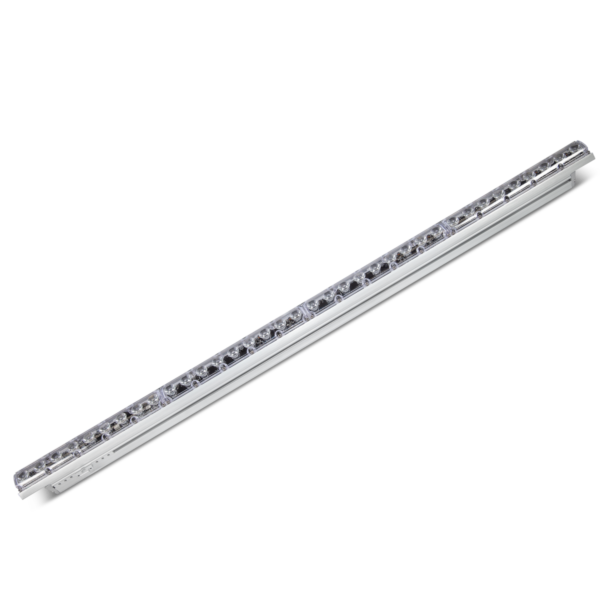

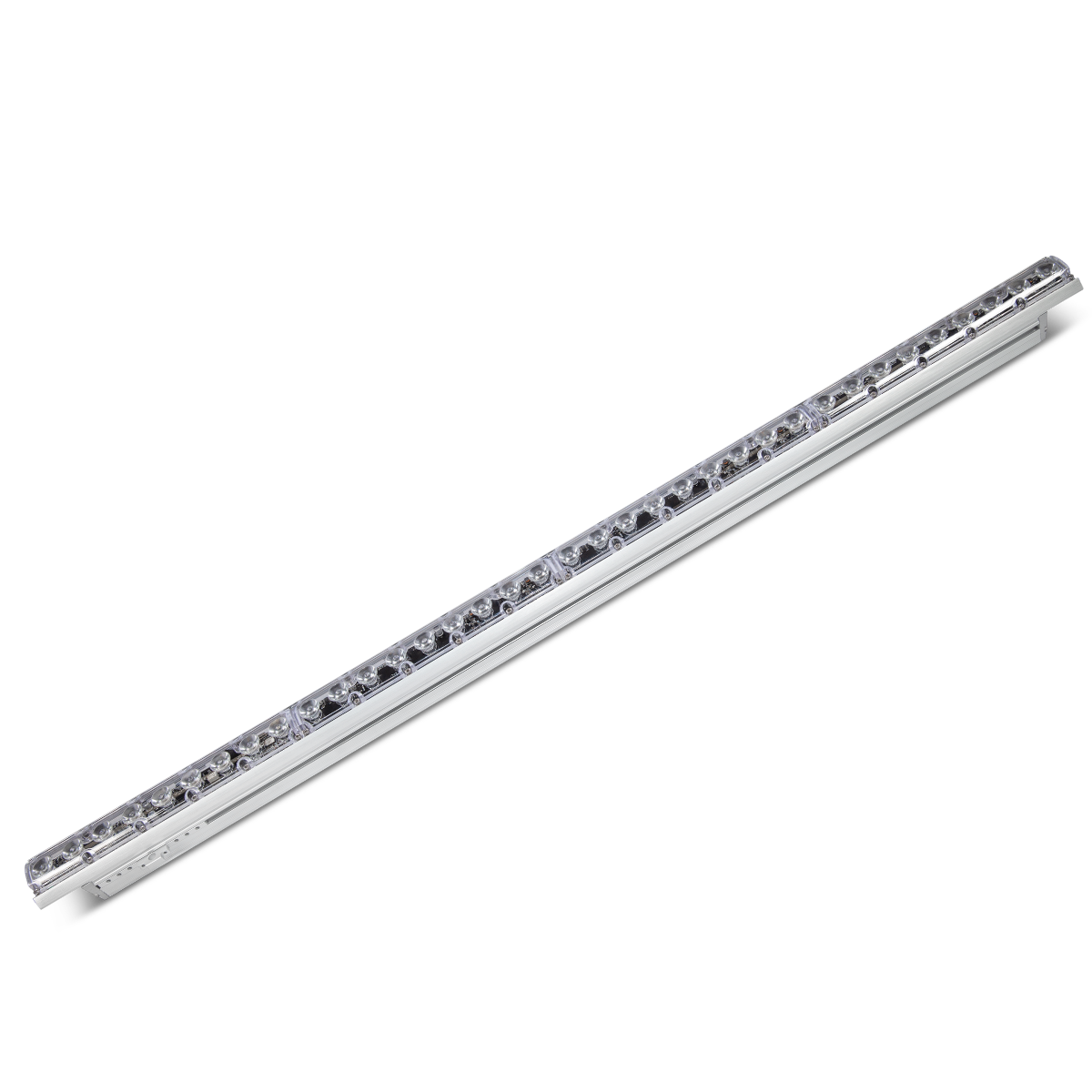

ROD 436-RGBW is a seamless 36×3 watts RGBW multi-chip linear wash with a length of 1220 millimeters. It has a built-in lamp body power supply and driver, and an integrated power and DMX signal cable. Flexible lighting device for application in a variety of building structures.

Add to wishlist
SKU: ROD436RGBW1530 Categories: ,

Videos

ROD 436-RGBW is a seamless 36×3 watts RGBW multi-chip linear wash with a length of 1220 millimeters. It has a built-in lamp body power supply and driver, and  an integrated power and DMX signal cable. Flexible lighting device for application in a variety of building structures.

SOURCE

  • Light source: 36×3 watts multi-chip RGBW
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 34,100 cd (15°)

OPTICAL SYSTEM

  • Optics: 15° (25°, 30°,60°, 15°x30°, 60°x15°)
  • Light output: 7,500 Lux @2m @ 15°

CONTROL & PROGRAMMING

  • Control Protocols: DMX 512, RDM
  • DMX control channels: 0-100%
  • Dimmer: 0%-100% 16 Bit
  • Controllable sections: 4
  • Color Mixing: RGBW

ELECTRICAL

  • Input Voltage: AC 100~277V
  • Max Power: 120 W
  • Power Factor: > 0.9
  • Built-in power supply

CONNECTIONS

  • Power connections: Integrated power and signal cable

PHYSICAL

  • Dimensions: 1220x62x84mm
  • Net Weight: 4.8 kg
  • Color: Silver
  • Housing: Die-cast aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
