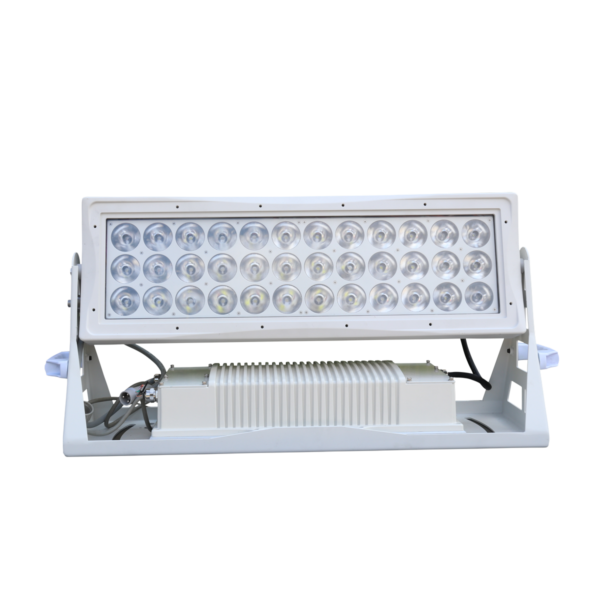

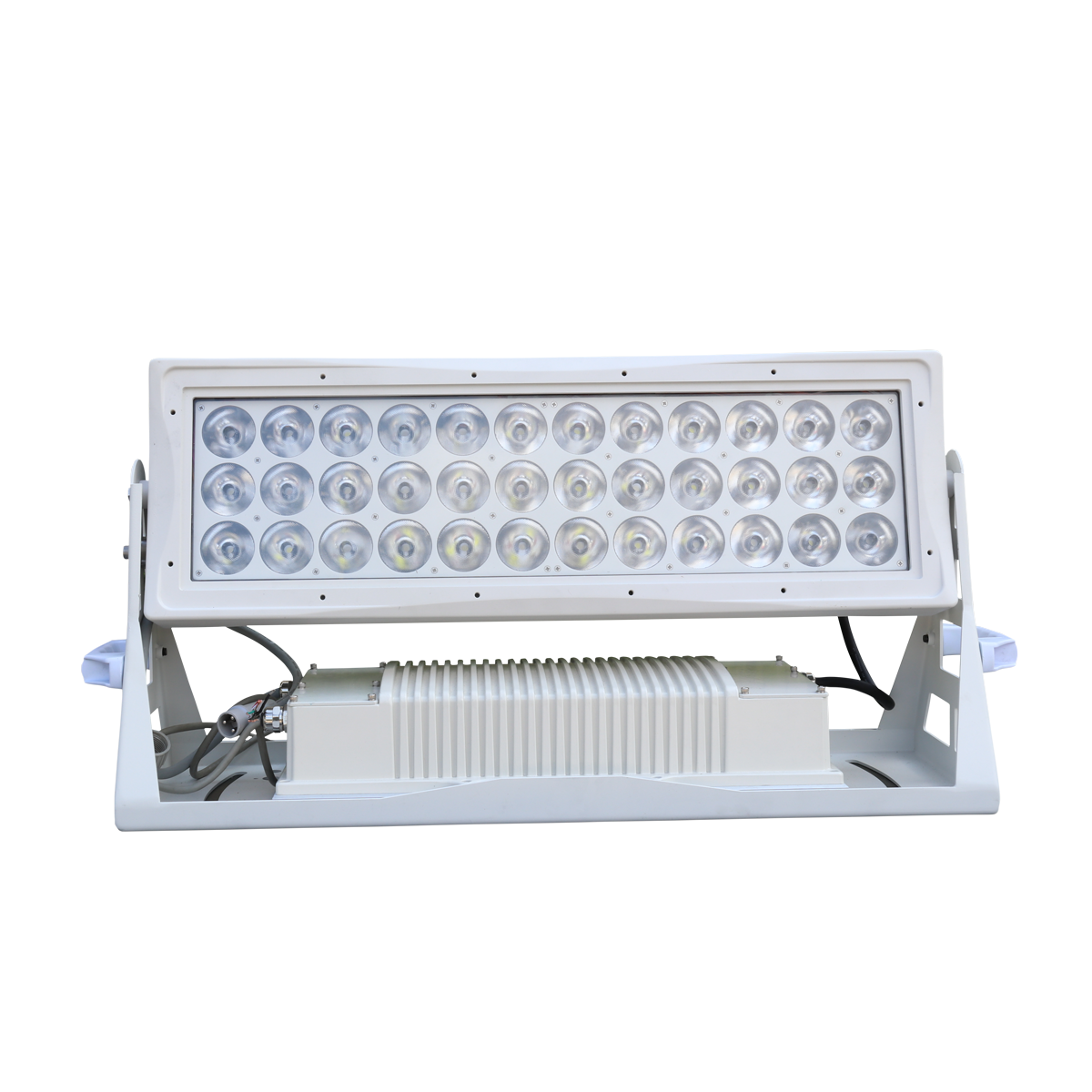

TITAN 436-RGBA

TITAN 436-RGBA the high-power LED floodlights series, is adopting the efficient optical design, equipped with the industrial structure design, enjoying the advantages of good heat dissipation, stable performance, both with the excellent color mixing effect, low power consumption, high light efficiency, high illumination. An ideal LED fixture for the large-scale outdoor landscape lighting projects.

SKU: TITAN436RGBA Categories: ,

TITAN 436-RGBA the high-power LED floodlights series, is adopting the efficient optical design, equipped with the industrial structure design, enjoying the advantages of good heat dissipation, stable performance, both with the excellent color mixing effect, low power consumption, high light efficiency, high illumination. An ideal LED fixture for the large-scale outdoor landscape lighting projects.

SOURCE

  • Light source: 36×15 Multichip RGBA
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 246000cd (14°)

OPTICAL SYSTEM

  • Optics: 14°, 25°
  • Light output: 2460 Lux @10m @ 14°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100% dimming
  • Controllable sections: 4
  • Color mixing: RGBA

ELECTRICAL

  • Input Voltage: AC100-240V, 50/60Hz
  • Max Power: 450 W
  • Power Factor: > 0.9

CONNECTIONS

  • Main connection: 3m cable(input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 824x252x381mm
  • Net Weight: 31.3 kg
  • Color: Off White (Gray, Black Optional)
  • Housing: Die-cast aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 40°C~45°C (startup)
