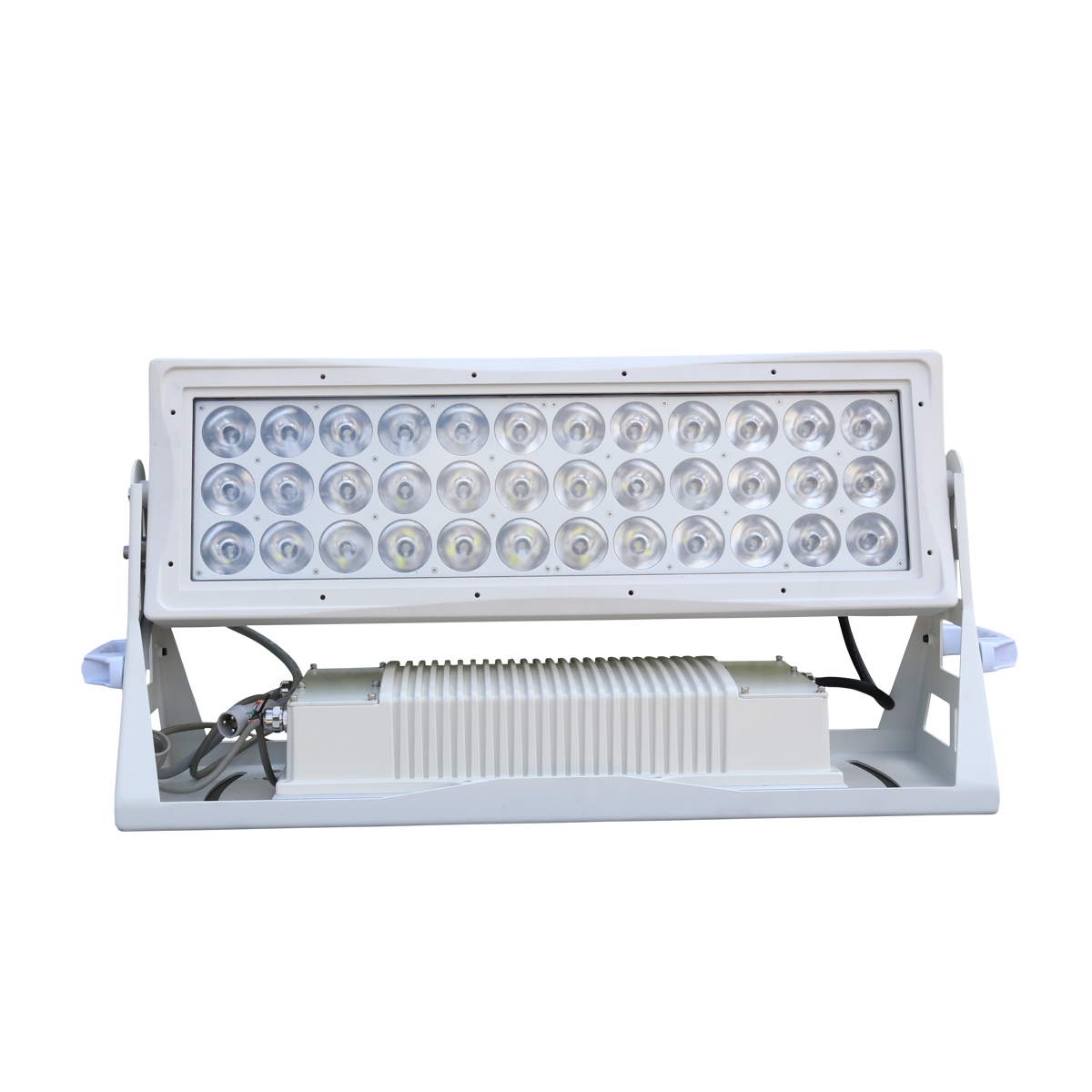

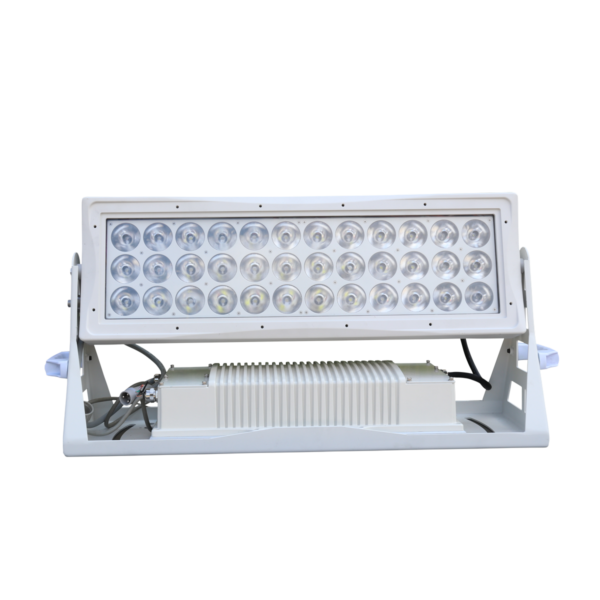

TITAN 436-RGBL

TITAN 436-RGBL

36x15 watts Multichip RGBL LED-Floodlight

TITAN 436-RGBL high-power LED floodlights series, is adopting the efficient optical design, equipped with the industrial structure design, enjoying the advantages of good heat dissipation, stable performance, both with the excellent color mixing effect, low power consumption, high light efficiency, high illumination. An ideal LED fixture for the large-scale outdoor landscape lighting projects.

SKU: TITAN436RGBL Categories: ,

TITAN 436-RGBL the high-power LED floodlights series, is adopting the efficient optical design, equipped with the industrial structure design, enjoying the advantages of good heat dissipation, stable performance, both with the excellent color mixing effect, low power consumption, high light efficiency, high illumination. An ideal LED fixture for the large-scale outdoor landscape lighting projects.

SOURCE

  • Light source: 36×15 watt Multichip RGBL
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 307500cd (14°)

OPTICAL SYSTEM

  • Optics: 14°, 25°
  • Light output: 3100 Lux @10m @ 14°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100% dimming
  • Controllable sections: 4
  • Color mixing: RGBL

ELECTRICAL

  • Input Voltage: AC100-240V, 50/60Hz
  • Max Power: 450 W
  • Power Factor: > 0.9

CONNECTIONS

  • Main connection: 3m cable(input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 824x252x381mm
  • Net Weight: 31.3 kg
  • Color: Off White (Gray, Black Optional)
  • Housing: Die-cast aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 40°C~45°C (startup)
