TITAN 472-RGBA

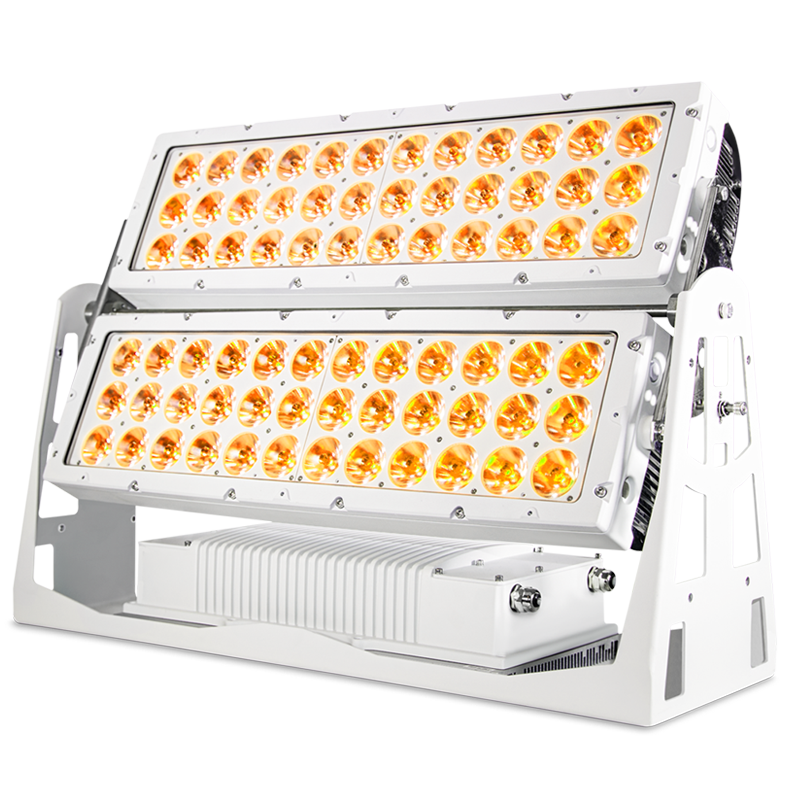

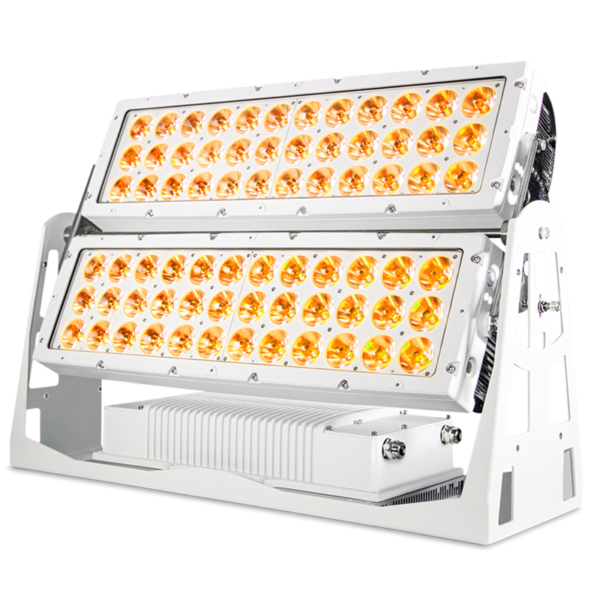

TITAN 472-RGBA is a 72×15 watts multi-chip RGBA, LED city wash. It has excellent color mixing effect, high color saturation, high light efficiency, high illumination, high perfor-mance and stability, it is realizable to achieve the perfect color interpretation and ultra-long light casting distance. Optional wireless DMX 512 control, it provides diverse lighting solutions for a variety of large outdoor lighting projects, an ideal lighting fixture for towers, bridges, large venues, integrated commercial building and other large occasions.

SKU: TITAN472RGBA Categories: ,

TITAN 472-RGBA is a 72×15 watts multi-chip RGBA, LED city wash. It has excellent color mixing effect, high color saturation, high light efficiency, high illumination, high perfor-mance and stability, it is realizable to achieve the perfect color interpretation and ultra-long light casting distance. Optional wireless DMX 512 control, it provides diverse lighting solutions for a variety of large outdoor lighting projects, an ideal lighting fixture for towers, bridges, large venues, integrated commercial building and other large occasions.

SOURCE

  • Light source: 72×15 watts multi-chip RGBA
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 467400cd (14°)

OPTICAL SYSTEM

  • Optics: 14° , 25°
  • Light output: 4,000 Lux @ 10m @ 14°

CONTROL & PROGRAMMING

  • Control Protocols: DMX
  • DMX control channels: 0-100%
  • Controllable sections: 8
  • Dimmer: 0% -100%; 16 Bit
  • Color Mixing: RGBA

ELECTRICAL

  • Input Voltage: AC100 – 277V
  • Max Power: 1 200 W
  • Power Factor: > 0.9

CONNECTIONS

  • Power connection: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 881x252x569 mm
  • Net Weight: 46 kg
  • Color: Off – white (Gray, Black Optional)
  • Housing: Die-cast aluminum
  • Security: Anti-thunder shock protection design
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
