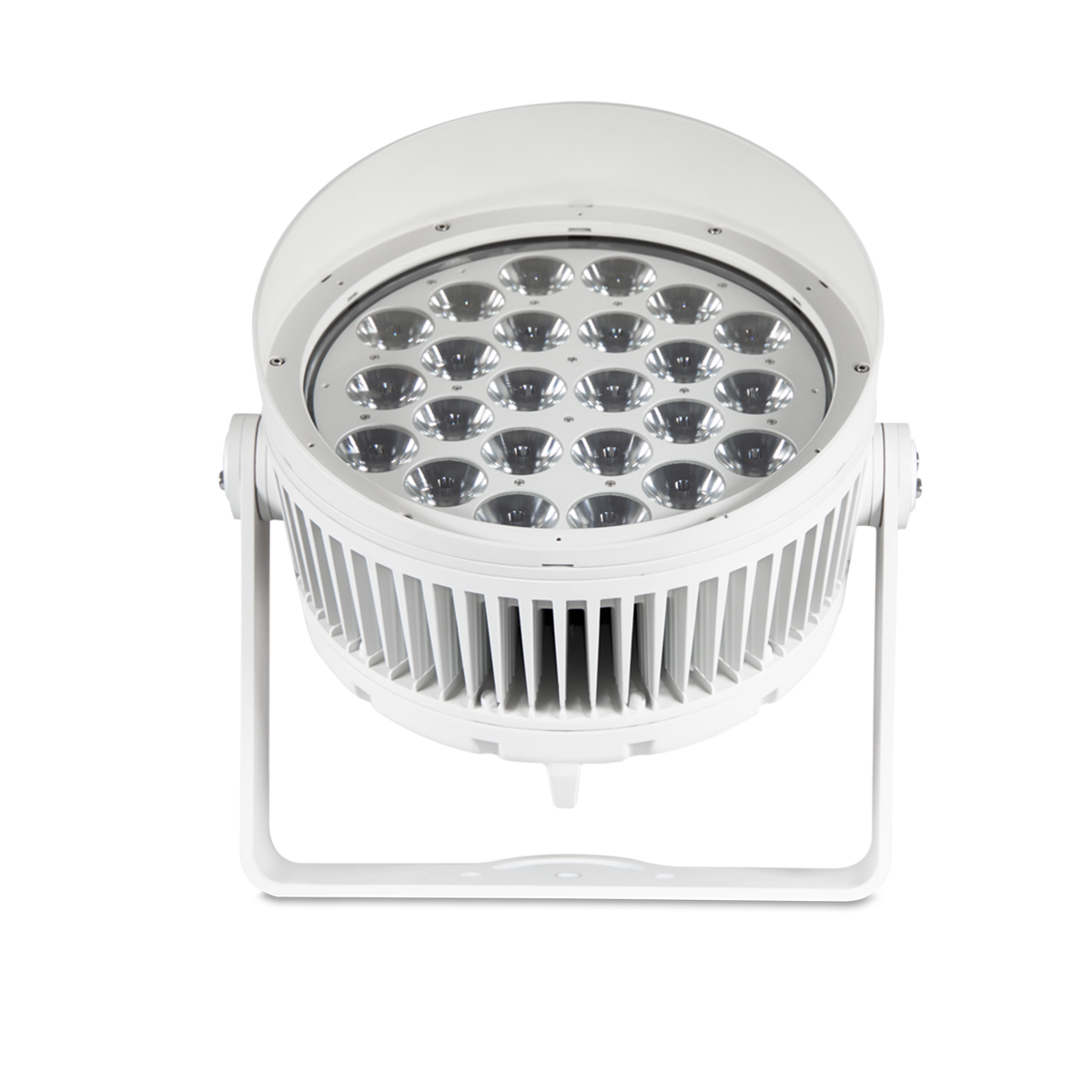

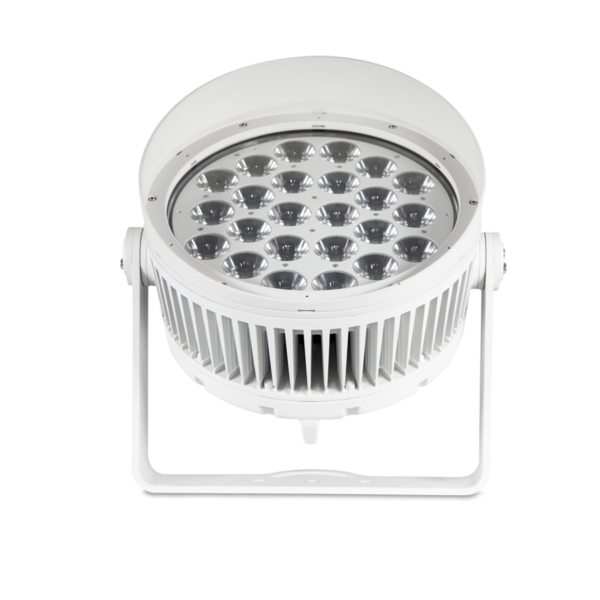

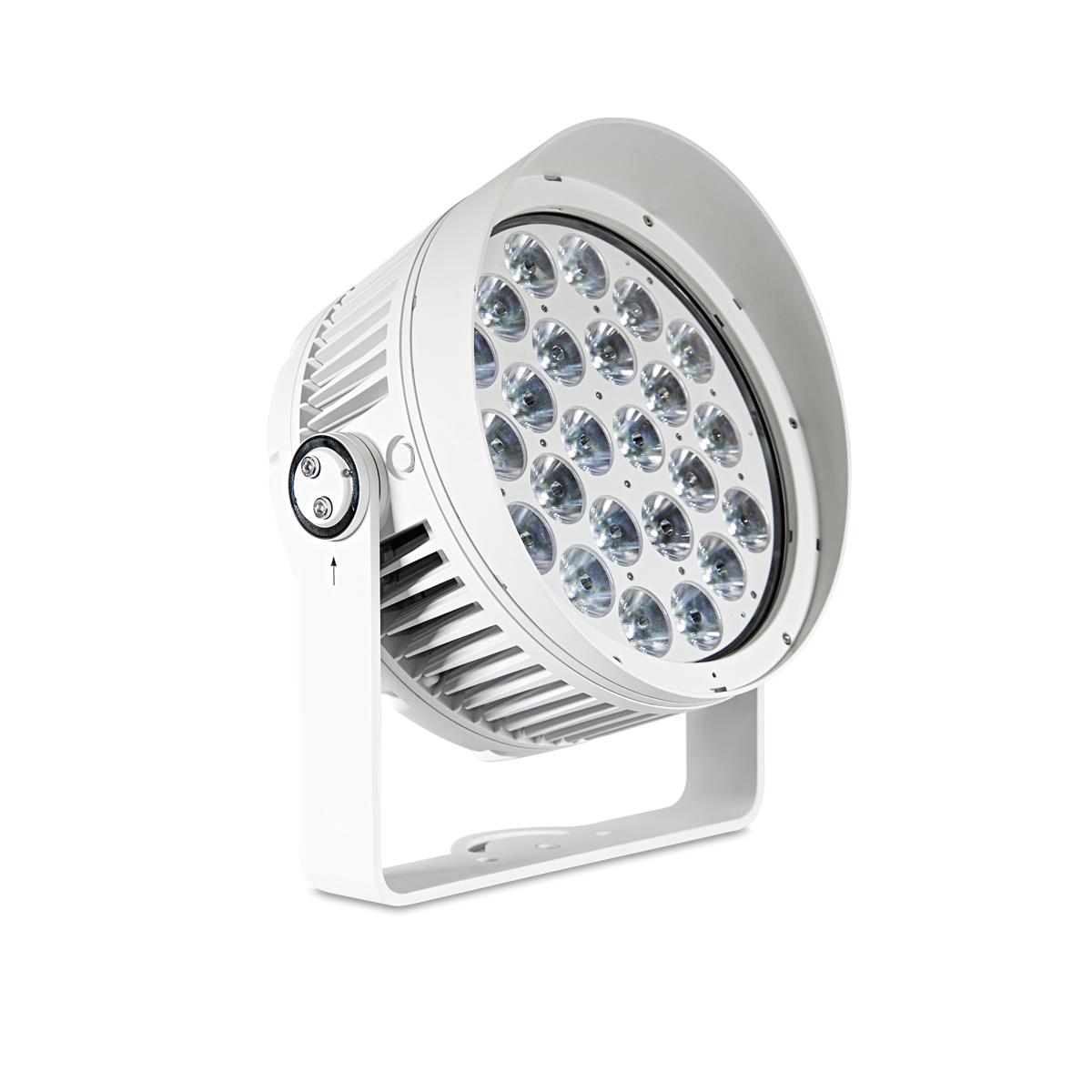

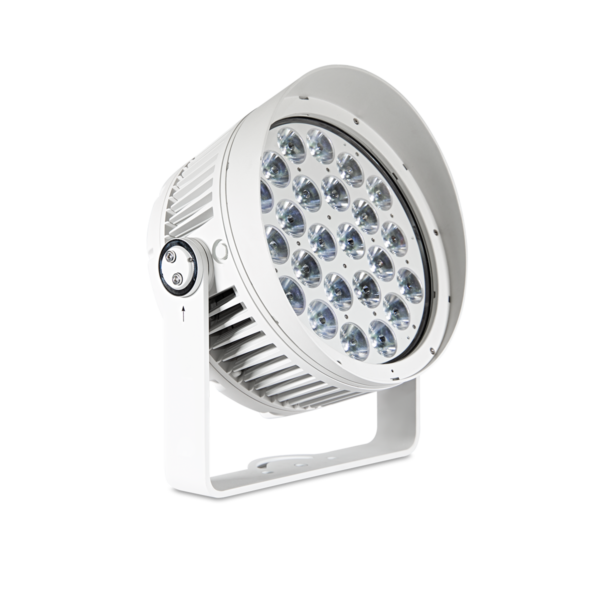

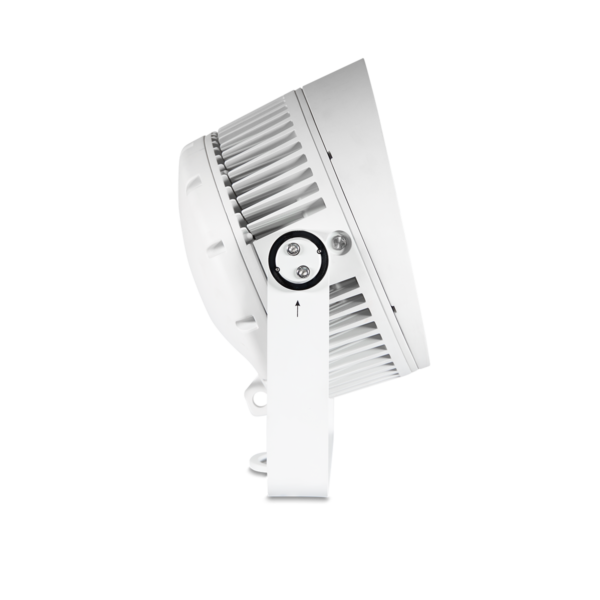

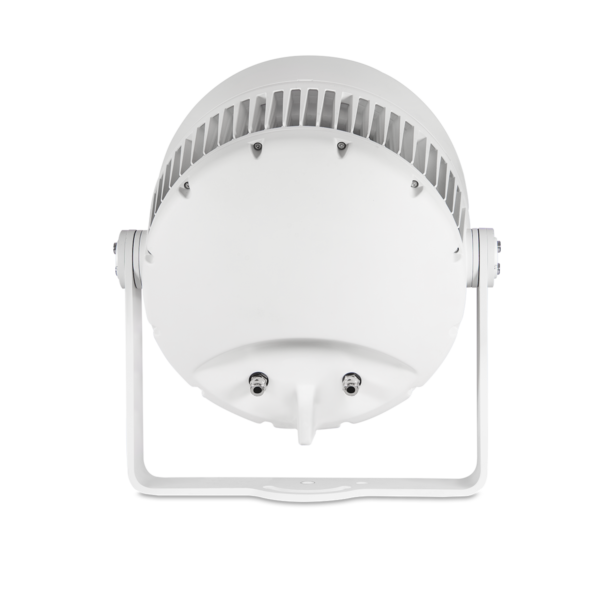

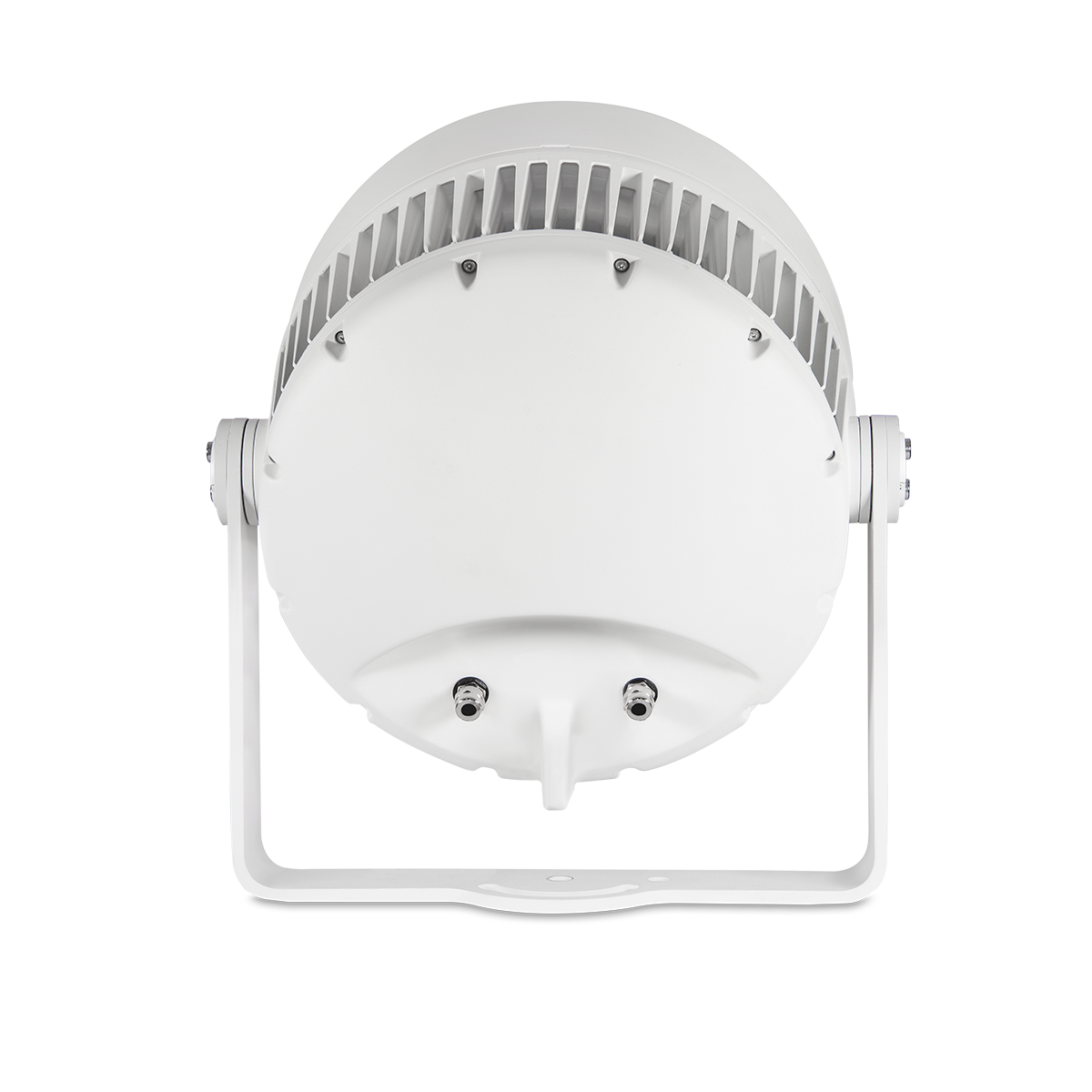

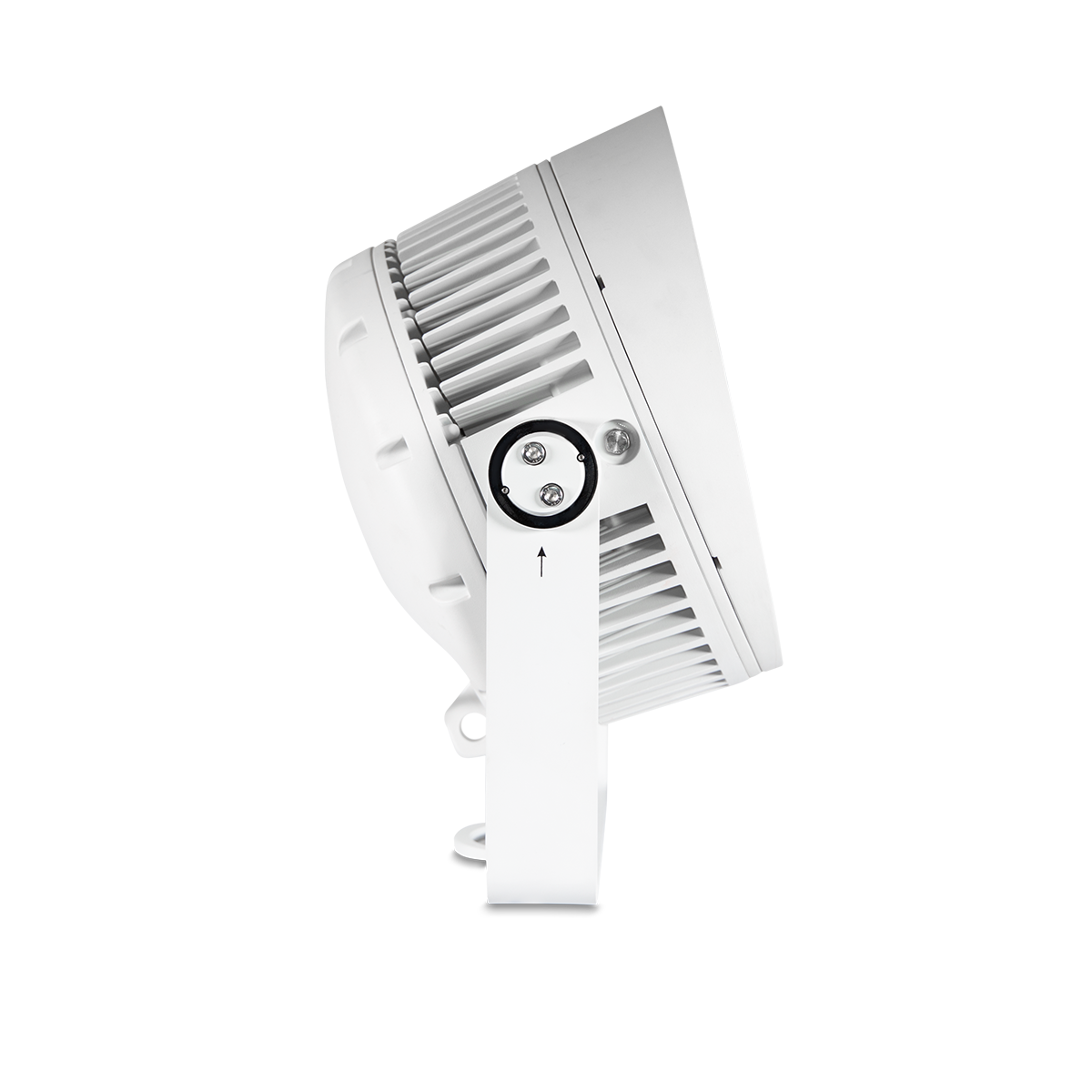

WHOPPER 124-W

WHOPPER 124-W is a 24×15 watts Warm White high power LED Exterior wash. It has an advanced intelligent color management system to ensure the consistency of light color. It is equipped with adjustable glare shield, supporting RDM bi-directional feedback function. This fixture can provide real-time feedback for malfunction and working status, which reduces the troubleshooting and cost of maintenance. It is suitable for bridges, monuments, architectural facades, and other landscape applications.

SKU: Whopper124W Categories: ,

WHOPPER 124-W is a 24×15 watts Warm White high power LED Exterior wash. It has an advanced intelligent color management system to ensure the consistency of light color. It is equipped with adjustable glare shield, supporting RDM bi-directional feedback function. This fixture can provide real-time feedback for malfunction and working status, which reduces the troubleshooting and cost of maintenance. It is suitable for bridges, monuments, architectural facades, and other landscape applications.

SOURCE

  • Light source: 24×15 watts Warm White
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 622634cd (3.5°)

OPTICAL SYSTEM

  • Optics: 3.5° , 10°, 20°
  • Light output: 6,500 Lux @10m @ 3.5°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color: Warm White

ELECTRICAL

  • Input Voltage: AC100~277V
  • Max Power: 300 w
  • Power Factor: > 0.9

CONNECTIONS

  • Power connection: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 423x284x443mm
  • Net Weight: 17.5 kg
  • Color: Off -White (Optional: Gray, Black)
  • Housing: Die-cast aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C
