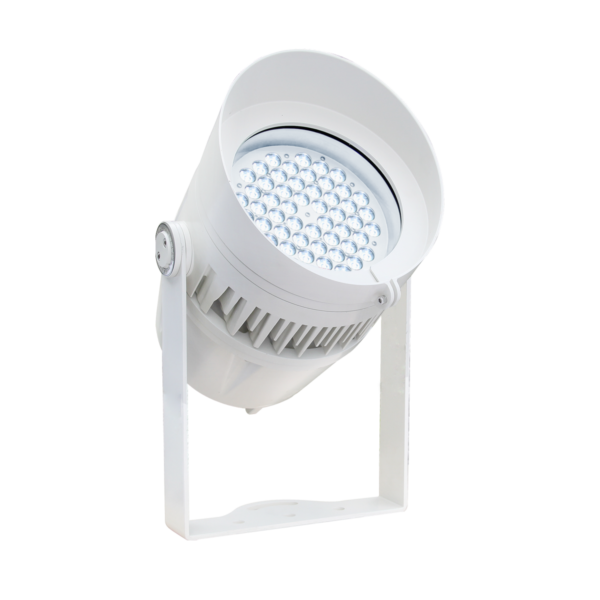

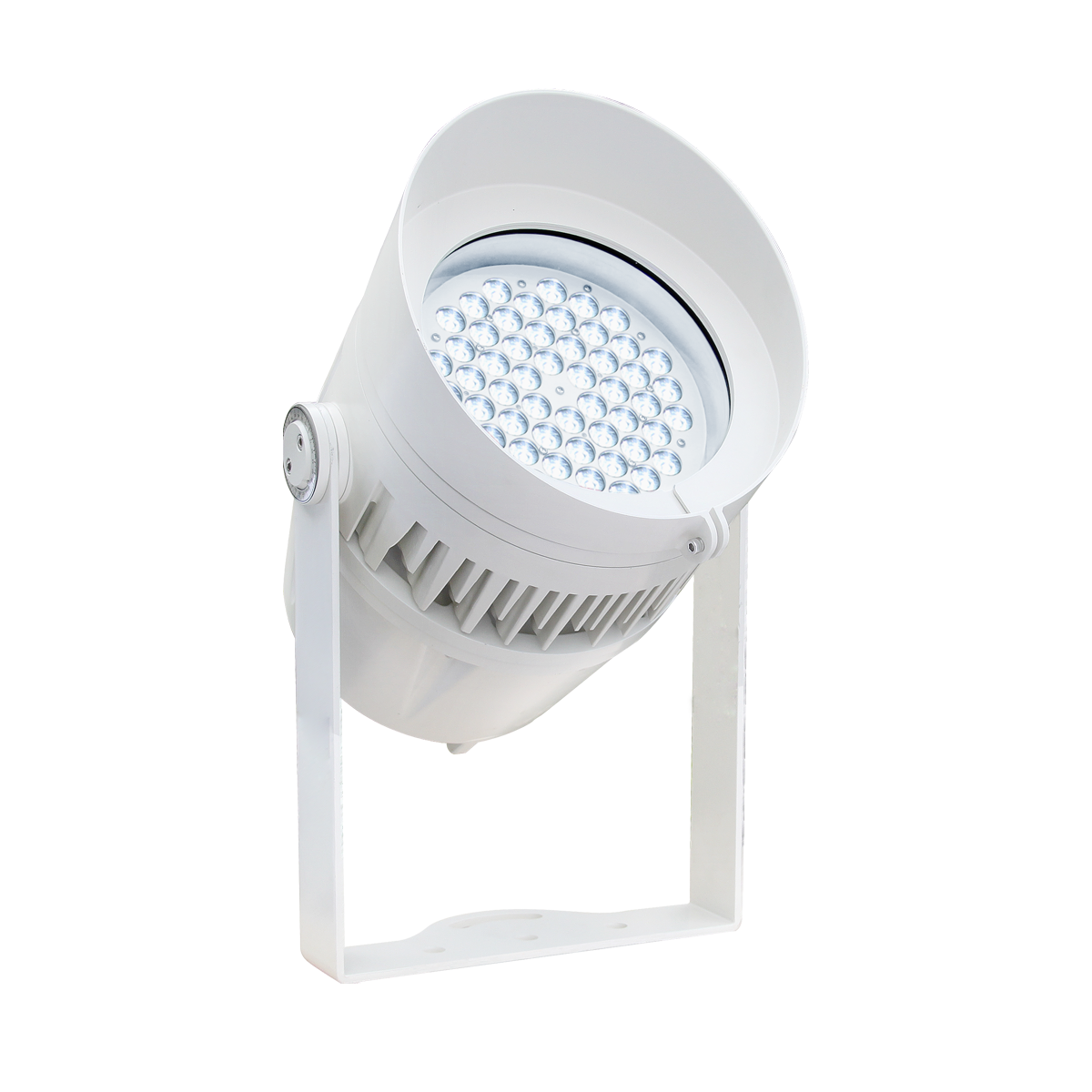

WHOPPER 154-C

WHOPPER 154-C is a 54×3 watts Cool White high power LED Exterior wash. It has an attractive and durable die-casting aluminum housing, built-in power supply and driver, and an independent heat dissipation system. It is equipped with adjustable glare shield, able to
create an unparalleled lighting effect for the monuments, buildings, bridges and other architectural projects.

SKU: Whopper154C Categories: ,

WHOPPER 154-C is a 54×3 watts Cool White high power LED Exterior wash. It has an attractive and durable die-casting aluminum housing, built-in power supply and driver, and an independent heat dissipation system. It is equipped with adjustable glare shield, able to
create an unparalleled lighting effect for the monuments, buildings, bridges and other architectural projects.

SOURCE

  • Light source: 54×3 watts Cool White
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 58000cd (25°)

OPTICAL SYSTEM

  • Optics: 25° (5°, 12°, 45°)
  • Light output: 38,000 Lux  @2m @ 25°

CONTROL & PROGRAMMING

  • Control Protocols: DMX
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color: Cool White

 ELECTRICAL

  • Input Voltage: AC100~240V, 50/60Hz
  • Max Power: 170 W
  • Power Factor: > 0.9

CONNECTIONS

  • Power connection: 3m cable(input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 354x283x450mm
  • Net Weight 11 kg
  • Color: Black / Off White
  • Housing: Die-cast aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
