WHOPPER 401-RGBA

WHOPPER 401-RGBA

1x15 watts Multichip RGBA LED-Exterior wash

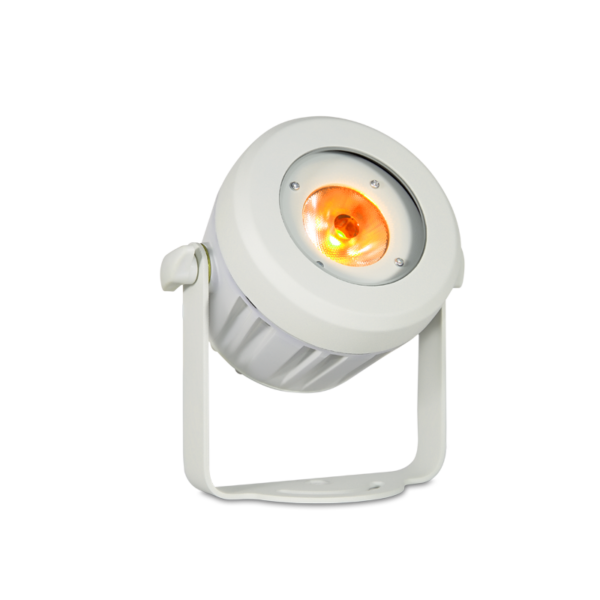

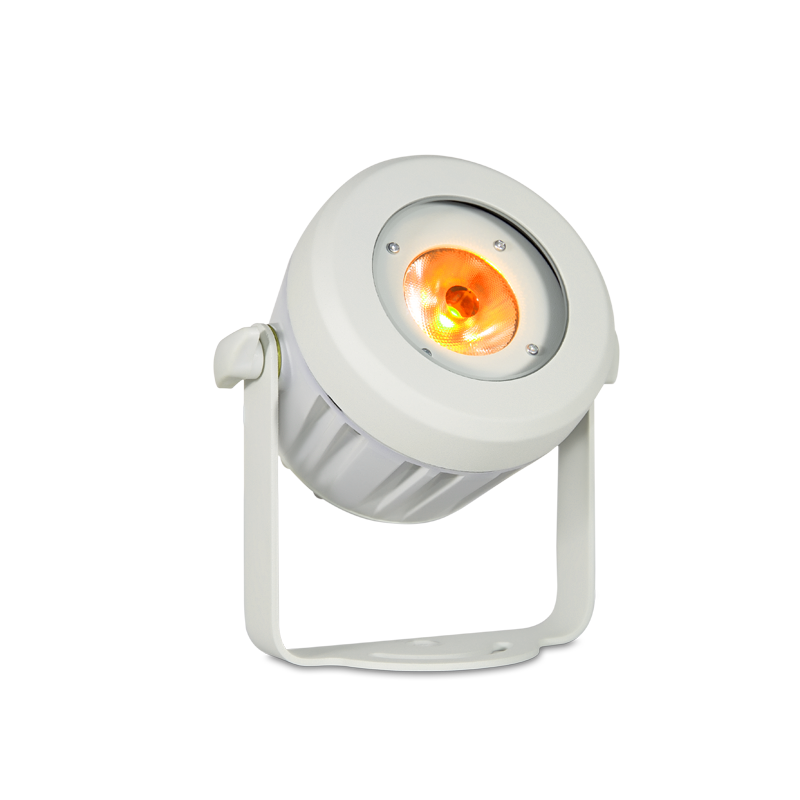

WHOPPER 401-RGBA is a 1×15 watts multi-chip RGBA compact LED Exterior wash with intelligent DMX dimming technology. Integrated power and DMX signal cable and hand-in-hand wiring layout are designed for easy reliable installation.

WHOPPER 401-RGBA is a 1×15 watts multi-chip RGBA compact LED Exterior wash with intelligent DMX dimming technology. Integrated power and DMX signal cable and hand-in-hand wiring layout are designed for easy reliable installation.

SOURCE

  • Light source: 1×15 watts multi-chip RGBA
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 3750 cd(14°)

OPTICAL SYSTEM

  • Optics: 14°
  • Light output: 1,000 Lux @2m @ 14°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color Mixing: RGBA

ELECTRICAL

  • Input Voltage: AC100~277V
  • Max Power: 20 w
  • Power Factor: > 0.9

CONNECTIONS

  • Power connection: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 170x176x164mm
  • Net Weight: 1.7 kg
  • Color: Off -White (Optional: Gray, Black)
  • Housing: Die-cast aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C
