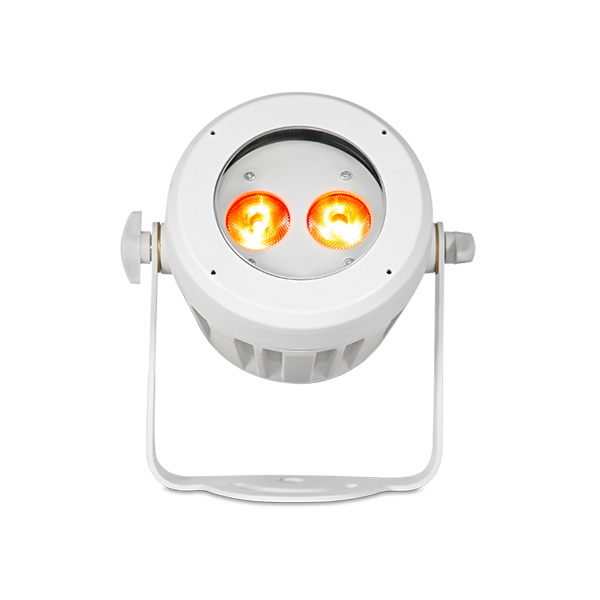

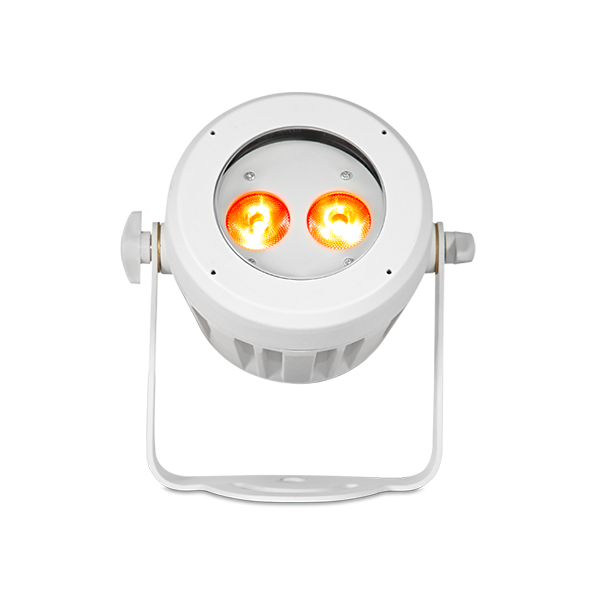

WHOPPER 402-RGBA is a 2×15 watts multi-chip RGBA, LED compact design Exterior wash with intelligent DMX dimming technology. Integrated power and DMX signal cable and hand-in-hand wiring layout are designed for easy reliable installation.
SOURCE
- Light source: 2×15 multi-chip RGBA
- LED life expectancy: 50,000 Hrs
- Peak Intensity: 3000 cd(20°)
OPTICAL SYSTEM
- Optics: 22°
- Light output: 800 Lux @2m @ 22°
CONTROL & PROGRAMMING
- Control Protocols: DMX, RDM
- DMX control channels: 0-100%
- Controllable sections: 1
- Color Mixing: RGBA
ELECTRICAL
- Input Voltage: AC100~277V
- Max Power: 40 W
- Power Factor: > 0.9
CONNECTIONS
- Power connection: 3m cable(input only)
- Data connection: 3m cable (input + output)
PHYSICAL
- Dimensions: 170x176x164mm
- Net Weight: 1.7 kg
- Color: Off -White (Optional: Gray, Black)
- Housing: Die-cast aluminum
- IP Rating: 66
- Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C
