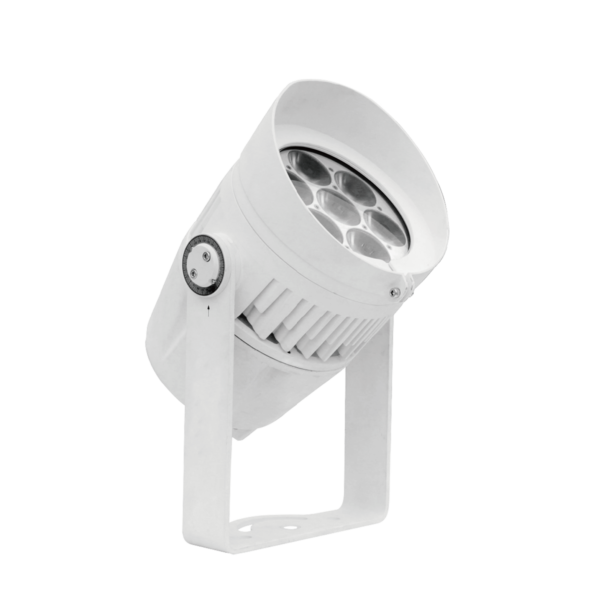

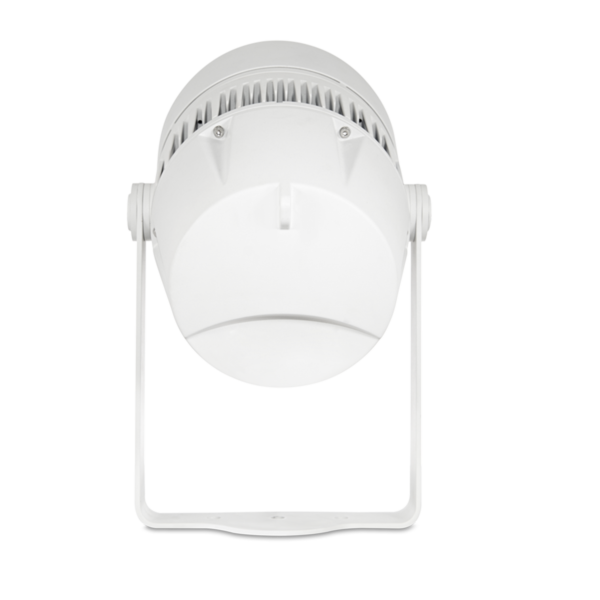

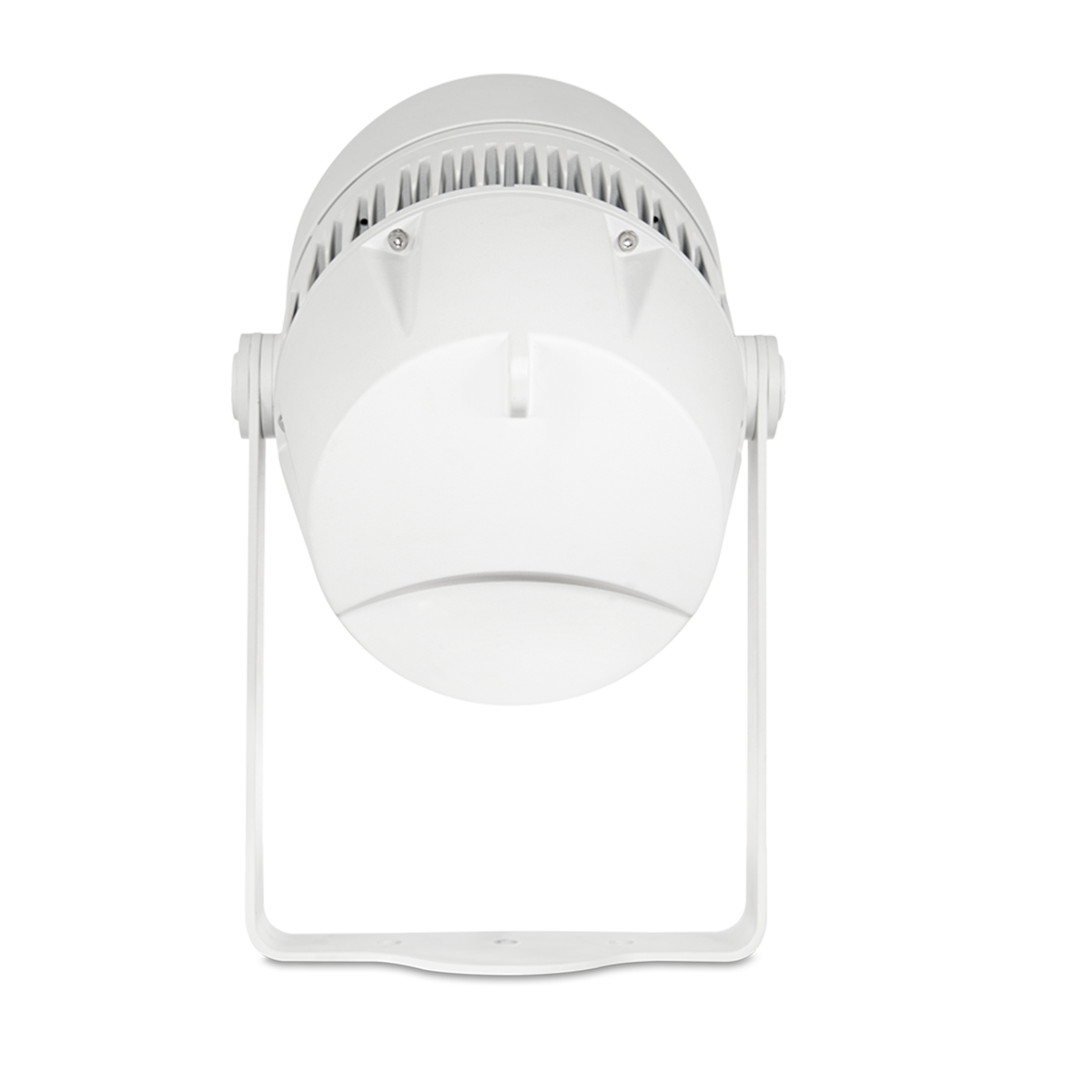

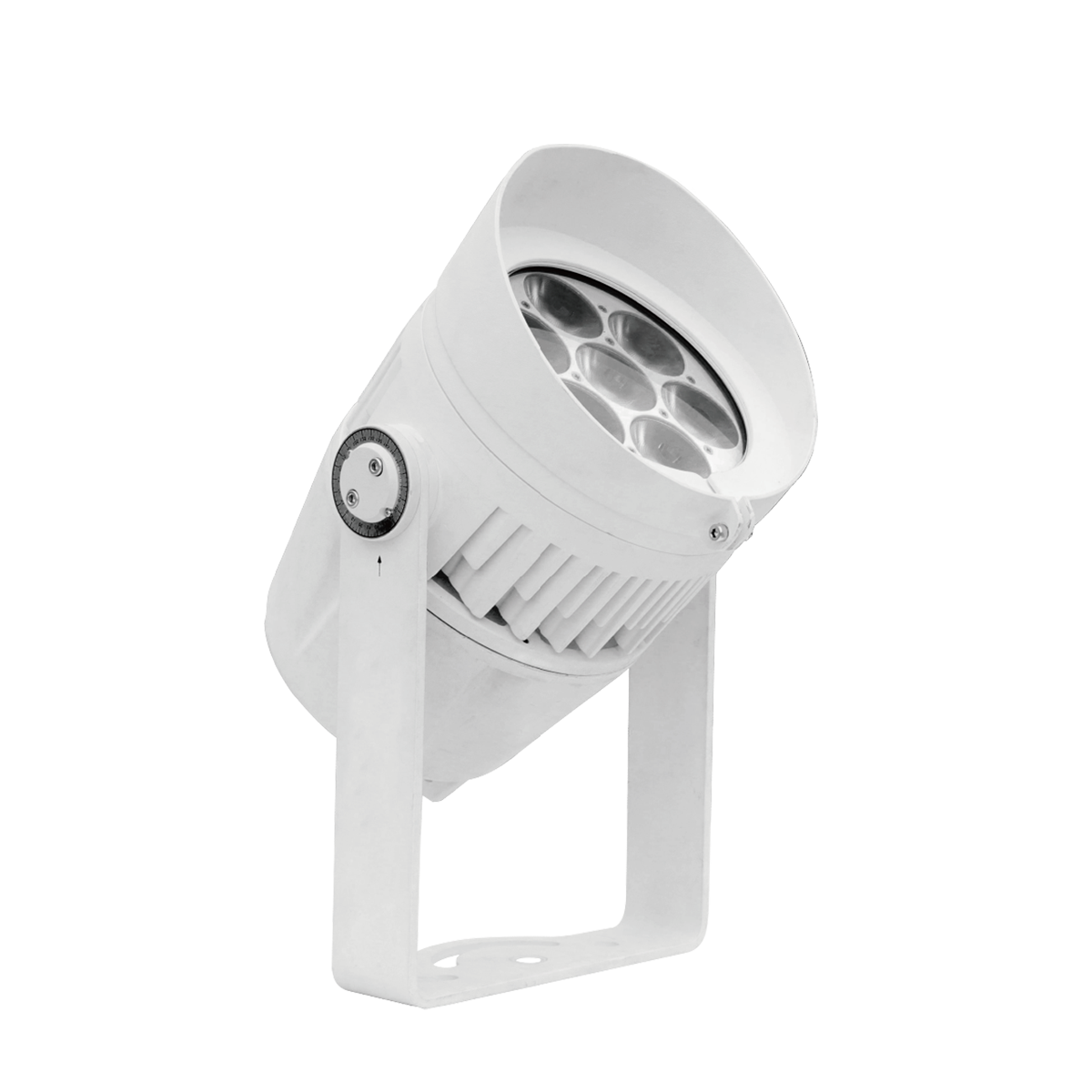

WHOPPER 407-RGBA

WHOPPER 407-RGBA

7x15 watts Multichip RGBA LED-Exterior Wash

WHOPPER 407-RGBA is a 7×15 watts multi-chip RGBA, LED Exterior wash with smart temperature control system. It has high color saturation, smooth color mixing, creative DMX dimming technology and pioneering segment control system. It’s high IP rating and strong build makes it ideal for architects to present creative effects for all architectural applications.

SOURCE

Add to wishlist
SKU: WHOPPER407RGBA15 Categories: ,

WHOPPER 407-RGBA is a 7×15 watts multi-chip RGBA, LED Exterior wash with smart temperature control system. It has high color saturation, smooth color mixing, creative DMX dimming technology and pioneering segment control system. It’s high IP rating and strong build makes it ideal for architects to present creative effects for all architectural applications.

SOURCE

  • Light source: 7×15 watts multi-chip RGBA
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 37500 cd (15°)

OPTICAL SYSTEM

  • Optics: 15 °
  • Light output: 10,000 Lux @2m @ 15°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 2
  • Color Mixing: RGBA

 ELECTRICAL

  • Input Voltage: AC100~277V
  • Max Power: 120W
  • Power Factor: > 0.9

CONNECTIONS

  • Power connections: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 315x242x390mm
  • Net Weight: 8.1 kg
  • Color: Off-white (Gray, Black Optional)
  • Housing: Die-cast aluminum
  • Special protection design for anti-thunder shock
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
