WHOPPER 409-RGBA

WHOPPER 409-RGBA

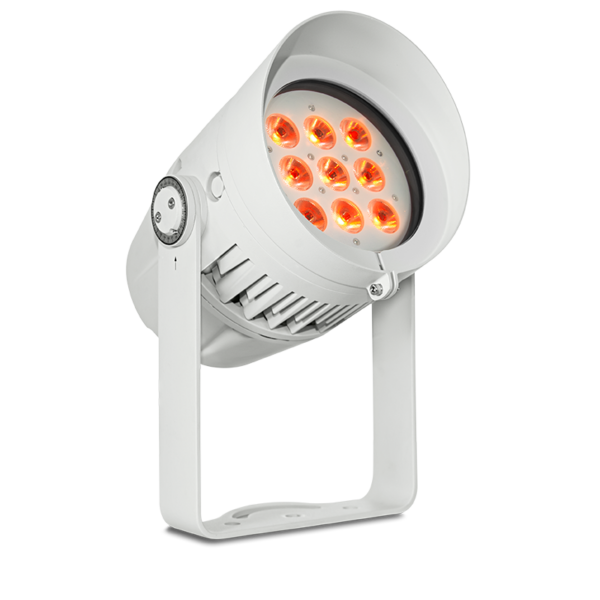

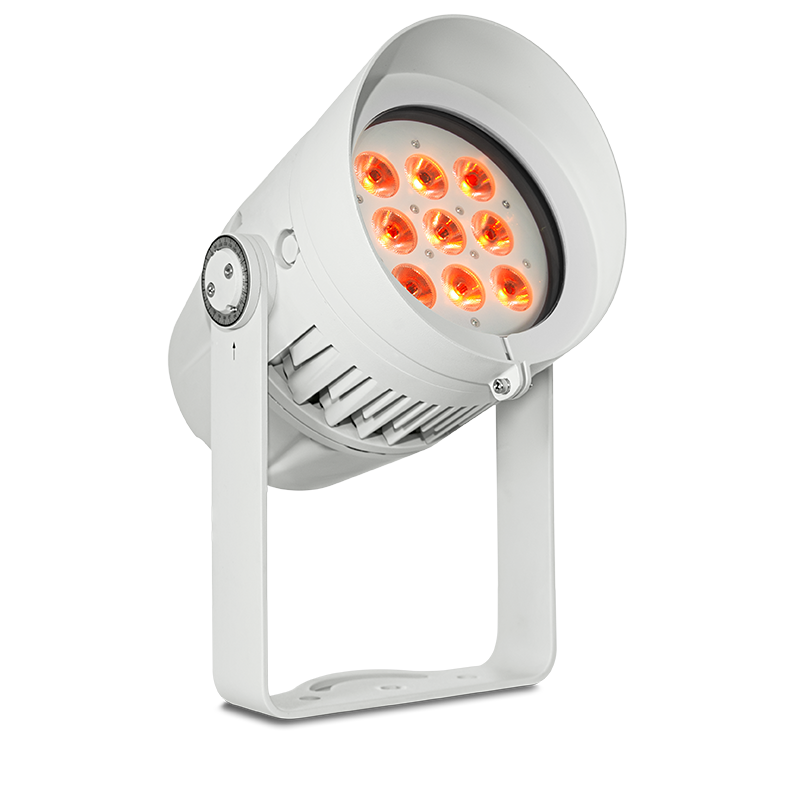

9x15 watts Multichip RGBA LED-Exterior Wash

WHOPPER 409-RGBA is a 9×15 watts multi-chip RGBA, LED Exterior wash with smart temperature control system, high color saturation, extreme wonderful color mixing, creative DMX dimming technology and pioneering segment control system, which helps architects present more artistic effects. With advanced RDM function, this spotlight can provide real-time feedback for malfunction and its working status, reducing the cost for troubleshooting and maintenance.

Add to wishlist
SKU: WHOPPER409RGBA22 Categories: ,

WHOPPER 409-RGBA is a 9×15 watts multi-chip RGBA, LED Exterior wash with smart temperature control system, high color saturation, extreme wonderful color mixing, creative DMX dimming technology and pioneering segment control system, which helps architects present more artistic effects. With advanced RDM function, this spotlight can provide real-time feedback for malfunction and its working status, reducing the cost for troubleshooting and maintenance.

SOURCE

  • Light source: 9×15 Watts multi-chip RGBA
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 14420 cd (22°)

OPTICAL SYSTEM

  • Optics: 22 °
  • Light output: 4,200 Lux @2m @ 22°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color Mixing: RGBA

 ELECTRICAL

  • Input Voltage: AC100~277V
  • Max Power: 150 W
  • Power Factor: > 0.9

CONNECTIONS

  • Power connections: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 315 x 242 x 390 mm
  • Net Weight: 8.1 kg
  • Color: Off-white (Gray, Black Optional)
  • Housing: Die-cast aluminum
  • Special protection design for anti-thunder shock
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
