WHOPPER 414-RGBA

WHOPPER 414-RGBA

14x15 watts Multichip RGBA LED-Exterior Wash

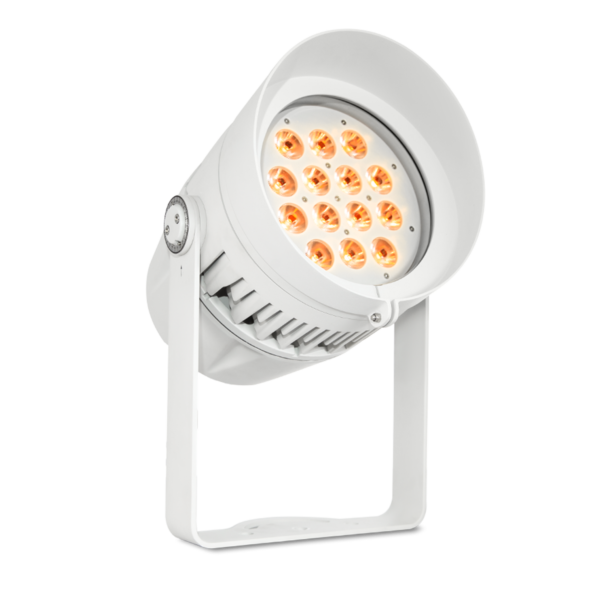

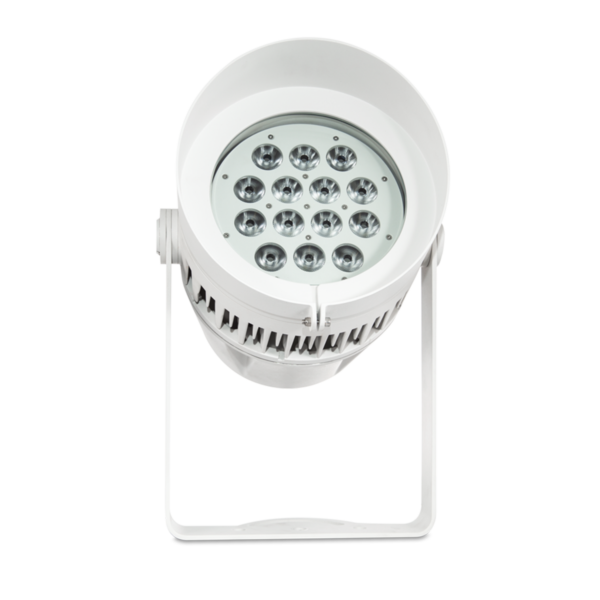

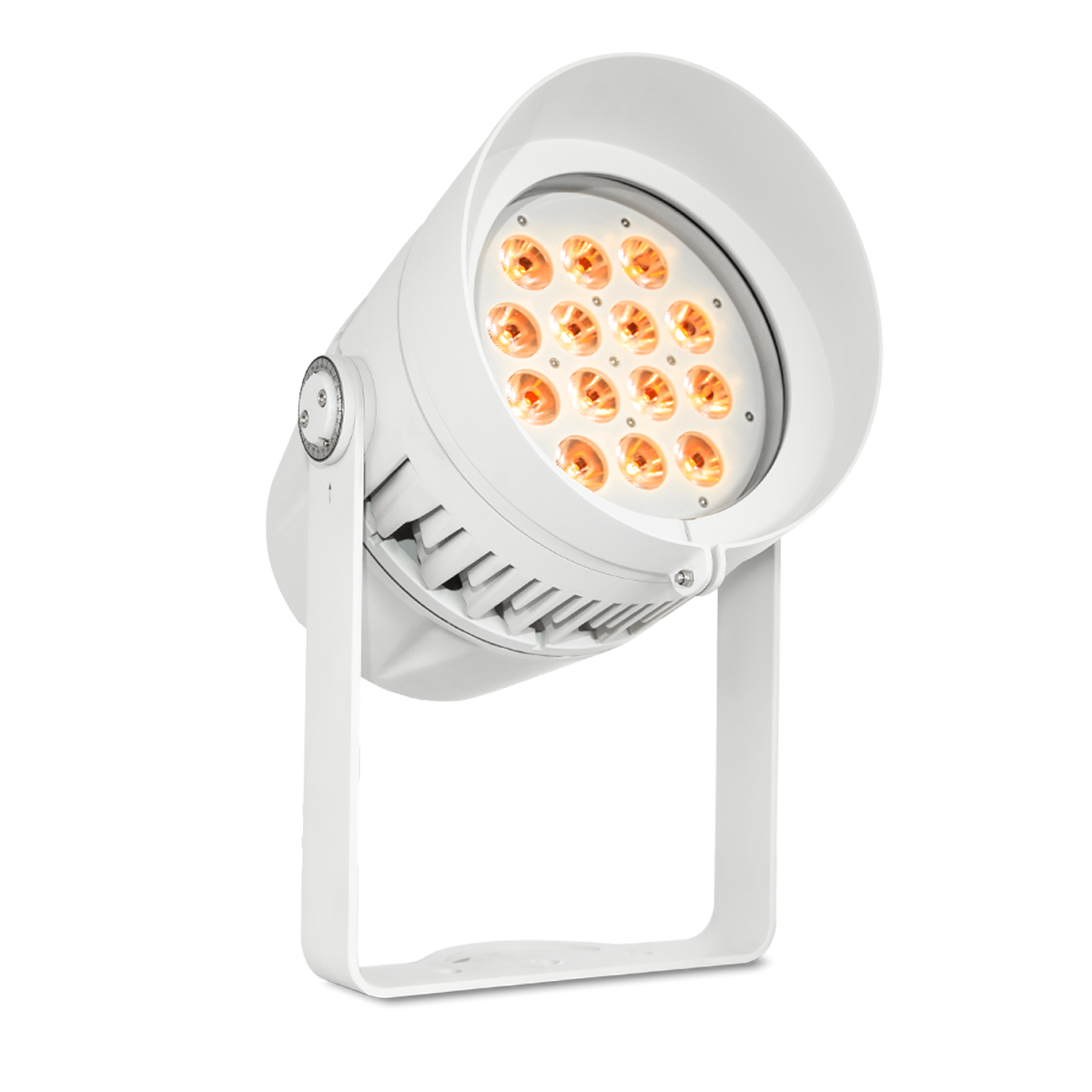

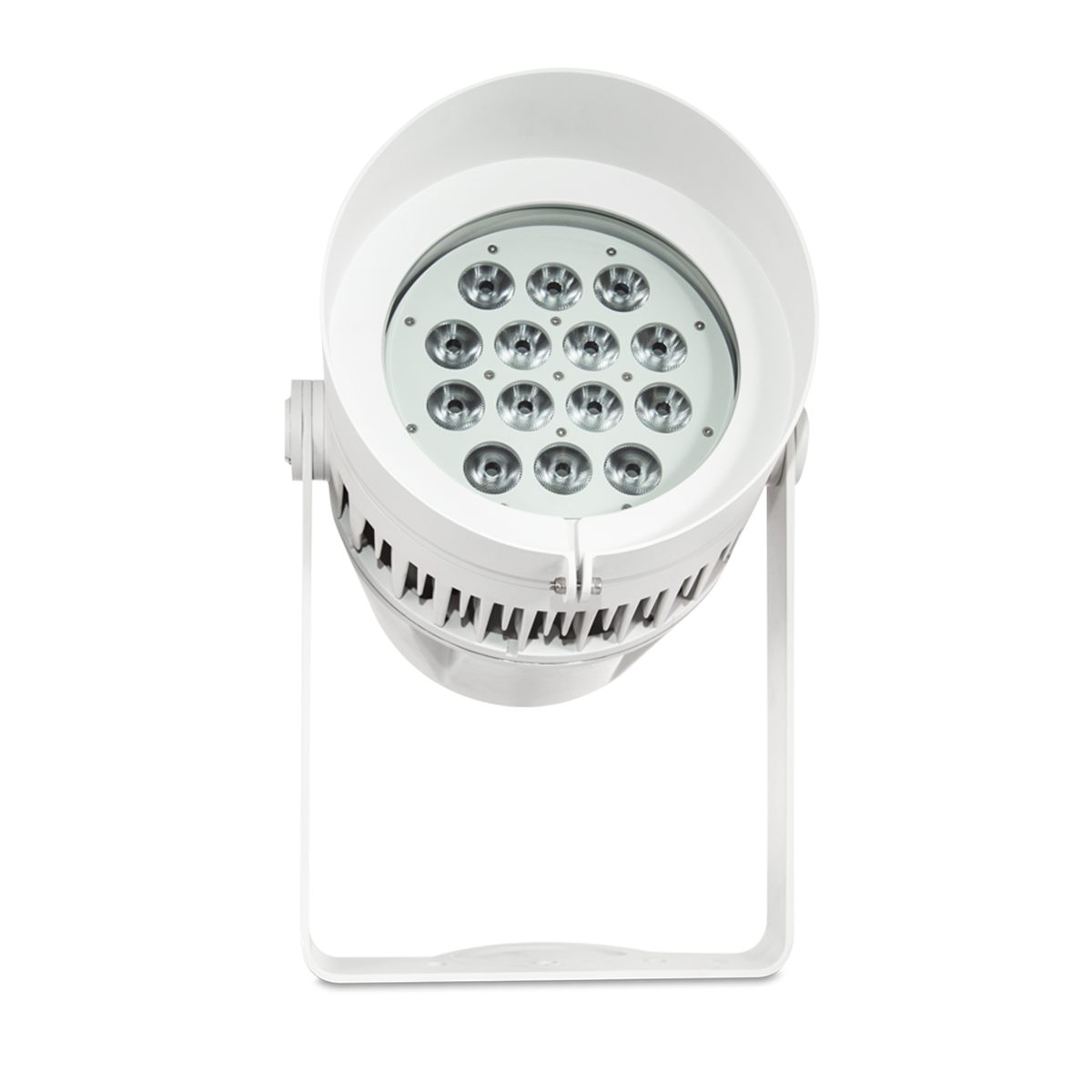

WHOPPER 414-RGBA is a 14×15 watts multi-chip RGBA, LED Exterior wash, with die-casting aluminum housing, attractive and durable. Built-in power supply and driver, independent heat dissipation system, equipped with adjustable glare shield, able to create an unparalleled lighting effect for the monuments, buildings, bridges, and other architectural applications.

SKU: Whopper414RGBA Categories: ,

WHOPPER 414-RGBA is a 14×15 watts multi-chip RGBA, LED Exterior wash, with die-casting aluminum housing, attractive and durable. Built-in power supply and driver, independent heat dissipation system, equipped with adjustable glare shield, able to create an unparalleled lighting effect for the monuments, buildings, bridges, and other architectural applications.

SOURCE

  • Light source: 14×15 watts multi-chip RGBA
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 21630cd (22°)

OPTICAL SYSTEM

  • Optics: 22 °
  • Light output: 5,500 Lux @2m @ 22°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color Mixing: RGBA

 ELECTRICAL

  • Input Voltage: AC100~277V
  • Max Power: 250 w
  • Power Factor: > 0.9

CONNECTIONS

  • Power connections: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 354x283x450mm
  • Net Weight 11 kg
  • Color: Black / Off White
  • Housing: Die-cast aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
