WHOPPER 414-RGBL

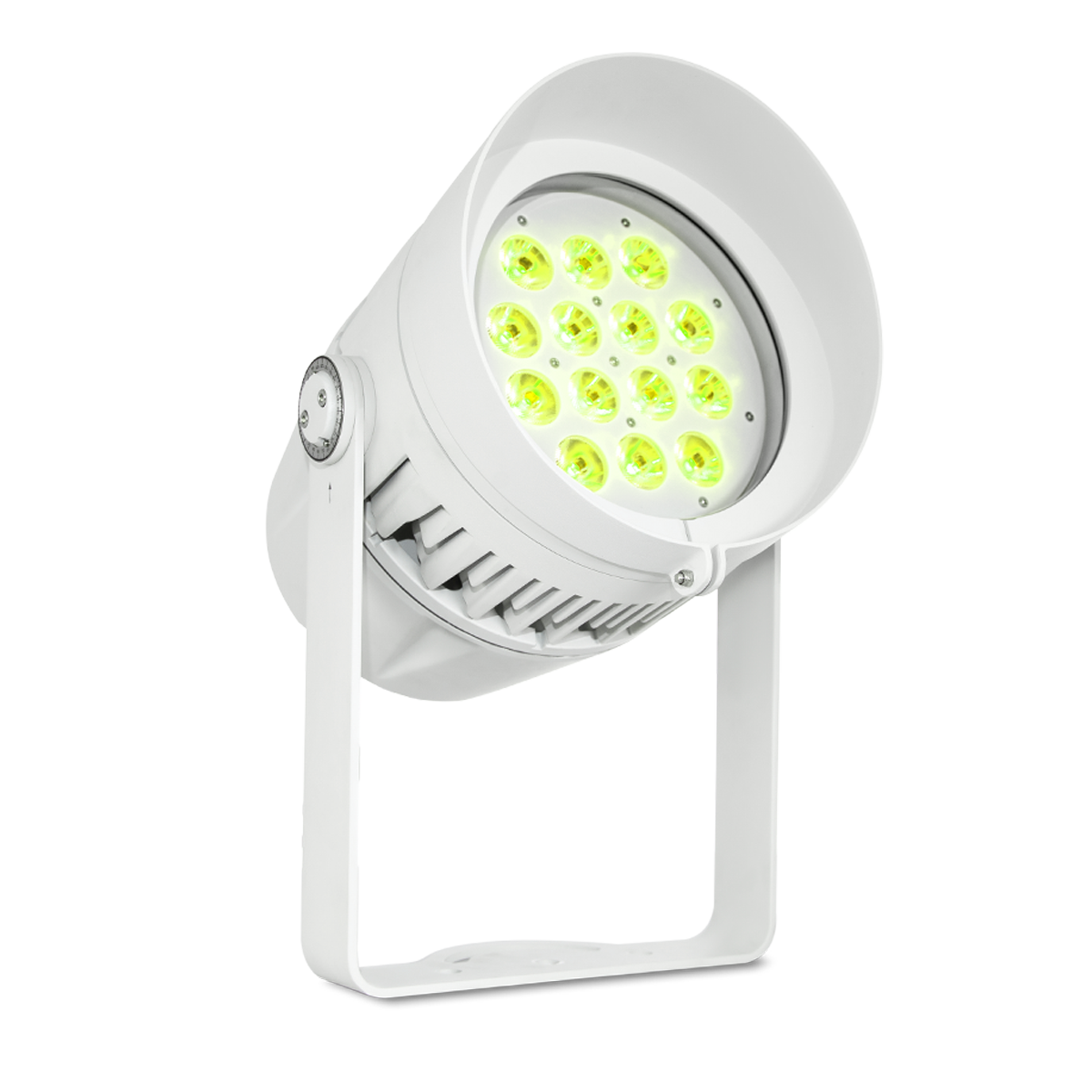

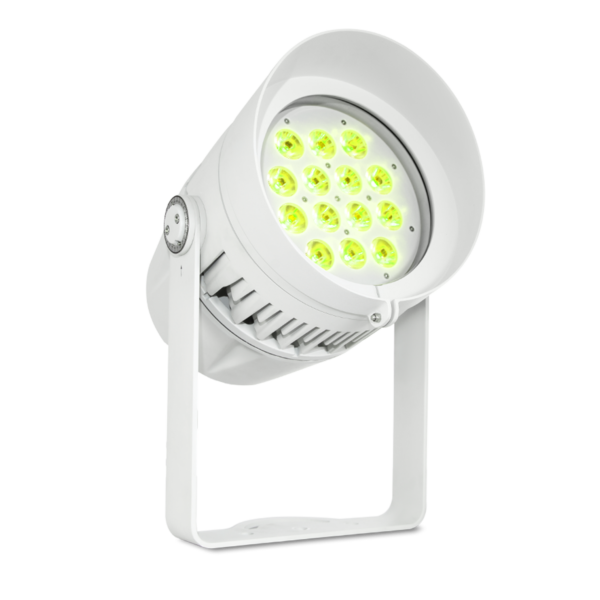

WHOPPER 414-RGBL is a 14×15 watts multi-chip RGBL, LED Exterior wash, with die-casting aluminum housing, attractive and durable. Built-in power supply and driver, independent heat dissipation system, equipped with adjustable glare shield, able to create an unparalleled lighting effect for the monuments, buildings, bridges, and other architectural applications.

SKU: Whopper414RGBL Categories: ,

WHOPPER 414-RGBL is a 14×15 watts multi-chip RGBL, LED Exterior wash, with die-casting aluminum housing, attractive and durable. Built-in power supply and driver, independent heat dissipation system, equipped with adjustable glare shield, able to create an unparalleled lighting effect for the monuments, buildings, bridges, and other architectural applications.

SOURCE

  • Light source: 14×15 watts multi-chip RGBL
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 27038cd (22°)

OPTICAL SYSTEM

  • Optics: 22 °
  • Light output: 6,800 Lux @2m @ 22°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color Mixing: RGBL

 ELECTRICAL

  • Input Voltage: AC100~277V
  • Max Power: 180 w
  • Power Factor: > 0.9

CONNECTIONS

  • Power connections: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 354x283x450mm
  • Net Weight: 11 kg
  • Color: O­ff-white (Gray, Black Optional)
  • Housing: Die-cast aluminum
  • Special protection design for anti-thunder shock
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
