WHOPPER 414-RGBW

WHOPPER 414-RGBW

14x15 watts Multichip RGBW LED-Exterior Wash

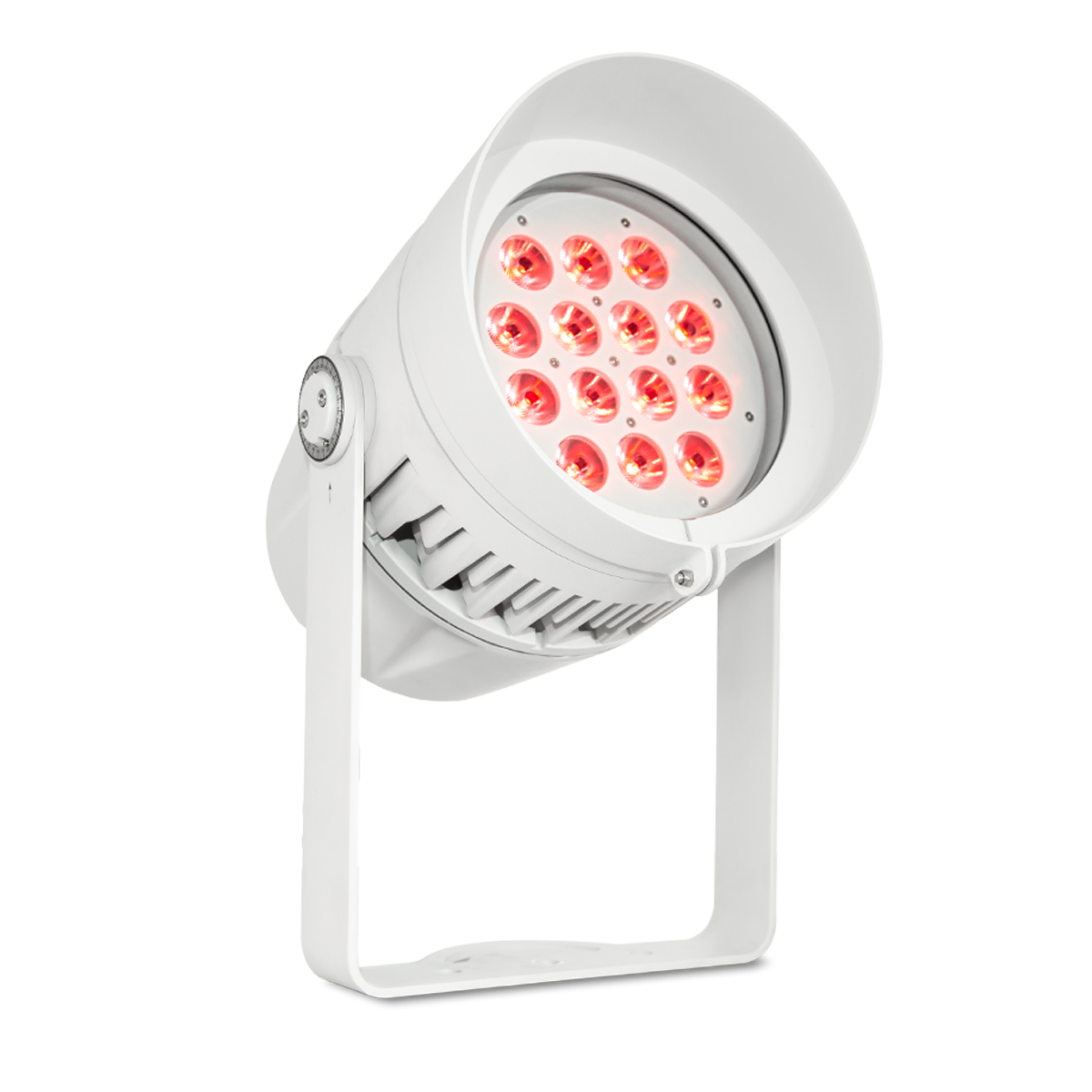

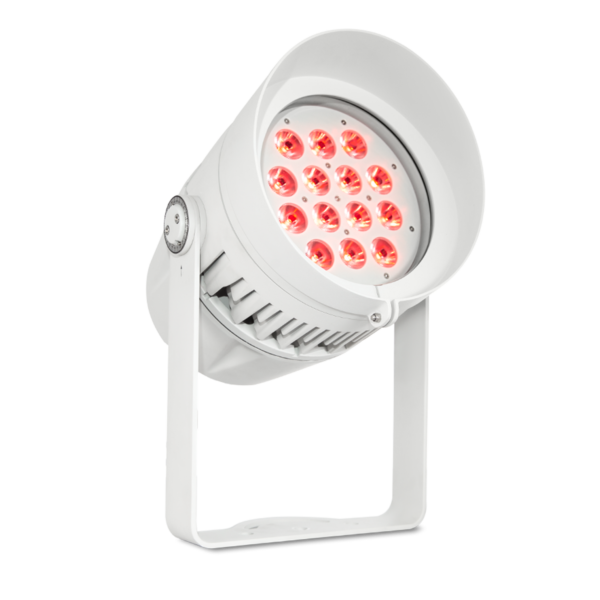

Whopper 414-RGBW is a 14×15 watts multi-chip RGBW, LED Exterior wash, with die-casting aluminum housing, attractive and durable. Built-in power supply and driver, independent heat dissipation system, equipped with adjustable glare shield, able to create an unparalleled lighting effect for the monuments, buildings, bridges, and other architectural applications.

Add to wishlist
SKU: WHOPPER414RGBW22 Categories: ,

Whopper 414-RGBW is a 14×15 watts multi-chip RGBW, LED Exterior wash, with die-casting aluminum housing, attractive and durable. Built-in power supply and driver, independent heat dissipation system, equipped with adjustable glare shield, able to create an unparalleled lighting effect for the monuments, buildings, bridges, and other architectural applications.

SOURCE

  • Light source: 14×15 watts multi-chip RGBW
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 24335cd (22°)

OPTICAL SYSTEM

  • Optics: 22 °
  • Light output: 6,100 Lux  @2m @ 22°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color Mixing: RGBW

 ELECTRICAL

  • Input Voltage: AC100~277V
  • Max Power: 250 W
  • Power Factor: > 0.9

CONNECTIONS

  • Power connections: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 354x283x450mm
  • Net Weight: 11 kg
  • Color: O­ff-white (Gray, Black Optional)
  • Housing: Die-cast aluminum
  • Special protection design for anti-thunder shock
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
