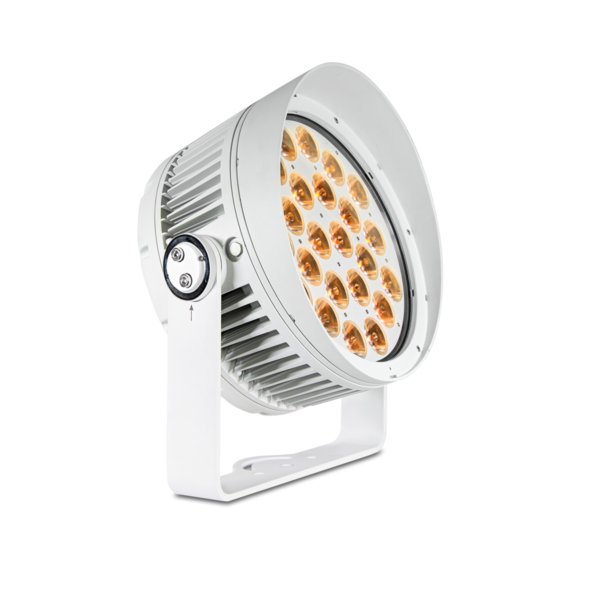

WHOPPER 424-RGBA

WHOPPER 424-RGBA is a 24×15 watts multi-chip RGBA high power LED Exterior wash. It has an advanced intelligent color management system to ensure the consistency of light color. It is equipped with adjustable glare shield, supporting RDM bi-directional feedback function. This fixture can provide real-time feedback for malfunction and working status, which reduces the troubleshooting and cost of maintenance. It is suitable for bridges, monuments, architectural facades, and other landscape applications.

SKU: Whopper424RGBA Categories: ,

WHOPPER 424-RGBA is a 24×15 watts multi-chip RGBA high power LED Exterior wash. It has an advanced intelligent color management system to ensure the consistency of light color. It is equipped with adjustable glare shield, supporting RDM bi-directional feedback function. This fixture can provide real-time feedback for malfunction and working status, which reduces the troubleshooting and cost of maintenance. It is suitable for bridges, monuments, architectural facades, and other landscape applications.

SOURCE

  • Light source: 24×15 watts  multi-chip RGBA
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity : 173025cd(14°)

OPTICAL SYSTEM

  • Optics: 14°, 25°
  • Light output: 1,800 Lux @10m @ 14°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 2
  • Color Mixing: RGBA

 ELECTRICAL

  • Input Voltage: AC100~277 V
  • Max Power: 300 W
  • Power Factor: > 0.9

CONNECTIONS

  • Power connections: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 423x284x443mm
  • Net Weight: 17.5 kg
  • Color: Off White (Optional: Gray, Black)
  • Housing: Die-cast aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C
