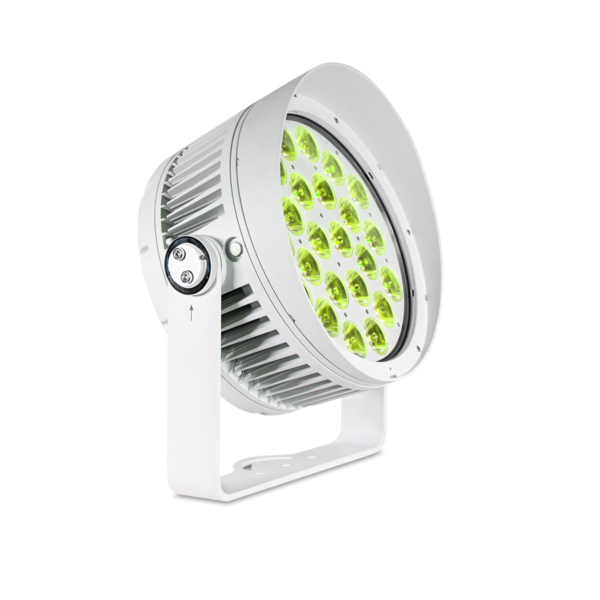

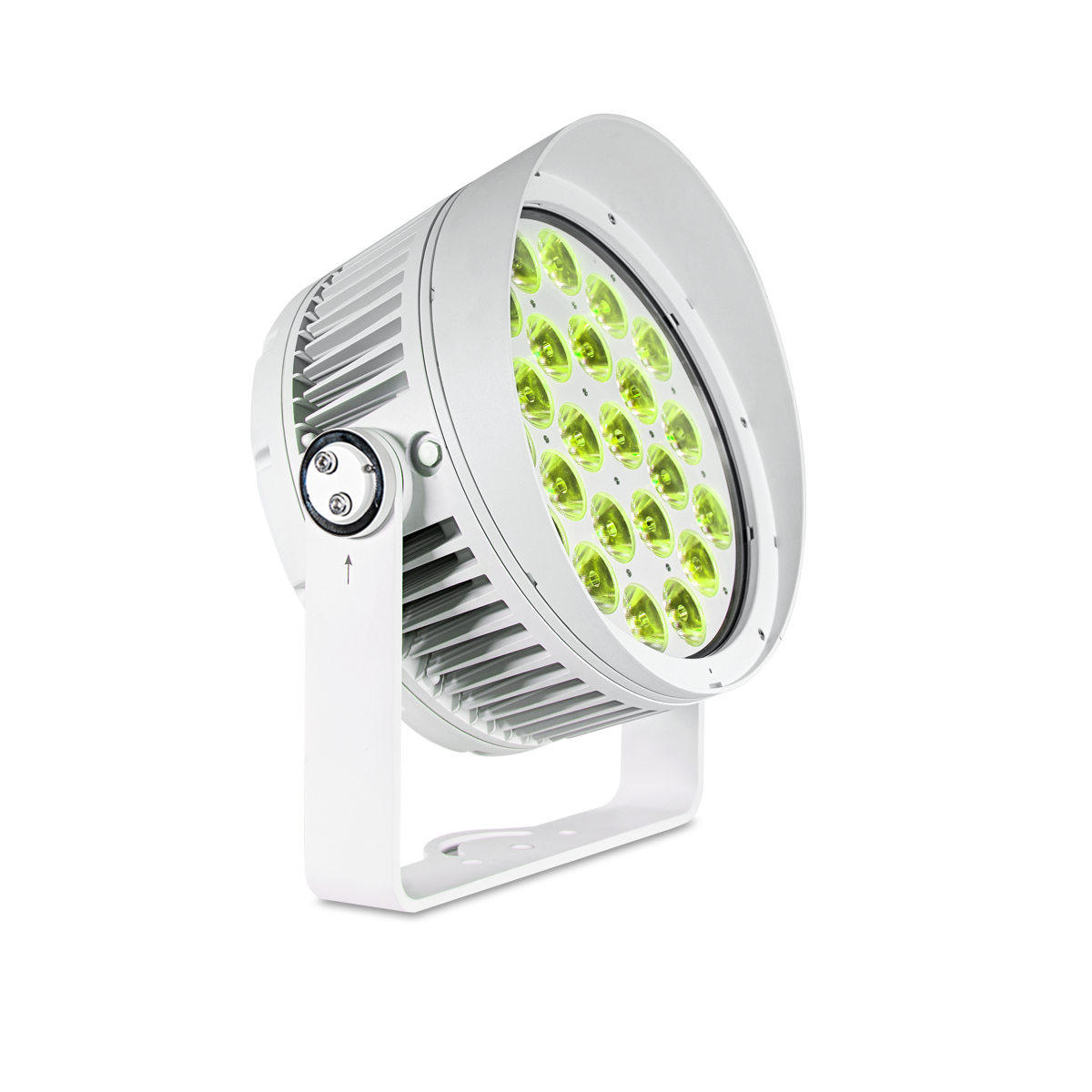

WHOPPER 424-RGBL

WHOPPER 424-RGBL

24x15 watts Multichip RGBL LED-Exterior Wash

WHOPPER 424-RGBL is a 24×15 watts multi-chip RGBL high power LED Exterior wash. It has an advanced intelligent color management system to ensure the consistency of light color. It is equipped with adjustable glare shield, supporting RDM bi-directional feedback function. This fixture can provide real-time feedback for malfunction and working status, which reduces the troubleshooting and cost of maintenance. It is suitable for bridges, monuments, architectural facades, and other landscape applications.

SKU: WHOPPER424RGBL14 Categories: ,

WHOPPER 424-RGBL is a 24×15 watts multi-chip RGBL high power LED Exterior wash. It has an advanced intelligent color management system to ensure the consistency of light color. It is equipped with adjustable glare shield, supporting RDM bi-directional feedback function. This fixture can provide real-time feedback for malfunction and working status, which reduces the troubleshooting and cost of maintenance. It is suitable for bridges, monuments, architectural facades, and other landscape applications.

SOURCE

  • Light source: 24×15 watts multi-chip RGBL
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity : 164506cd(14°)

OPTICAL SYSTEM

  • Optics 14°, 25°
  • Light output: 2,200 Lux @10m @ 14°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Controllable sections: 2
  • Color Mixing: RGBL

 ELECTRICAL

  • Input Voltage: AC100~277V
  • Max Power: 400 W
  • Power Factor: > 0.9

CONNECTIONS

  • Power connections: 3m cable (input only)
  • Data connection: 3m cable (input + output)

PHYSICAL

  • Dimensions: 423x284x443mm
  • Net Weight: 17.5 kg
  • Color: Off White (Optional: Gray, Black)
  • Housing: Die-cast aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
