BLADE

BLADE

Rotating Laser Bar with Amber LED beams

Blade offers powerful rotating laser bars designed to deliver dynamic visual effects for stages, clubs, live gigs, and show productions. Featuring 8 beam laser outlets, each with a high-power diode and additional amber LEDs, these lasers create intense fans of colored laser beams along with a warm white beam effect.

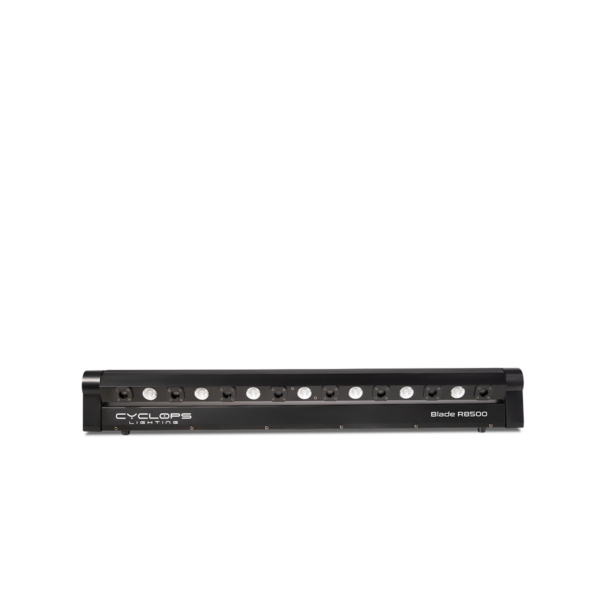

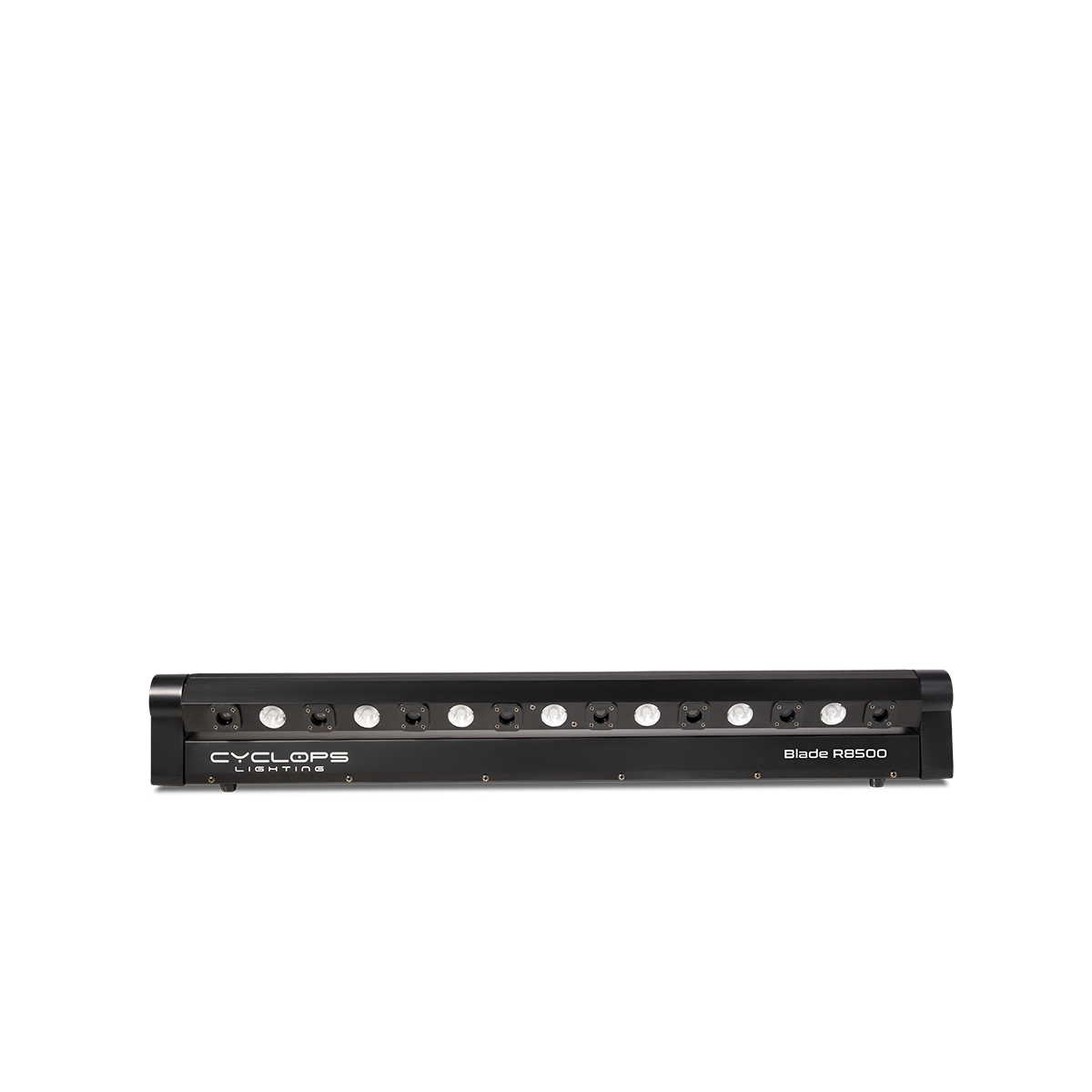

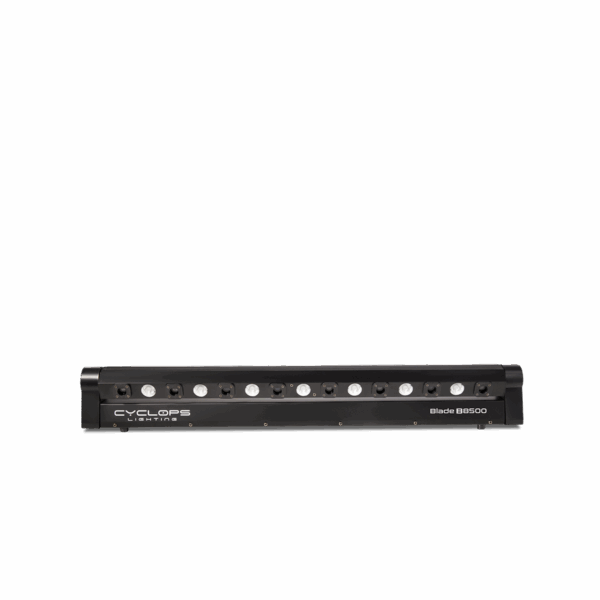

The Blade R8500 delivers bright red beams with 500mW/638nm diodes, while the Blade B8500 produces striking blue beams with 500mW/450nm diodes, and the Blade G850 features vibrant green beams with 50mW/520nm diodes. All models include a 7° beam angle for sharp projections and are controlled via DMX, making them perfect for creating atmospheric and aerial effects. These lasers are ideal for professional lighting setups that demand precision, power, and versatility in their visual impact.

SKU: N/A Categories: ,

LASER

  • Source:
    • Blade R8500: 8 x 500 mW diodes
    • Blade B8500: 8 x 500 mW diodes
    • Blade G850: 8 x 50 mW diodes
  • Power:
    • Blade R8500: 4 watts
    • Blade B8500: 4 watts
    • Blade G850: 400 mW
  • Wavelength:
    • Blade R8500: 638nm (Red)
    • Blade B8500: 450nm (Blue)
    • Blade G850: 520nm (Green)
  • Laser Safety: Class 3B
  • Life Expectancy: 2,000 hrs
  • Modulation: TTL

SCANNER

  • Scan system: Stepper motor
  • Scan angle: 180°

LED SOURCE

  • LED power: 7 x 3 watts amber LEDs
  • Color temperature: 2200 K
  • LED beam angle: 7°
  • LED life expectancy: 50,000 hrs

DYNAMIC EFFECTS

  • Pixel control
  • Electronic strobe: 0-25 Hz
  • Built-in dynamic macros

CONTROL & PROGRAMMING

  • Control protocols: DMX, Auto, Sound, Master-slave
  • Display: LED display with 4 control buttons
  • DMX channels: 7, 22 CHs

MOVEMENT

  • Tilt: 180°

ELECTRICAL

  • Input voltage: AC100-240V/50-60 Hz
  • Power consumption: 68 watts

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out (male and female)
  • Power connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 1000 x 84 x 173mm
  • Net weight: 6.8 Kg
  • Color: Black
  • IP rating: 20
  • Operating temperature: 10°C/40°C
