DMX controlled Kinetic Winch

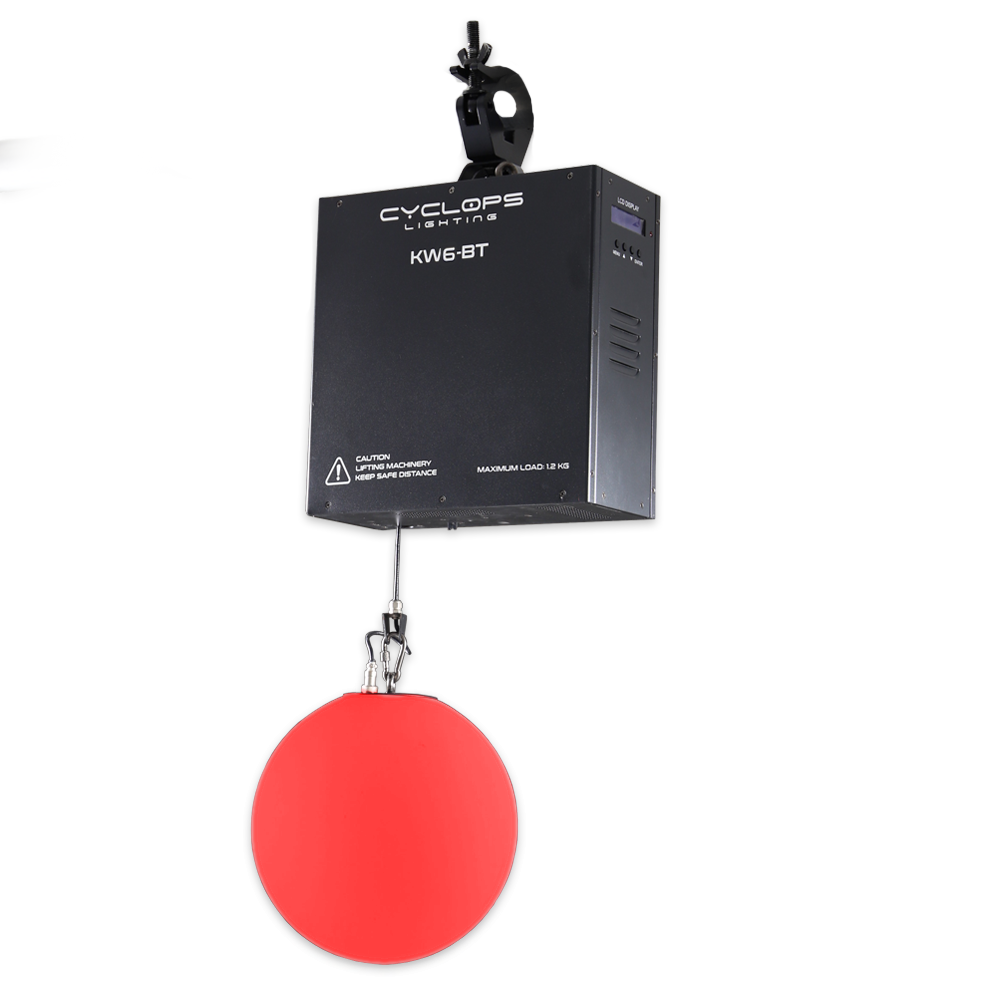

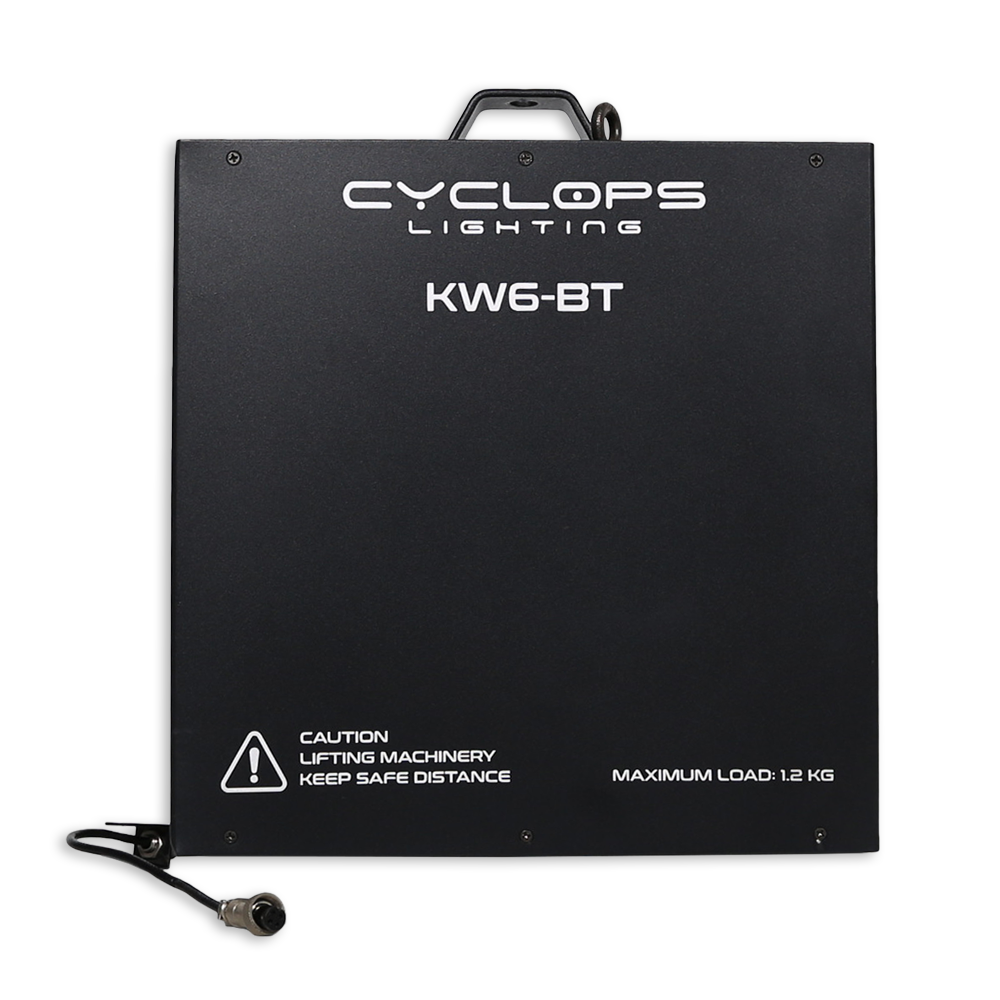

KW6-BT is a DMX controlled Kinetic Winch with a travel height of 6 meter. It can control both the KW-B RGB Balls and KW-T RGB Pixel Tubes giving a full flexibility to create multiple creative designs. With a precise 16-bit motor movement, the KW6-BT can deliver the most complex kinetic and dynamic shows.

SKU: KW-6 Category:

LIFTING MECHANISM

  • Lifting Height: 6m Long mode / 3m Short mode
  • Lifting Speed: 75cm per second
  • Maximum Load on wire: 1.5kg
  • Lifitng Precision: 8 and 16 bit channel
  • Winch: 3 Phase Motor

CONTROL & PROGRAMMING

  • Control protocols: DMX
  • RGB Ball Control channels: 5, 6, 9, 10 CHs
  • Pixel Tube Control channel: 9, 74, 75, 82, 83 CHs

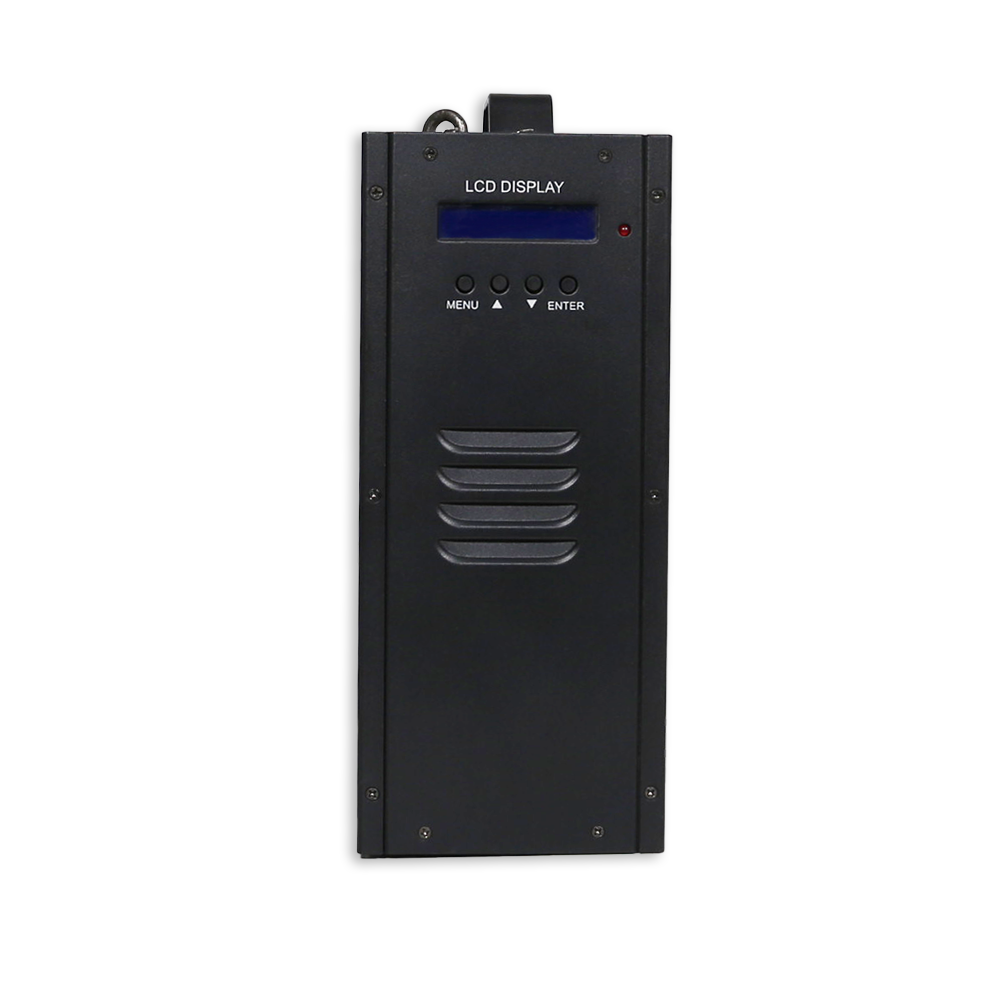

  • Display: LCD Screen Display

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 80 watts

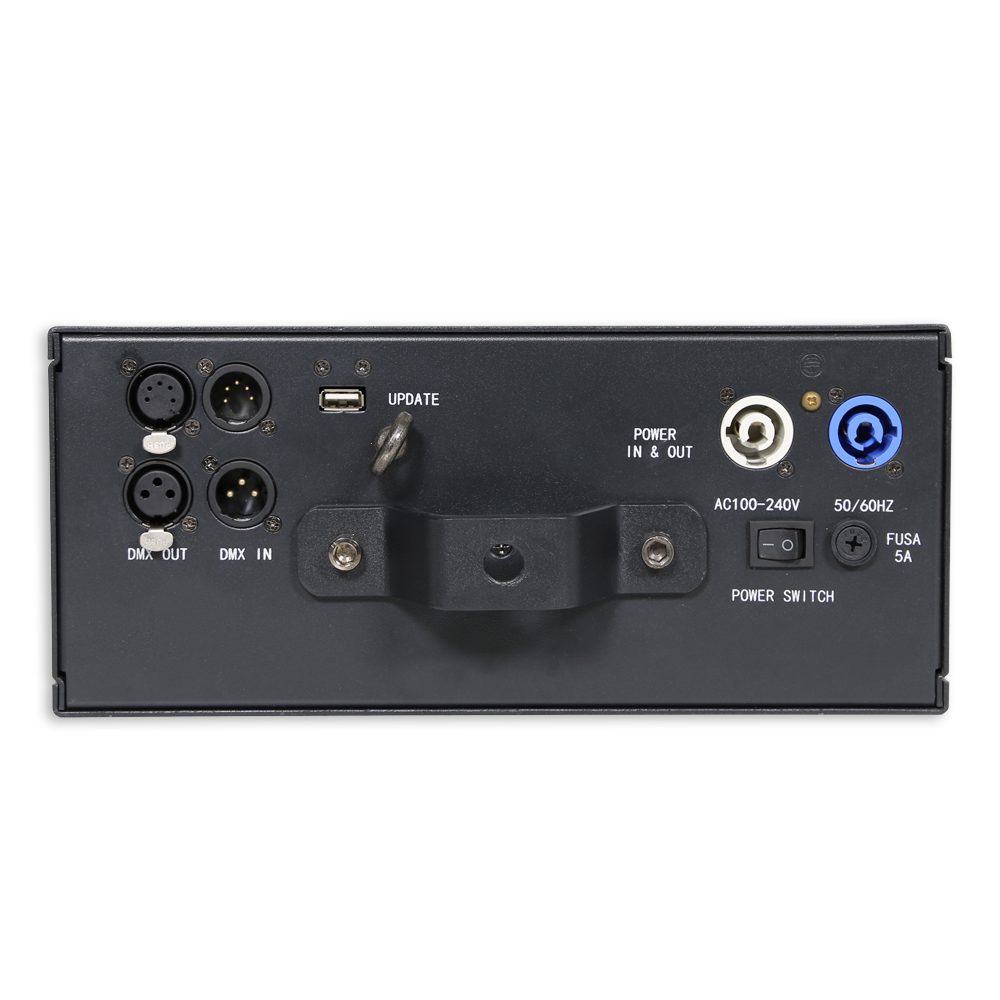

CONNECTIONS

  • Fixtures Cable: 4 Core Power and Data cable 1-24V DC
  • DMX connections: 3 pin and 5 pin XLR In/Out male and female
  • Power connections: PowerCon In and Out
  • Maximum quantity in series: 20

PHYSICAL

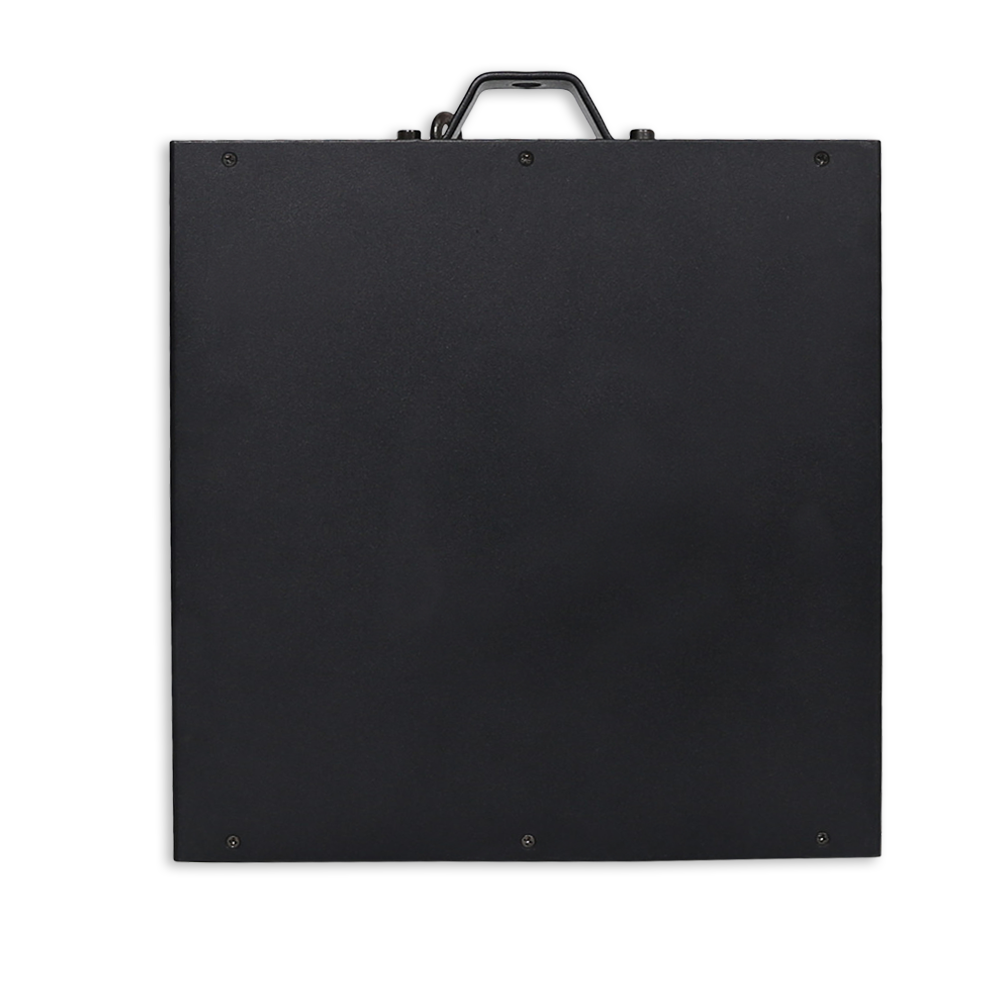

  • Dimensions: 292 x 292 x 125mm (without clamp)
  • Weight: 5.7kg
  • Color: Black

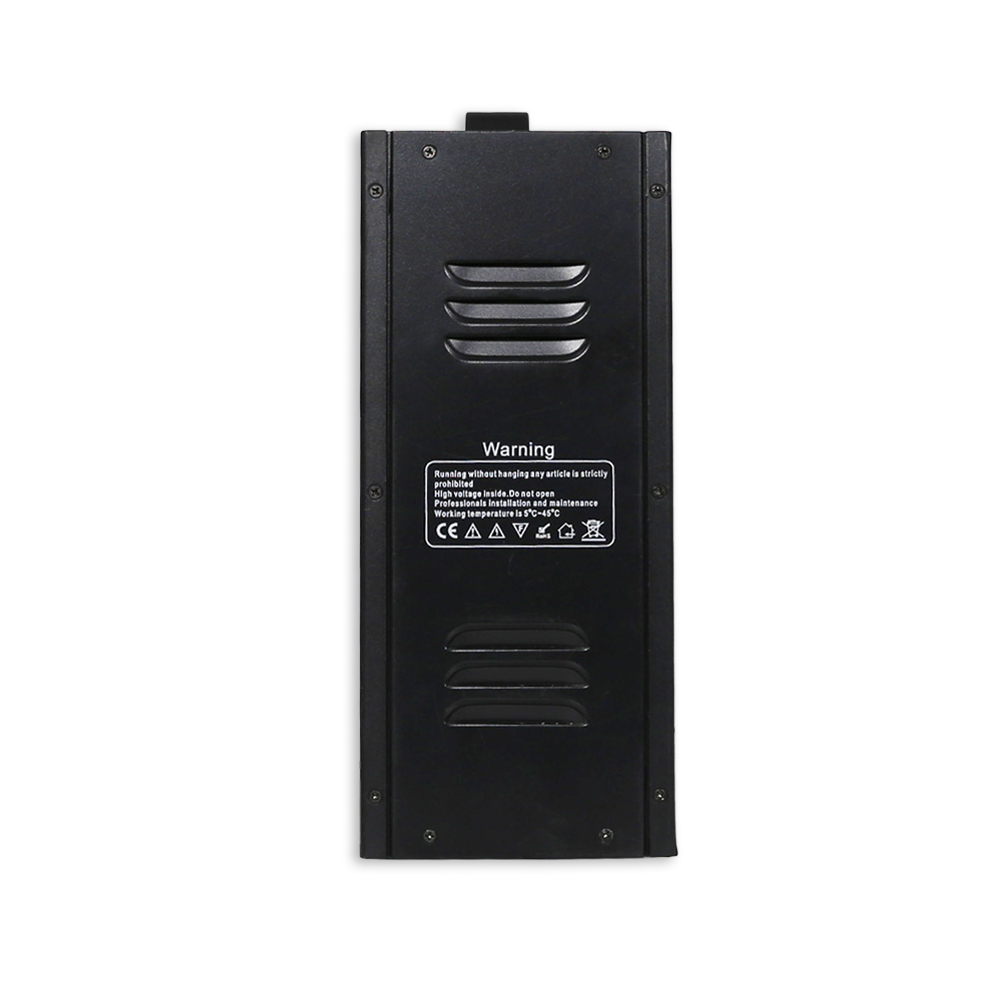

  • Working Temperature: 5° to 45°
  • IP rating: 20
