KW-B

RGB LED Ball for Kinetic Winch

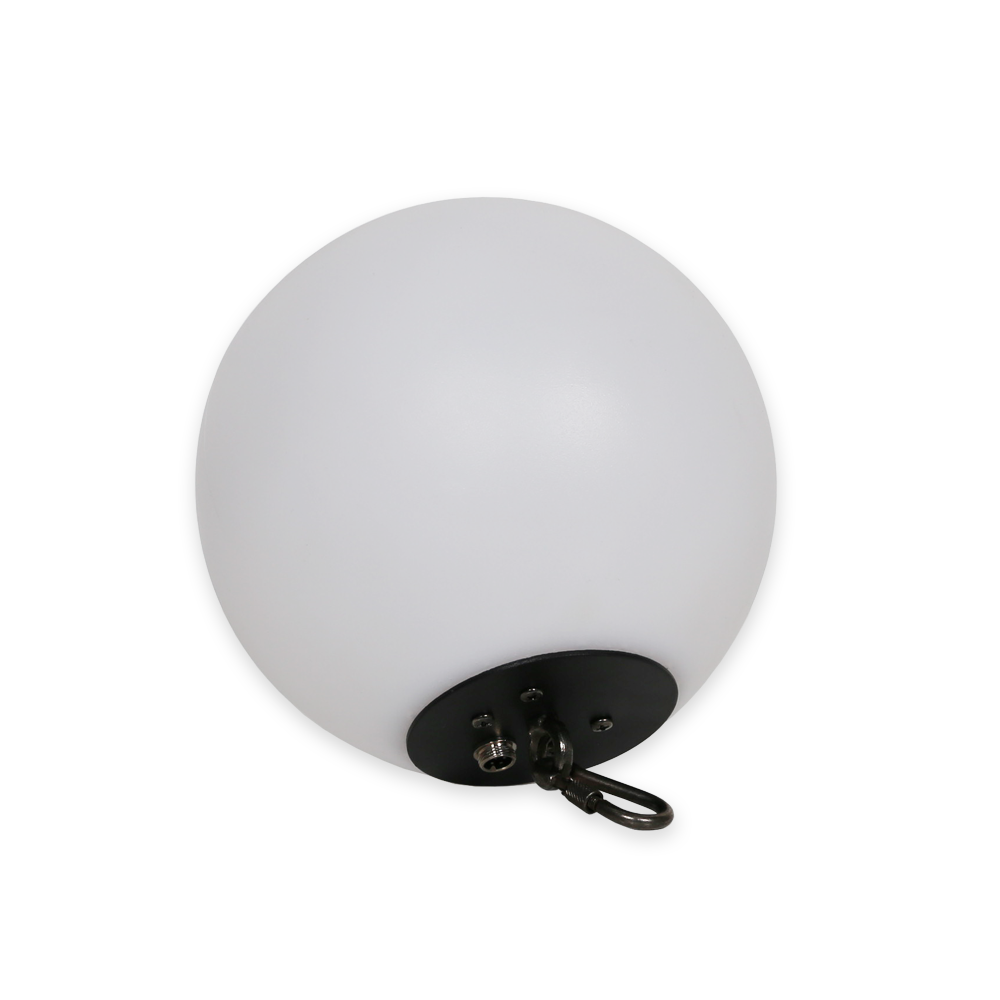

The KW-B is a dynamic RGB LED ball engineered to pair seamlessly with the KW Kinetic Winch series. Featuring a powerful light source of 42 SMD LEDs, it delivers vibrant, highly saturated color mixing for stunning visual effects. Available in two size variations—20 cm (KW-B20) and 25 cm (KW-B25)—this fixture offers the design flexibility needed for diverse installations. Power and DMX control are delivered directly through the Kinetic Winch’s 4-core cable, ensuring reliable operation and clean cable management. Whether for compact setups or large-scale aerial displays, this kinetic sphere provides the perfect blend of high-output illumination and striking motion graphics.

SKU: N/A Categories: ,

OUTPUT

  • Light Source: 42 RGB SMD LEDs
  • Viewing Angle: 360°

PHYSICAL

  • Diameter:
    – KW-B20: 20cm
    – KW-B25: 25cm
  • Diffuser: White LDPE Sphere
  • Weight:
    KW-B20: 0.6kg
    – KW-B25: 0.8kg
  • Working Temperature: -10° to 45°C
  • IP Rating: IP20

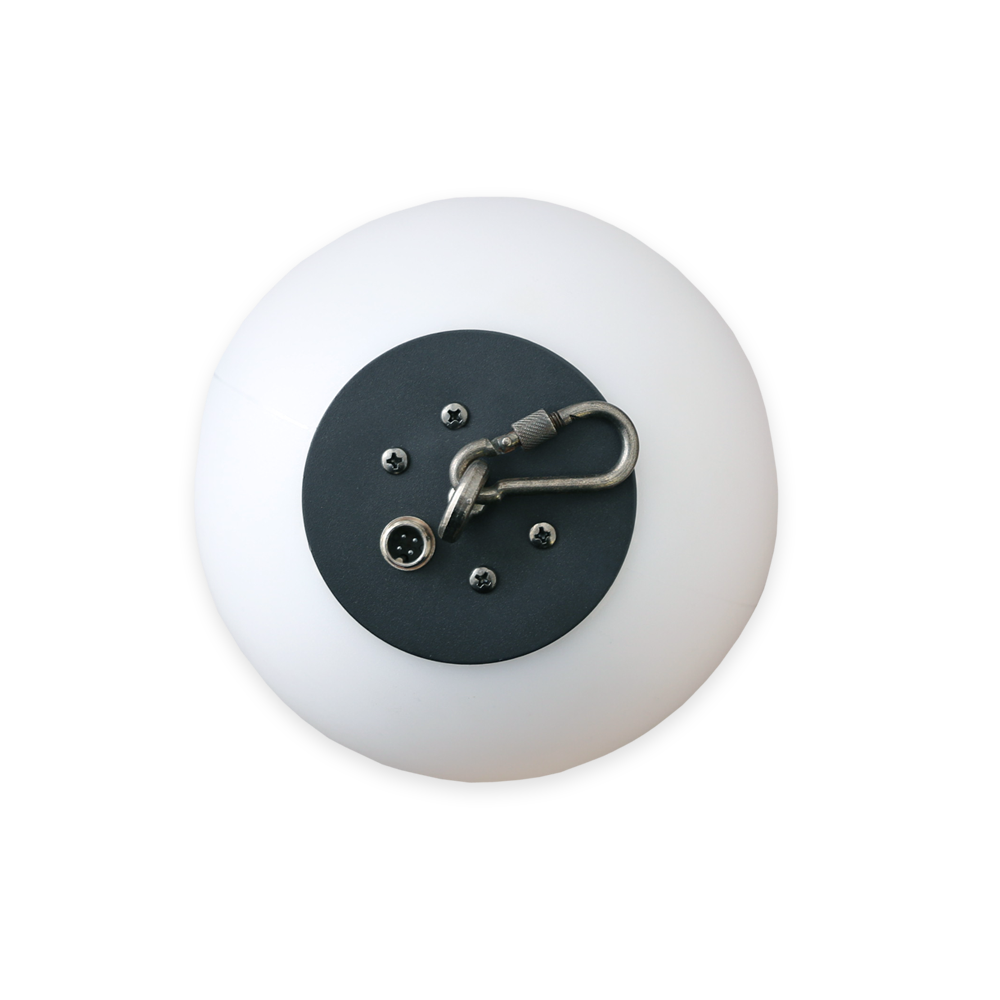

  • Hanging: Safety snap hook

CONTROL & PROGRAMMING

  • Control Protocols: DMX (via KW Winches)
  • DMX Channels: 5, 6, 9, 10 CHs

CONNECTIONS

  • Winch Cable: 4-Core Power and Data Cable (1-24V DC)
  • Winch DMX Connections: 3-pin and 5-pin XLR In/Out (male and female)
  • Winch Power Connections: PowerCon In and Out
