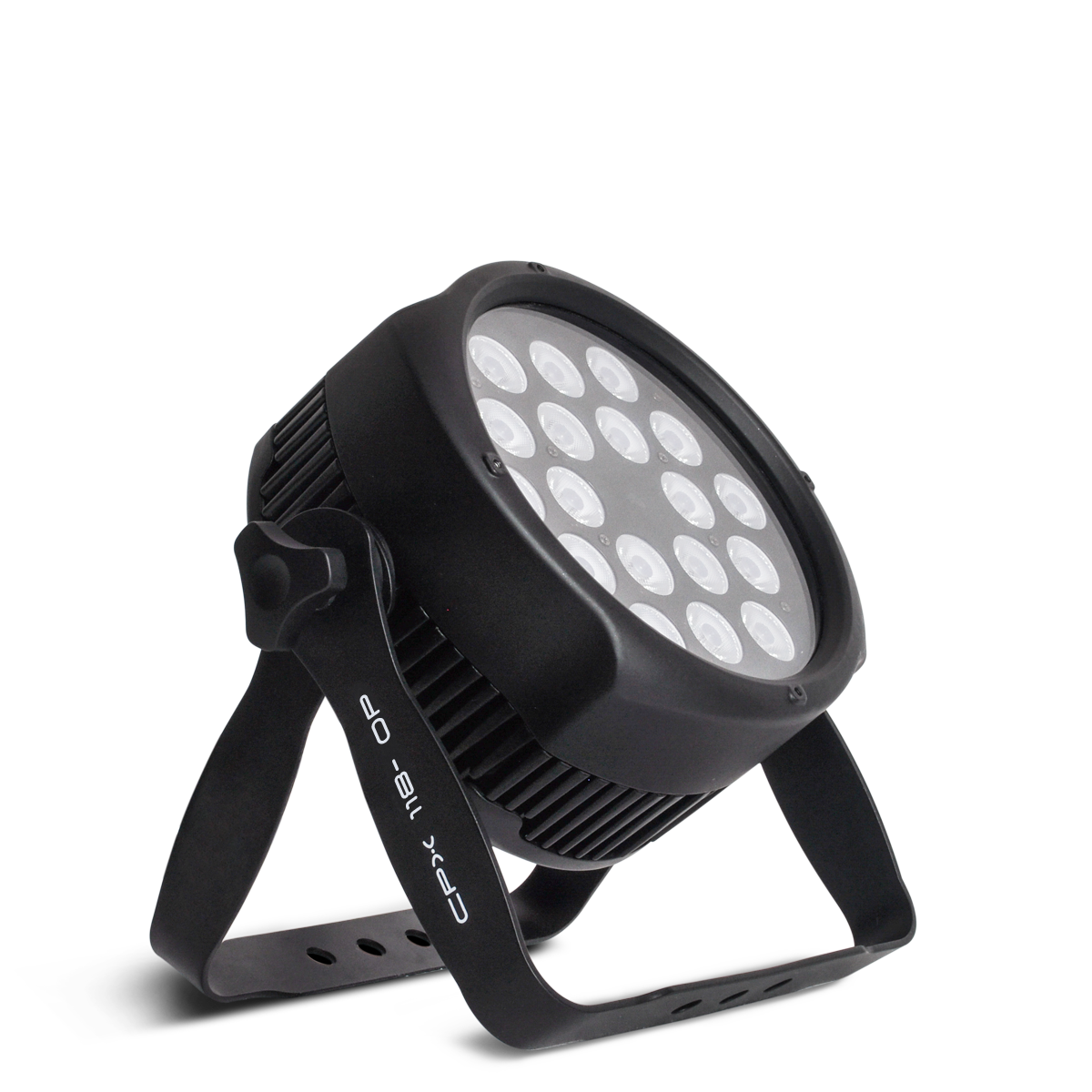

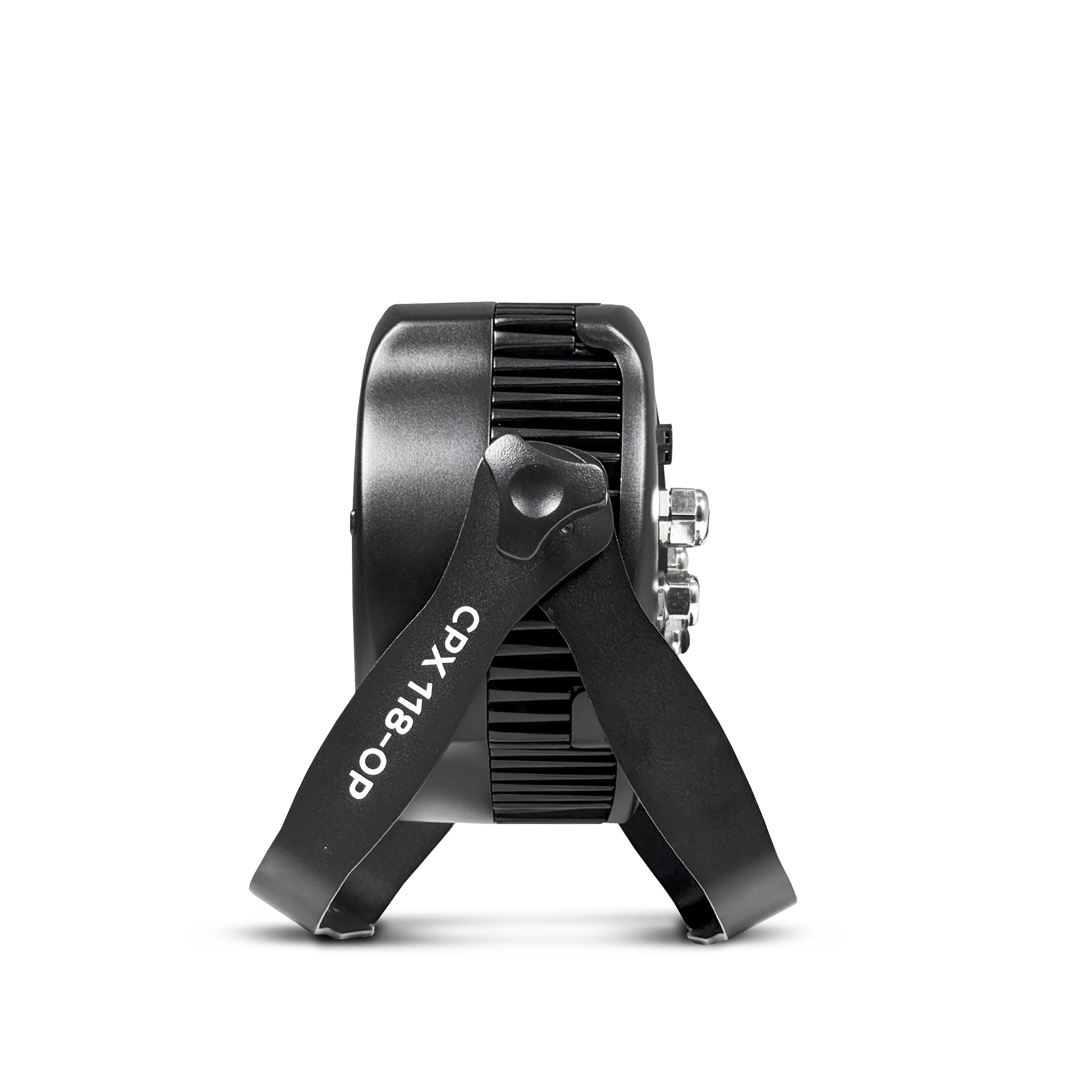

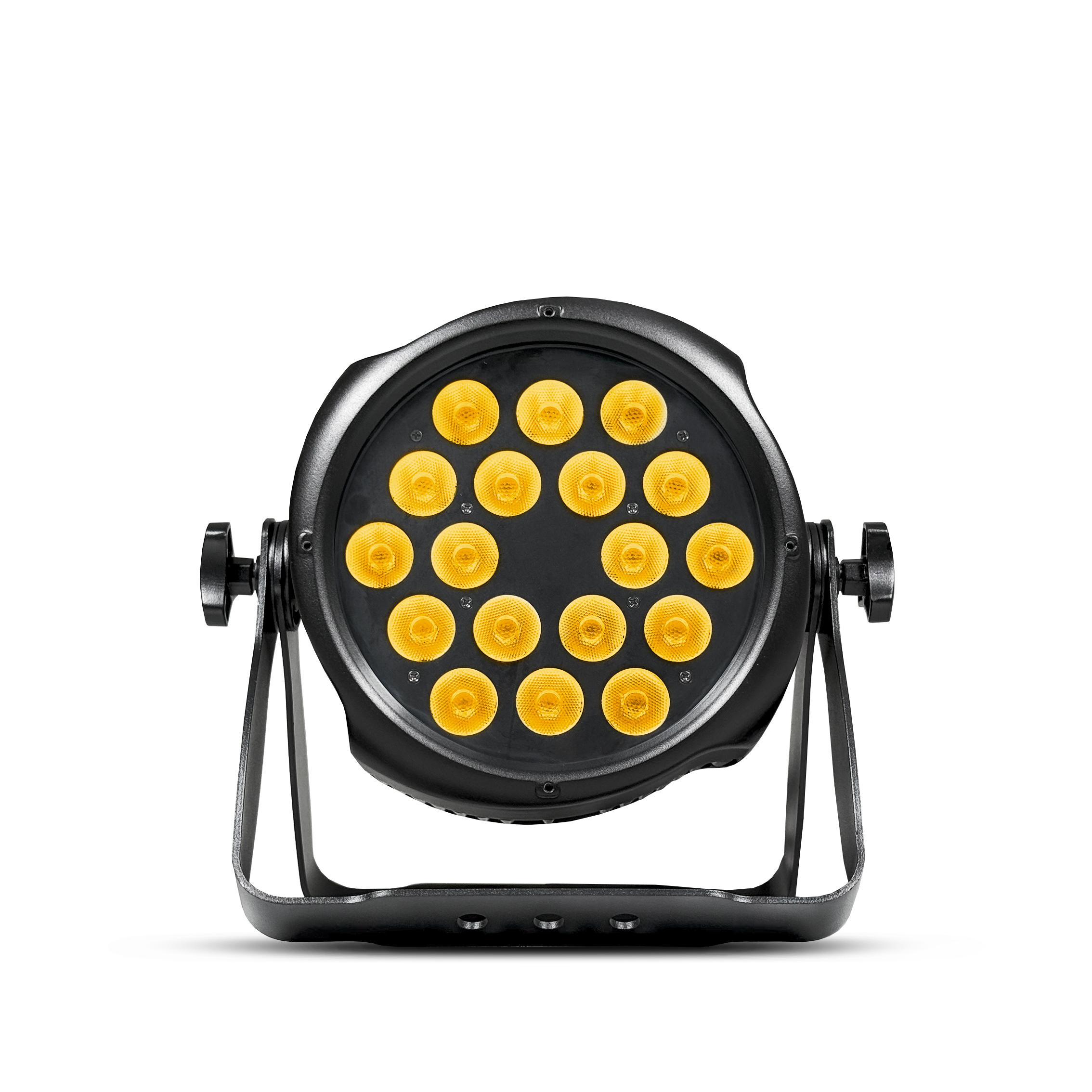

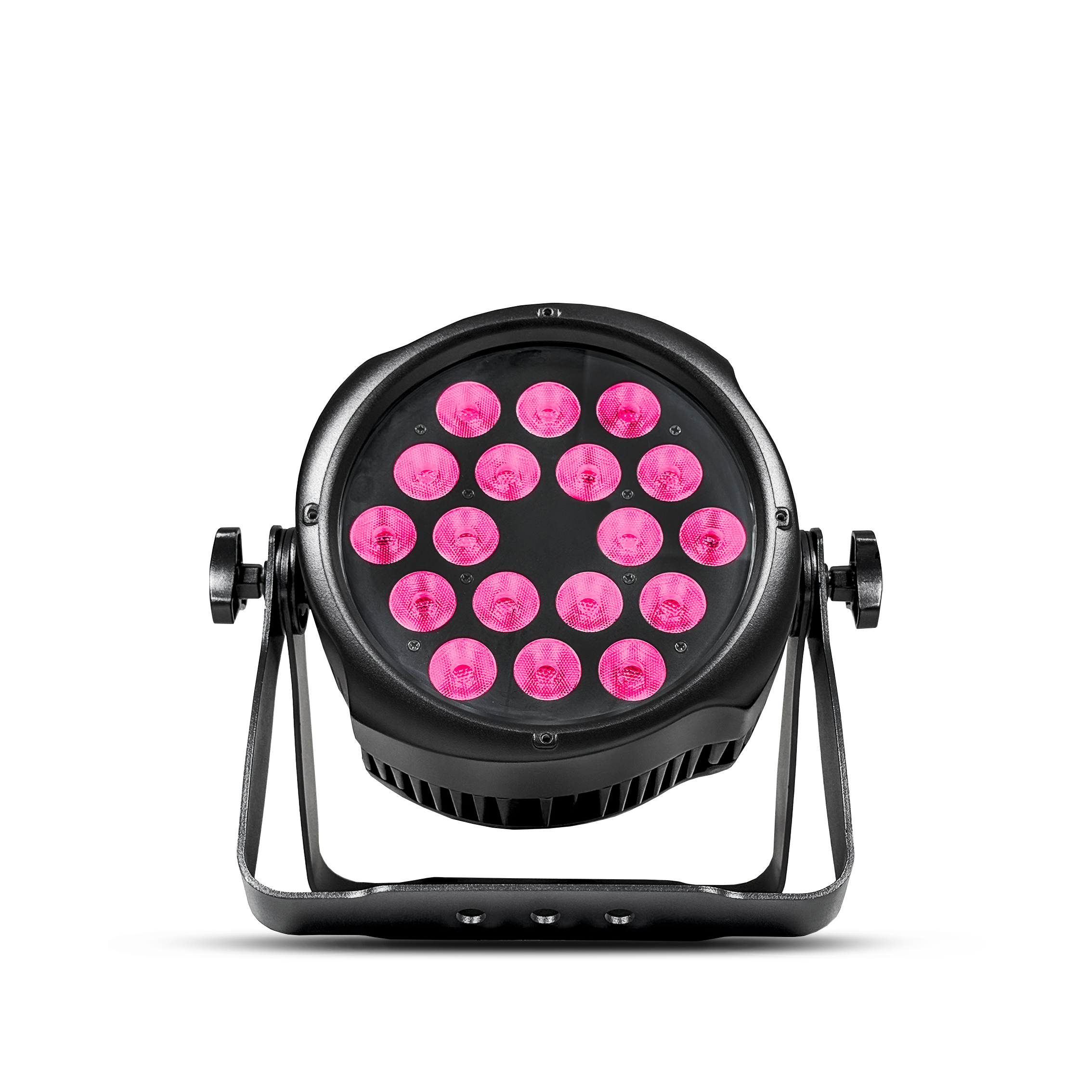

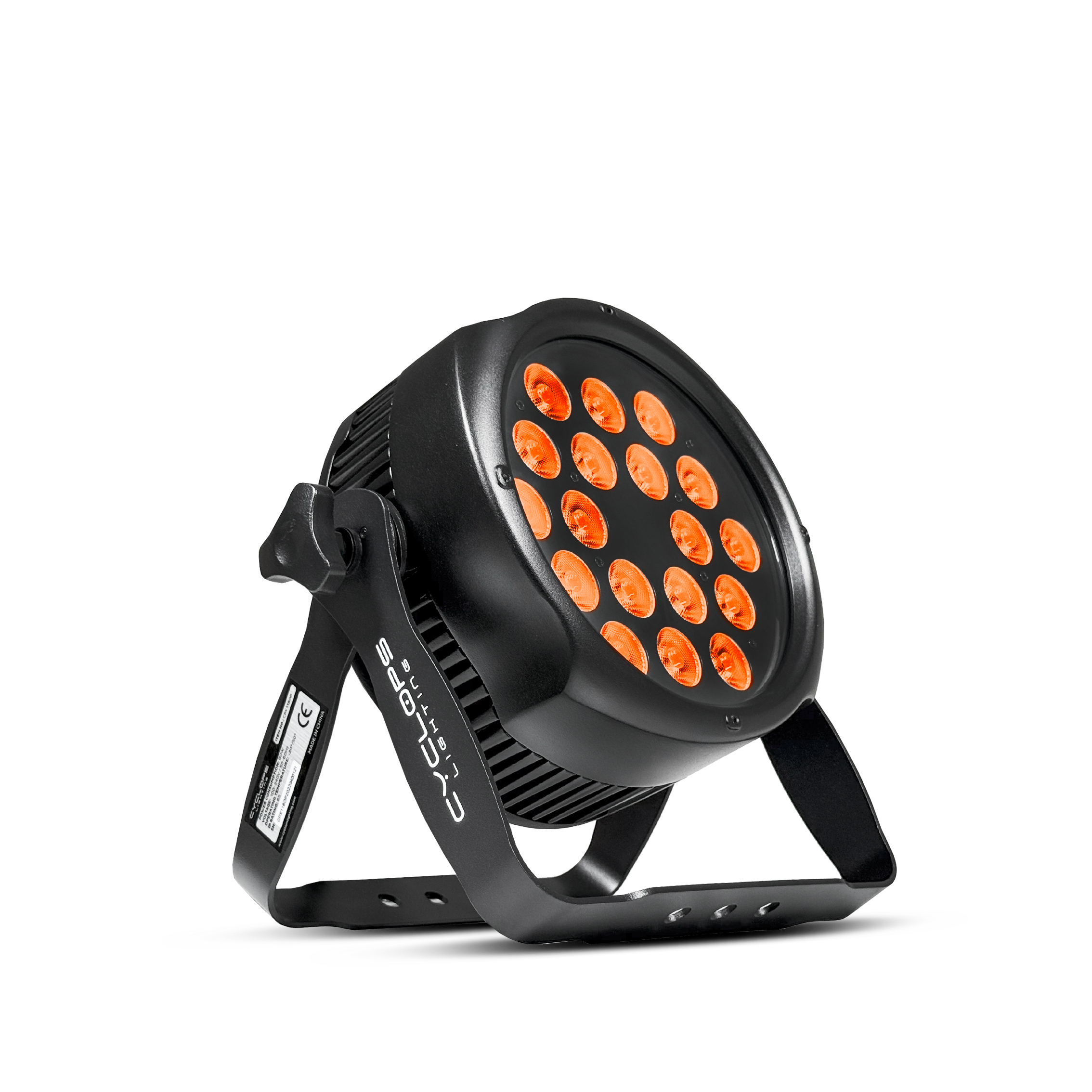

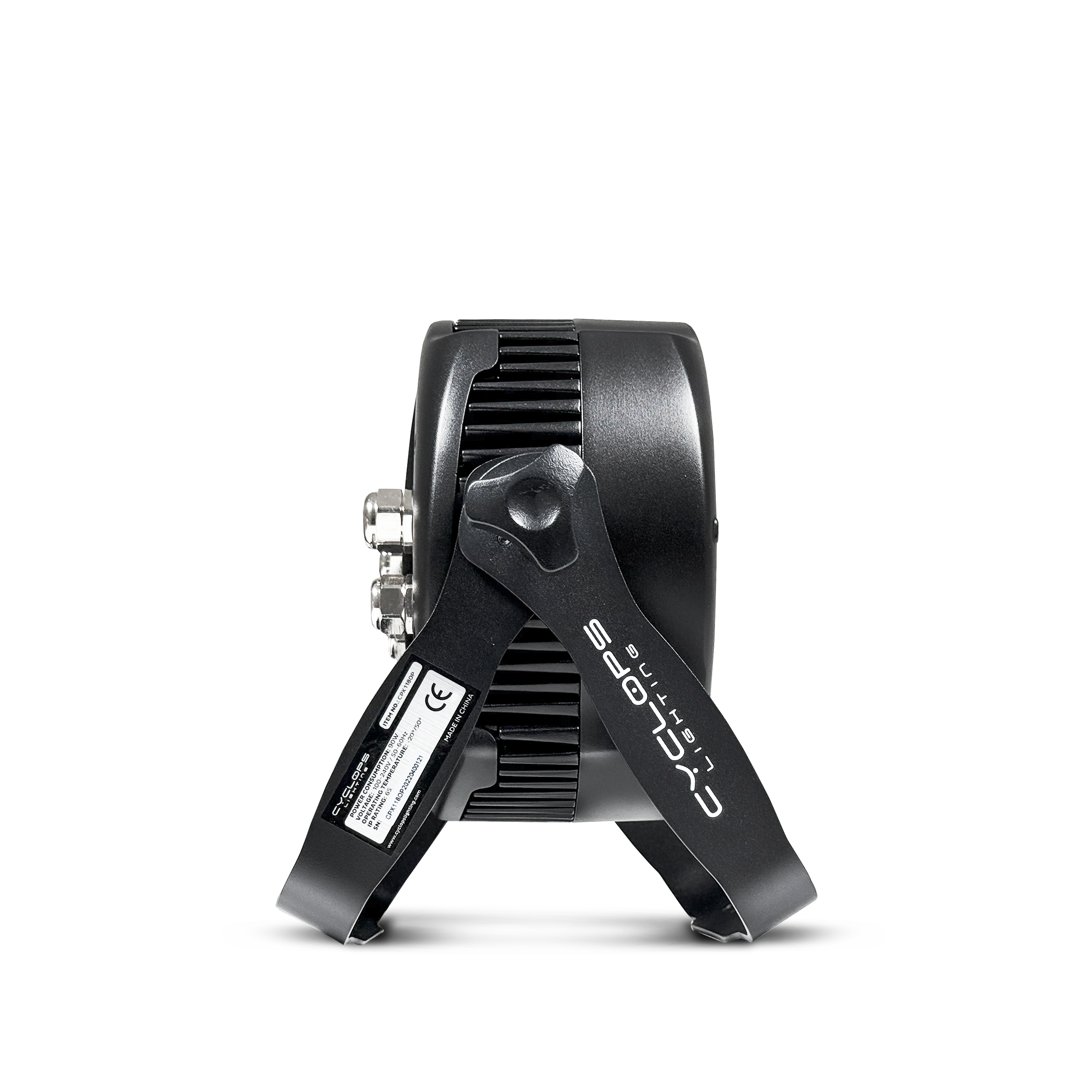

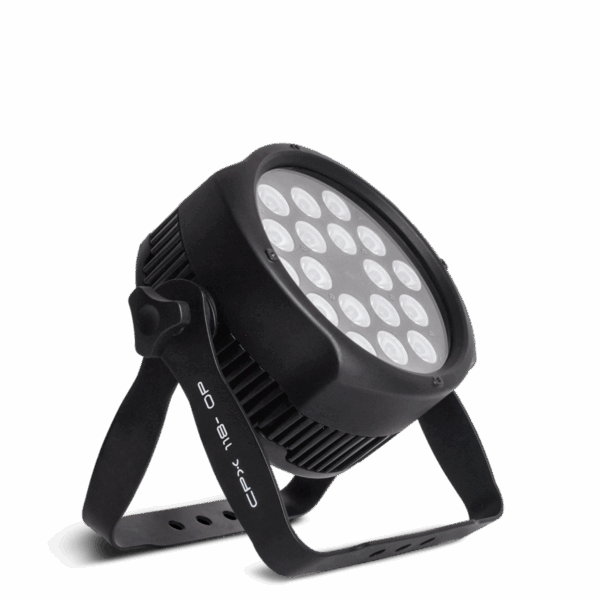

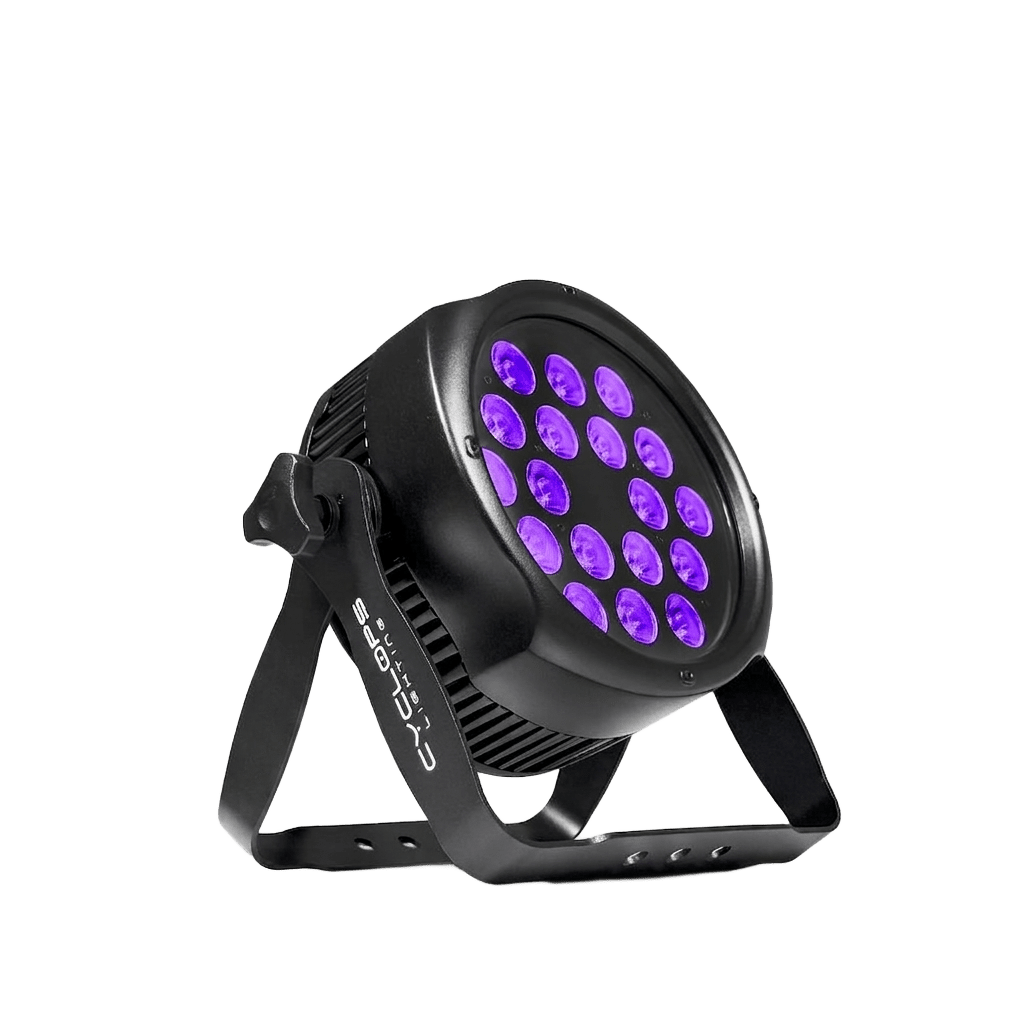

CPX 118OP

Outdoor UV LED Par

CPX 118OP is an 18 x 5 watts outdoor Ultraviolet LED Par. It’s a bright waterproof UV Par, ideal for black light applications in stages, events and outdoor applications.

SKU: CPX118OP Categories: ,

Videos

SOURCE

  • Light source: 18 x 5 watts UV LEDs
  • LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle: 25°
  • Light output: 7,000 Lux @ 2m @ 10°

DYNAMIC EFFECTS

  • Color: Ultraviolet
  • Strobe and fade effect
  • Built-in dynamic macros

CONTROL & PROGRAMMING

  • Control protocols: DMX, Master-Slave, Auto Run
  • Display: TFT displayer with 4 buttons
  • Control channels: 1, 2, 5 CHs

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 95 watts

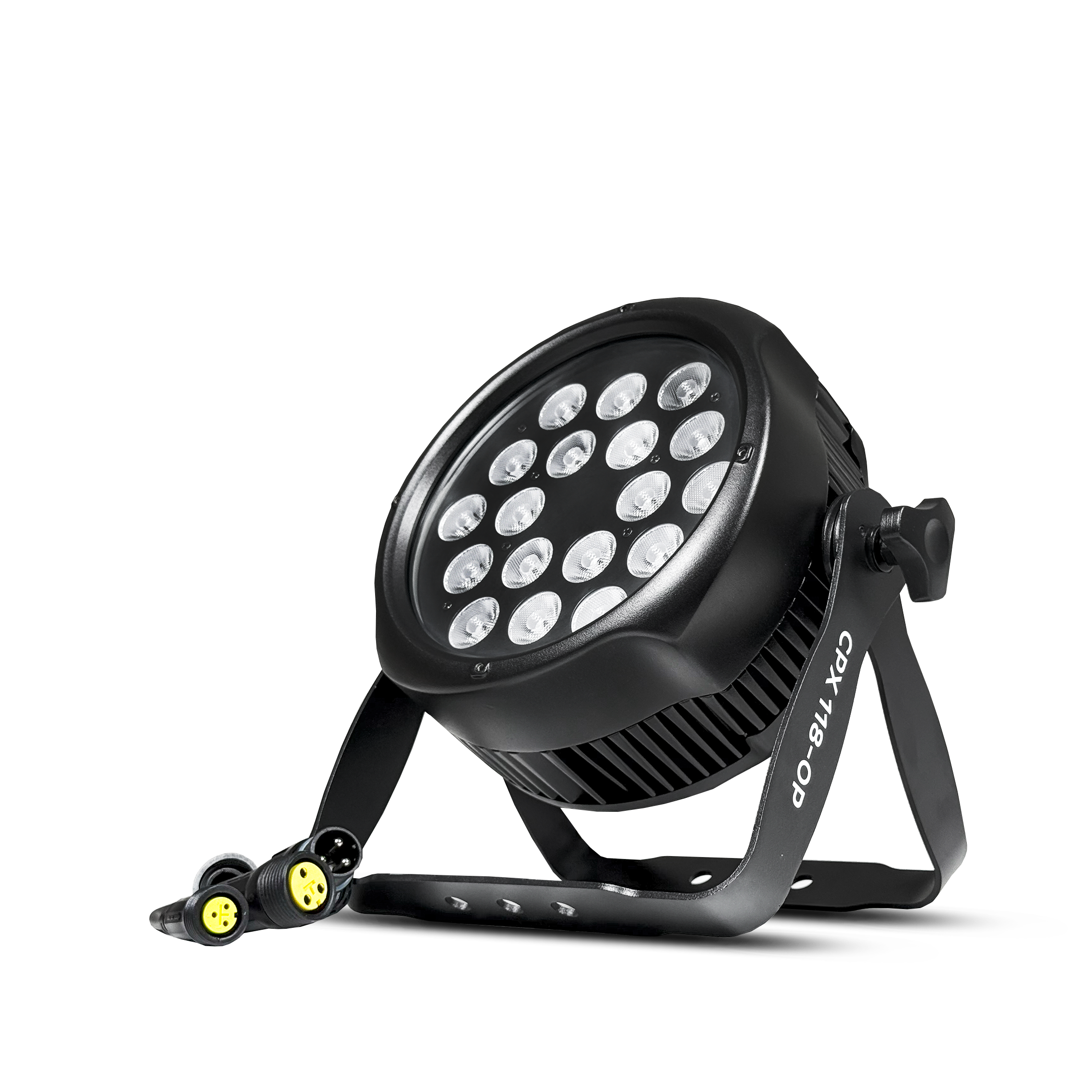

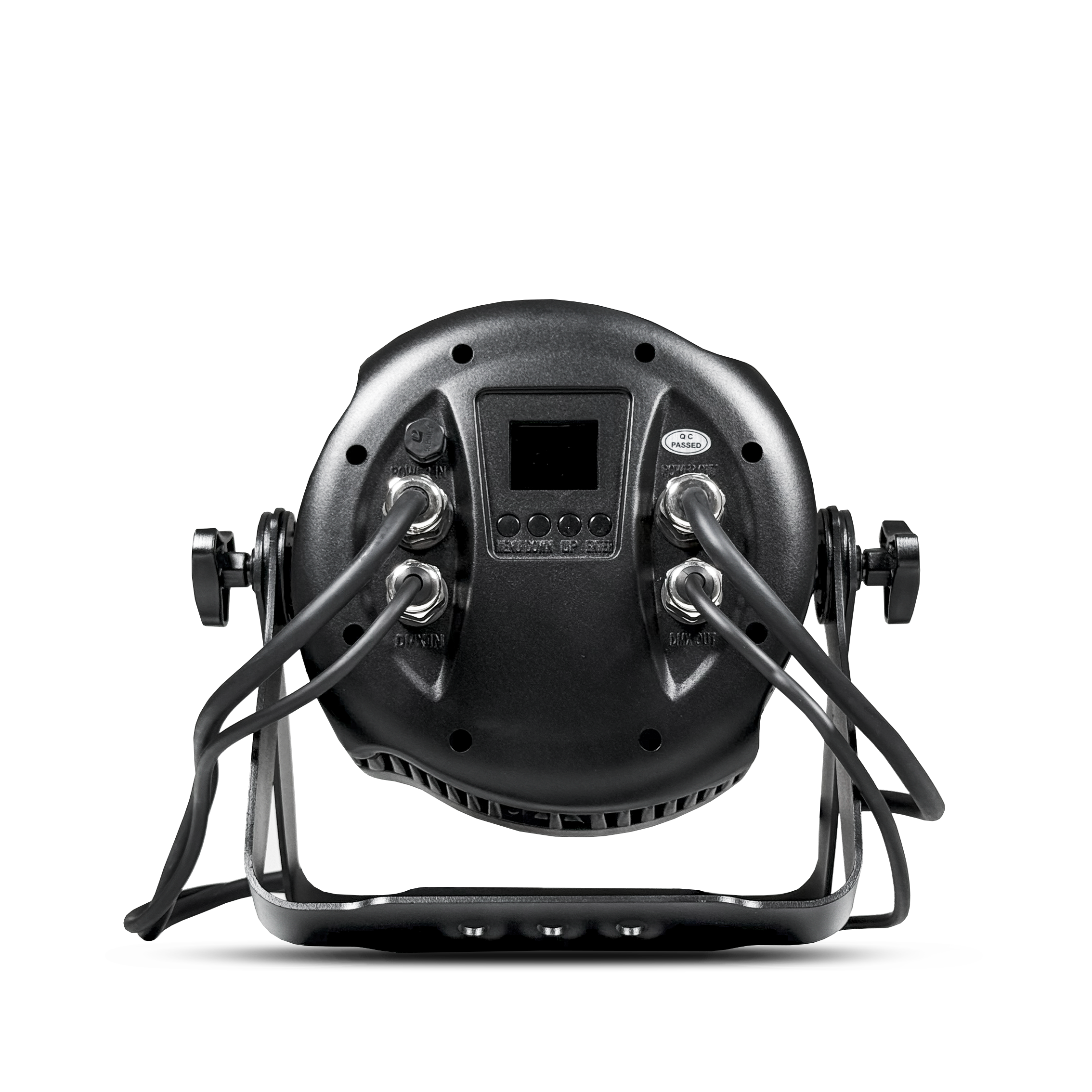

CONNECTIONS

  • DMX connections: IP DMX In/Out Cables with 3 pin screw lock connectors
  • Power connections: IP Power In/Out Cable, 3 pin screw lock connectors

 PHYSICAL

  • Dimensions: 280.32 x 142.56 x 288.28mm
  • Net weight: 5 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 65
  • Operating temperature: -20°C/45°C
