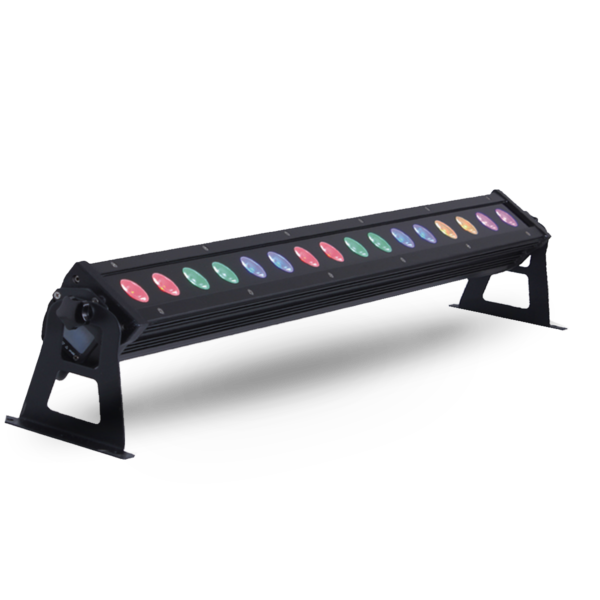

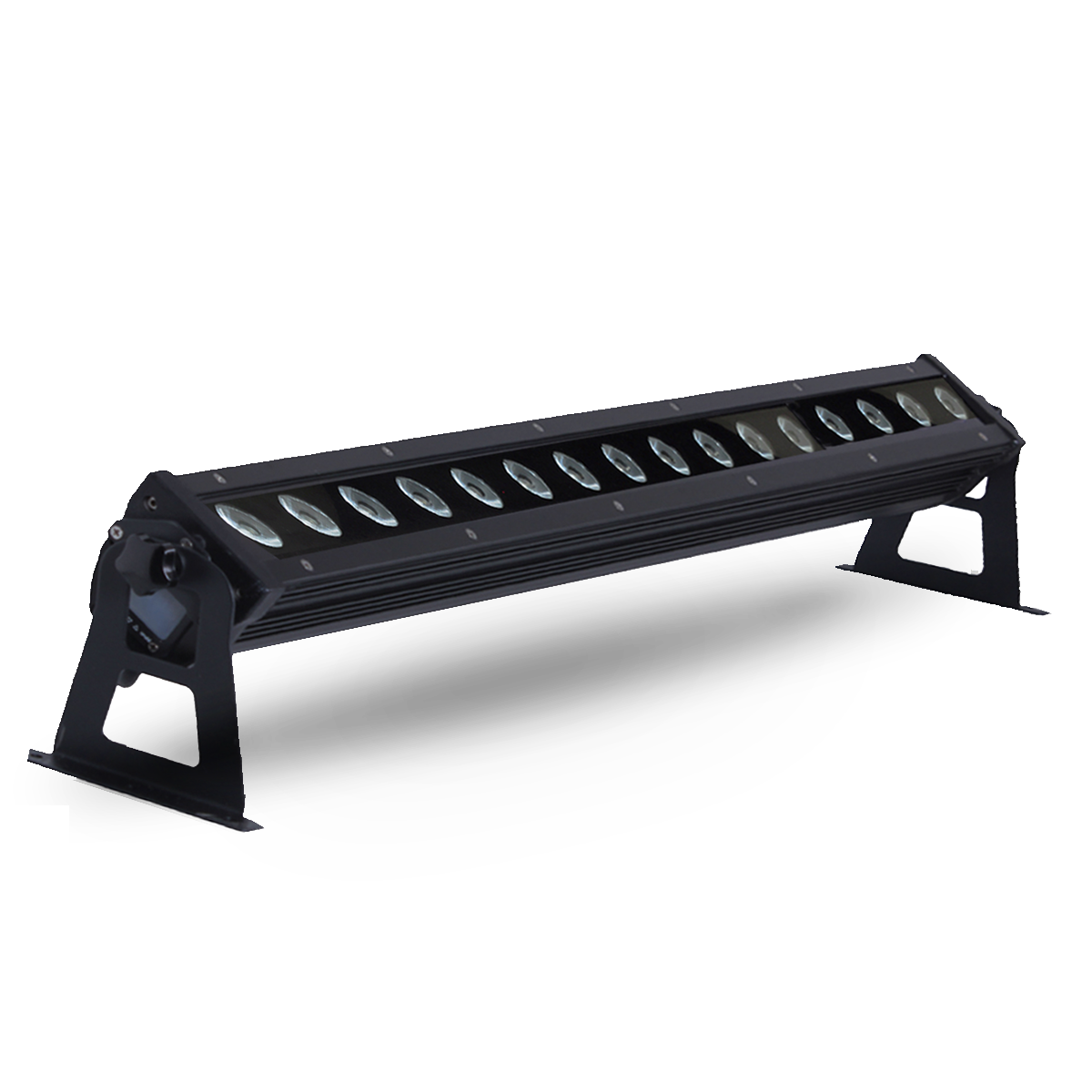

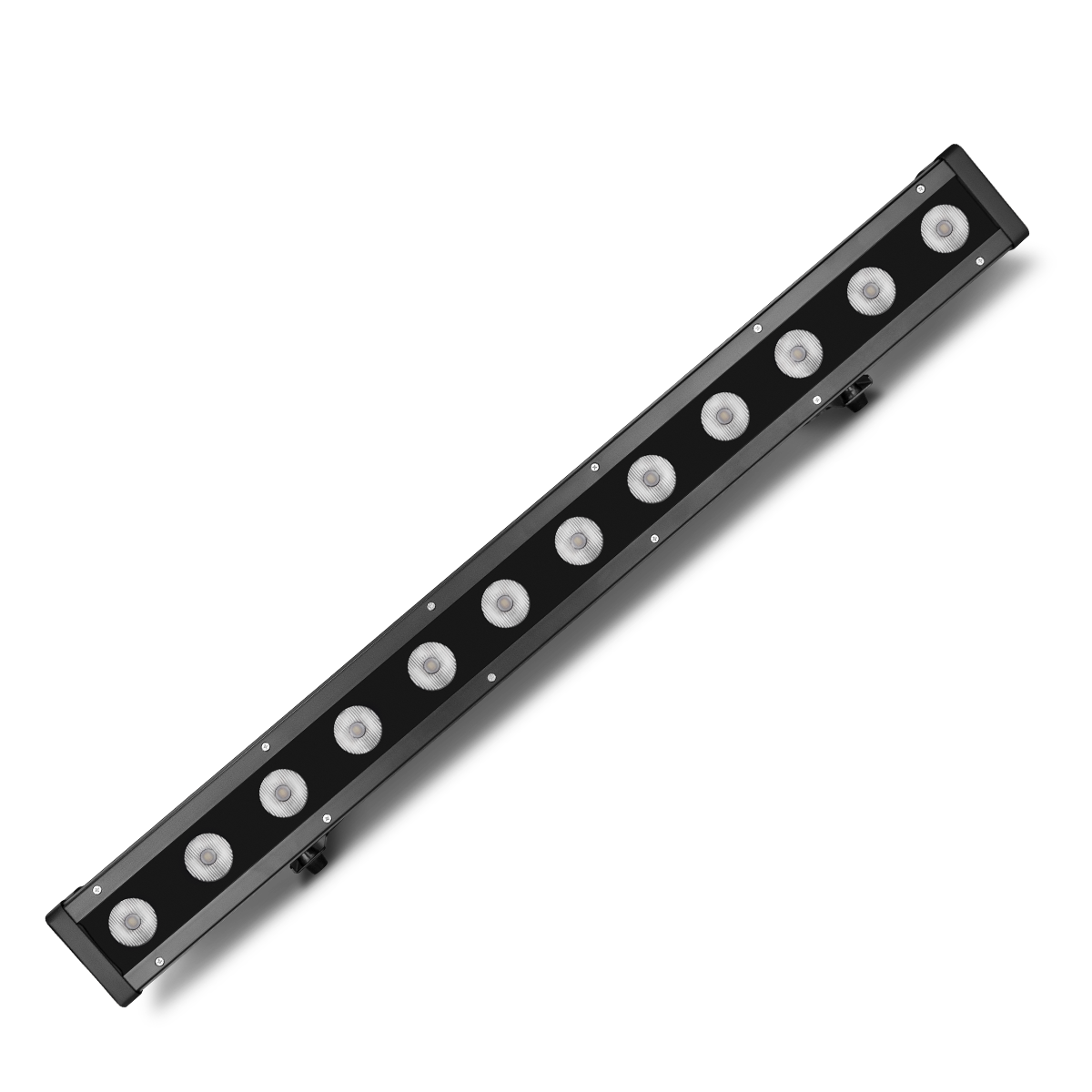

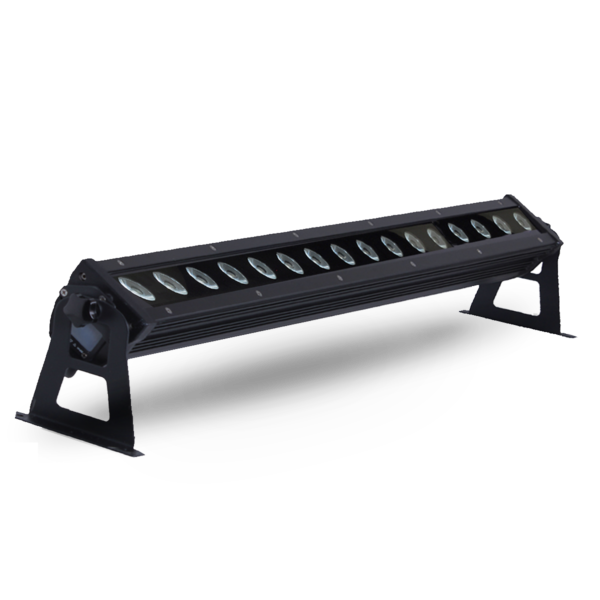

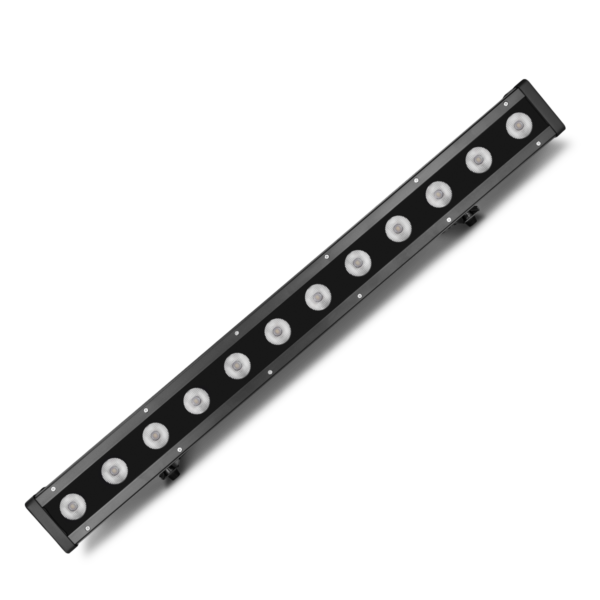

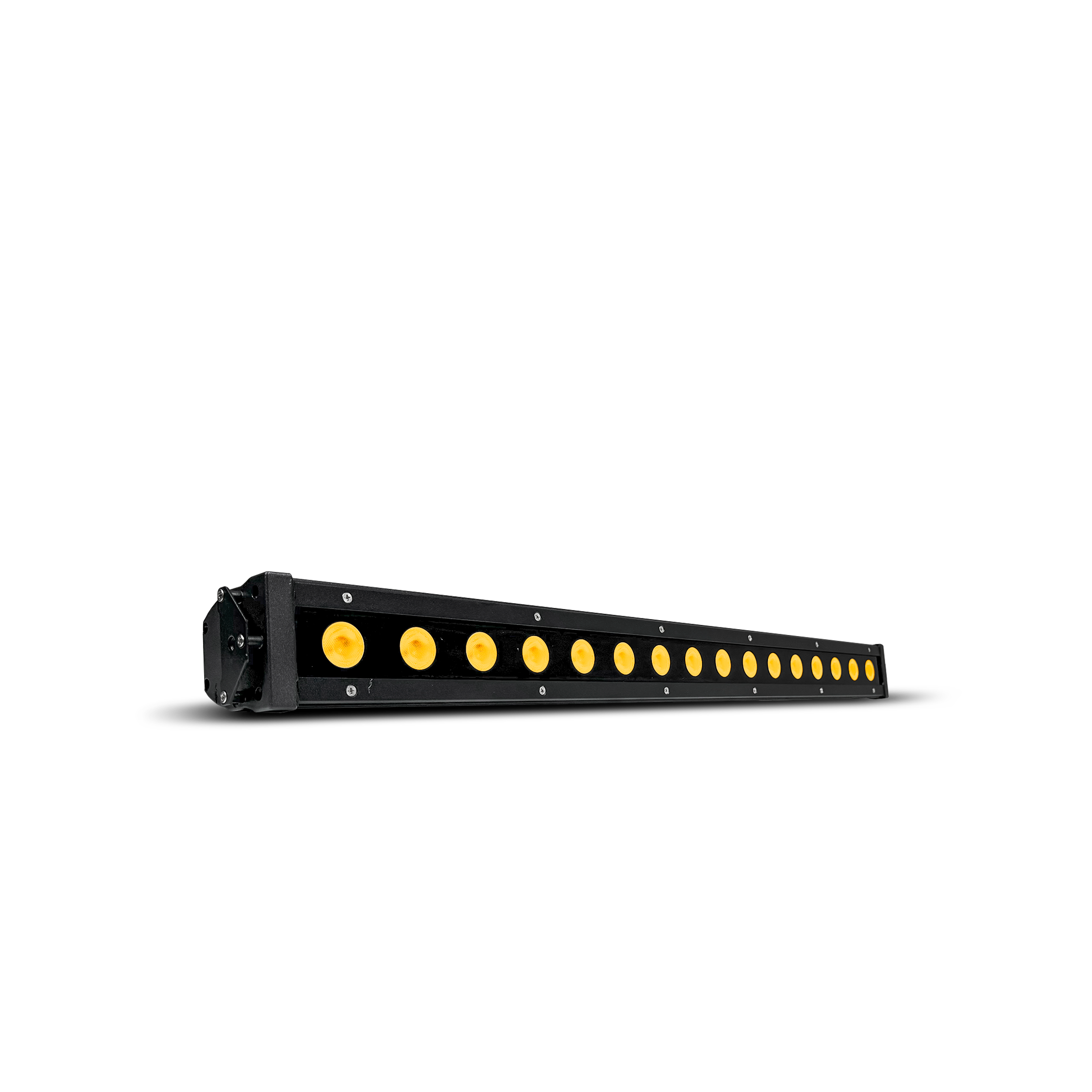

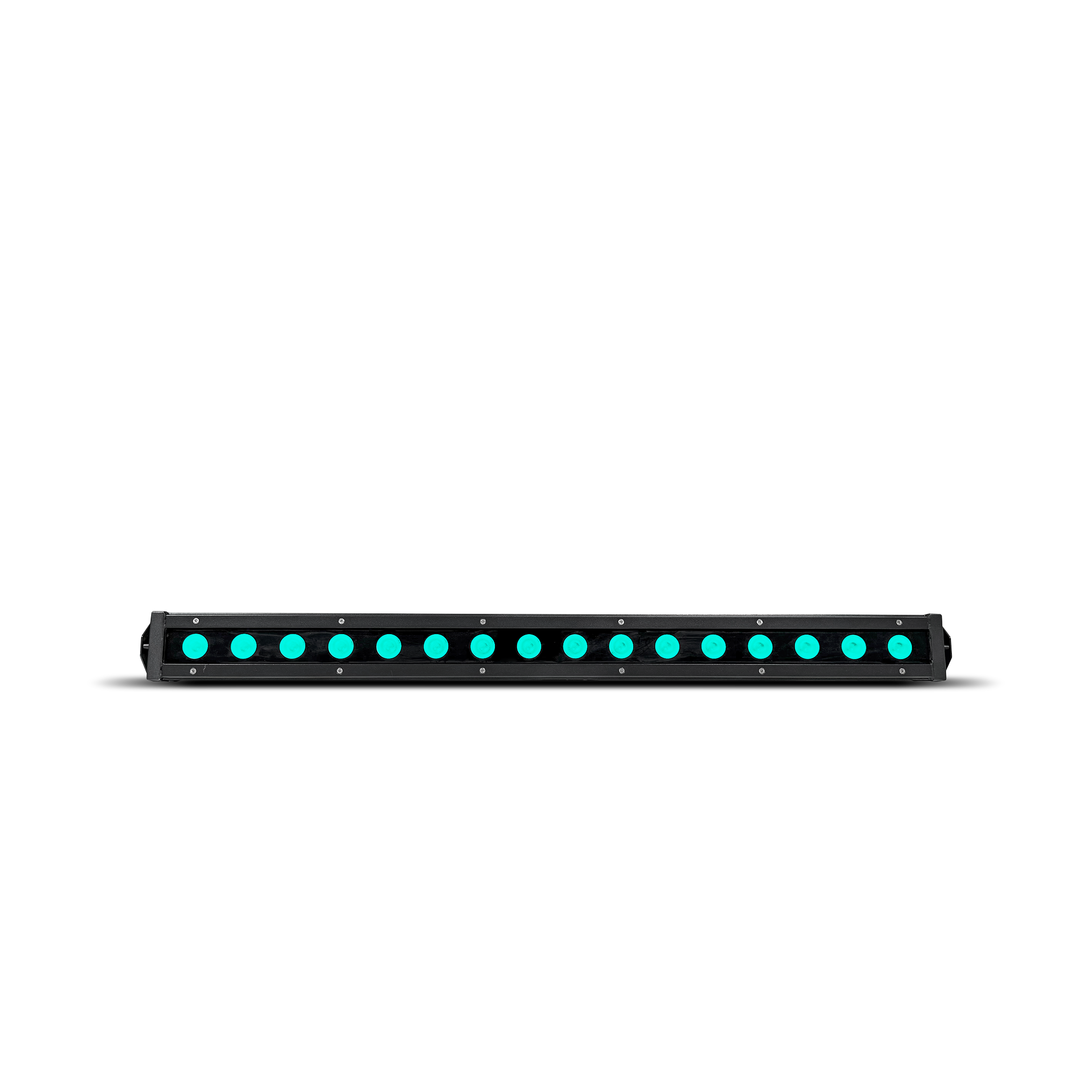

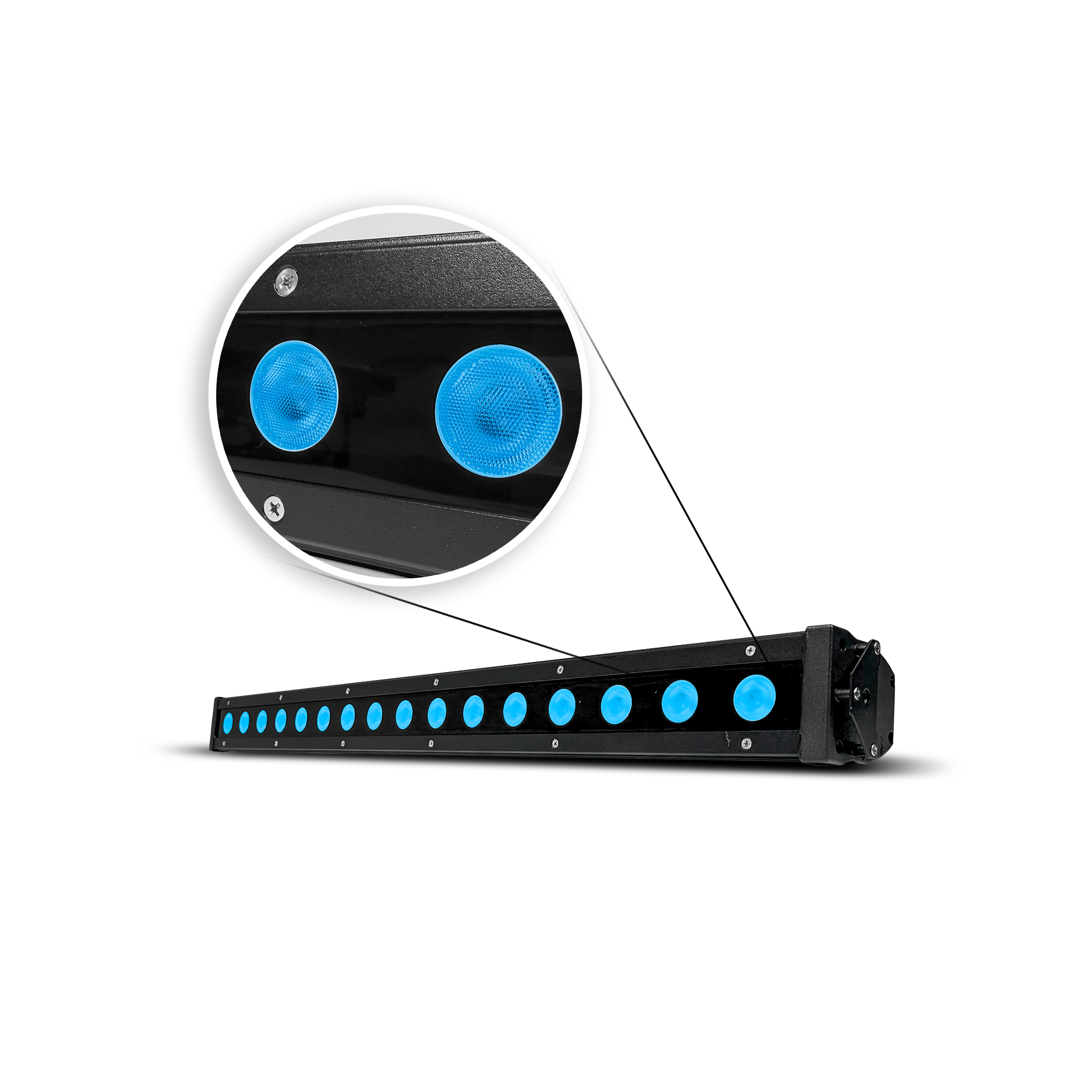

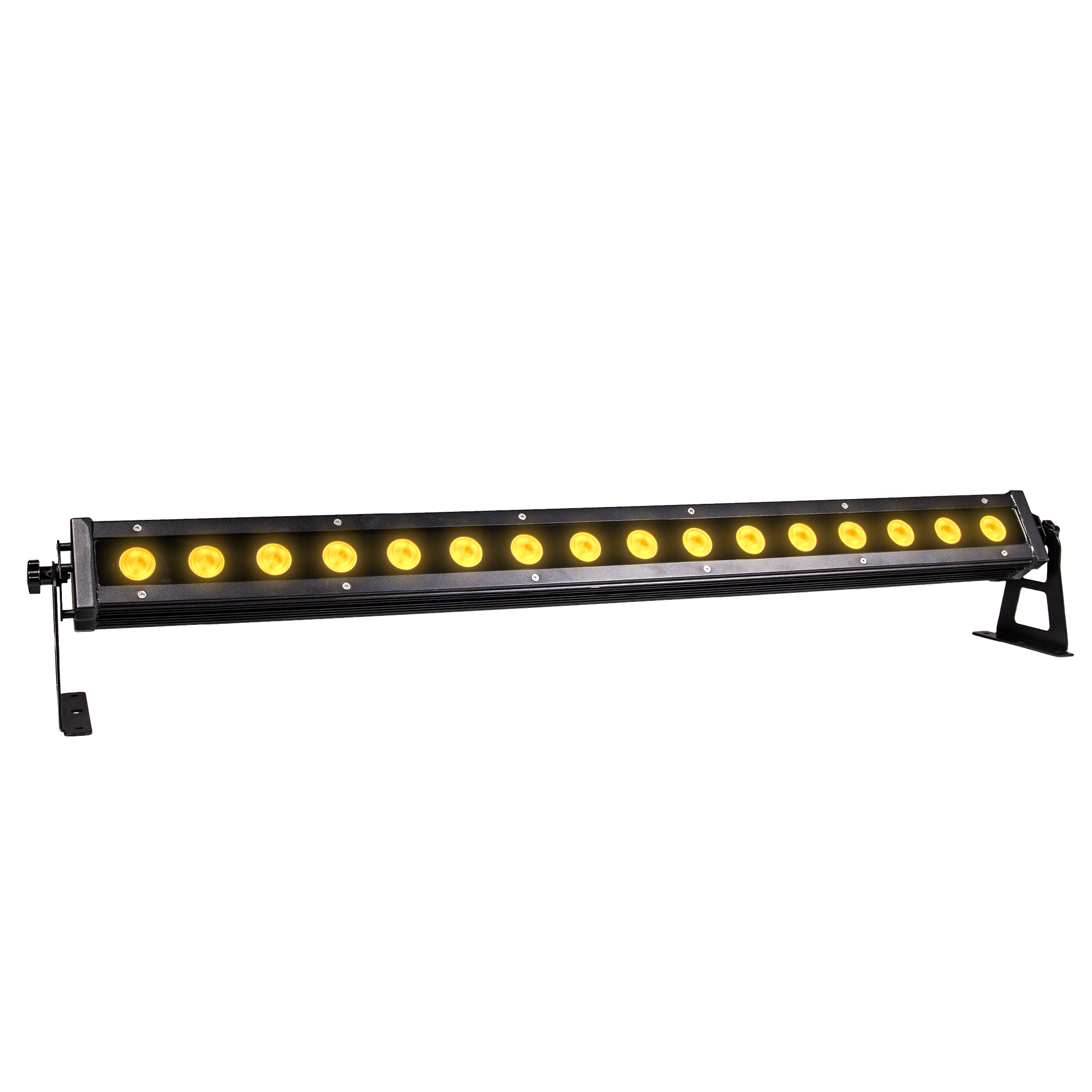

CPX 416OB

Outdoor 16x8 watts RGBW outdoor LED wash bar

CPX 416OB is a 16 x 8 watts outdoor RGBW LED wash bar. With an IP65 rating, a robust built and 16 bright LEDs controlled in 8 sections, this LED bar is the solution for any architectural, stage and events applications.

SKU: CPX416OB Categories: ,

SOURCE

  • Light source: 16 x 8 watts RGBW LED ,4 in 1 RGBW LEDs
  • LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle: 40°
  • Light output: 2500 Lux @ 2m @ 40°

DYNAMIC EFFECTS

  • Dimmer: 4 selectable dimming curves
  • Color mixing: RGBW
  • Strobe and fade effect
  • Built-in color and dynamic macros

CONTROL & PROGRAMMING

  • Control protocols: DMX, Master-Slave, Auto Run
  • Display : TFT displayer with 4 buttons
  • Control channels: 1, 4, 7, 11, 19, 32, 35 CHs

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 128 watts

CONNECTIONS

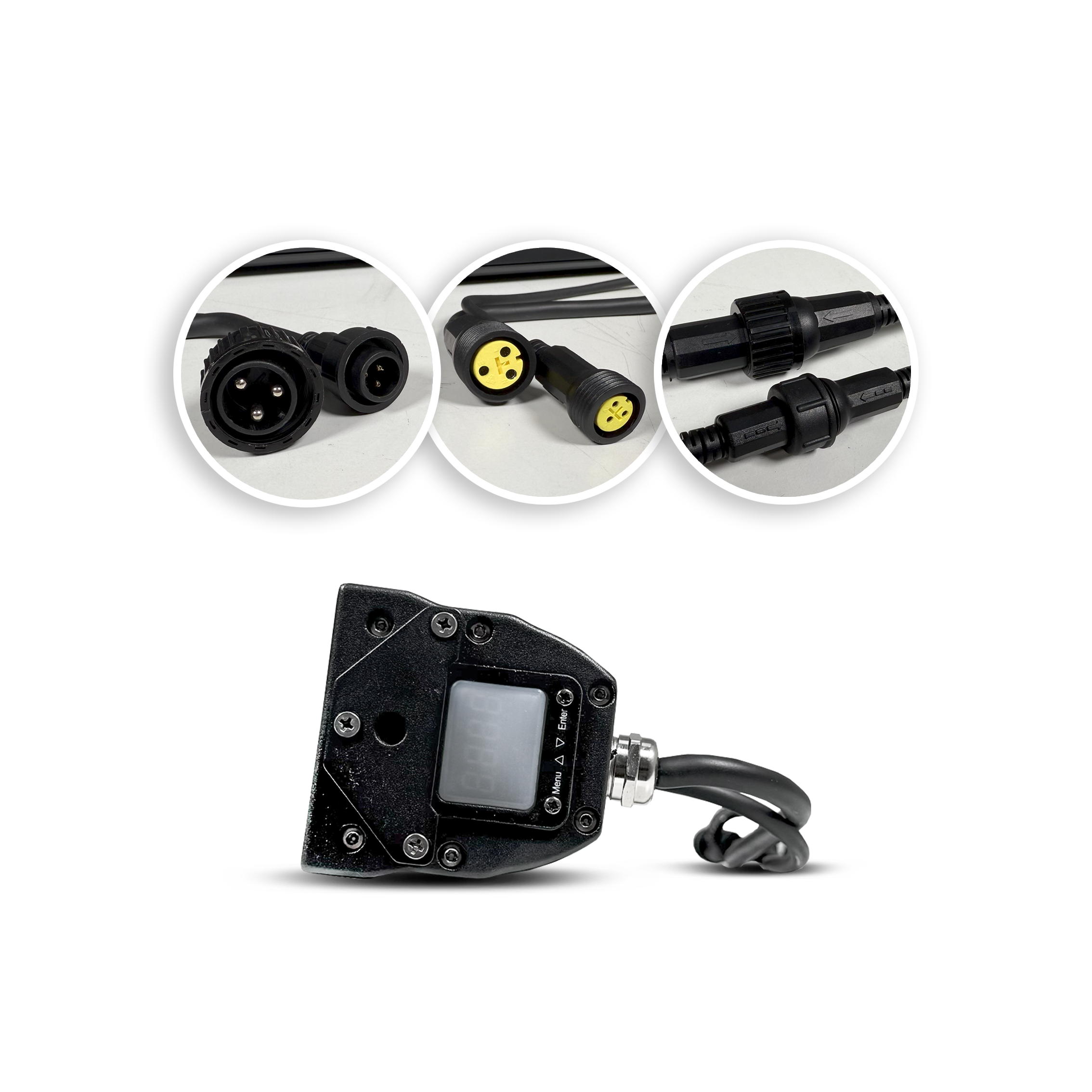

  • DMX connections: IP DMX In/Out cables with 3 pin screw lock connectors
  • Power connections: IP power In/Out cable, 3 pin screw lock connectors

PHYSICAL

  • Dimensions: 1068.73 x 84.66 x 140mm
  • Net weight: 5.5 Kg
  • Housing: Aluminum
  • IP rating: 65
  • Operating temperature: -20°C/45° C
