CPX 412OB-II – Outdoor RGBW LED Wash Bar

CPX 412OB-II – Outdoor RGBW LED Wash Bar

Outdoor RGBW LED Wash Bar

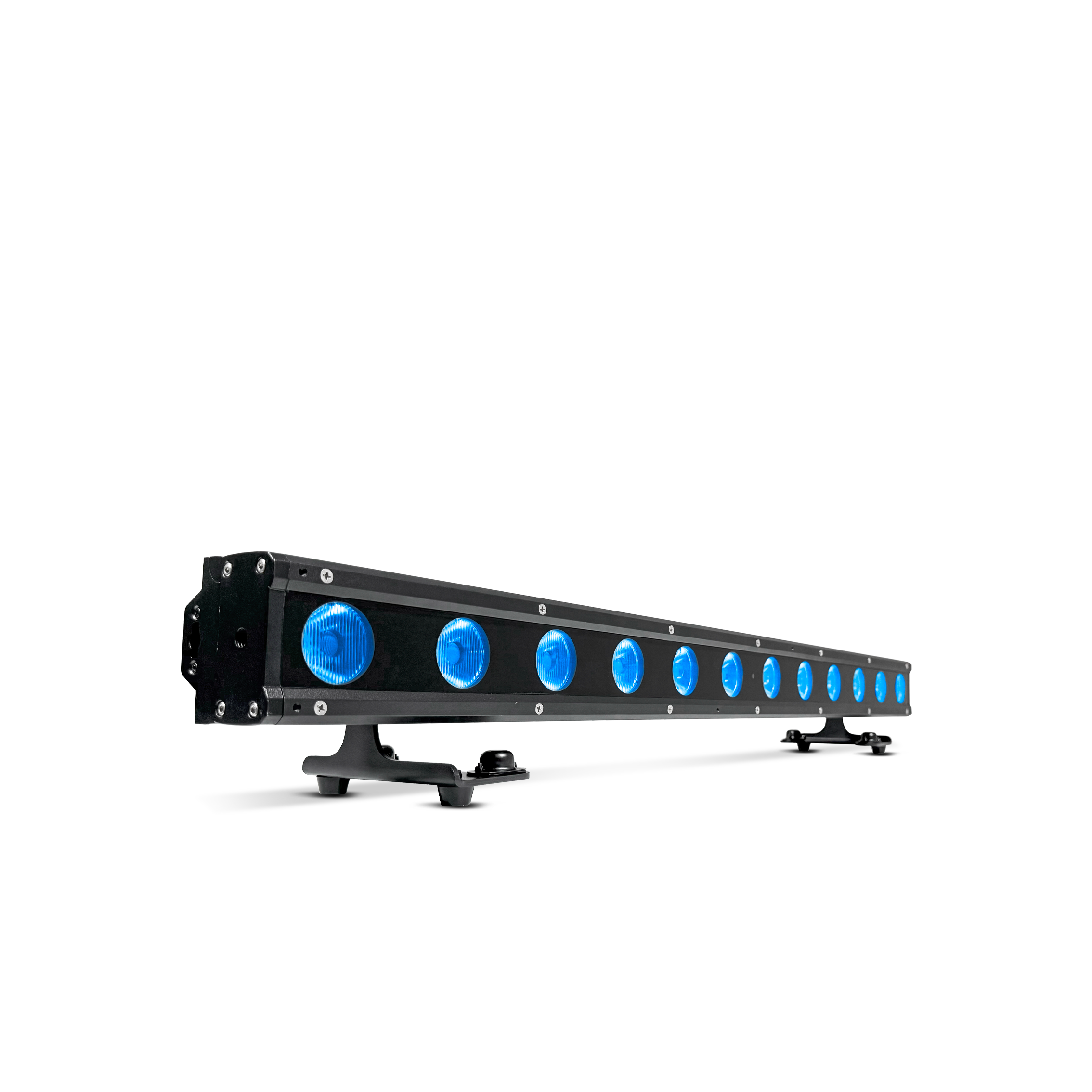

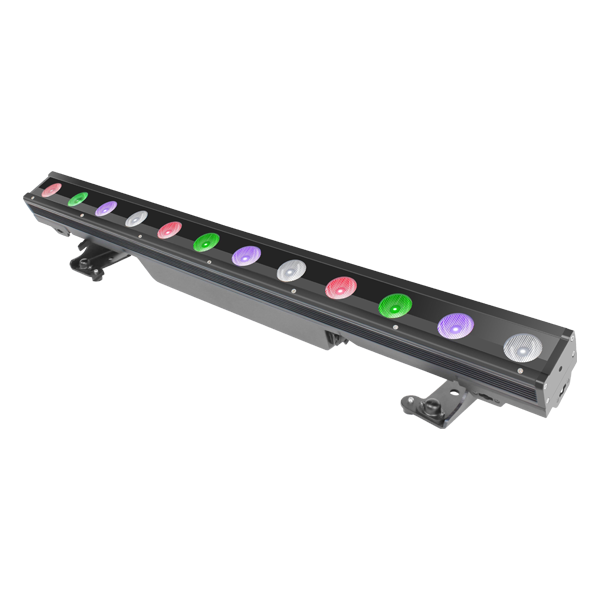

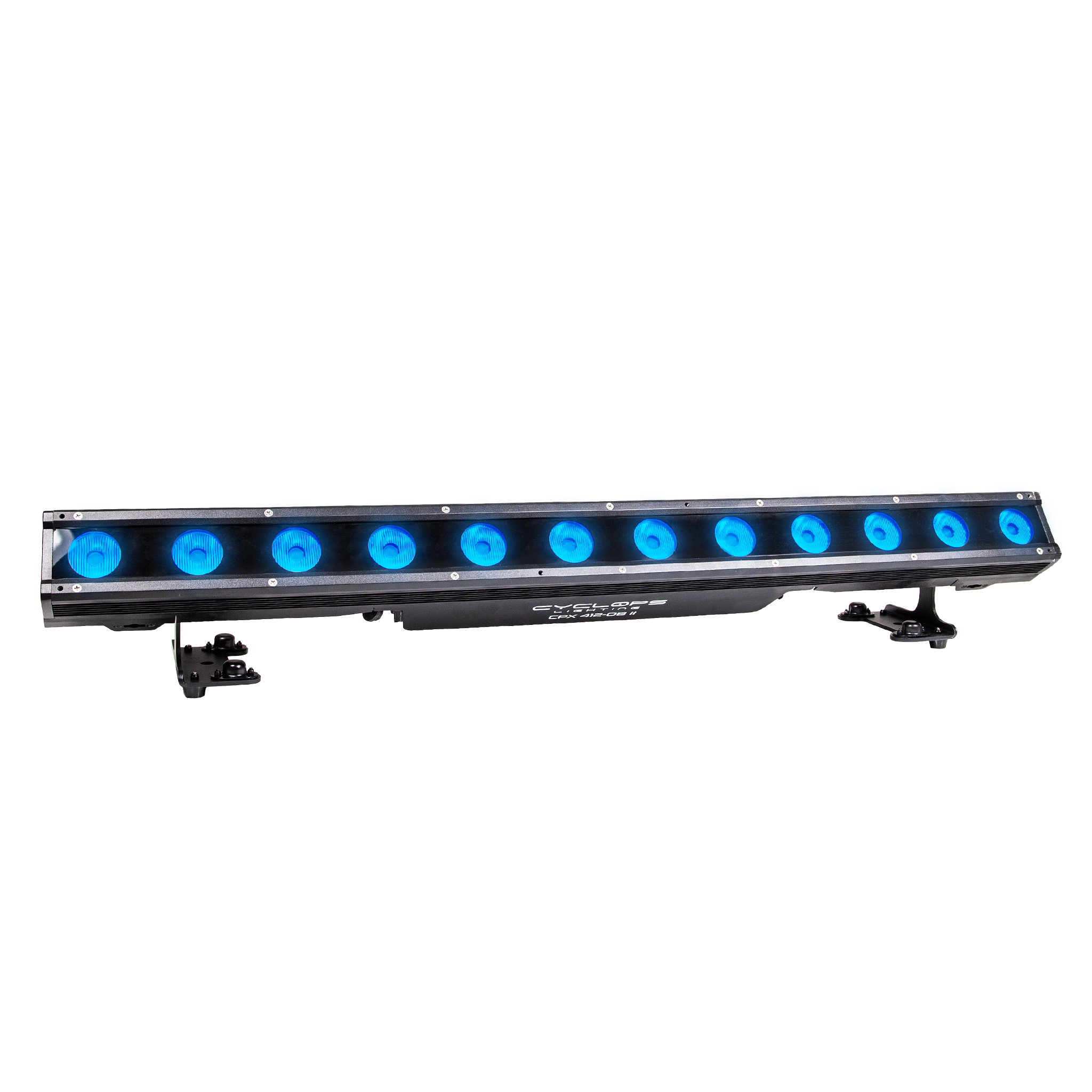

CPX 412OB-II is an outdoor pixel controlled RGBW LED wash bar. It is brighter and with a better color mixing from its precedent. With 12 high performance LEDs that can be controlled individually and fast lock seamless installation, this IP65 bar is also a great
pixel mapping show LED bar for any theatre and stage application in addition of outdoor
architectural application.

SOURCE

  • Light source: 12 x 15 watts 4 in 1 RGBW LEDs
  • LED life expectancy: 50,000 Hrs.

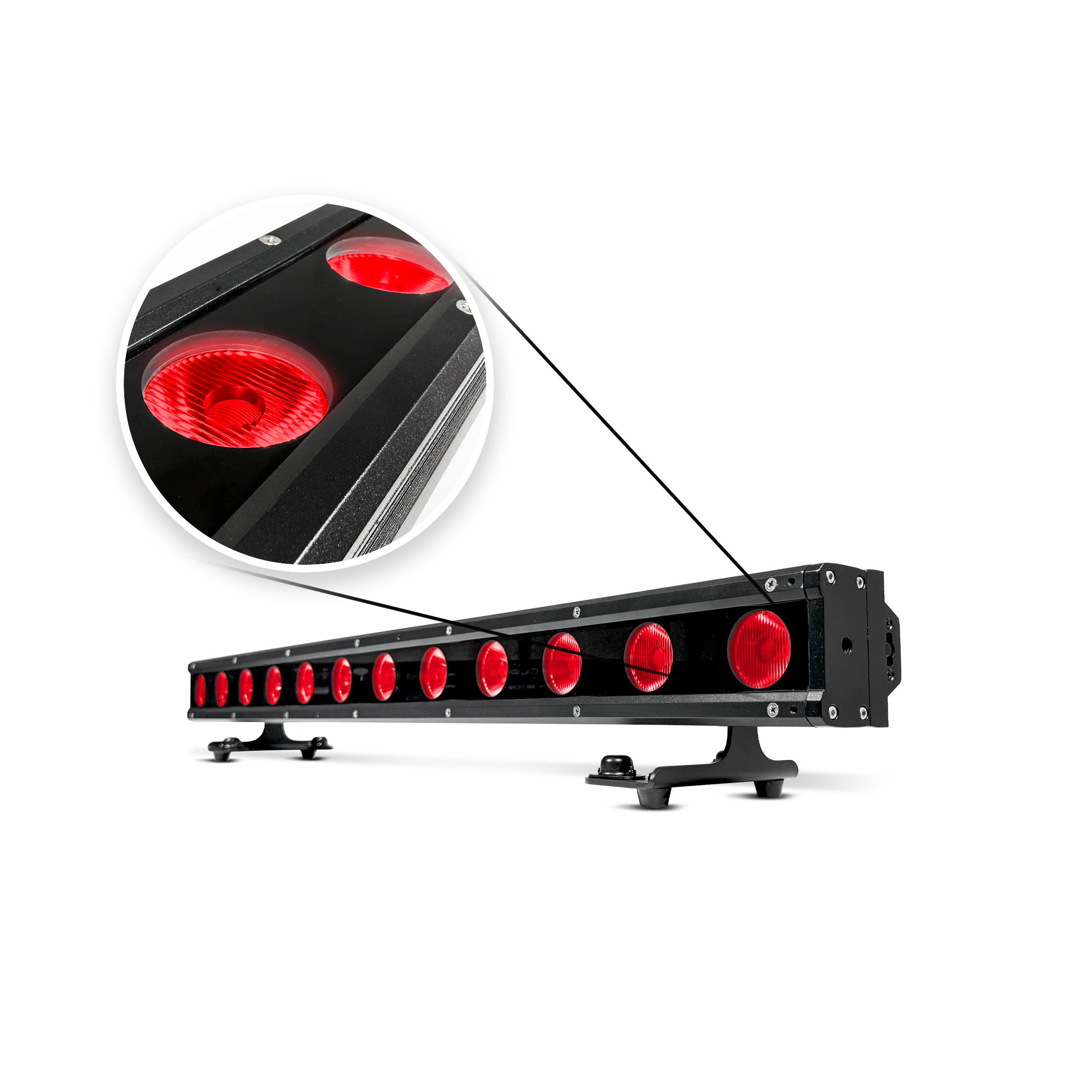

OPTICAL SYSTEM

  • Beam angle: 45° x 15°
  • Light output: 3,899 Lux @ 2m @ 45°
  • Lumen output: 10,000 Lm

DYNAMIC EFFECTS

  • Dimmer: Linear adjustment
  • Color mixing: RGBW
  • Strobe and Fade effect
  • Built-in color and dynamic macros

CONTROL & PROGRAMMING

  • Control protocols: DMX, RDM
  • Control channels: 3, 4, 5, 8, 10, 48, 51 CHs

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 200 watts

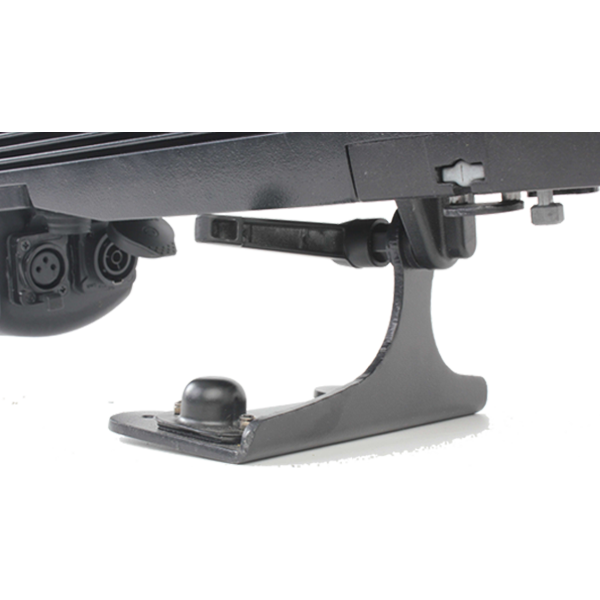

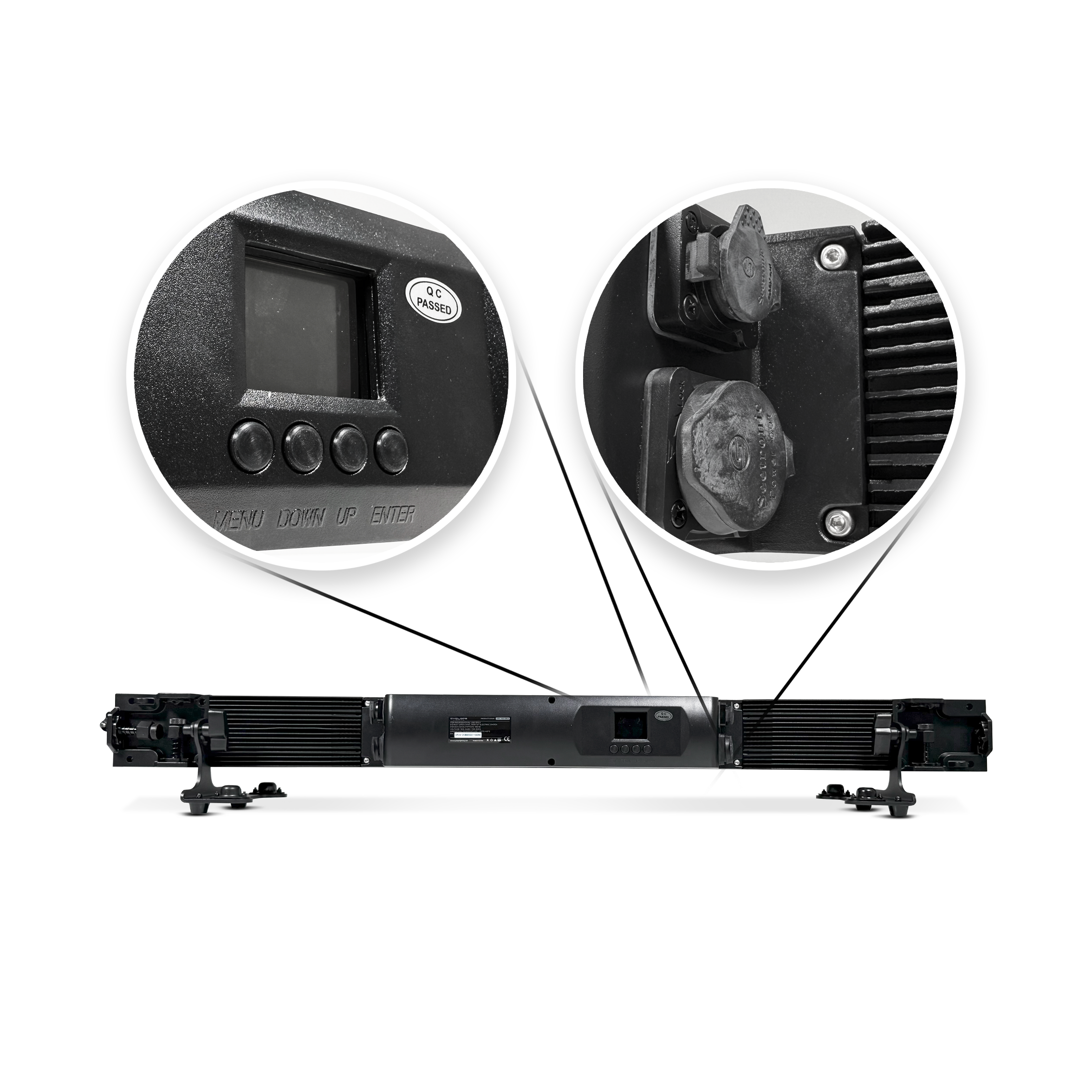

CONNECTIONS

  • DMX connections: IP DMX In/Out 3 pin connectors
  • Power connections: IP power In/Out connectors

PHYSICAL

  • Dimensions: 1017 x 140 x 215.3mm
  • Net weight: 9.1 Kg
  • Color: Black
  • Housing: Die cast and extruded aluminum
  • IP rating: 65
  • Operating temperature: -20°C/45°C
