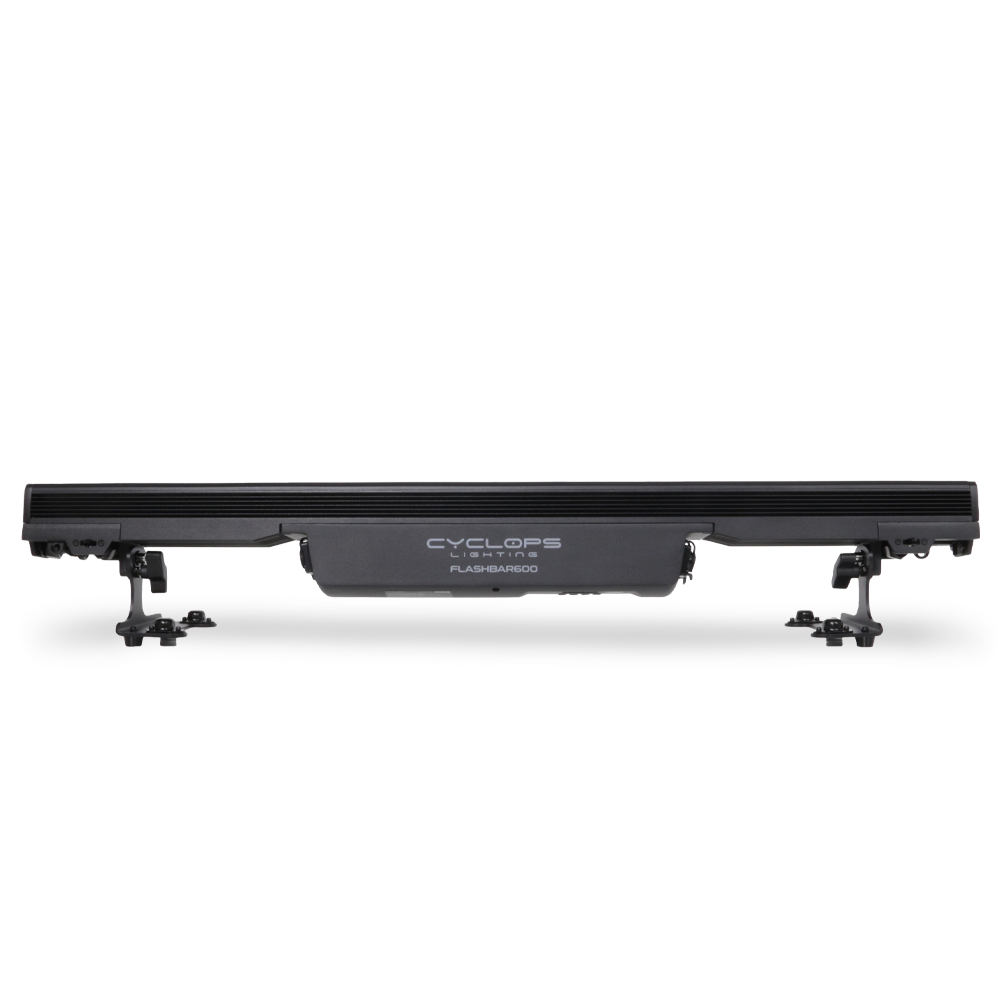

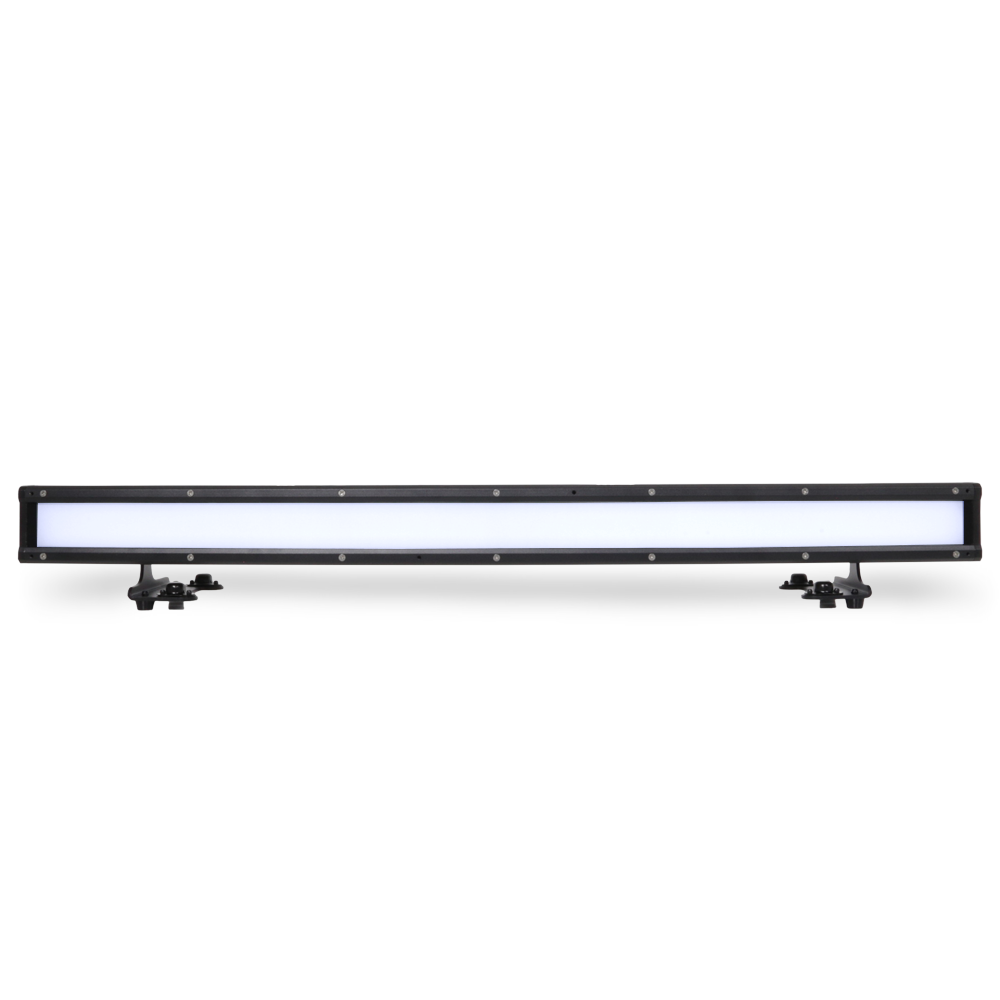

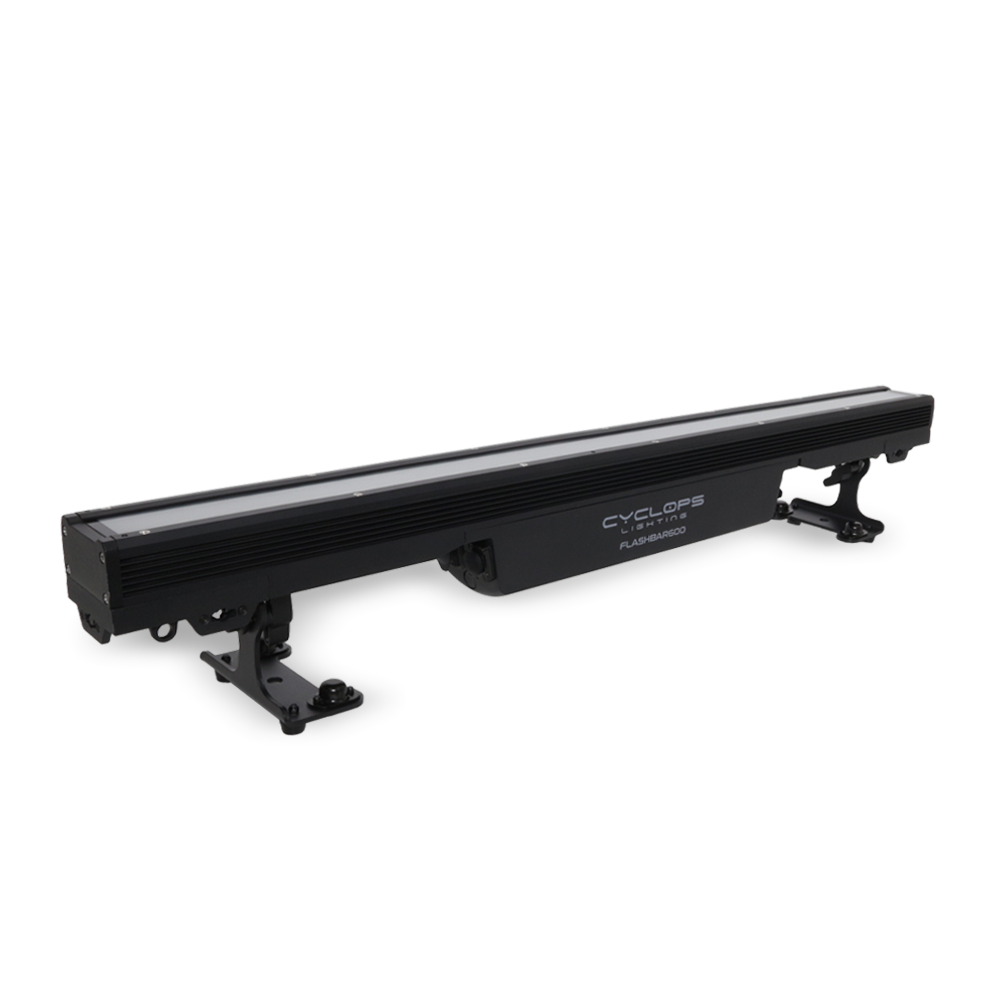

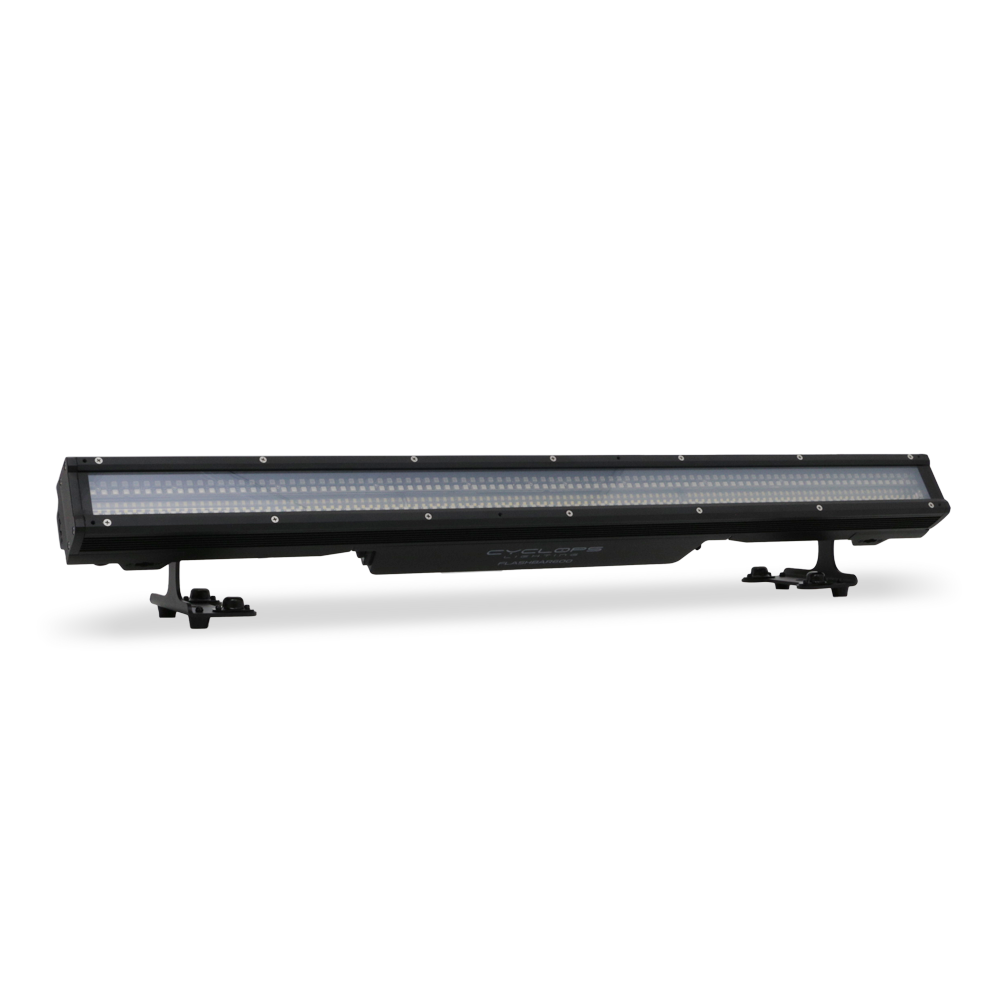

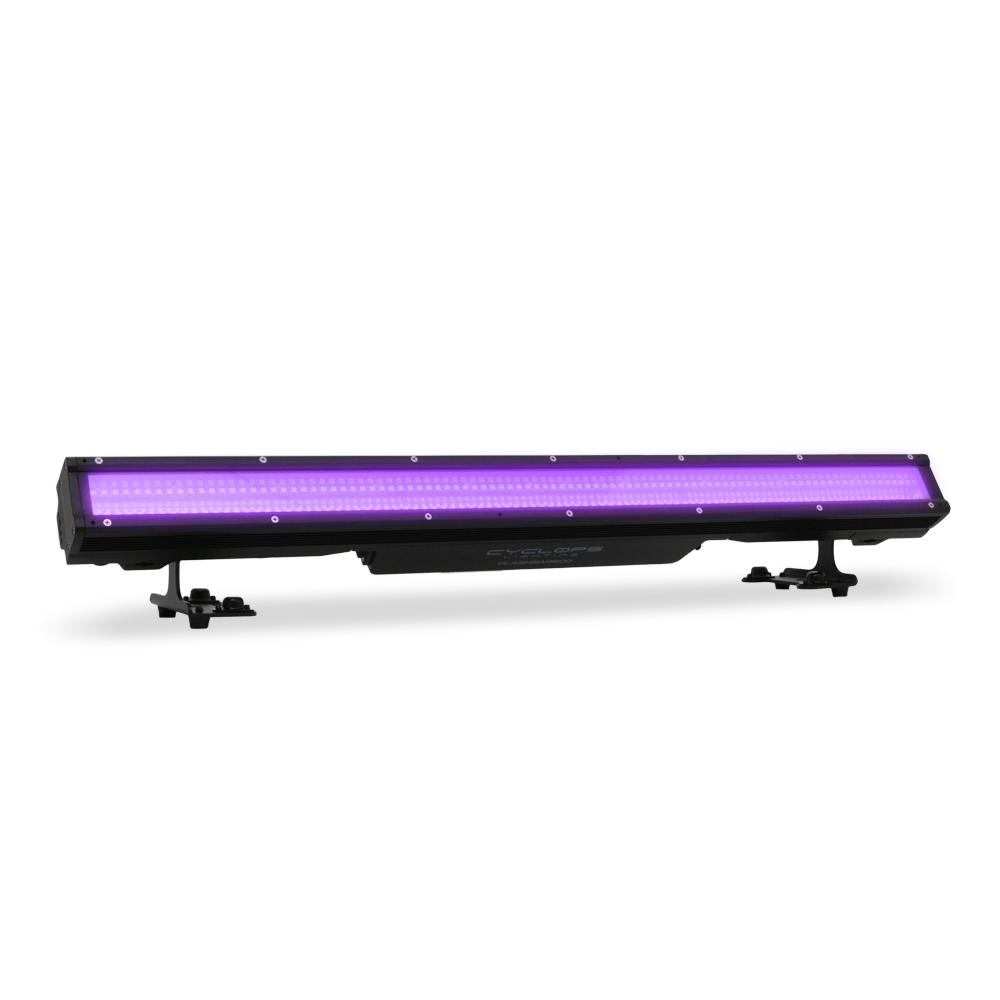

FLASHBAR 600

FLASHBAR 600

Strobe, Effects and Pixel Mapping LED Bar

The FLASHBAR 600 is a cutting-edge outdoor strobe and pixel mapping LED bar designed to elevate stage lighting effects. Powered by 360 x 1W White LEDs for a powerful strobe effect and 384 x 0.5W RGB LEDs for dynamic pixel mapping, this bar offers an unmatched visual experience.



The White Strobe LEDs are divided into 12 zones, while the RGB LEDs are independently controlled across 24 zones, providing extensive creative possibilities. Additionally, the FLASHBAR 600 features a unique DMX-controlled frost glass that can transition from a clear, bright output to a soft, frosted effect mid-performance. With its 90° beam angle, built-in dynamic macros, and customizable control options, the FLASHBAR 600 is the perfect solution for creating stunning, dynamic lighting displays for any event or production. Its rugged aluminum housing, IP65 rating, and versatile programming options make it an ideal choice for demanding outdoor environments.

SKU: FLASHBAR600 Categories: , Series: FLASH

SOURCE

  • Light Source: 360 x 1 watt White LEDs | 384 x 0.5 watt RGB LEDs
  • LED Life Expectancy: 50,000 h

OPTICAL SYSTEM

  • Beam Angle: 90°

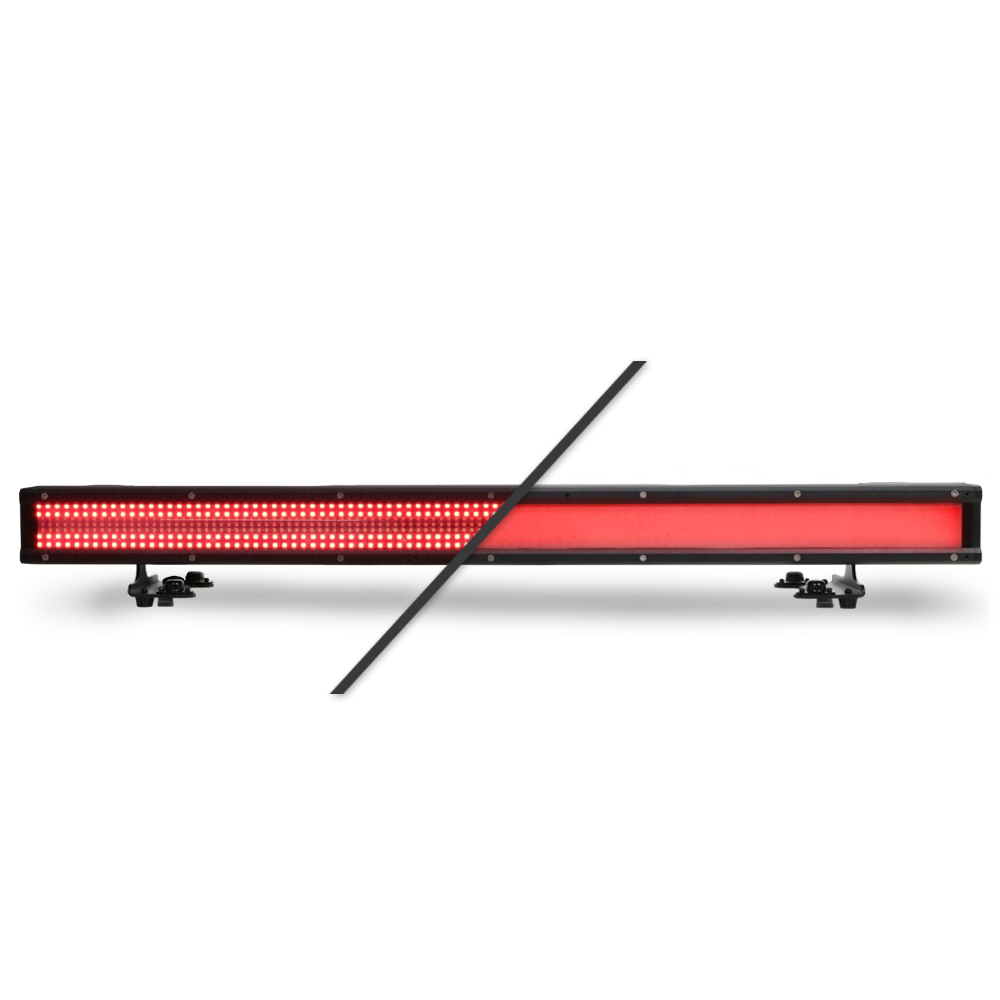

  • DMX Controlled Frost Glass

DYNAMIC EFFECTS

  • Strobe: Stobe effect with intensity, duration and rate control
  • Pixels: 12 Pixel Zones Strobe White LEDs + 24 Pixel Zones Effect RGB LEDs
  • Internal Macros: Built-in color and dynamic macros

CONTROL & PROGRAMMING

  • Display: TFT displayer with 4 buttons
  • Control Channels: 3, 9, 22, 36, 50, 92 CHs
  • Control Protocols: DMX, RDM, Auto Run
  • Dimming Curves: 4 selectable dimming curves

THERMAL MANAGEMENT

  • Operating Temperature: -20°C/40°C

CONNECTIONS

  • Power Connections: IP outdoor PowerCon In/Out
  • DMX Connections: IP outdoor 3 pin XLR In/Out

ELECTRICAL

  • Input Voltage: AC100-240V/50-60Hz
  • Power Consumption: 300W

PHYSICAL

  • Dimensions: 1017 x 85 x 165 mm
  • Net weight: 6 Kg
  • Housing: Aluminum
  • Housing Color: Black
  • IP Rating: IP65
