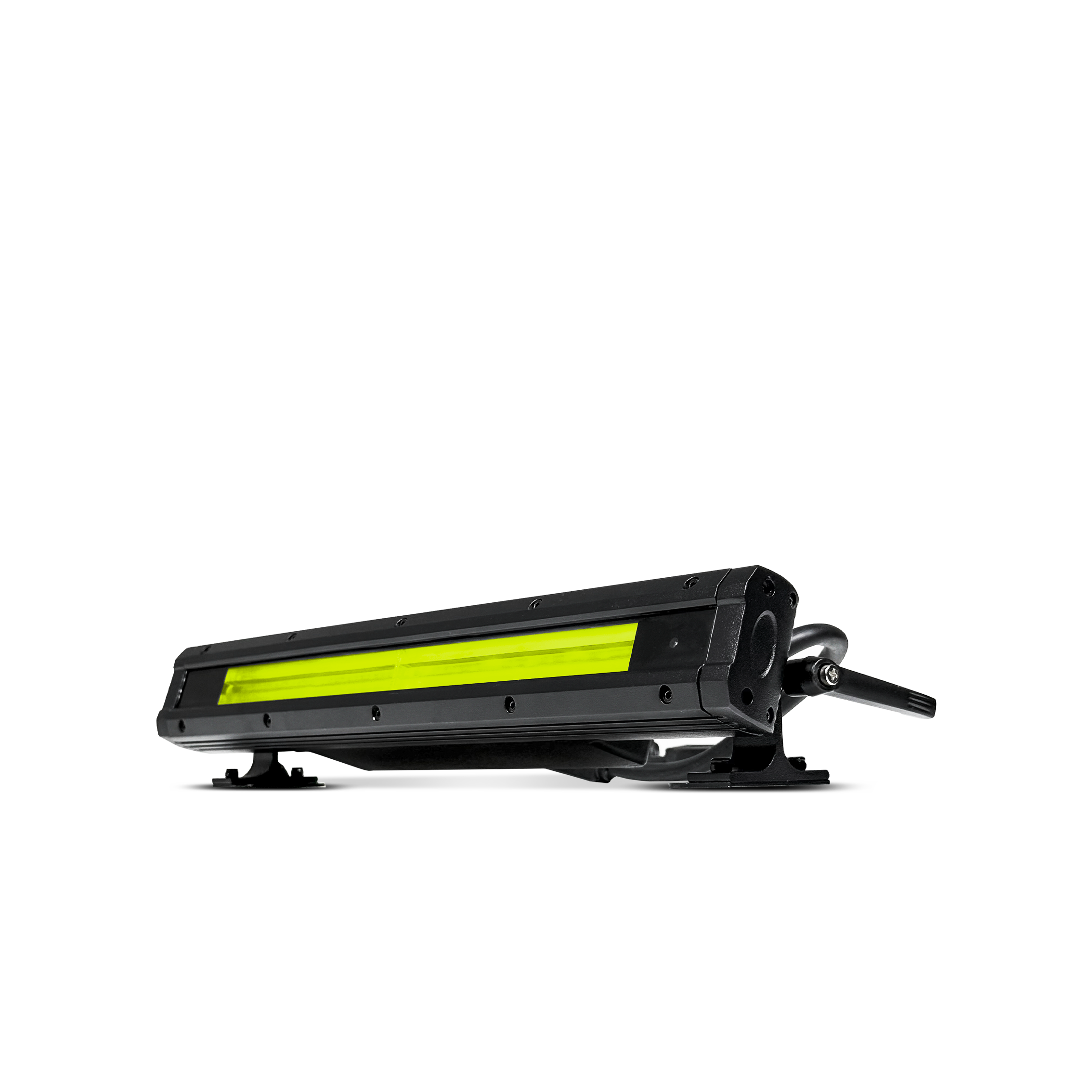

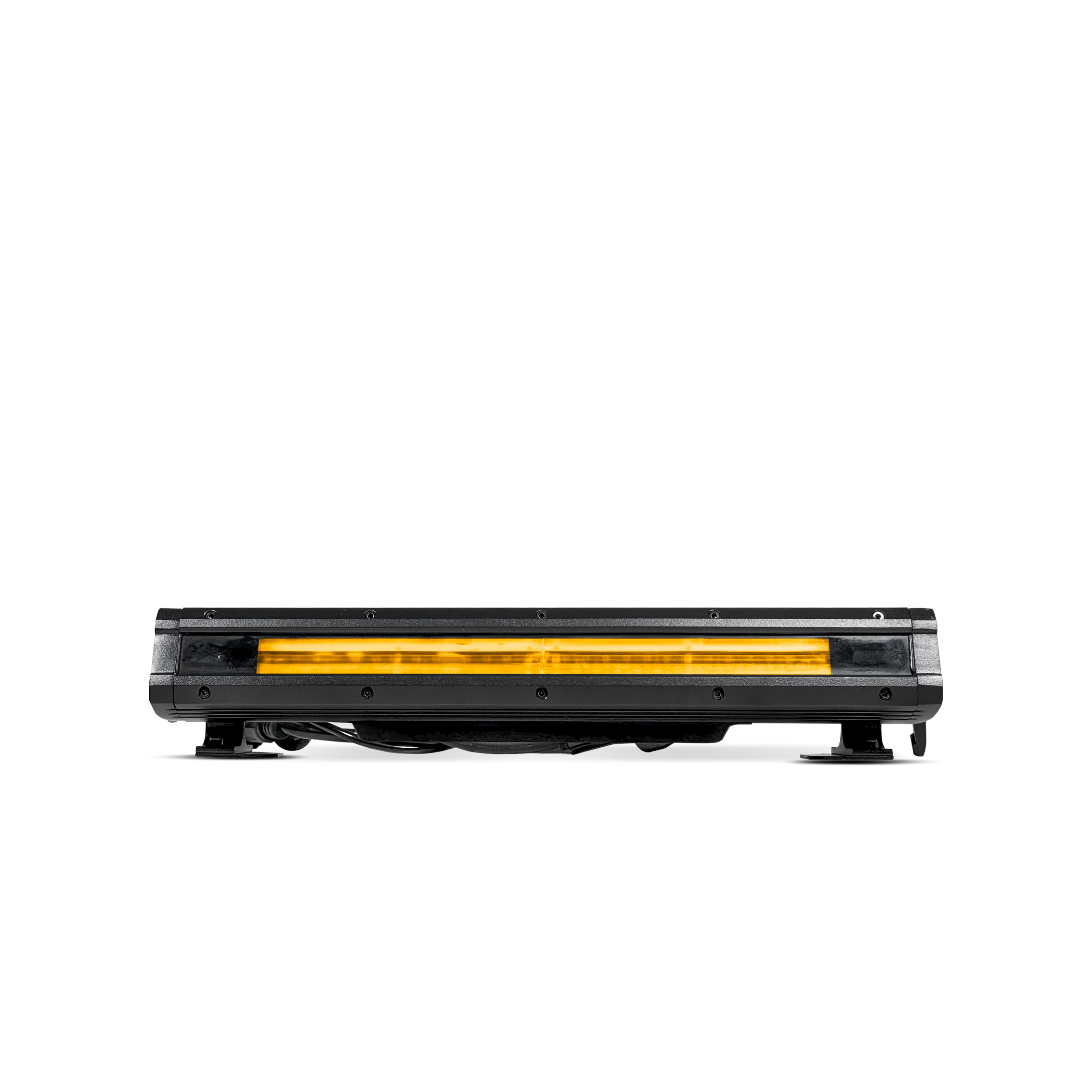

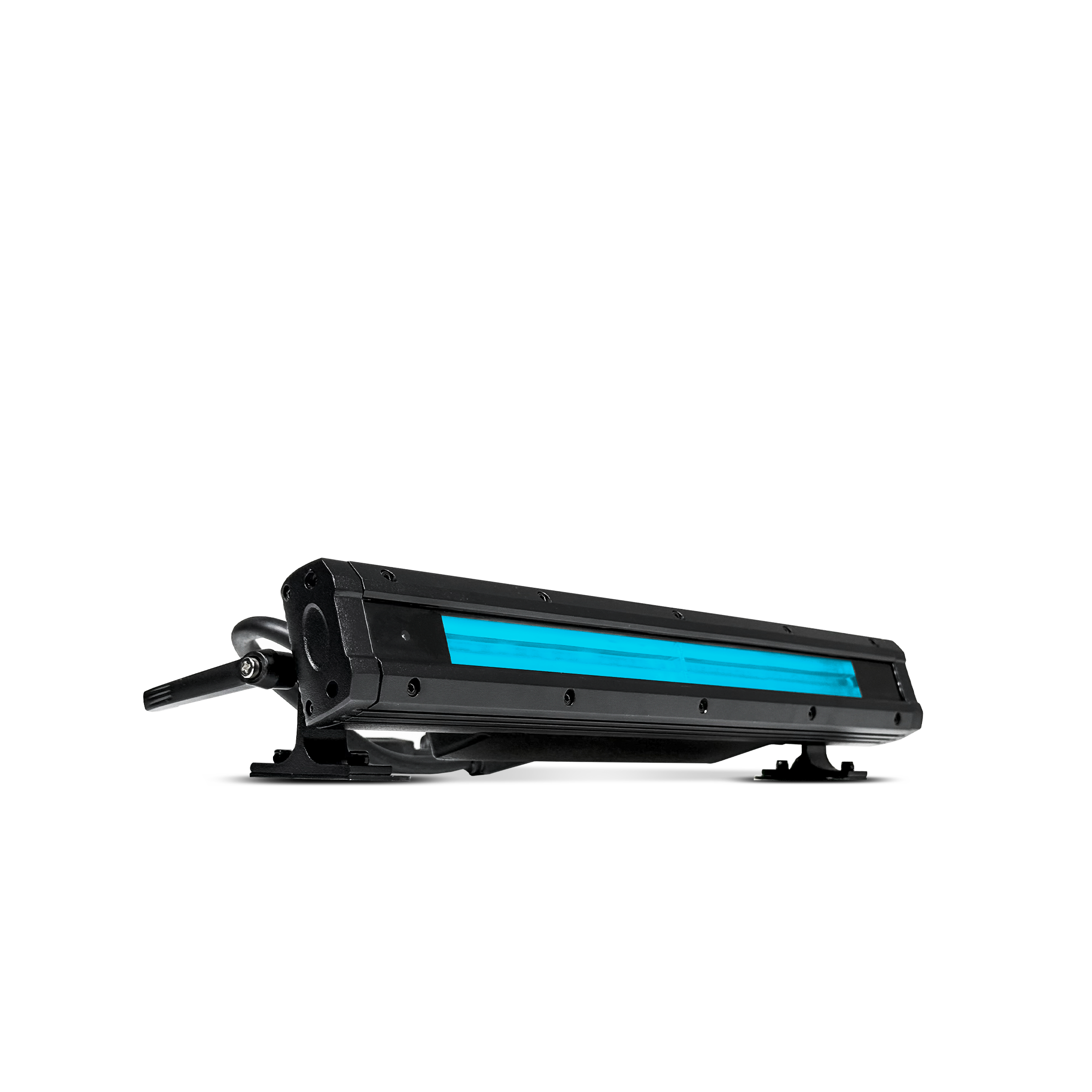

CPX 354OB

Outdoor 54 x 3 watts RGB LED Bar 60° with Display IR Remote

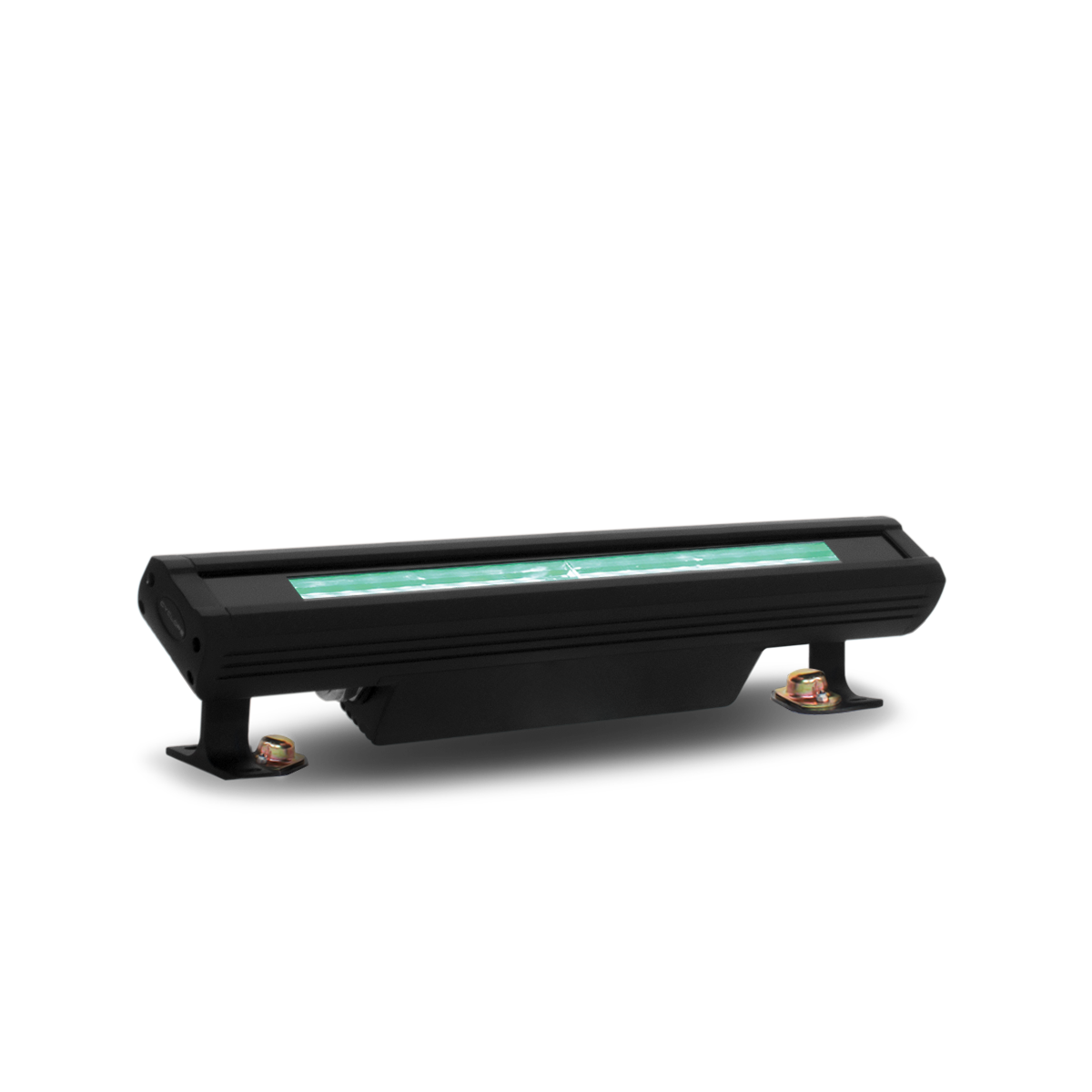

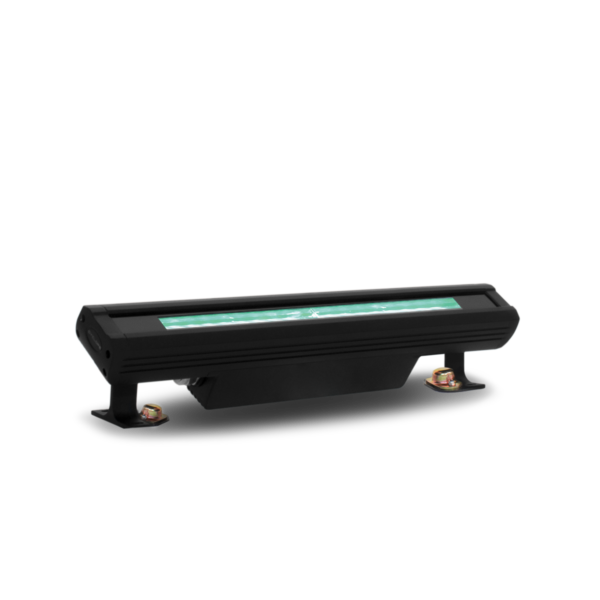

CPX 354OB is an outdoor RGB LED compact linear wash bar. It is designed with a very dense 54 bright LEDs and wide angle of 60° in a small body of 35.9 cm to ultimately serve architectural uplighting and wash outdoor applications.

SKU: CPX354OB Categories: ,

SOURCE

  • Light source: 54 x 3 watts RGB SMD LED

OPTICAL SYSTEM

  • Lens: 10 x 60°

DYNAMIC EFFECTS

  • Dimmer: 0-100% linear adjustment
  • Color mixing: RGBW
  • Variable color chasing
  • Strobing and fading effect
  • 55 built-in color macros

CONTROL & PROGRAMMING

  • Control protocols: RDM, DMX, Master Slave, AutoIR remote control
  • Display : 4 button LED displayer
  • Control channels: 3, 5, 8, 13 Chs

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 54 watts

CONNECTIONS

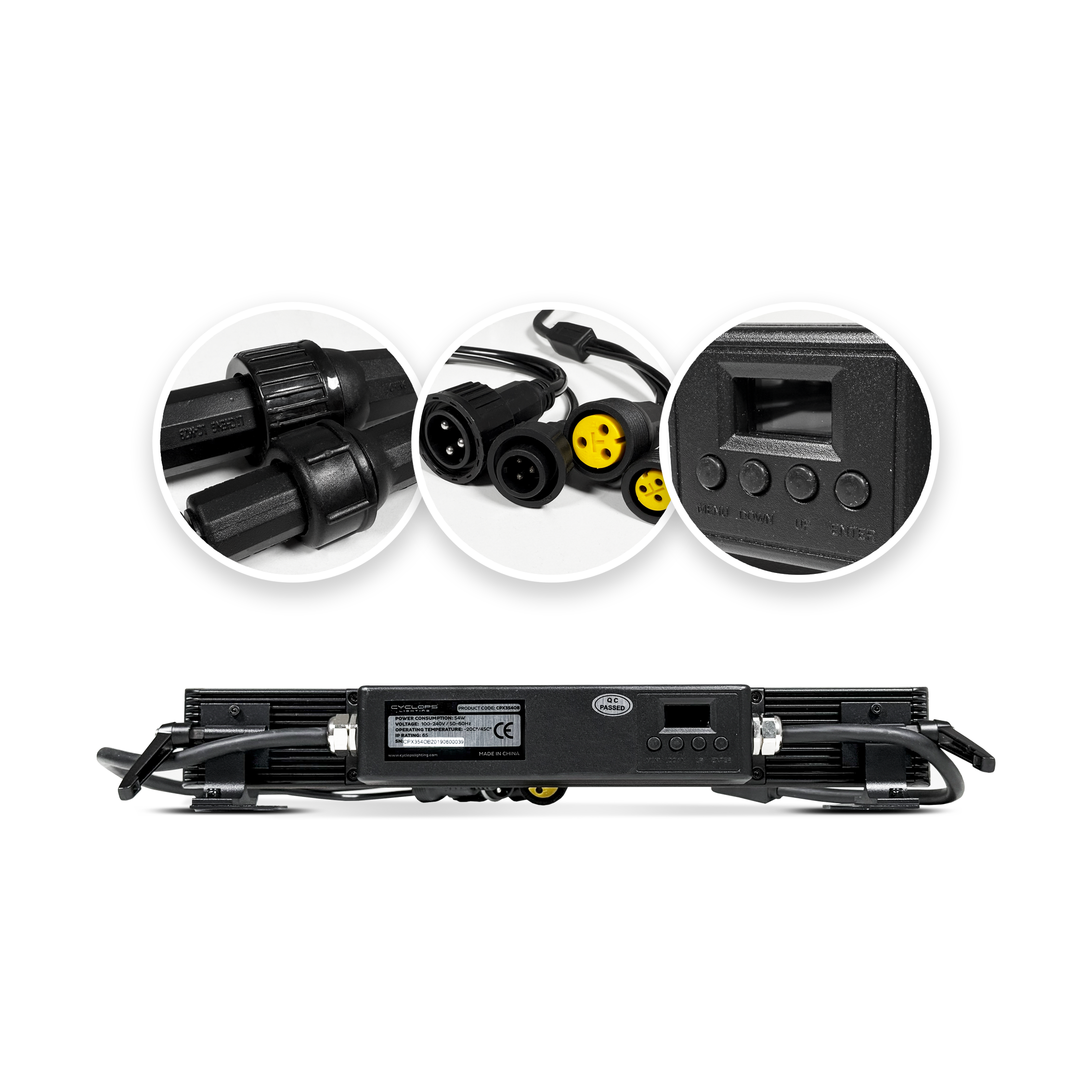

  • DMX connections: IP rated 3 PIN XLR cable

PHYSICAL

  • Dimensions: 359 x 53 x 81mm
  • Net weight: 21 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 65
  • Operating temperature: -20°C/40°C
