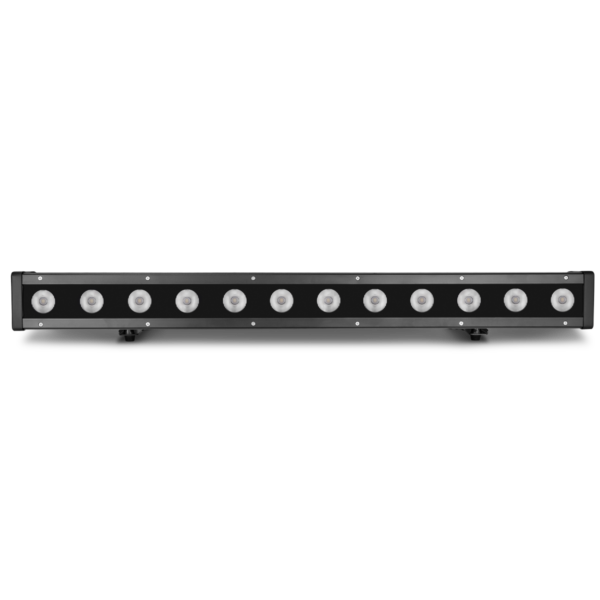

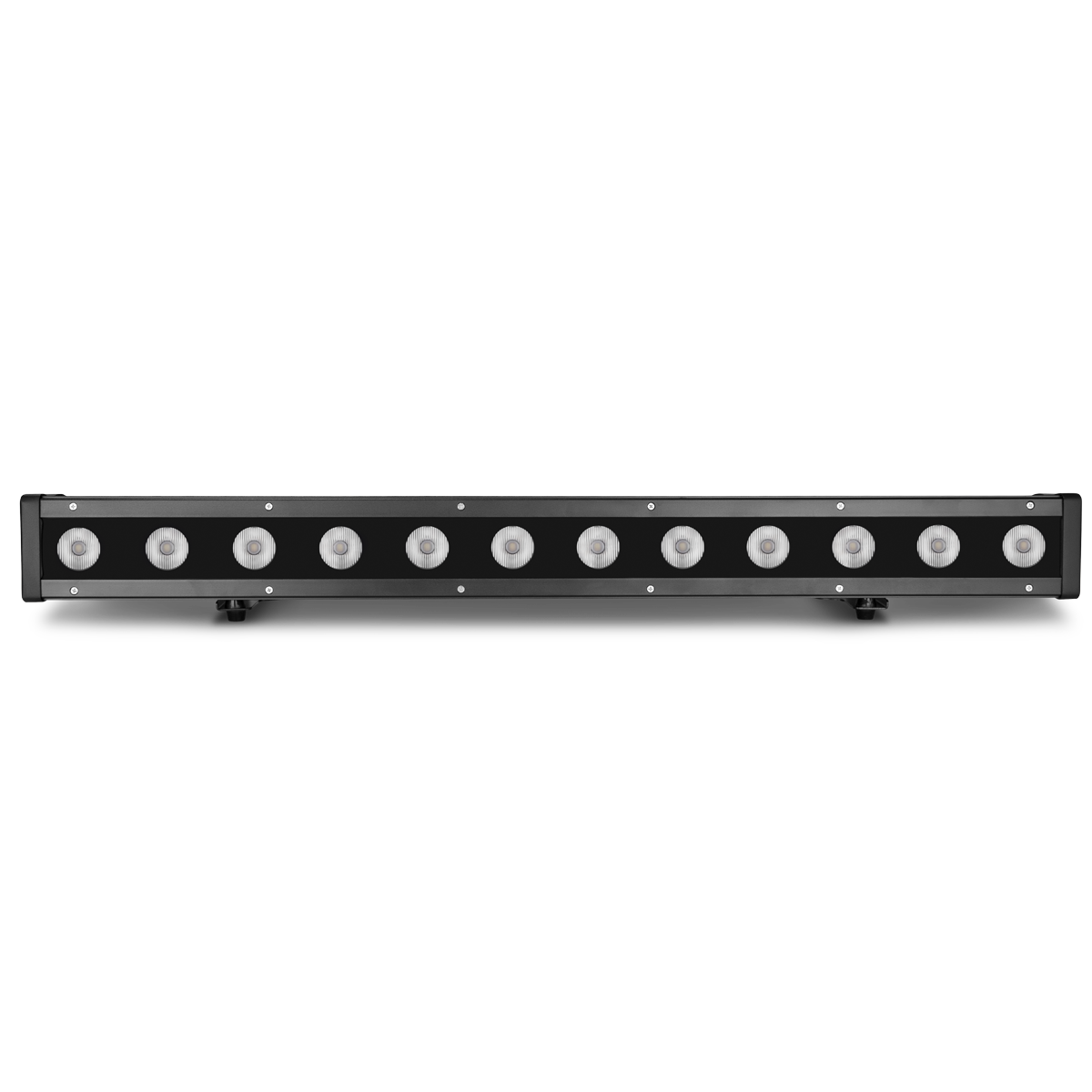

CPX 412 OB

CPX 412 OB is an outdoor LED wash bar with RGBW LEDs. It has 12 high-performance LEDs that can be controlled separately. It is ideal for any kind of application including outdoor settings with its IP 65 rating.

SKU: CPX412OB Categories: ,

CPX 412 OB is an outdoor LED wash bar with RGBW LEDs. It has 12 high-performance LEDs that can be controlled separately. It is ideal for any kind of application including outdoor settings with its IP 65 rating.

SOURCE

  • Light source: 12 X 15 W – 4 in 1 RGBW high performance LEDs
  • Lamp Type: OSRAM
  • LED life expectancy: 50,000 Hrs
  • Lens: High quality from France

  OPTICAL SYSTEM

  • Beam Angle: 40° x 10 °
  • Light output: 5632 lux @ 2 m
  • Lumen Output: 3000 lm

 DYNAMIC EFFECTS

  • Dimmer: 0 – 100% Dimmer curve
  • Color Mixing: RGBW – LEDs
  • Strobe: Color Strobe 1 – 25/second

CONTROL & PROGRAMMING

  • Control Protocols: 6 DMX modes (RGB separate control, strobe, Macro)

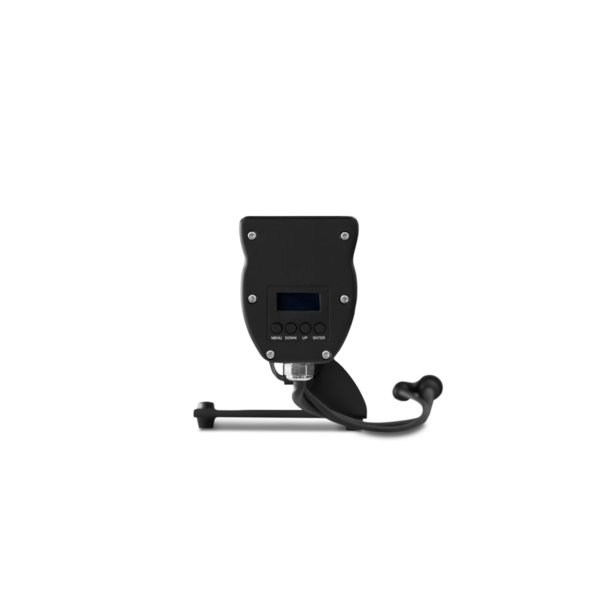

  • Display: LCD
  • Control Channels: 3, 4, 5, 8, 11 or 59 CHS

 ELECTRICAL

  • Input Voltage Range: 100 – 240 V / 50 – 60 Hz
  • Power Consumption: 200 W

 CONNECTIONS

  • DMX data in/out: Cable 3 pin XLR male, Cable 3 pin XLR female

 PHYSICAL SPECIFICATIONS

  • Dimensions: 1034 mm x 171.27 mm x 208.77 mm
  • Net Weight: 10 KG
  • Color: Black
  • Housing:Die-cast and extruded aluminum housing
  • IP Rating: 65
  • Operating Temperature: -20°/45° C
