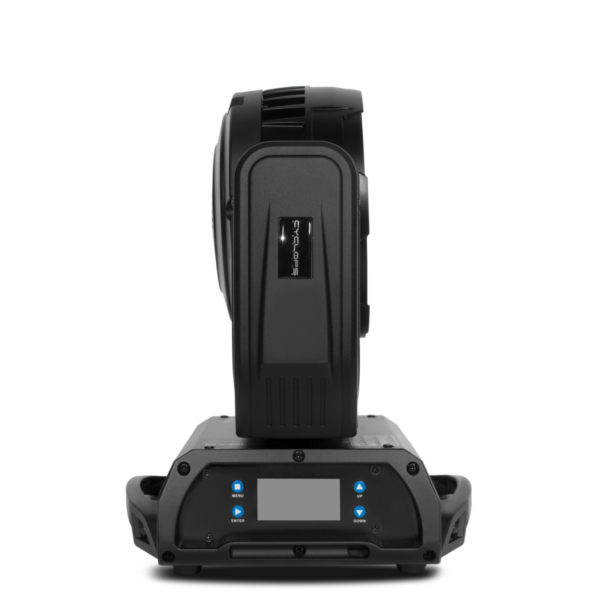

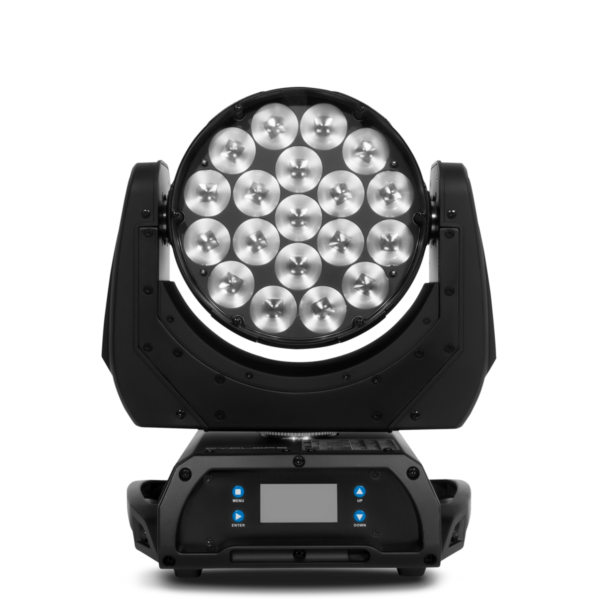

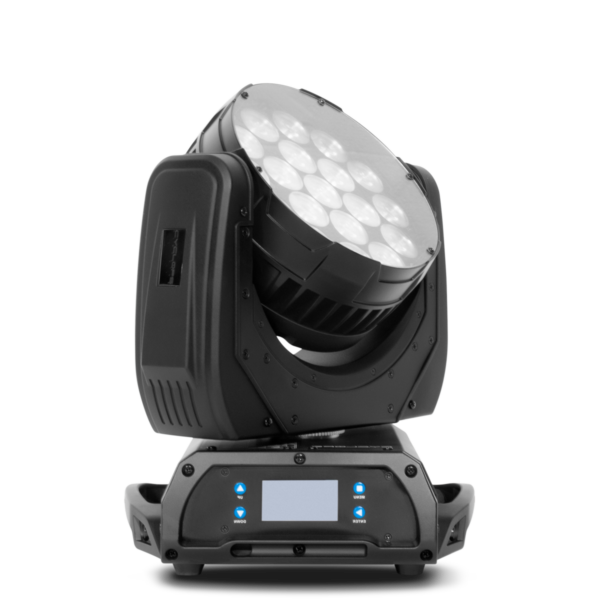

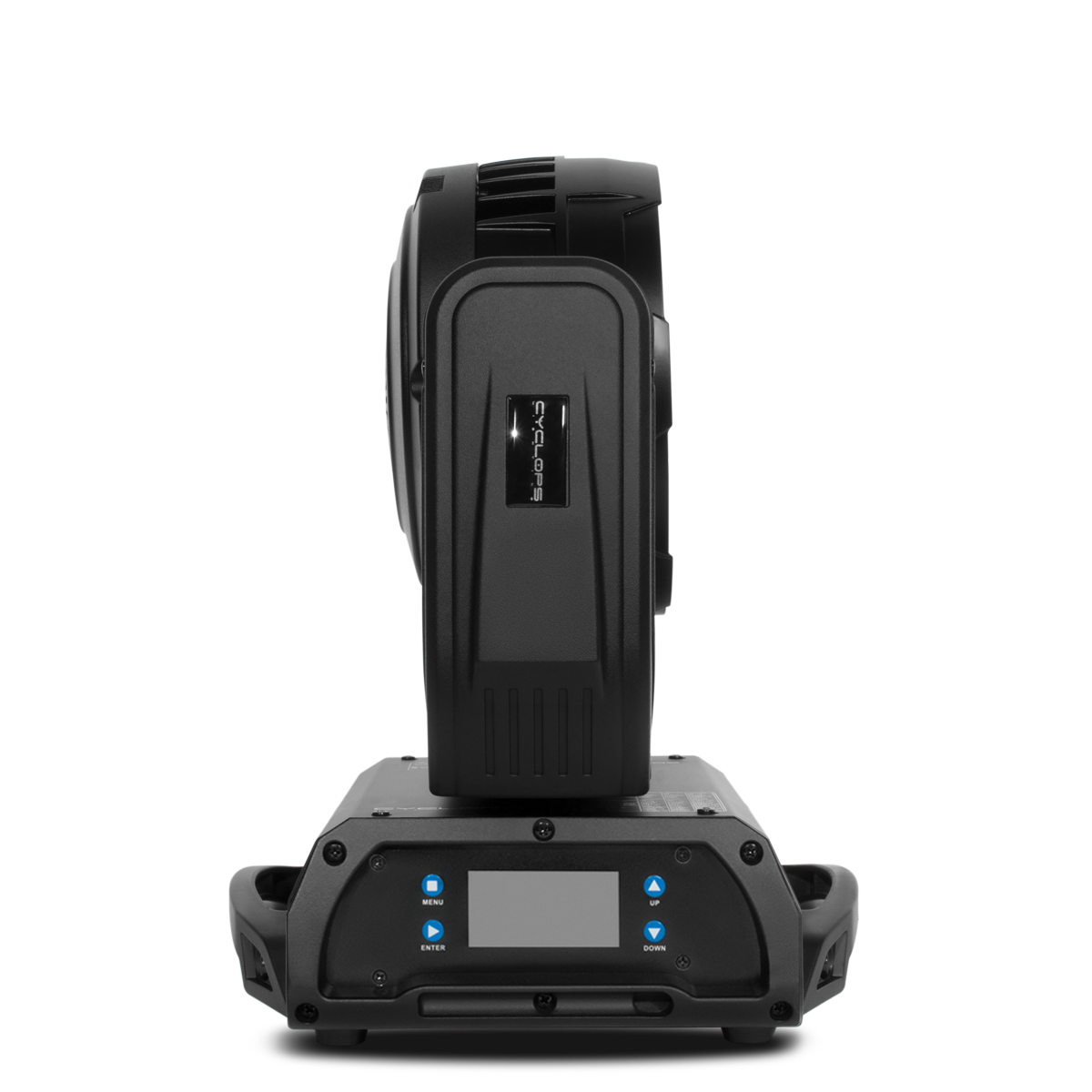

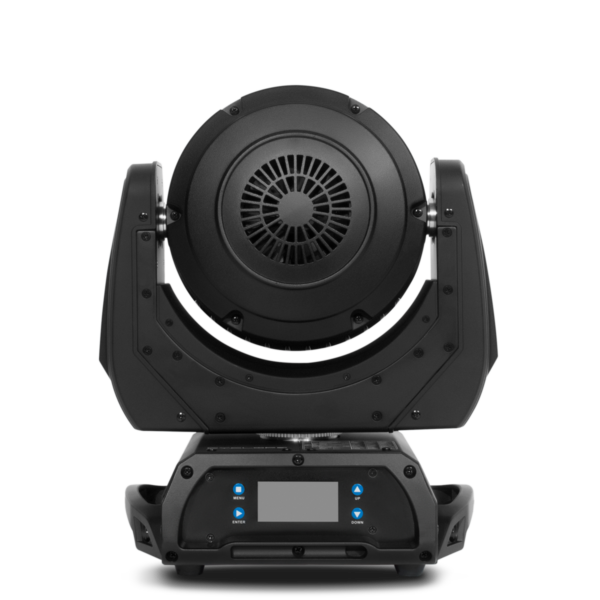

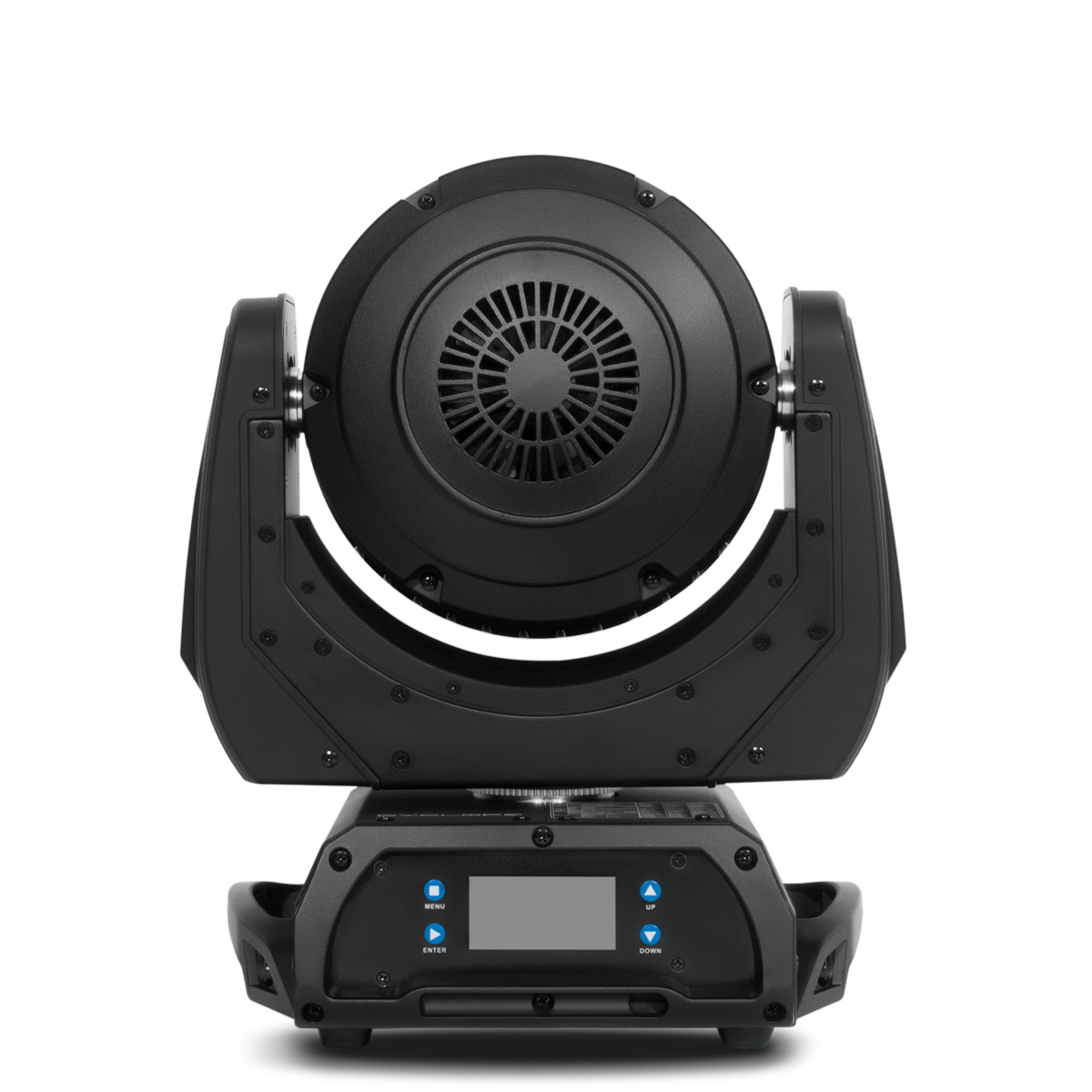

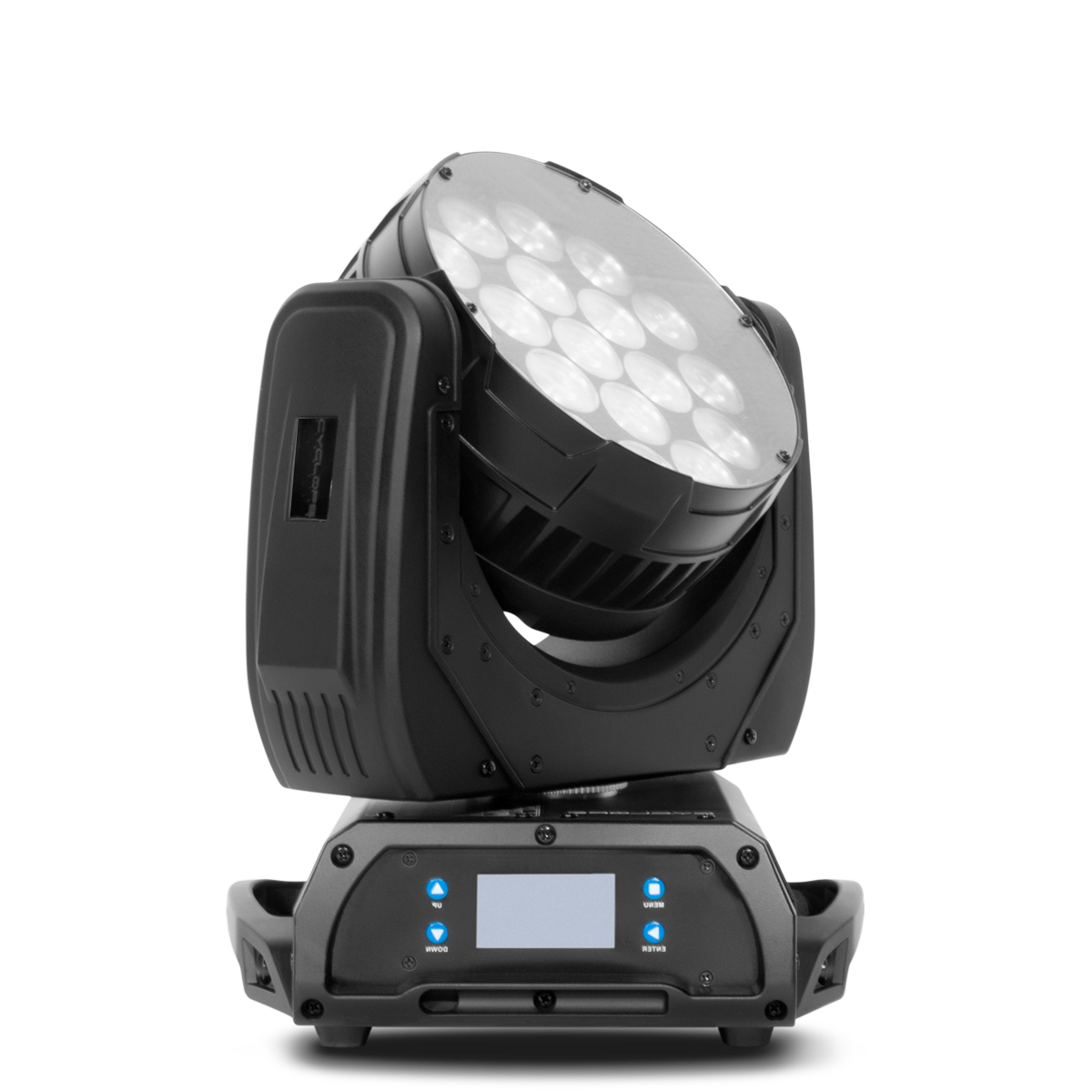

Zoom 19 ll

Zoom 19 II is a compact & rapid moving head wash fixture that produces a bright, powerful light. It has a light output of over 52,700 Lux & incredible peak intensity of more than 173,000 cd combined with a versatile 8° to 40° zoom. It is ideal for indoor applications such as theaters, nightclubs, churches and concert halls.

SKU: ZOOM19II Categories: ,

Zoom 19 II is a compact & rapid moving head wash fixture that produces a bright, powerful light. It has a light output of over 52,700 Lux & incredible peak intensity of more than 173,000 cd combined with a versatile 8° to 40° zoom. It is ideal for indoor applications such as theaters, nightclubs, churches and concert halls.

 SOURCE

  • Light source: 19 x 15 W RGBW Multichip OSRAM
  • LED life expectancy: 50,000 Hrs

OPTICALSYSTEM

  • Beam Angle: 8°
  • Zoom Range: 8° to 40°
  • Light output: 52,700 lux @ 2m
  • Lumen Output: 4250 lm
  • Peak Intensity: 173,000 cd

DYNAMIC EFFECTS

  • Dimmer: 0 – 100%
  • Color Mixing: 4 in 1 RGBW – LEDs
  • Strobe: 0 – 20 Hz

CONTROL & PROGRAMMING

  • Control Protocols: DMX 512
  • Control Channels: 10, 21, 8, 21, 34 CHS

MOVEMENT

  • Pan movement: 540 °
  • Tilt movement: 300 °

ELECTRICAL

  • Input Voltage Range (V, Hz):100 – 240 V / 50-60 Hz
  • Power Consumption: 350 W

CONNECTIONS

  • AC connection: Powercon IN / OUT
  • DMX data in/out: 3 pin XLR male, 3 pin XLR female
    5 pin XLR male, 5 pin XLR female

PHYSICAL SPECIFICATIONS

  • Dimensions: 322 mm W X 258 mm D X 341 mm H
  • Net Weight: 10 KG
  • Color: Black
  • Housing: Flame retardant plastic, aluminum cast
  • IP Rating: 20
  • Operation Temperature: 20°/ 45° C
