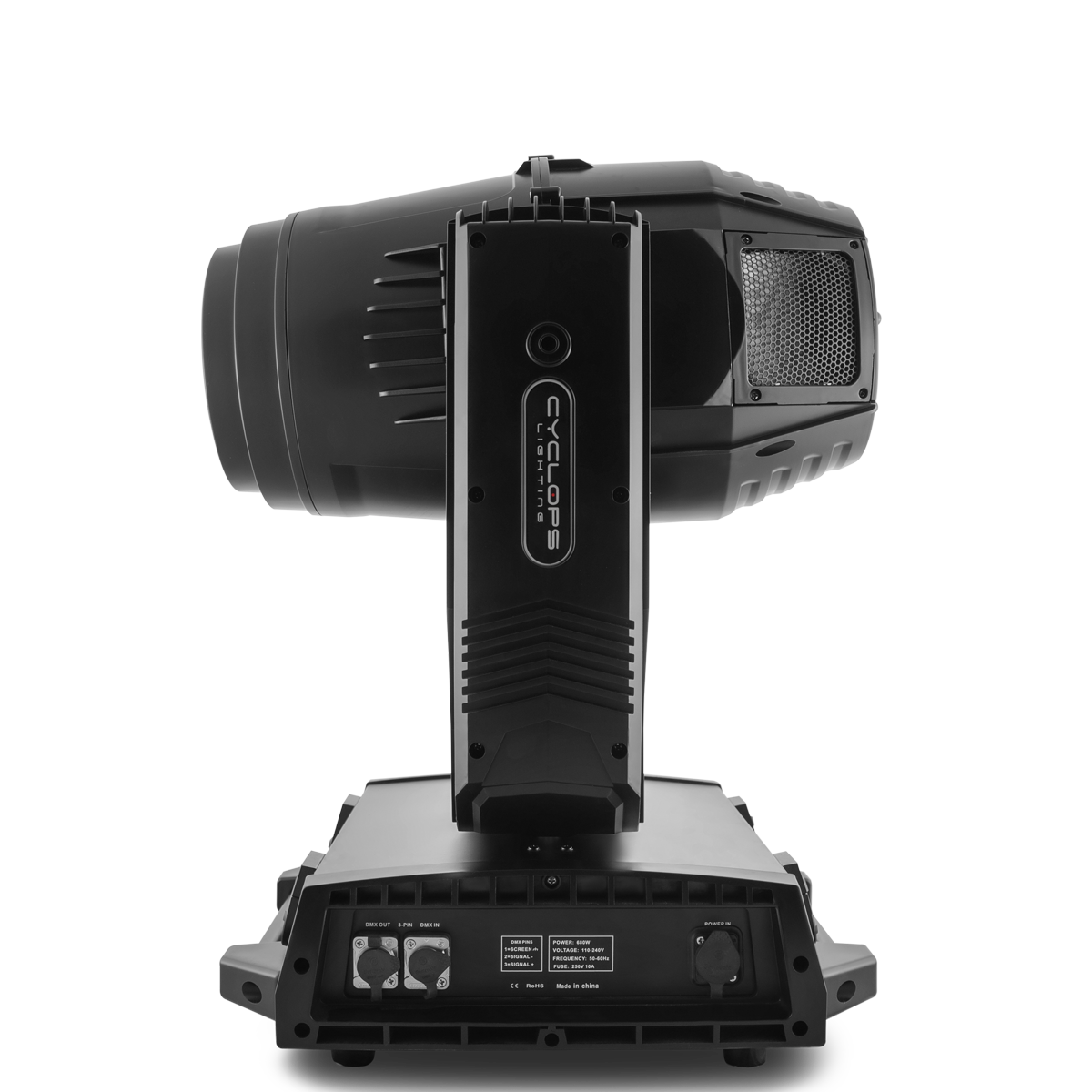

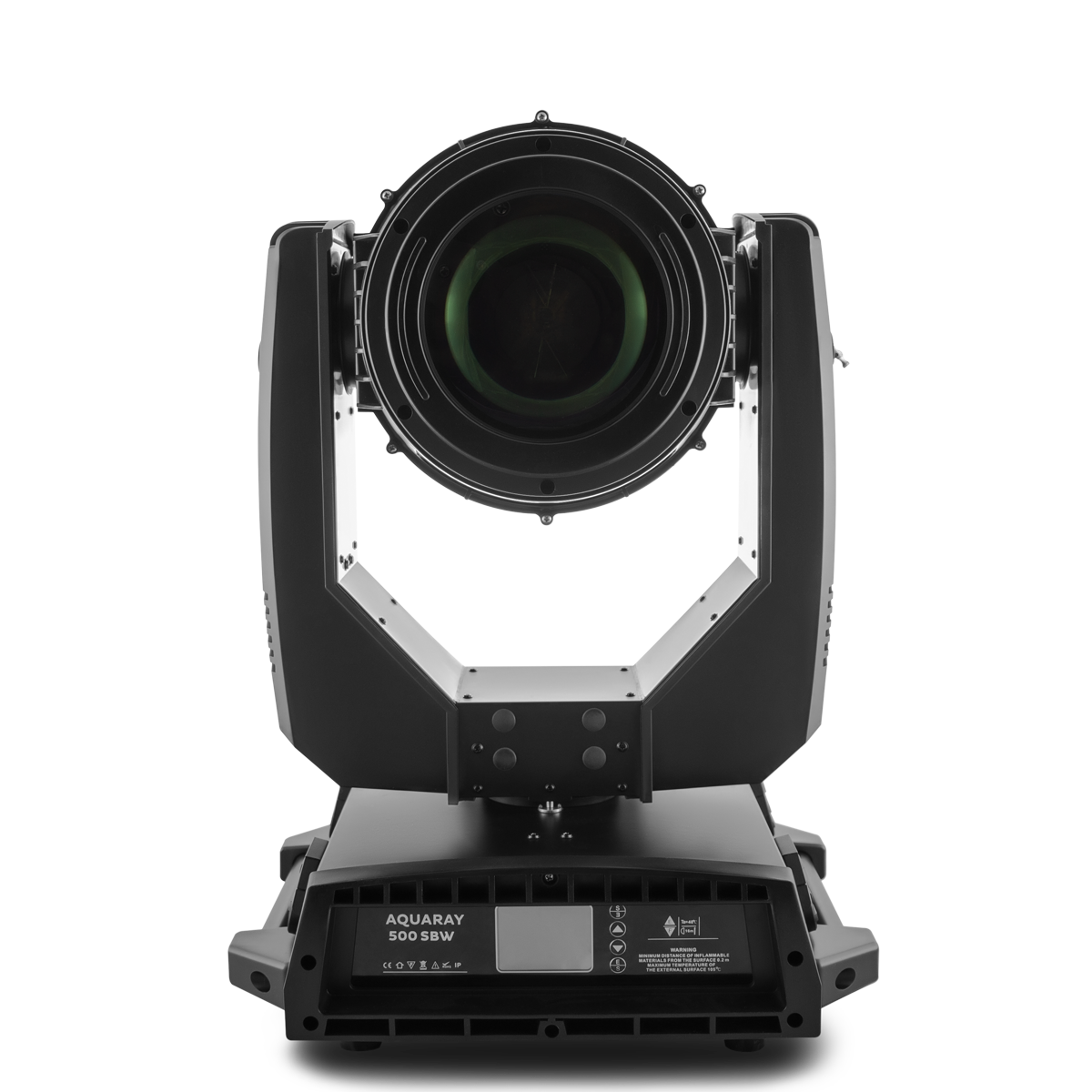

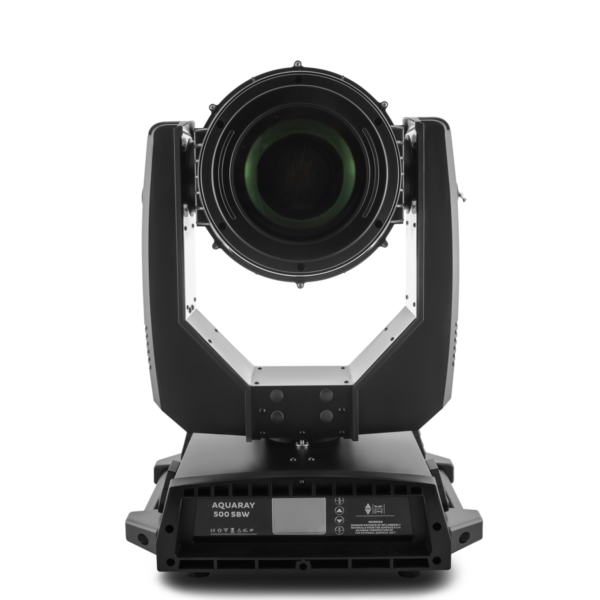

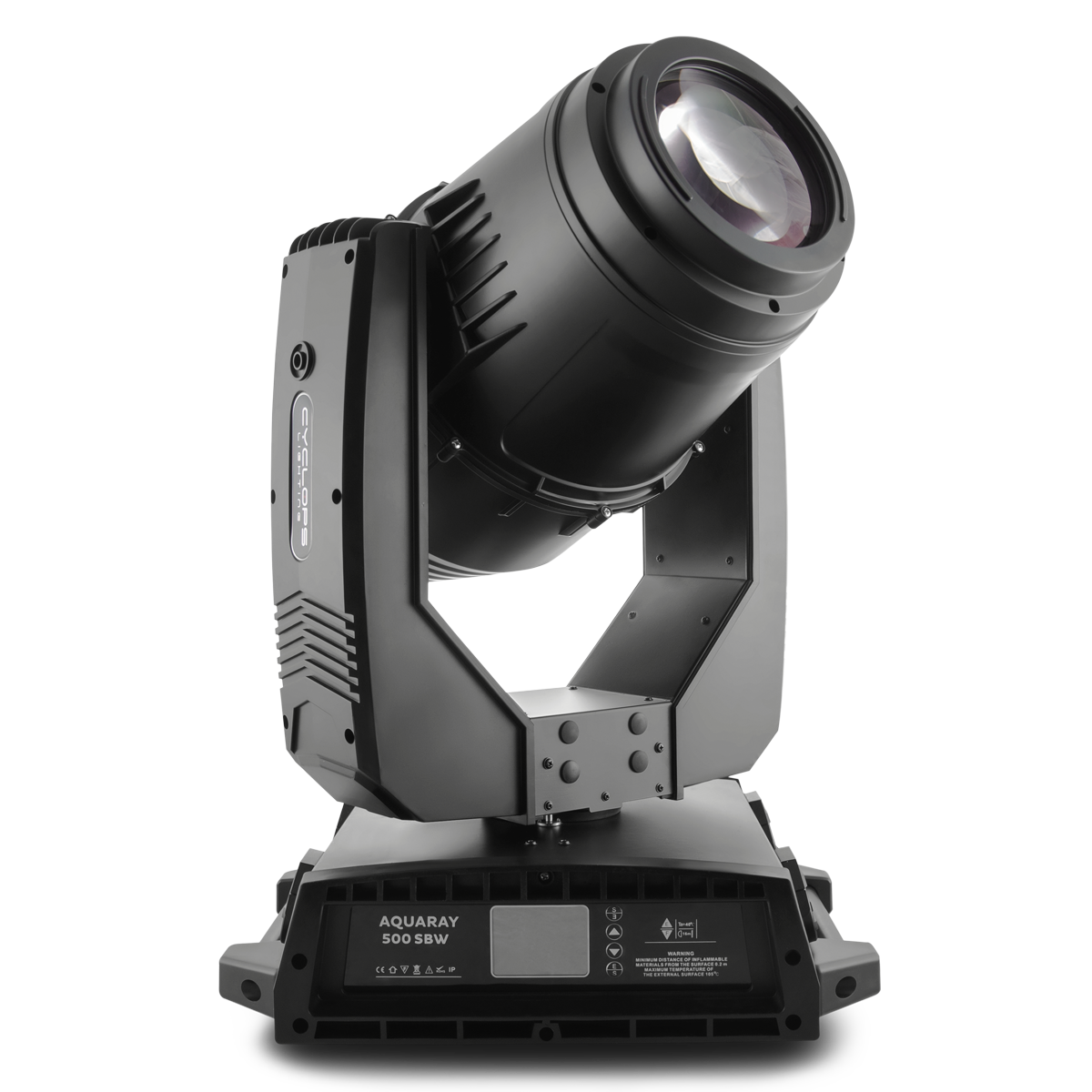

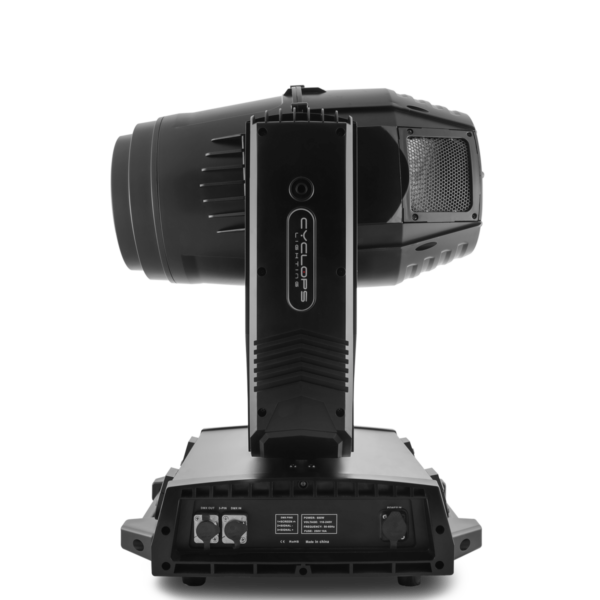

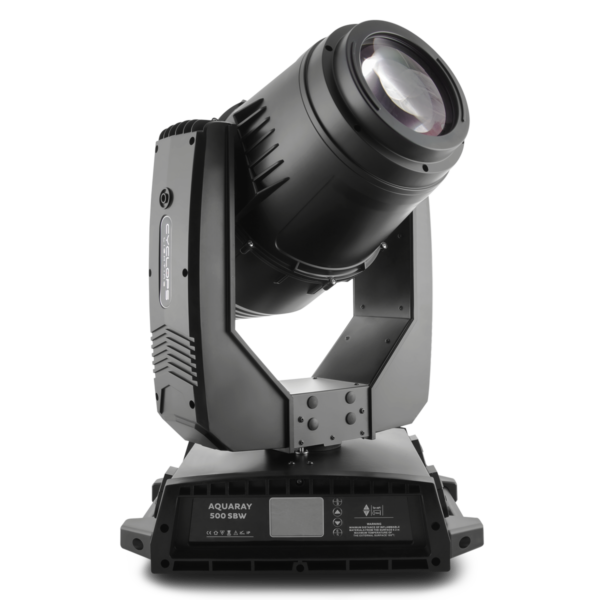

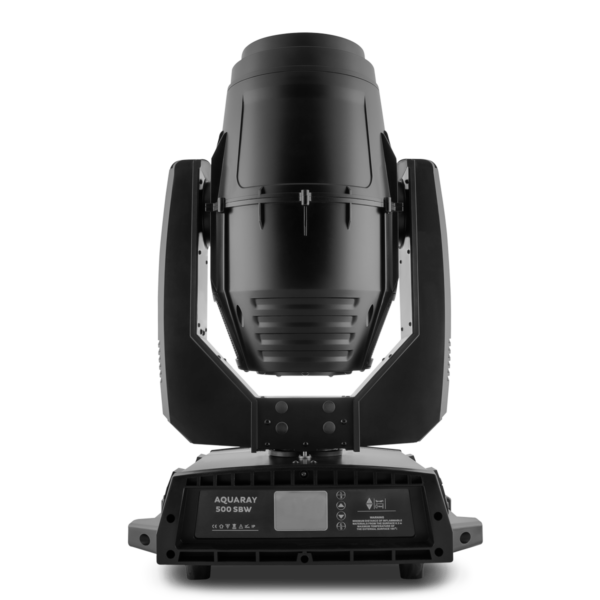

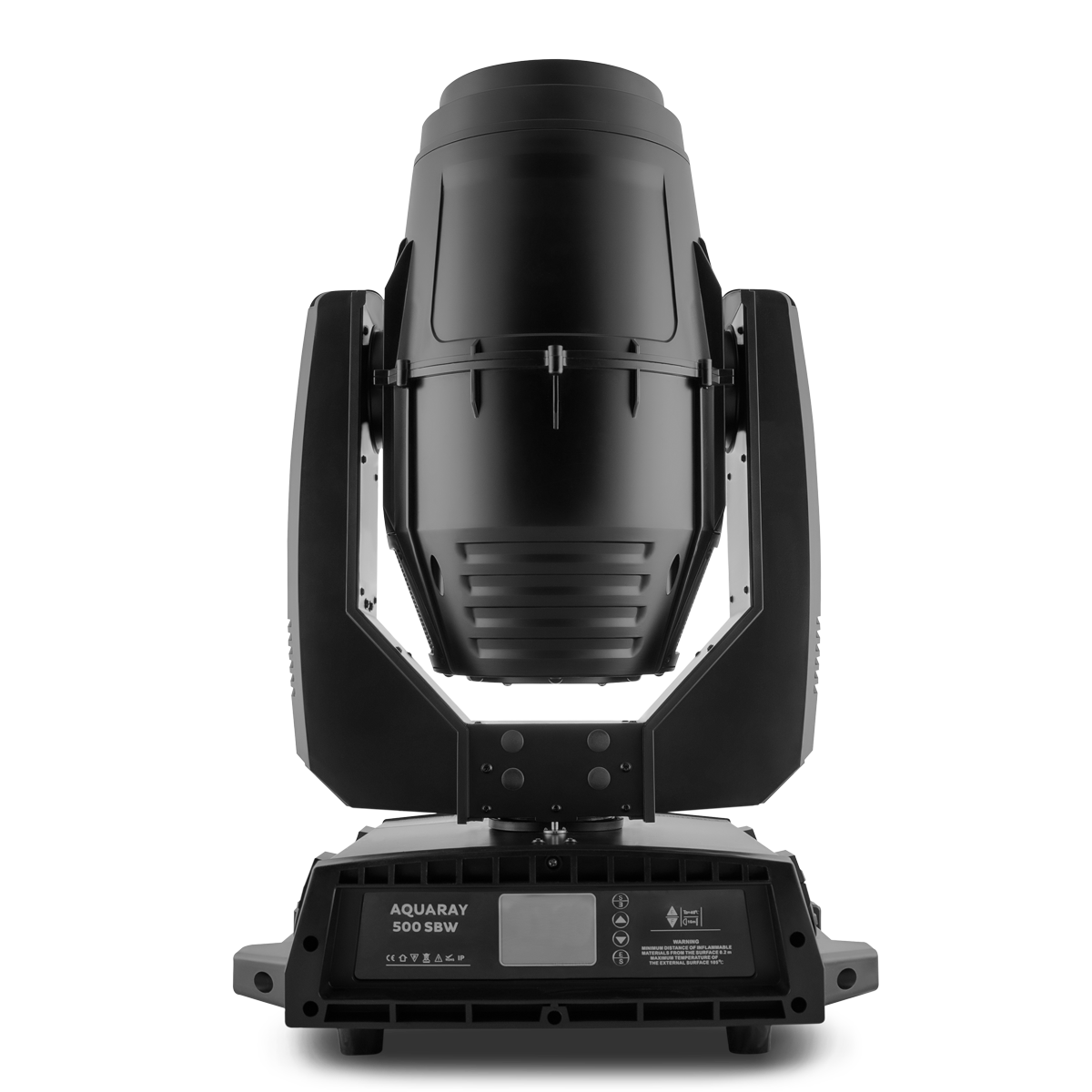

AQUARAY 500 SBW

Aquaray 500 SBW is an outdoor lamp hybrid spot, beam, wash moving head. It has a robust water-resistant built and casts a super powerful outdoor beam light. Its outstanding beam light is coupled with various lighting effects and color mixing effects. This fixture is ideal for multifunctional and dynamic indoor application and the perfect solution for all outdoor installations.

SKU: Aquaray500SBW Categories: ,

Videos

SOURCE

  • Light source: Yodn MSD 440 watts
  • Lamp life expectancy: 2,000 Hrs.
  • Color temperature: 3200K – 2500K

OPTICAL SYSTEM

  • Beam angle: 2° to 7°
  • Spot angle: 2.4° to 33°
  • Wash angle: 6° to 43°
  • Light output: 318000 Lux @ 10 m @ 1.3°
  • Large 155 mm diameter front lens
  • Electronic focus 16 Bit
  • Soft filter to remove the hotspot

DYNAMIC EFFECTS

  • Dimmer: 16 bit linear adjustment
  • Strobe: High and adjustable strobe speed with built-in macros
  • Color mixing: CMY – with gradually fading color wheels
  • CTO filter: 3200 K – 2500 K
  • Color wheel: 11 colors + open
  • Static gobo: 15 gobos + open
  • Rotating gobo: 7 gobos + open
  • Gobo shake function
  • Prism: 2 rotating prisms, 8-facet prism + 24 linear prism with rainbow color filter
  • Animation wheel
  • Frost

CONTROL & PROGRAMMING

  • Control protocols: DMX
  • Display: 2.8′ full color touch screen, reversible 180°
  • Control channels: 30 CHs

MOVEMENT

  • Pan: 540°
  • Tilt: 280°
  • Resolution: 16 bit

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 600 watts

CONNECTIONS

  • DMX connections: 3 pin and 5 pin XLR In/Out male and female
  • Power connections: IP rated PowerCon In

 PHYSICAL

  • Dimensions: 440 x 390 x 680mm
  • Net weight: 28 Kg
  • Color: Black
  • IP rating: 55
