SOURCE
- Light source: 36 x 15 watts high power RGBW LEDs
- Lamp life expectancy: 50,000 Hrs.
OPTICAL SYSTEM
- Beam angle: 10° (Optional 25°)
DYNAMIC EFFECTS
- Dimmer: linear adjustment
- Color mixing: RGBW
- 4 dimmer curves
- Variable strobe
- Individual line control
- Built-in color and dynamic macros
CONTROL & PROGRAMMING
- Control protocols: DMX, WDMX, Master-Slave
- Display: 2.4” TFT display operation
- Control channels: 2, 3, 4, 13, 16, 29 CHs
ELECTRICAL
- Input voltage: 100-240V/50-60Hz
- Power consumption: 500 watts

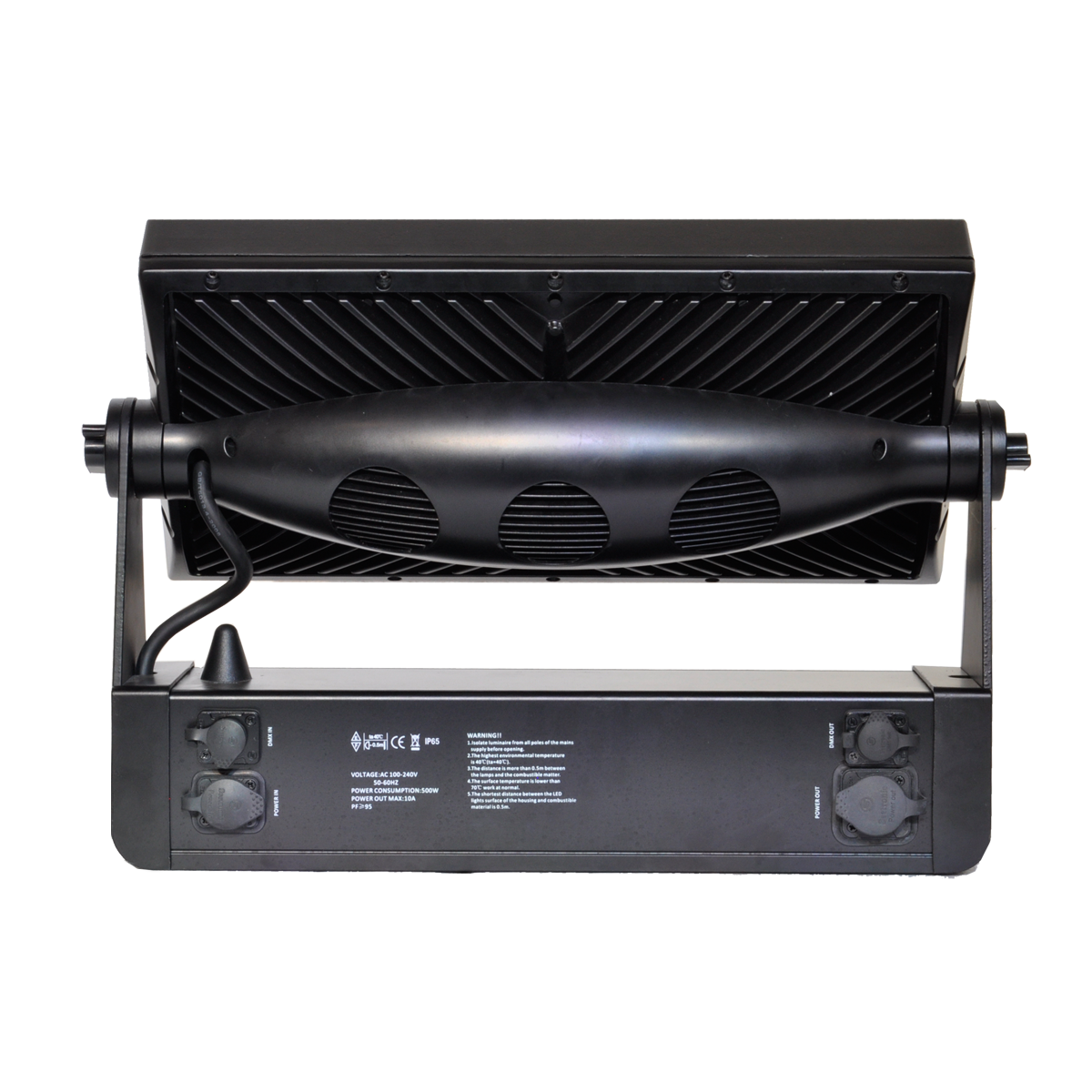

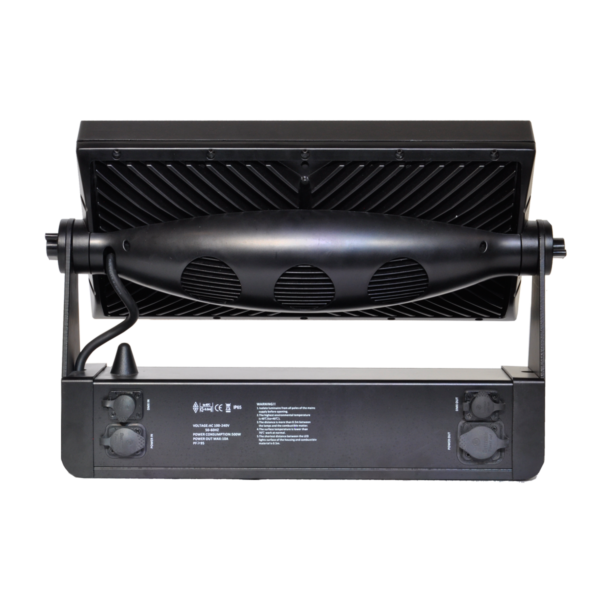

CONNECTIONS
- DMX connections: 3 pin XLR In/Out male and female
- Power connections: IP Powercon In/Out
PHYSICAL
- Dimensions: 585 x 220 x 425mm
- Net weight: 13.3 Kg
- Housing: Aluminum
- Color: Black
- IP rating: 65
- Operating temperature: -20°C/40°C
