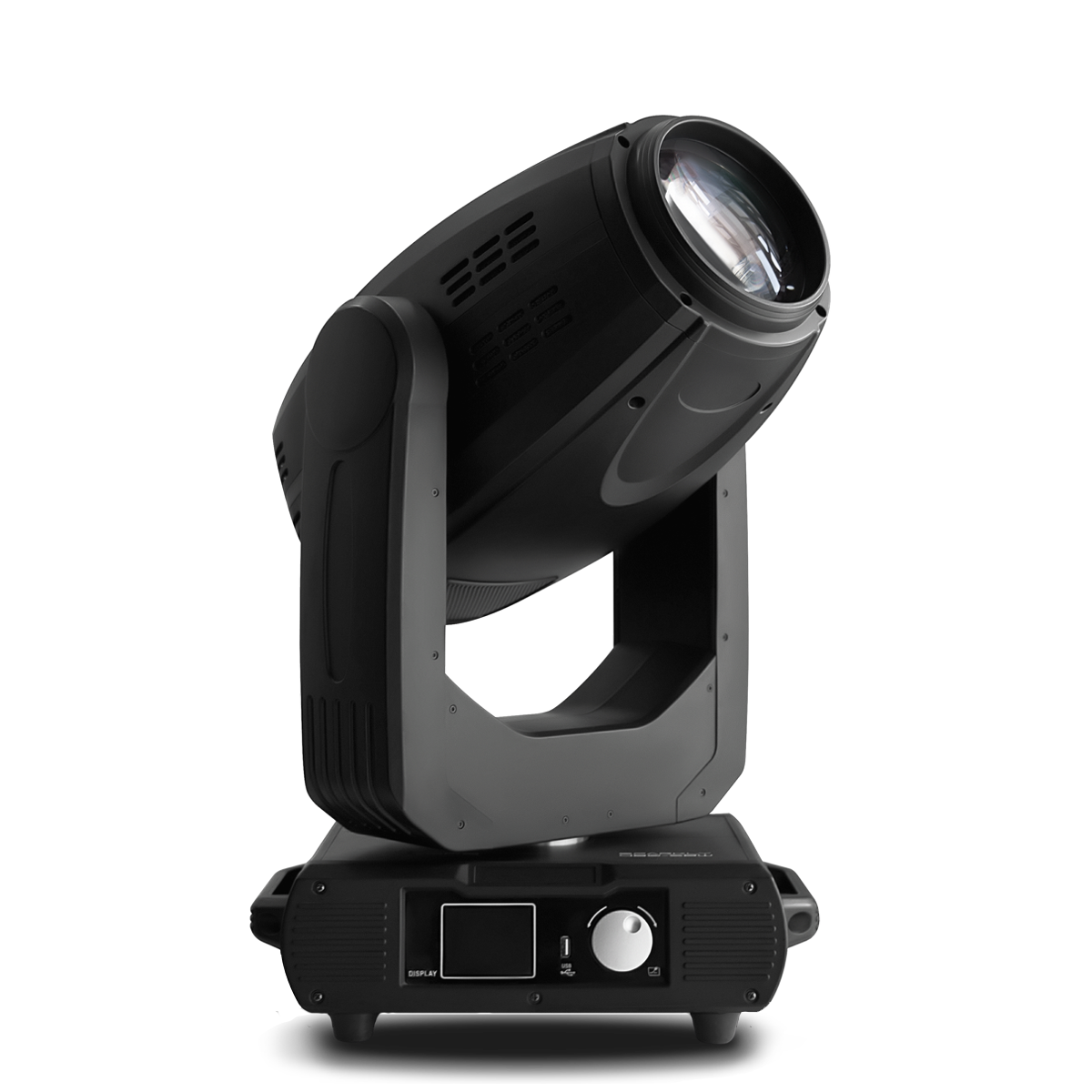

SPARKLY 480SBW

SPARKLY 480SBW

High Power Beam Moving Head

Sparkly 480SBW is a hybrid 3 in 1 moving head with a powerful Osram 440 watts lamp. It’s a fully-loaded moving with multiple functions and dynamic effects in addition of a wireless DMX control. It features a CMY color mixing system with a CTO filter, 5 combinations of prisms and 17 static gobos and 9 rotating gobos. This powerful multifunctional moving head is ideal for small and large scale stage and entertainment events.

SKU: Sparkly480SBW Categories: Entertainment, Lamp Moving Heads

Videos

SOURCE

Light source: Osram Sirius 440 watts
Lamp life expectancy: 1,500 Hrs.

OPTICAL SYSTEM

Beam angle: 2° to 39° with self-correction
Light output: 140,000 Lux @ 20m @ 2.8°
Electronic focus

DYNAMIC EFFECTS

Dimmer: 16 bit linear adjustment
Color mixing: CMY
Color wheel: 10 colors + open
CTO Filter
Static gobo: 17 gobos + open
Rotating gobo: 9 gobos + open
Gobo shake function
Prism: 5 combinations of prisms
Frost

CONTROL & PROGRAMMING

Control protocols: DMX, Master Slave, Auto Run
Display: 2.8’ touch screen display, can reverse 180°
Control channels: 20, 24, 30 CHs

MOVEMENT

Pan: 540^o
Tilt: 270^o
Resolution: 16 bit

ELECTRICAL

Input voltage: 100-240V/50-60Hz
Power consumption: 600 watts

CONNECTIONS

DMX connections: 3 pin and 5 pin XLR In/Out male and female
Power connections: Powercon In

PHYSICAL

Dimensions: 440 x 310 x 680mm
Net weight: 20 Kg
Color: Black
IP rating: 20
