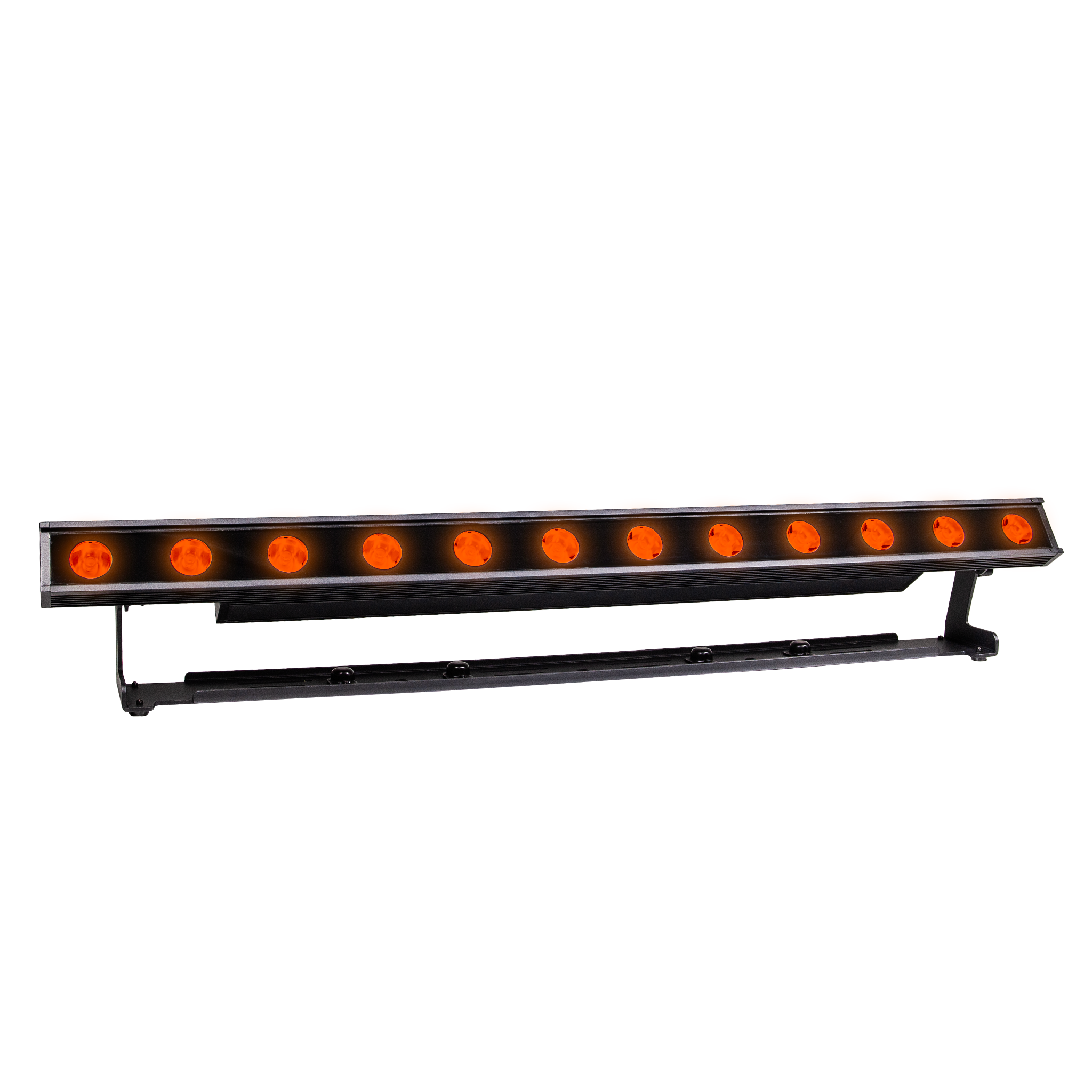

CPX-180-OB-06

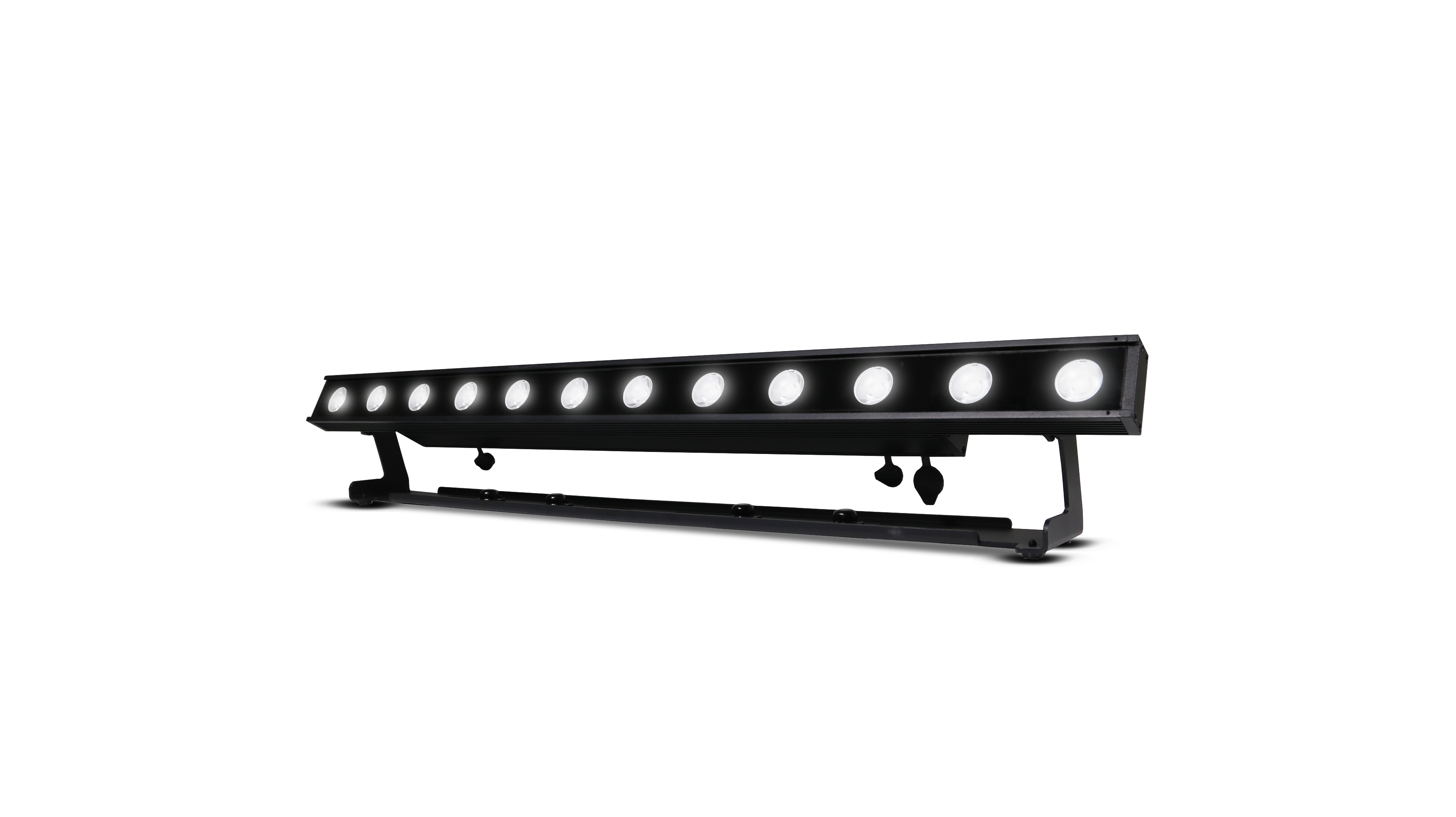

CPX 180OB - Front

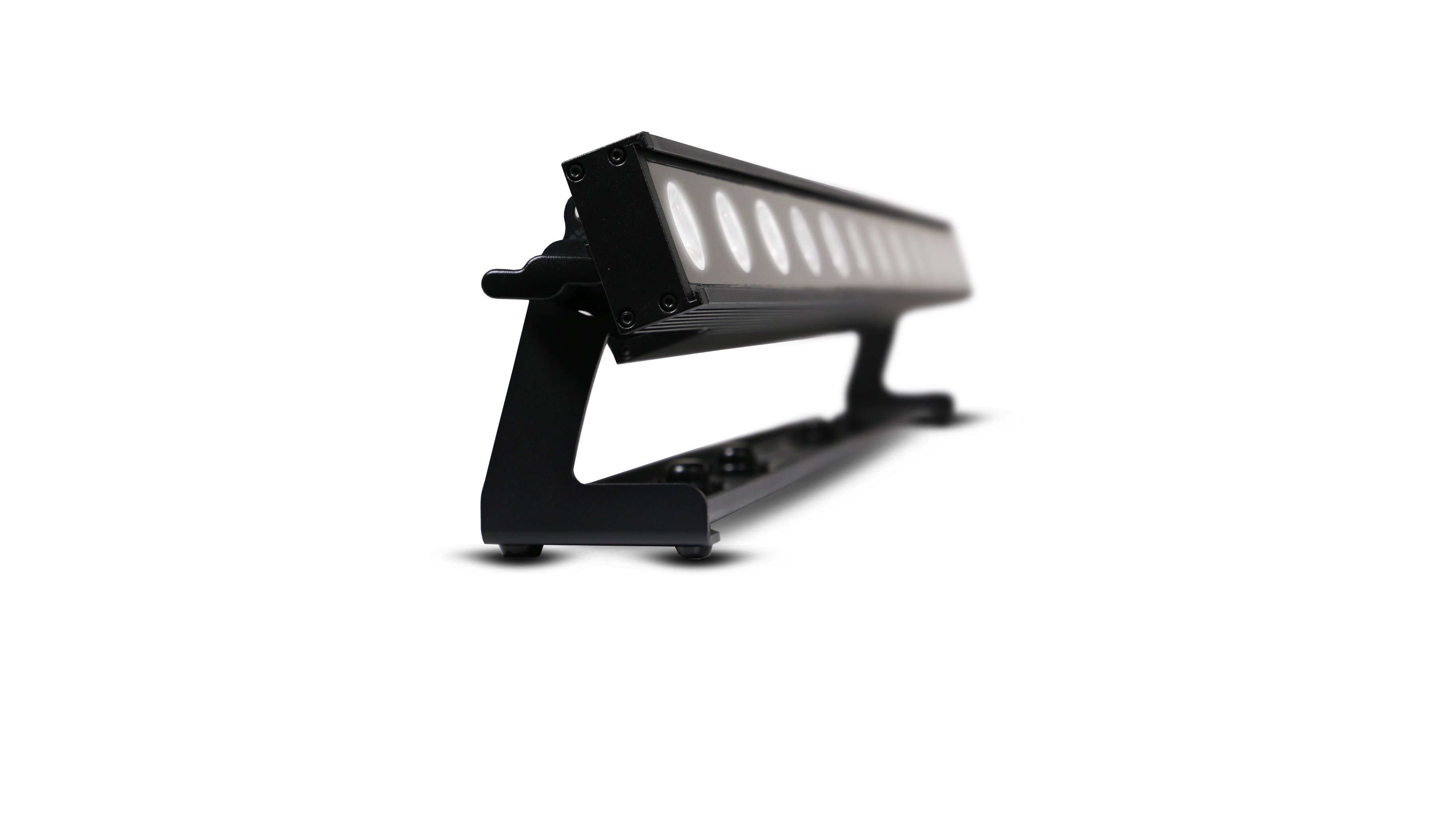

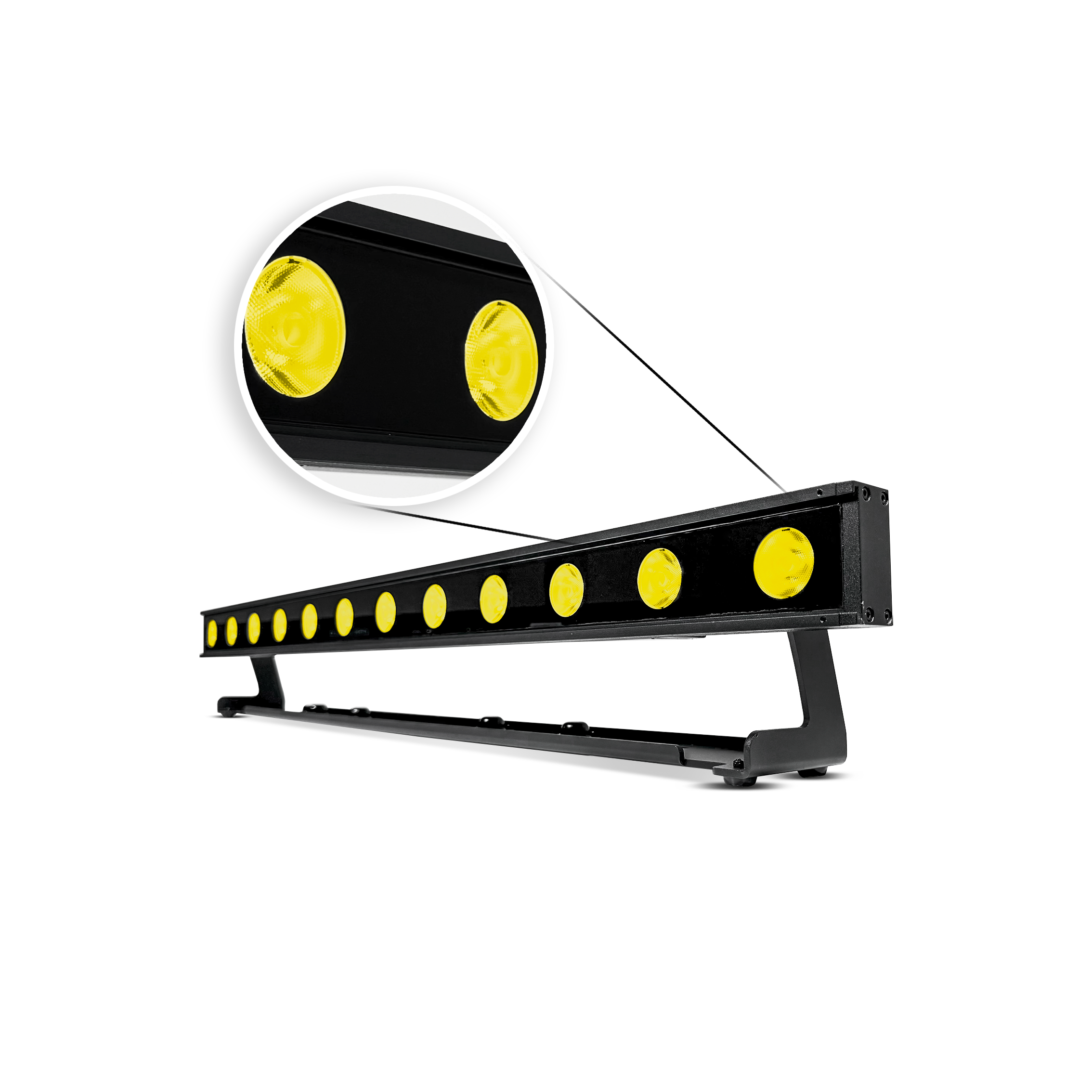

CPX 180OB - angle-left

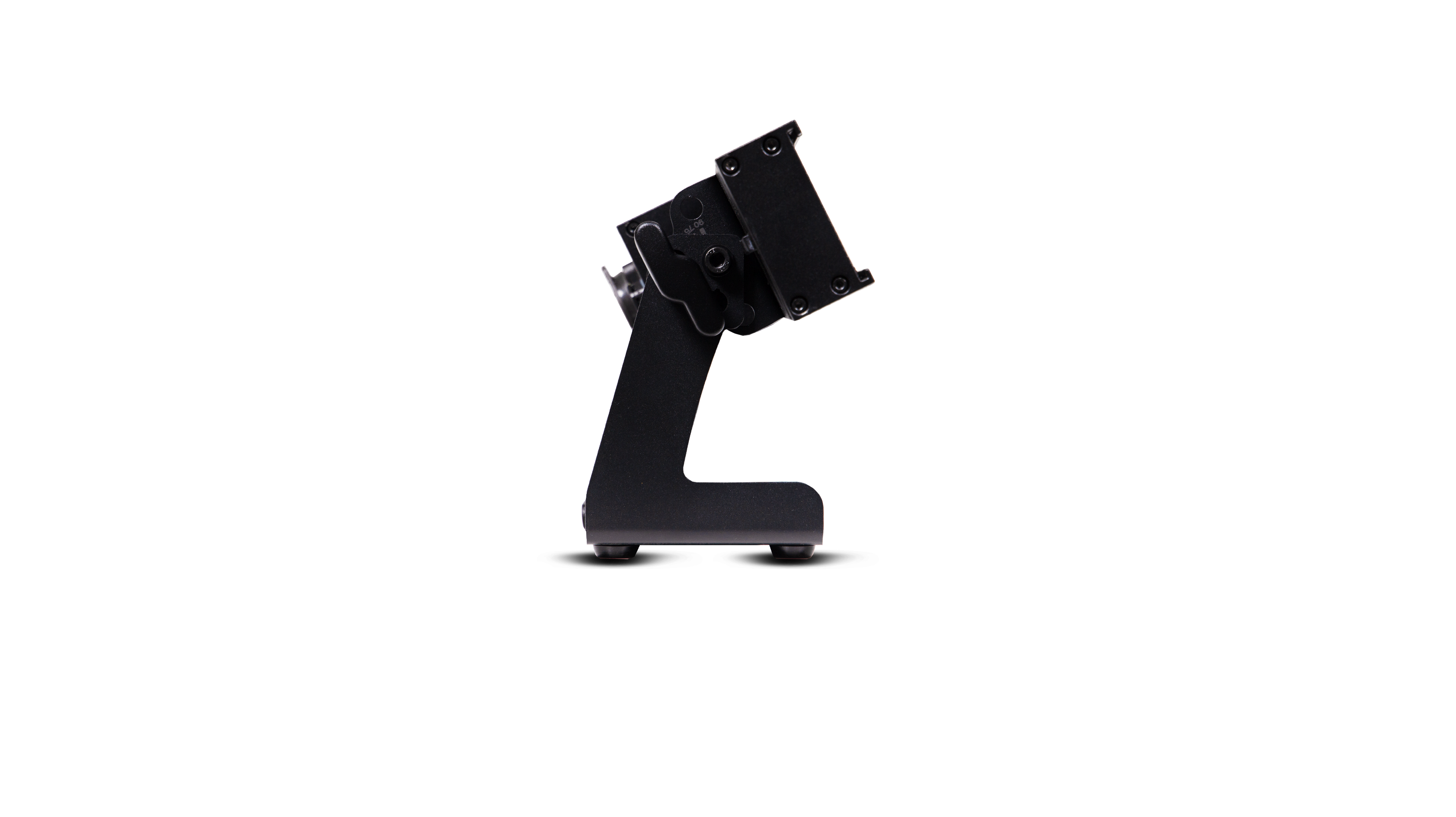

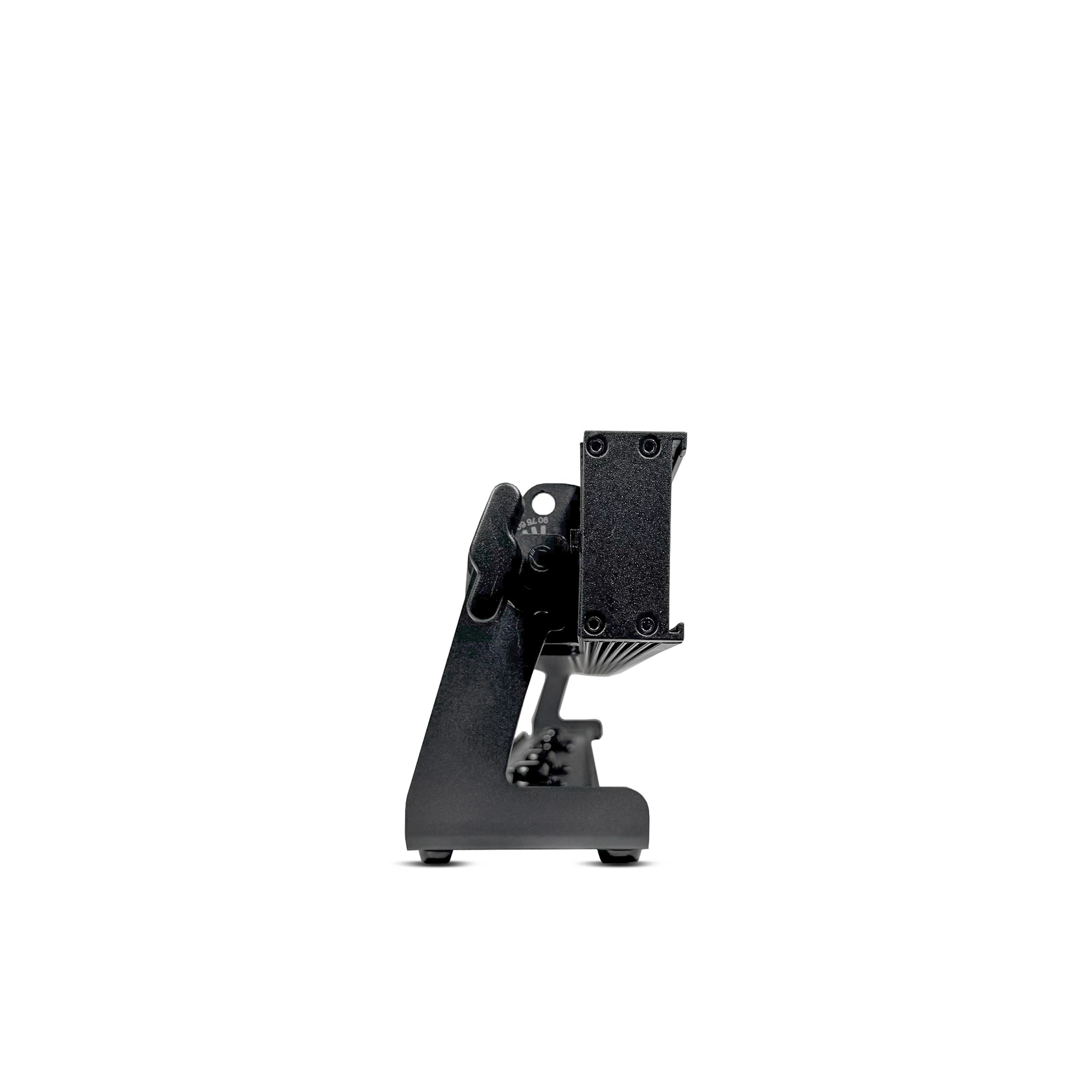

CPX 180OB - side

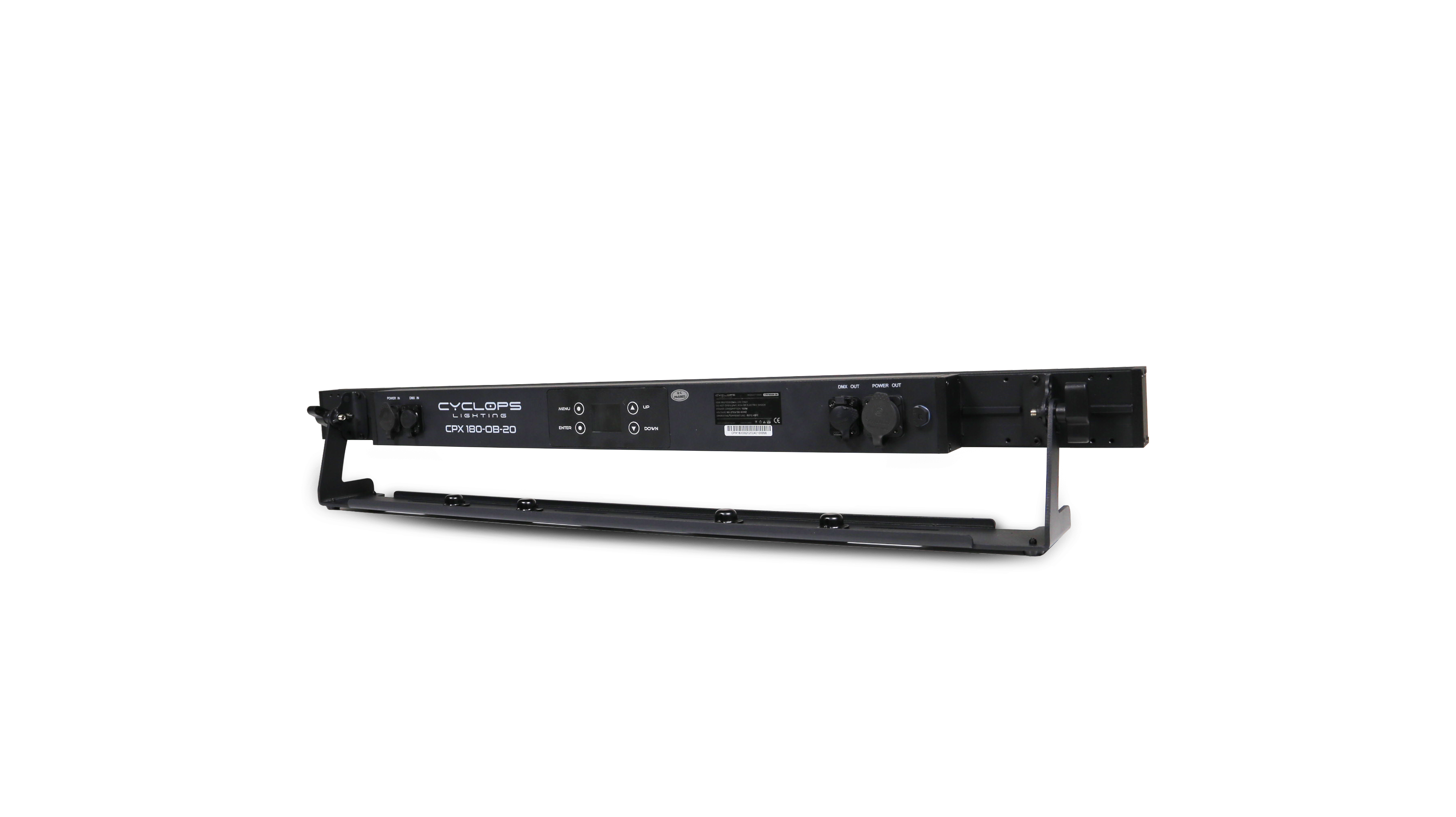

CPX 180OB - back

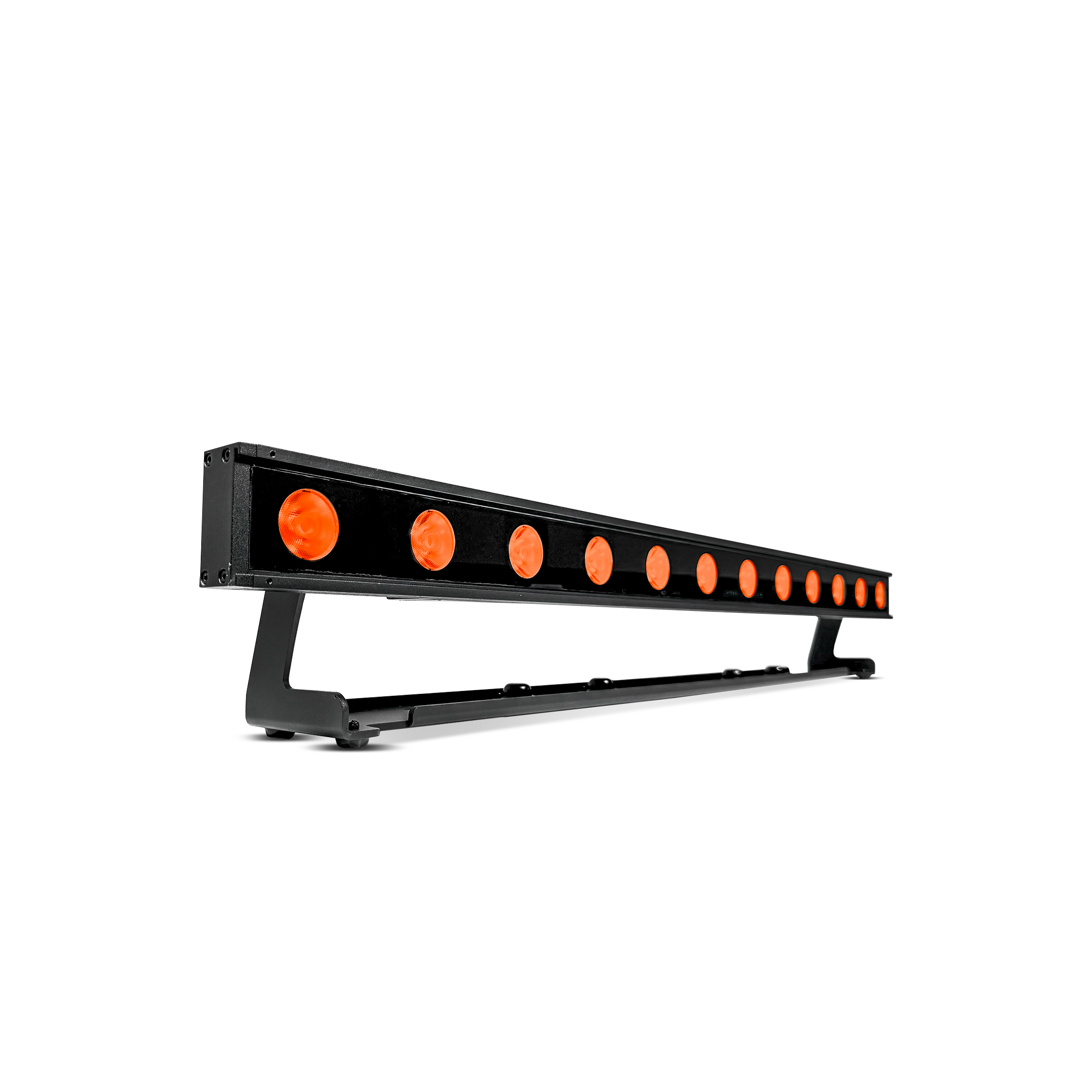

CPX 180OB - angle-right

CPX 180OB

CPX 180OB

IP65 12x15W RGBW LED Wash Bar

Elevate your outdoor lighting design with the CPX 180OB, a high-performance, IP65-rated RGBW LED wash bar built for demanding architectural and entertainment applications. Featuring 12 x 15W individually controllable LEDs, it delivers rich, vibrant color mixing and stunning pixel-mapping effects. To match your specific needs, this weatherproof fixture is available in two configurations: the CPX 180OB-06 with a focused 6° beam angle for sharp, precise architectural highlighting, and the CPX 180OB-20 with a broader 20° beam angle for wide, expansive landscape and stage washes.

Whether you need razor-sharp precision or broad event coverage, the CPX 180OB series ensures reliable, all-weather performance. It is the ultimate powerful and flexible solution for transforming outdoor spaces, enhancing live stage productions, or adding a dynamic architectural touch.

Clear
Add to quote
SKU: N/A Categories: , Series: CPX

SOURCE

  • Light Source: 12 x 15 watts, 4 in 1 RGBW LEDs
  • Color Temperature: 2700K – 8000K
  • LED Life Expectancy: 50,000 h

OPTICAL SYSTEM

  • Beam angle:  CPX180OB-06: 6° / CPX180OB-20: 20°

DYNAMIC EFFECTS

  • Strobe effect

CONTROL & PROGRAMMING

  • Display: Four buttons with TFT LED Displayer
  • Control Channels: 3, 7, 11, 48, 52 CH
  • Control Protocols: DMX and RDM available
  • Dimming Curves: 4 selectable dimming curves

ELECTRICAL

  • Input Voltage: AC100-240V / 50-60Hz
  • Power Consumption: 140W

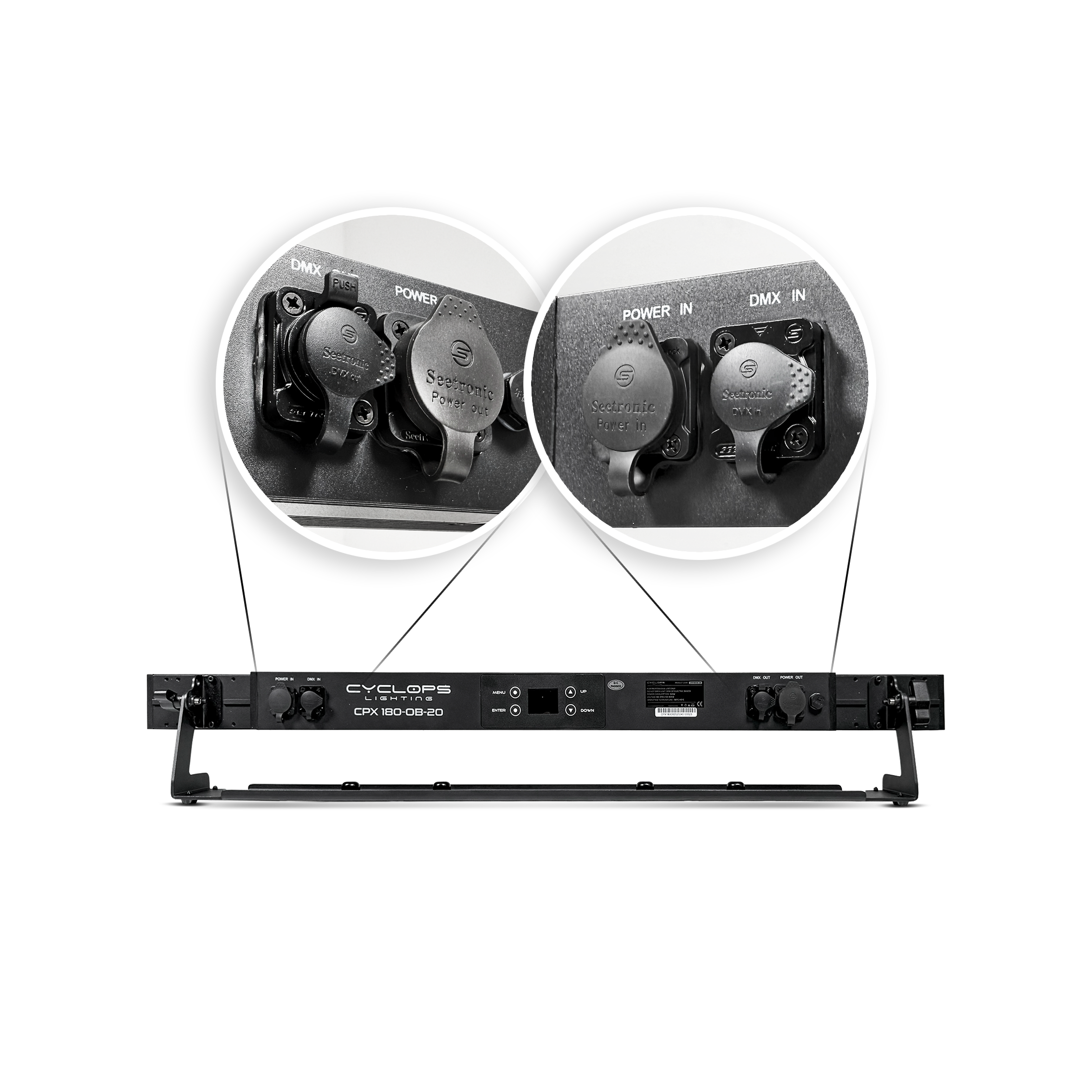

CONNECTIONS

  • Power Connections: Seetronic IP65 true 1 power input and output
  • DMX Connections: Seetronic IP65 XLR input and output

PHYSICAL

  • Dimensions: 1000 x 94.5 x 160.9 mm
  • Net Weight: 5.4 Kg
  • Housing: Aluminum
  • Housing Color: Black
  • IP rating: IP65
