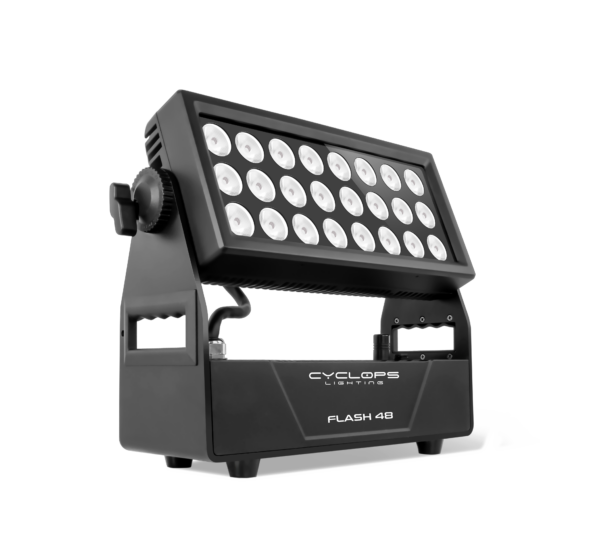

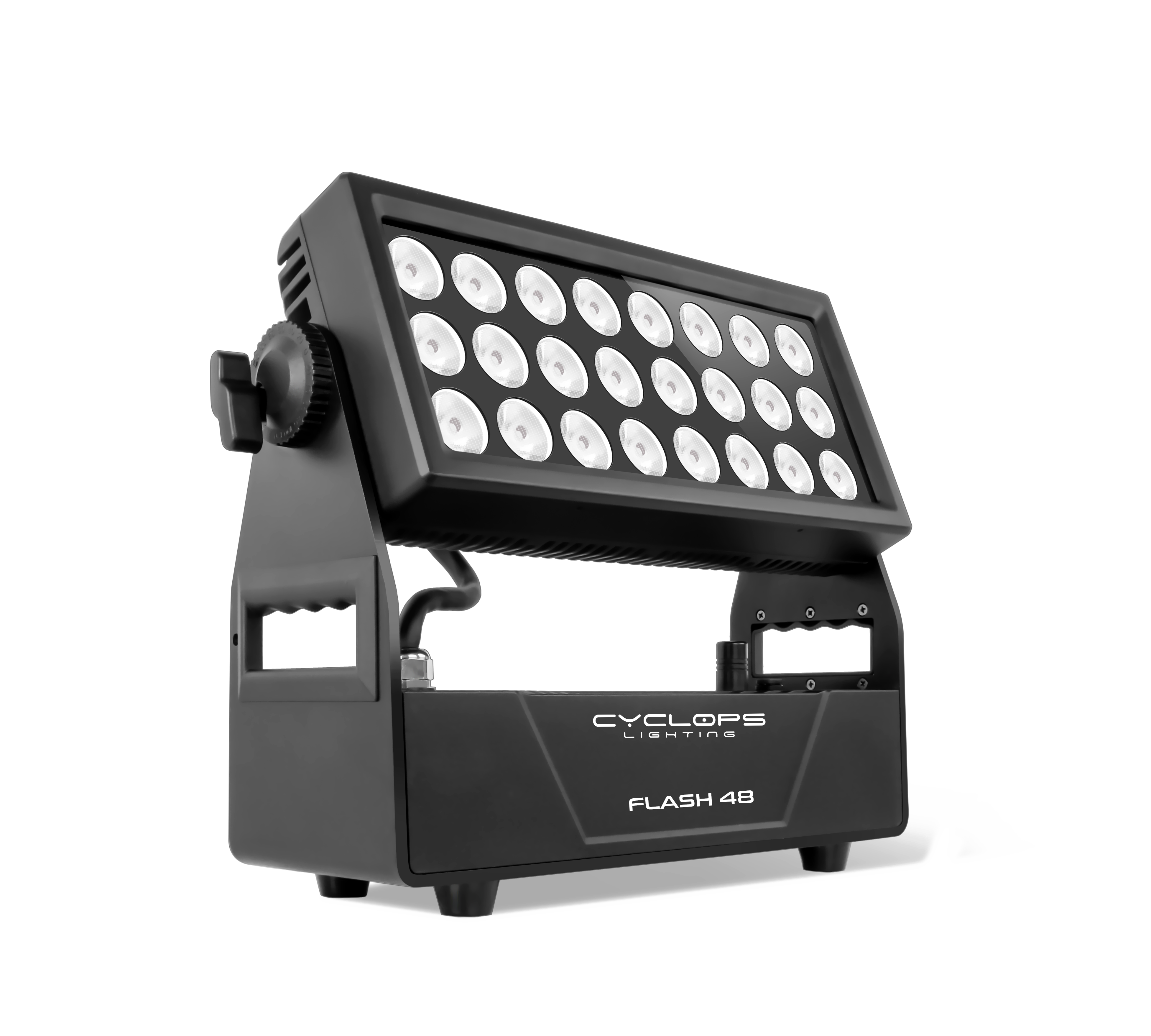

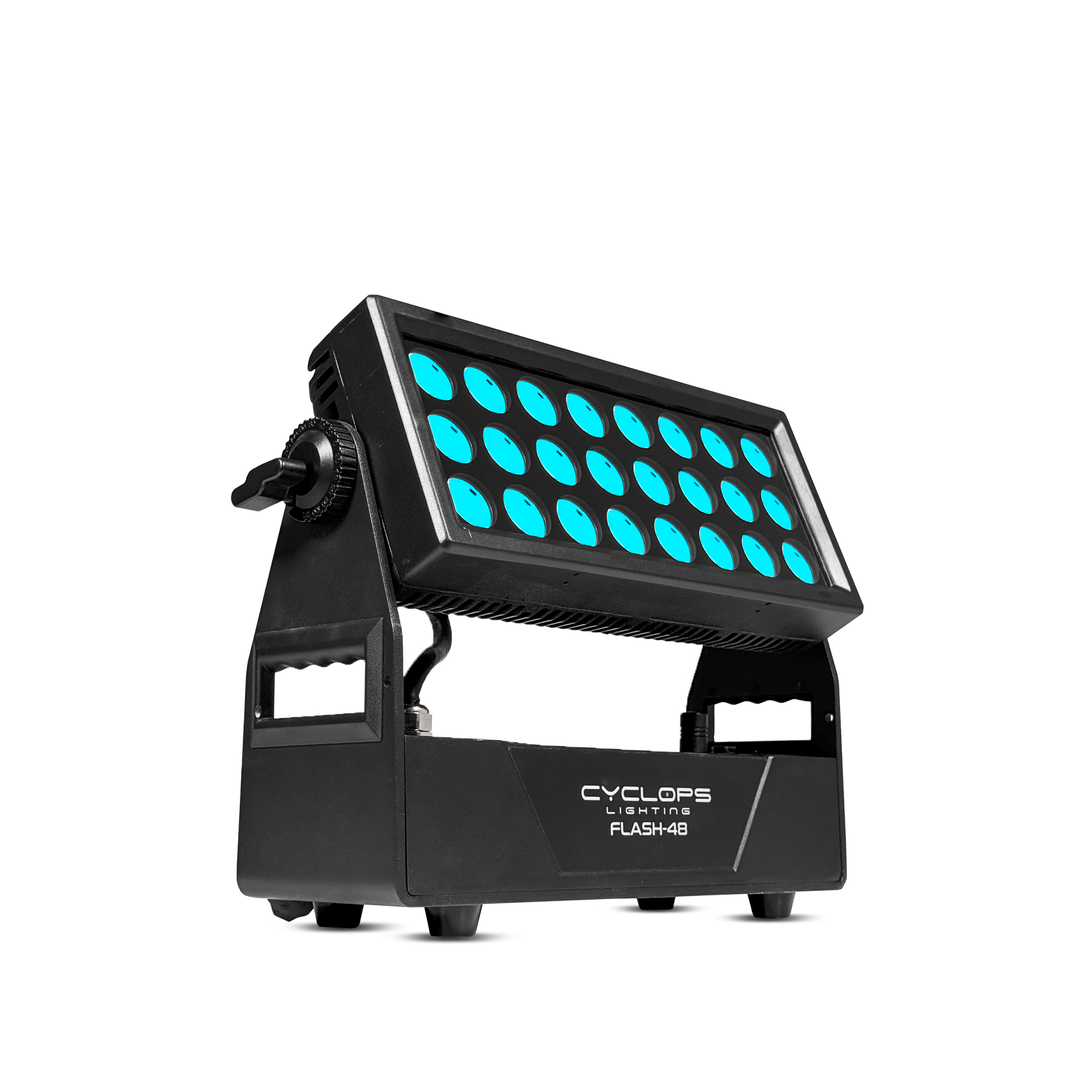

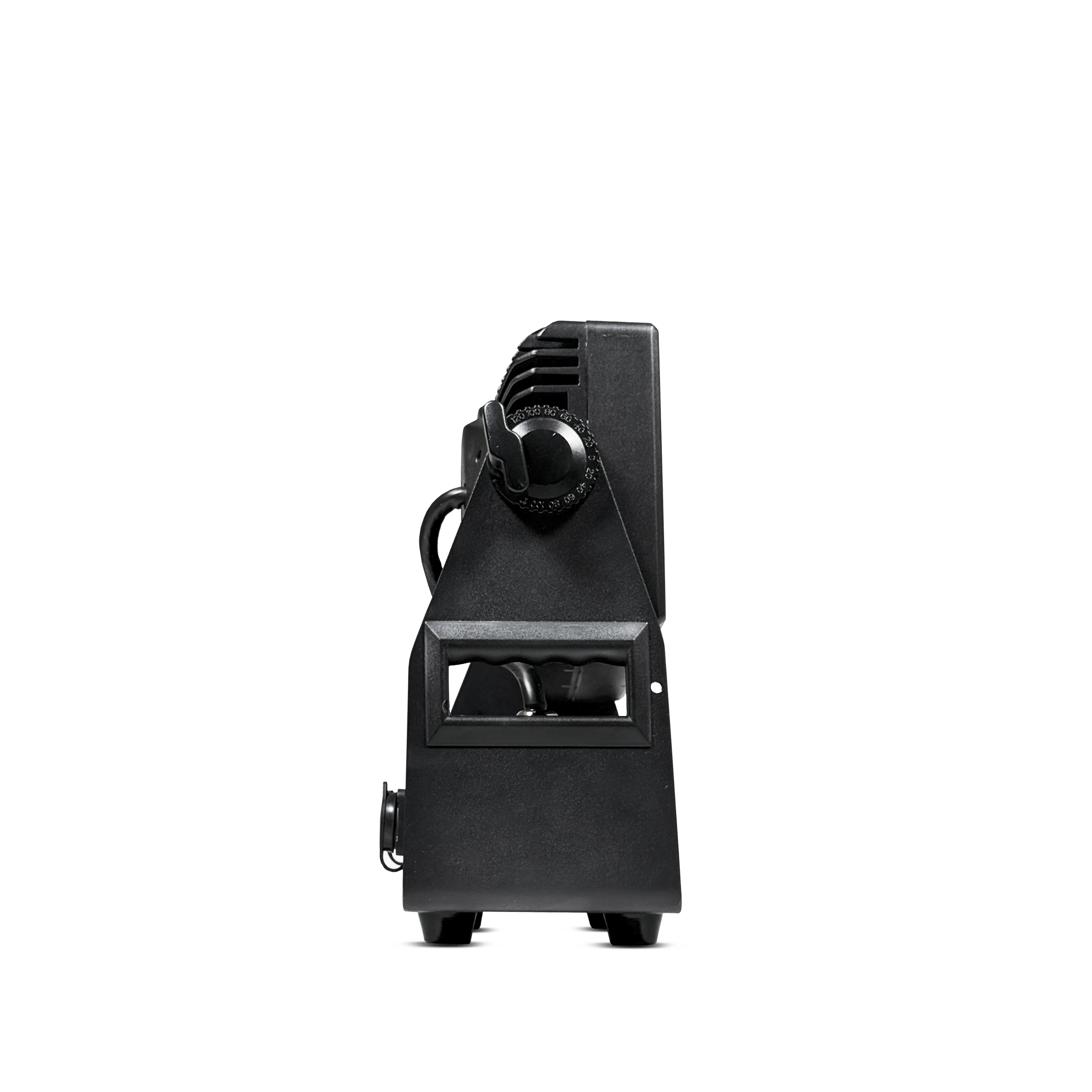

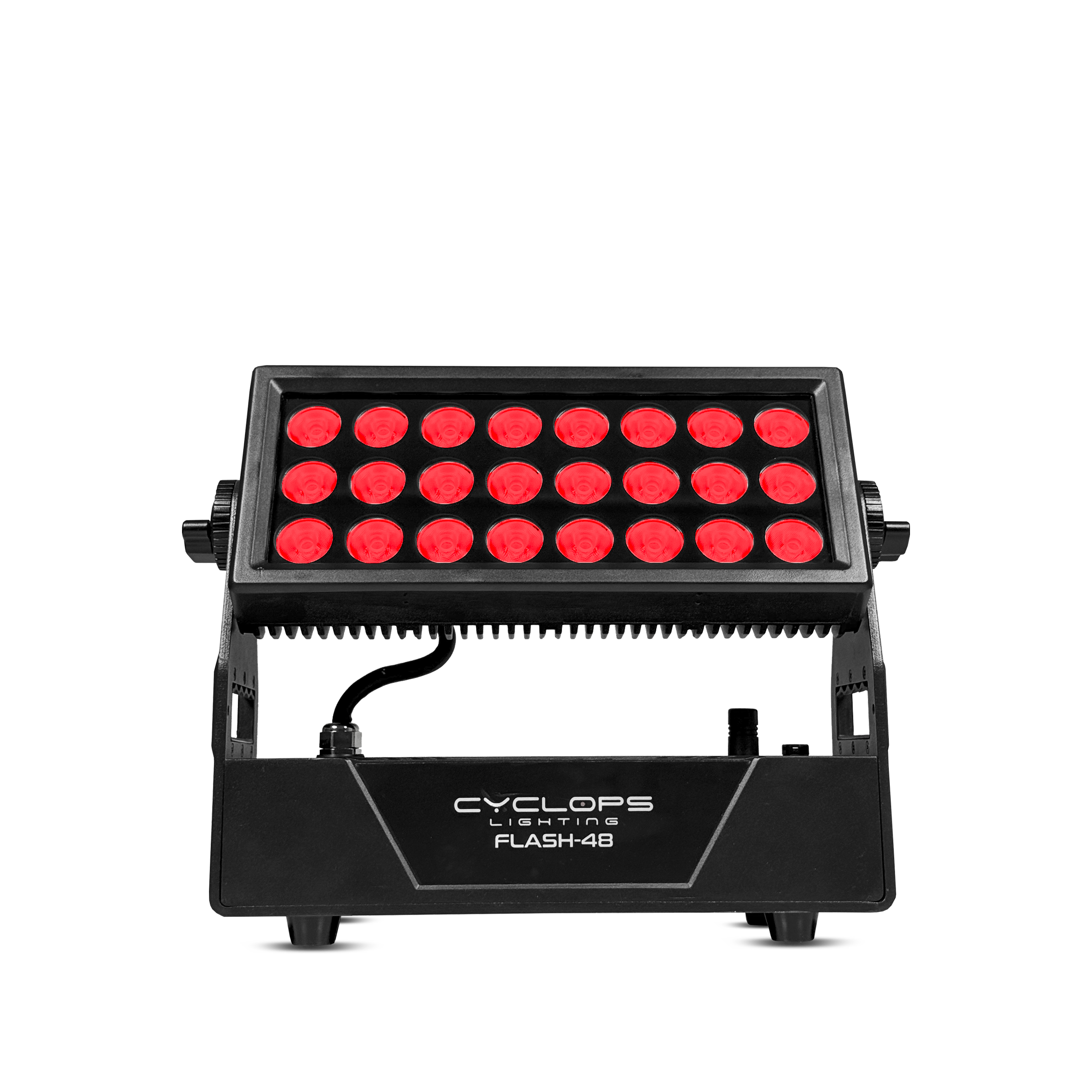

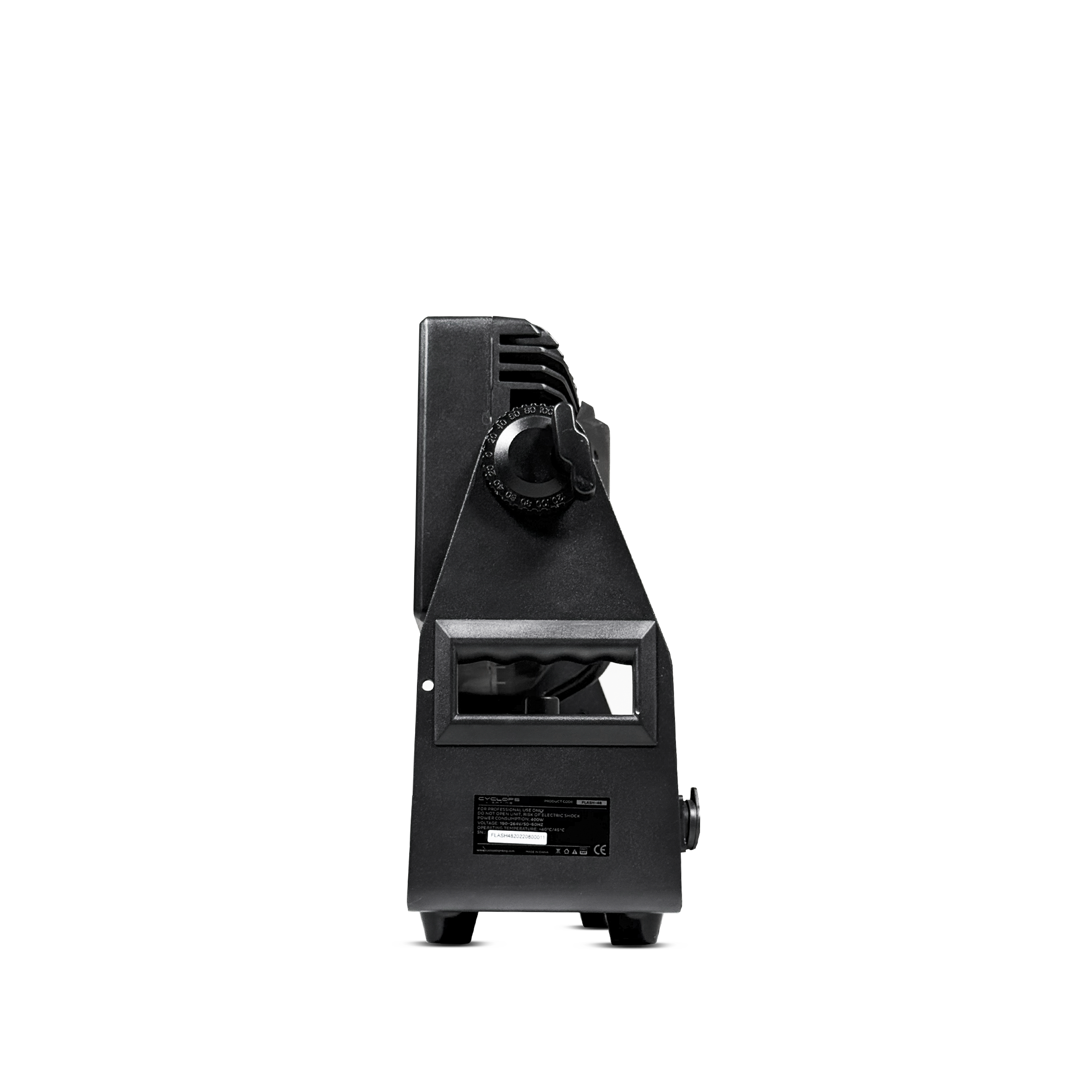

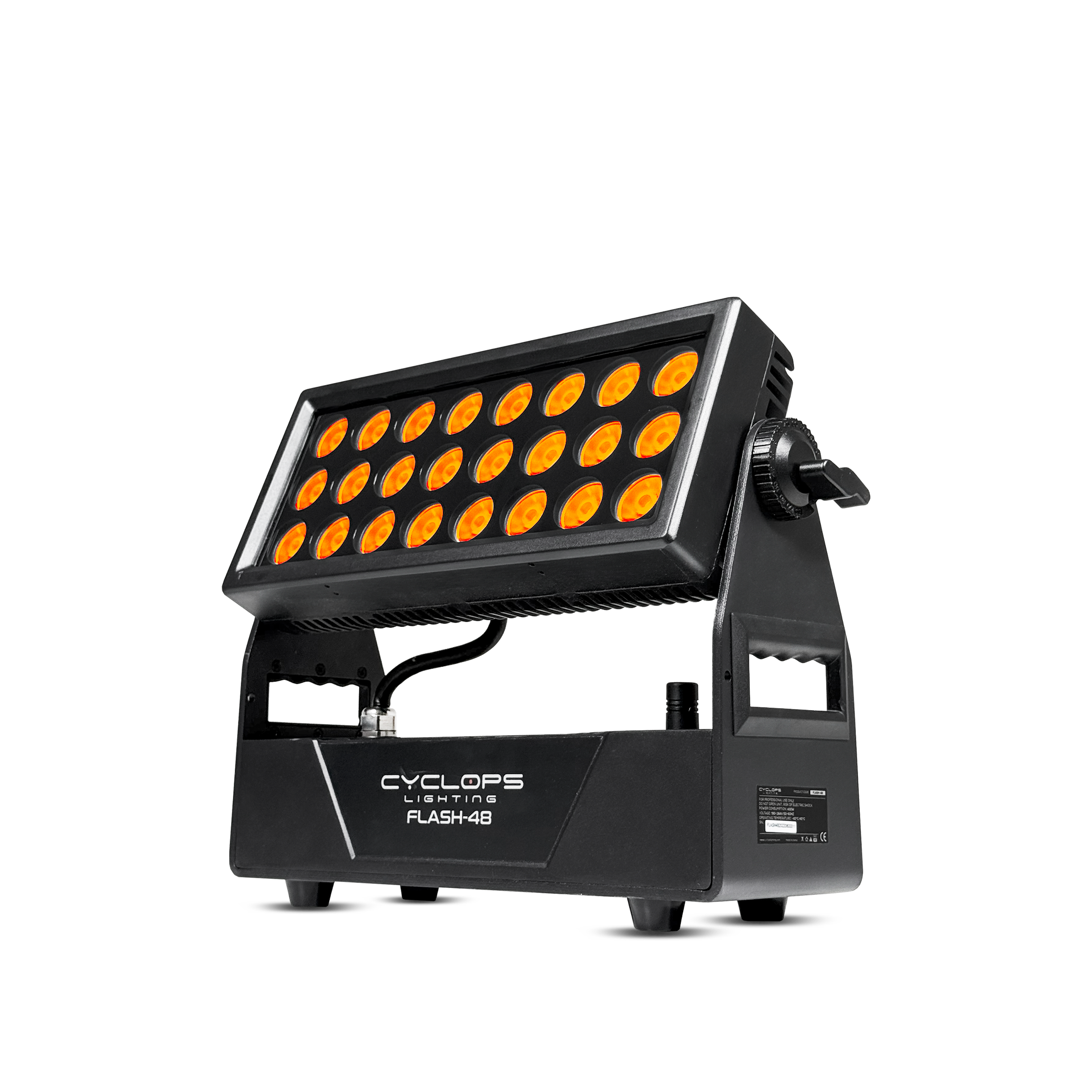

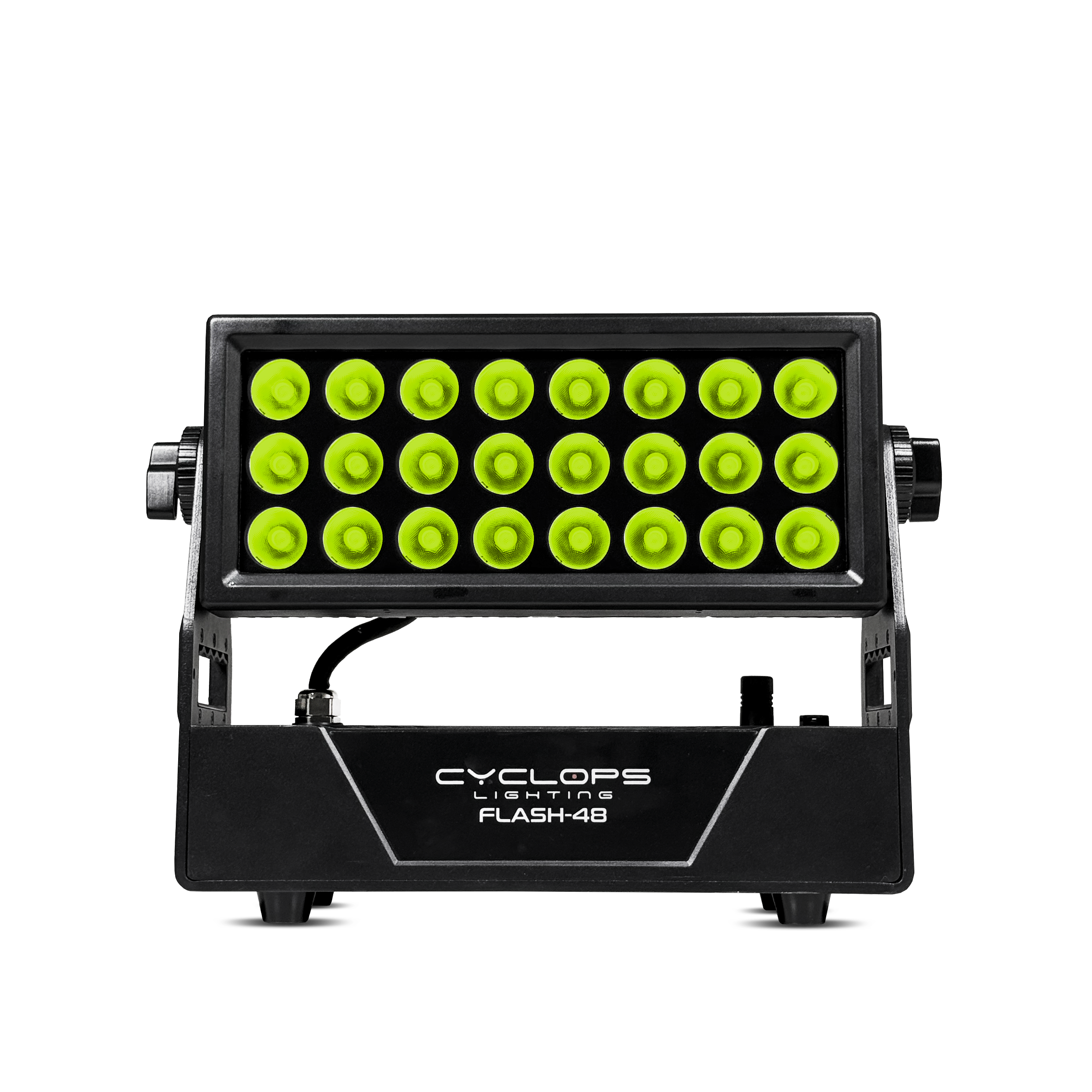

FLASH 48

24x20 watts RGBW Powerful Light outdoor LED wash

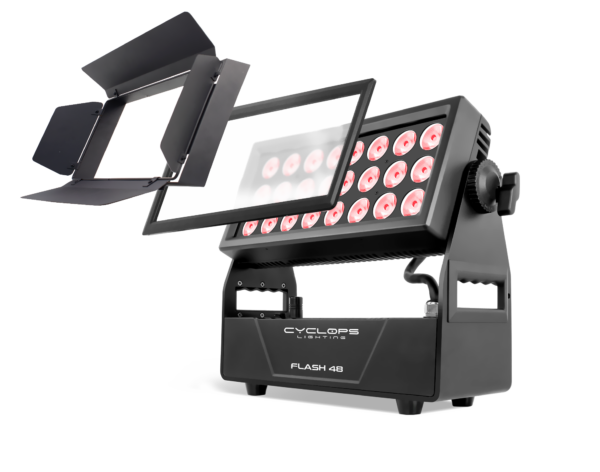

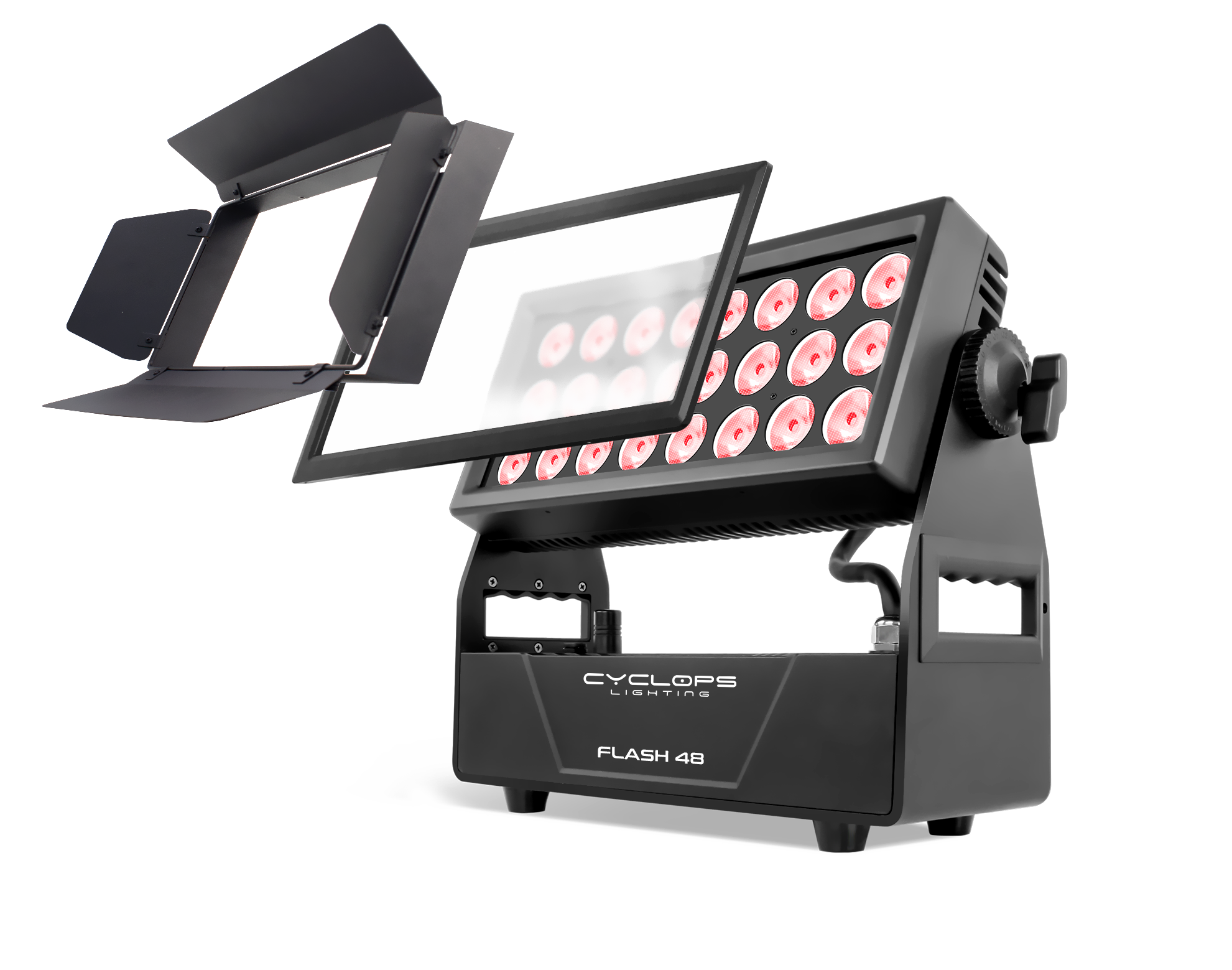

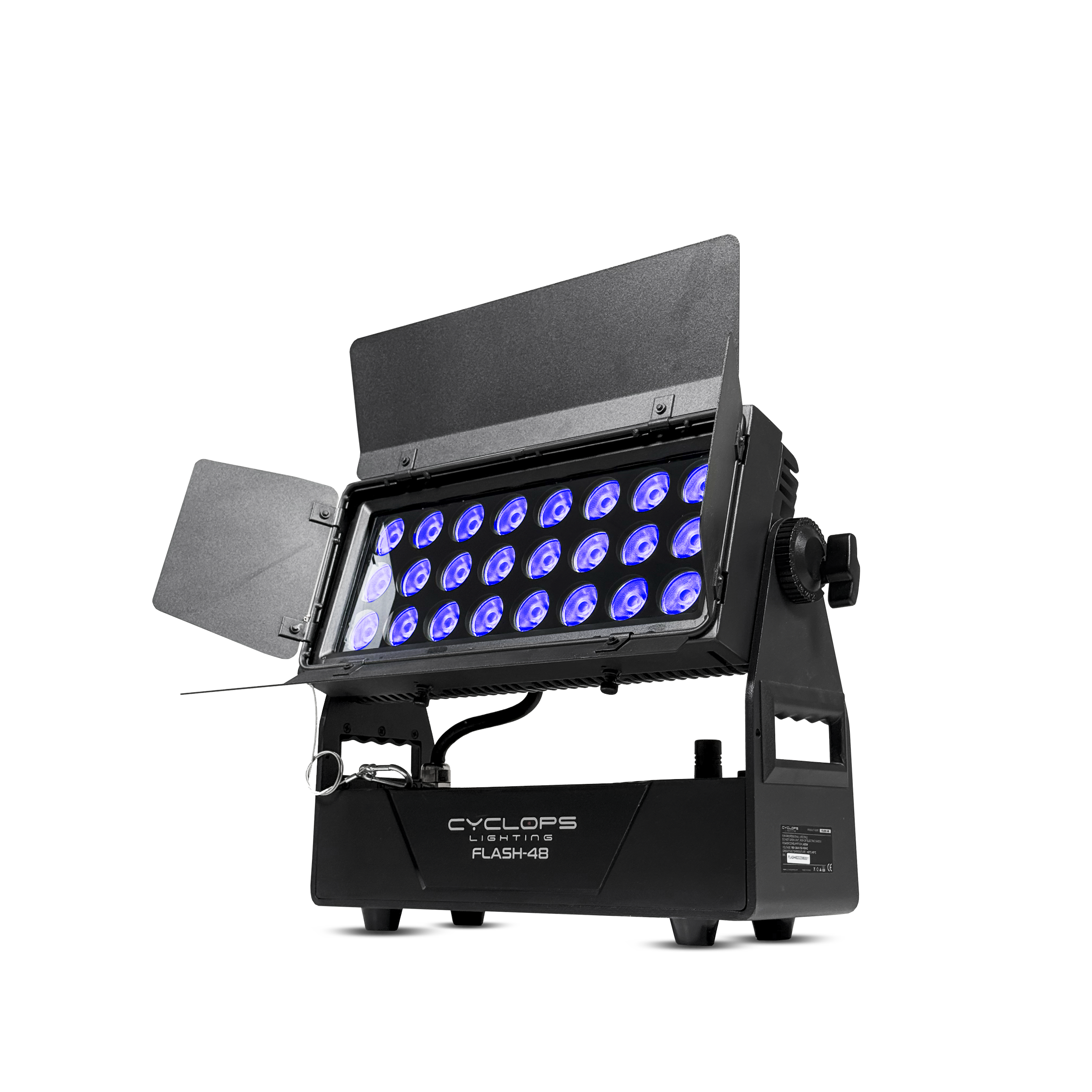

FLASH 48  is a multifunctional and compact IP65 LED wash light powered by 24 x 20 watts RGBW LEDs. In addition to its default long throw beam angle of 20°, it comes packed with a magnetic diffuser filter providing a wide 40° wash  for medium throw applications. The powerful fight output can also be shaped using the 4-way barn doors included with this fixture. Flash 48 features RDM control and is equipped with a built-in W-DMX™ wireless DMX receiver by Wireless Solution Sweden.

SKU: Flash48 Categories: ,

SOURCE

  • Light source: 24 x 20 watts, RGBW LEDs
  • LED life expectancy: 50,000 Hrs.
  • CRI <85

OPTICAL SYSTEM

  • Beam angle: 20°
  • 40° with a magnetic diffuser filter
  • Light output: 35,000 Lux @ 2m @ 20°

DYNAMIC EFFECTS

  • Color mixing: RGBW
  • Strobe effect
  • Built-in color and dynamic macros

CONTROL & PROGRAMMING

  • Control protocols: DMX, RDM, W-DMX™ by Wireless Solution
  • Display: OLED graphical display with 4 buttons
  • Control channels: 3, 4, 6, 8, 9 & 10 CHs

ELECTRICAL

  • Input voltage: 190-264V/50-60Hz
  • Power consumption: 480 watts
  • Power supply: Auto-ranging electronic switch-mode

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: IP Powercon In/Out

PHYSICAL

  • Dimensions: 468 x 168 x 337mm
  • Net weight: 12 Kg
  • Color: Black
  • Housing: Die-cast Aluminum
  • IP rating: 65
  • Operating temperature: -40°C/50°C
