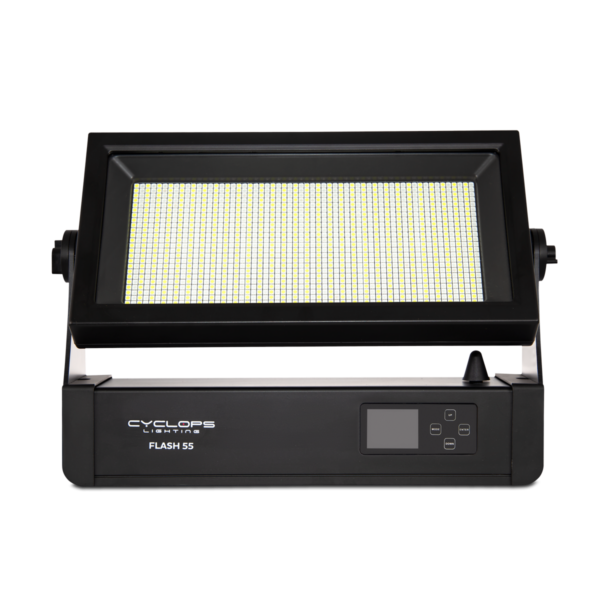

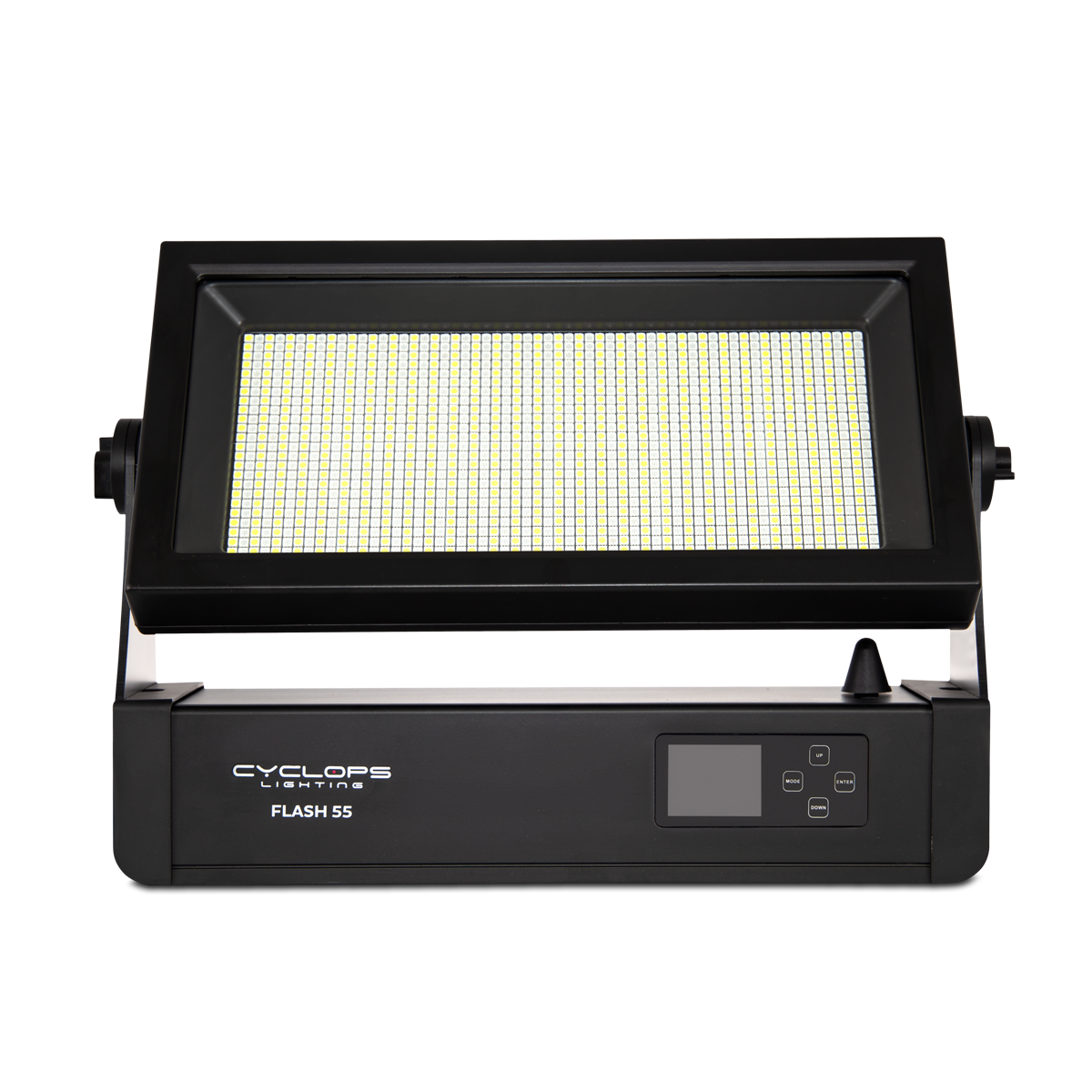

FLASH 55

Flash 55 is a 1440 x 0.2 watts RGBW LED wash and strobe. It has a solid waterproof structure with an IP rating of 65. Each 12 LEDs can be controlled separately which brings out a dynamic wash and strobe effect. It can be floor seated or hanged on truss, perfectly fits any outdoor and indoor event and installation.

SKU: FLASH55 Categories: ,

SOURCE

  • Light source: 720 x 0.2 watts RGBW, LEDs 720 x 0.2 watts White LEDs
  • Lamp life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle:  110°

DYNAMIC EFFECTS

  • Dimmer: linear adjustment
  • Color mixing: RGBW
  • 4 dimmer curves
  • Variable strobe
  • Individual zones control
  • Built-in color and dynamic macros

CONTROL & PROGRAMMING

  • Control protocols: DMX, WDMX, Master/Slave
  • Display: 2.4” TFT display operation
  • Control channels: 4_1, 4_2, 6, 10, 14, 16, 48, 50, 64 CHs

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 280 watts

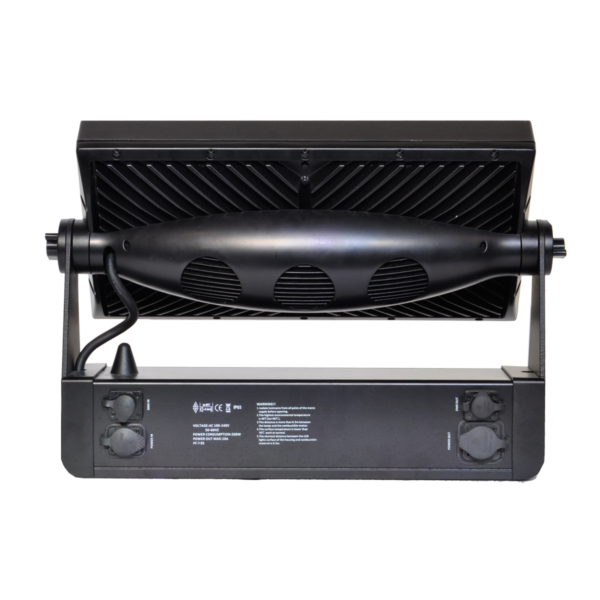

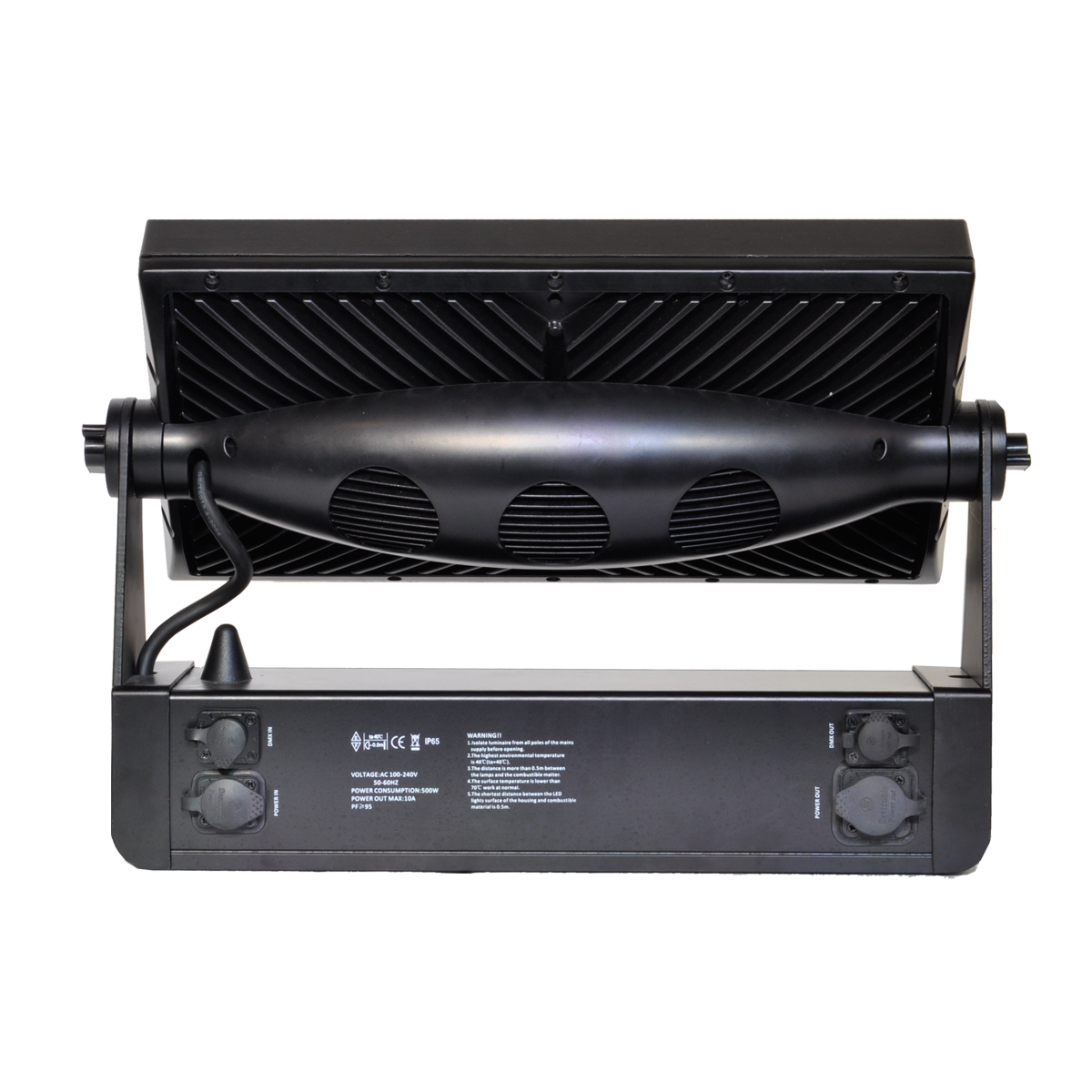

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: IP Powercon In/Out

PHYSICAL

  • Dimensions: 509x 326 x 226mm
  • Net weight: 12.9 Kg
  • Housing: Aluminum
  • Color: Black
  • IP rating: 65
  • Operating temperature: – 20°C/40°C
