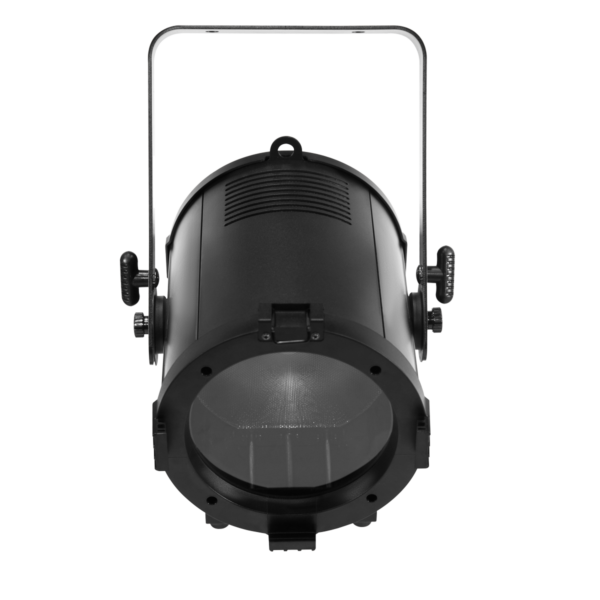

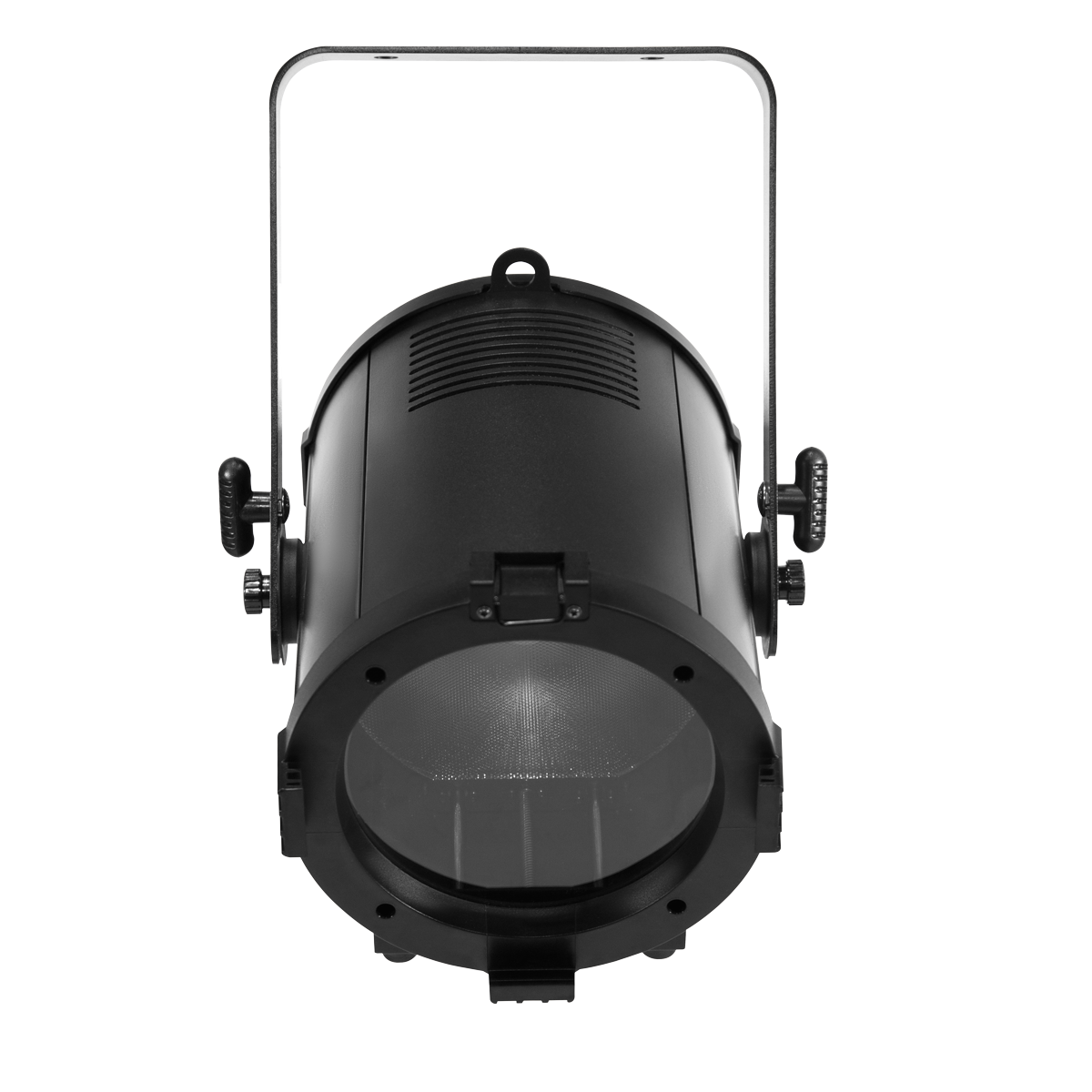

FR 200F

200 watts RGBW powered LED Fresnel

FR 200F is a 200 watts RGBW LED Fresnel with motorized zoom. The multicolor powerful COB LED can deliver a bright color output and a smooth color transition. With a motorized zoom of 15 to 60°, this Fresnel a flexible wash source for lighting designers in multi-purpose theatres and studios. It is RDM compatible and comes with barn doors to sculpt and shape the light.

SKU: FR200F Categories: ,

Videos

SOURCE

  • Light source: 200 watts RGBW COB LED
  • LED life expectancy: 50,000 Hrs.
  • CRI: 75 Ra

OPTICAL SYSTEM

  • Electronic zoom
  • Zoom angle: 15° to 60° motorized
  • Light output: 2308lux @3m 15°

KEY FEATURES

  • 5 Dimmer curves
  • Color mixing: RGBW
  • Strobe
  • Video flicker free with selectable PWM
  • Intelligent temperature control
  • Silent operation
  • PMMA polymethyl methacrylate lens
  • Barn doors included

CONTROL & PROGRAMMING

  • Control protocols: Rotary, DMX, RDM
  • Control channels: ARC.1(3CH), AR1.D(4CH), ARC.2(4CH), AR2.D(5CH), AR2.S(6CH), HSV(3CH), STAG (12CH)
  • Video flicker free

ELECTRICAL

  • Input voltage: AC100-240V/50-60Hz

CONNECTIONS

  • DMX connections: 3 pin and 5 pin XLR In/Out male and female
  • Power connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 315 x 296 x 330mm
  • Net weight: 8 Kg
  • Color: Black
  • Housing: Aluminum
  • IP rating: 20
  • Operating temperature: -5°C/45°C
